Telecentric lenses
5 MP telecentric and fixed-magnification lenses (LS-TCL-S60)
- 170 models
- from $839.00
- Series LS-TCL-S60
The 5 MP telecentric and fixed-magnification lenses (LS-TCL-S60) is a range of 170 telecentric lenses from LumaSpec Vision, from $839.00. It comes in 88 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.15x, WD 450 mm, 1/2", 0.15x, WD 680 mm, 2/3", 0.22x, WD 250 mm, 1/2.5", C-mount, 0.3x, WD 110 mm, 1/1.8", C-mount, 0.3x, WD 110 mm, 1/2", C-mount, 0.3x, WD 470 mm, 2/3", 0.35x, WD 560 mm, 1", 0.35x, WD 560 mm, 2/3", 0.45x, WD 135 mm, 2/3", C-mount, 0.46x, WD 90 mm, 1/3", C-mount, 0.48x, WD 240 mm, 2/3", 0.5x, WD 110 mm, 2/3", C-mount, 0.5x, WD 150 mm, 2/3", C-mount, 0.5x, WD 180 mm, 1/2", 0.5x, WD 180 mm, 1/2", C-mount, 0.5x, WD 180 mm, 2/3" and 72 more
- Mount
- C-mount
- Image circle
- Up to 8 mm, 8-11 mm, 11-16 mm
- Type
- Object-side telecentric
- Magnification
- 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x +
- Working distance
- Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 1/2.5" and smaller, 1/2", 1/1.8" - 1/1.56", 2/3", 1/1.2", 1", 4/3" - APS-C
- Coaxial light
- Built-in coaxial light, No coaxial port
Features
- A smaller field than the 8.0x version
- Covers sensors up to 2/3" (11 mm diagonal) without dark corners; a larger sensor would vignette
- Stays sharp over about 0.03 mm of height: parts must sit within ±0.01 mm of focus
- 0.1 % distortion: a corner point of the 1.1 mm field lands within about 0.55 µm of its true place
- Telecentricity under 0.1°: a 1 mm change in part height moves an edge by under about 1.7 µm
- Separates details about 2.6 µm apart on the part: about 340 across the 0.9 mm wide field
- 10x magnification at 63 mm working distance
- One step down in the series is the 8.0x version
All 170 models in the 5 MP telecentric and fixed-magnification lenses (LS-TCL-S60)
| Link | ||||||
|---|---|---|---|---|---|---|

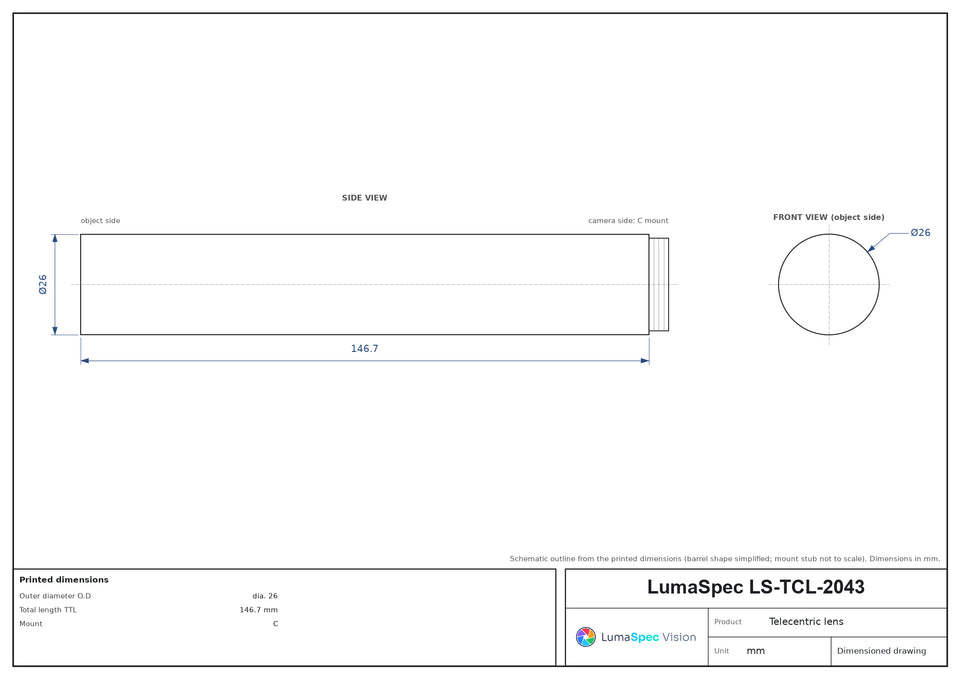

| LS-TCL-2043 | 10x, WD 63 mm, 2/3", C-mount | 2/3" | 10.0 | 63 | $839.00 | View |
| LS-TCL-2044 | 10x, WD 63 mm, 2/3", C-mount | 2/3" | 10.0 | 63 | $839.00 | View |
| LS-TCL-2077 | 7.5x, WD 65 mm, 2/3", C-mount | 2/3" | 7.5 | 65 | $839.00 | View |
| LS-TCL-2079 | 7.5x, WD 65 mm, 2/3", C-mount | 2/3" | 7.5 | 65 | $839.00 | View |
| LS-TCL-2080 | 7.5x, WD 65 mm, 2/3", C-mount | 2/3" | 7.5 | 65 | $839.00 | View |
| LS-TCL-2081 | 7.5x, WD 65 mm, 2/3", C-mount | 2/3" | 7.5 | 65 | $839.00 | View |
| LS-TCL-2031 | 8x, WD 65 mm, 2/3", C-mount | 2/3" | 8.0 | 65 | $839.00 | View |
| LS-TCL-2033 | 8x, WD 65 mm, 2/3", C-mount | 2/3" | 8.0 | 65 | $839.00 | View |
| LS-TCL-2018 | 6x, WD 110 mm, 2/3", C-mount | 2/3" | 6.0 | 110 | $849.00 | View |
| LS-TCL-2019 | 6x, WD 110 mm, 2/3", C-mount | 2/3" | 6.0 | 110 | $849.00 | View |
| LS-TCL-2016 | 6x, WD 65 mm, 2/3", C-mount | 2/3" | 6.0 | 65 | $849.00 | View |
| LS-TCL-2017 | 6x, WD 65 mm, 2/3", C-mount | 2/3" | 6 | 65 | $849.00 | View |
| LS-TCL-2013 | 0.5x, WD 360 mm, 4/3" | 0.5 | 360 | $1,069.00 | View | |
| LS-TCL-2082 | 0.75x, WD 220 mm, 2/3", C-mount | 2/3" | 0.75 | 220 | $1,139.00 | View |
| LS-TCL-2076 | 0.75x, WD 65 mm, 2/3", C-mount | 2/3" | 0.75 | 65 | $1,139.00 | View |
| LS-TCL-2078 | 0.75x, WD 65 mm, 2/3", C-mount | 2/3" | 0.75 | 65 | $1,139.00 | View |
| LS-TCL-2026 | 0.7x, WD 145 mm, 2/3", C-mount | 2/3" | 0.7 | 145 | $1,169.00 | View |
| LS-TCL-2027 | 0.7x, WD 145 mm, 2/3", C-mount | 2/3" | 0.7 | 145 | $1,169.00 | View |
| LS-TCL-2028 | 0.7x, WD 145 mm, 2/3", C-mount | 2/3" | 0.7 | 145 | $1,169.00 | View |
| LS-TCL-2029 | 0.7x, WD 145 mm, 2/3", C-mount | 2/3" | 0.7 | 145 | $1,169.00 | View |
| LS-TCL-2024 | 0.7x, WD 70 mm, 2/3", C-mount | 2/3" | 0.7 | 70 | $1,169.00 | View |
| LS-TCL-2025 | 0.7x, WD 70 mm, 2/3", C-mount | 2/3" | 0.7 | 70 | $1,169.00 | View |
| LS-TCL-1921 | 0.5x, WD 180 mm, 1/2", C-mount | 1/2" | 0.5 | 180 | $1,179.00 | View |
| LS-TCL-1922 | 0.5x, WD 180 mm, 1/2" | 1/2" | 0.5 | 180 | $1,179.00 | View |
| LS-TCL-1923 | 0.5x, WD 190 mm, 1/2", C-mount | 1/2" | 0.5 | 190 | $1,179.00 | View |
| LS-TCL-1924 | 0.5x, WD 350 mm, 1/2", C-mount | 1/2" | 0.5 | 350 | $1,179.00 | View |
| LS-TCL-1925 | 0.5x, WD 350 mm, 1/2", C-mount | 1/2" | 0.5 | 350 | $1,179.00 | View |
| LS-TCL-1930 | 0.5x, WD 510 mm, 1/2" | 1/2" | 0.5 | 510 | $1,179.00 | View |
| LS-TCL-1931 | 0.5x, WD 510 mm, 1/2" | 1/2" | 0.5 | 510 | $1,179.00 | View |
| LS-TCL-2034 | 0.8x, WD 110 mm, 2/3", C-mount | 2/3" | 0.8 | 110 | $1,199.00 | View |
| LS-TCL-2035 | 0.8x, WD 110 mm, 2/3", C-mount | 2/3" | 0.8 | 110 | $1,199.00 | View |
| LS-TCL-2036 | 0.8x, WD 130 mm, 2/3", C-mount | 2/3" | 0.8 | 130 | $1,199.00 | View |
| LS-TCL-2037 | 0.8x, WD 130 mm, 2/3", C-mount | 2/3" | 0.8 | 130 | $1,199.00 | View |
| LS-TCL-2038 | 0.8x, WD 130 mm, 2/3", C-mount | 2/3" | 0.8 | 130 | $1,199.00 | View |
| LS-TCL-2039 | 0.8x, WD 130 mm, 2/3", C-mount | 2/3" | 0.8 | 130 | $1,199.00 | View |
| LS-TCL-2040 | 0.8x, WD 180 mm, 2/3", C-mount | 2/3" | 0.8 | 180 | $1,199.00 | View |
| LS-TCL-2041 | 0.8x, WD 180 mm, 2/3", C-mount | 2/3" | 0.8 | 180 | $1,199.00 | View |
| LS-TCL-2030 | 0.8x, WD 65 mm, 2/3", C-mount | 2/3" | 0.8 | 65 | $1,199.00 | View |
| LS-TCL-2032 | 0.8x, WD 65 mm, 2/3", C-mount | 2/3" | 0.8 | 65 | $1,199.00 | View |
| LS-TCL-2020 | 0.6x, WD 150 mm, 2/3", C-mount | 2/3" | 0.6 | 150 | $1,229.00 | View |
| LS-TCL-2021 | 0.6x, WD 150 mm, 2/3", C-mount | 2/3" | 0.6 | 150 | $1,229.00 | View |
| LS-TCL-2022 | 0.6x, WD 158 mm, 2/3", C-mount | 2/3" | 0.6 | 158 | $1,229.00 | View |
| LS-TCL-2023 | 0.6x, WD 158 mm, 2/3", C-mount | 2/3" | 0.6 | 158 | $1,229.00 | View |
| LS-TCL-1947 | 3x, WD 250 mm, 1/1.8", C-mount | 1/1.8" | 3 | 250 | $1,239.00 | View |
| LS-TCL-1948 | 3x, WD 250 mm, 1/1.8", C-mount | 1/1.8" | 3 | 250 | $1,239.00 | View |
| LS-TCL-1910 | 2x, WD 180 mm, 1", C-mount | 1" | 2.0 | 180 | $1,239.00 | View |
| LS-TCL-1911 | 2x, WD 180 mm, 1", C-mount | 1" | 2.0 | 180 | $1,239.00 | View |
| LS-TCL-1954 | 2x, WD 200 mm, 1/2.5", C-mount | 1/2.5" | 2.0 | 200 | $1,239.00 | View |
| LS-TCL-1955 | 2x, WD 200 mm, 1/2.5", C-mount | 1/2.5" | 2.0 | 200 | $1,239.00 | View |
| LS-TCL-2045 | 1x, WD 110 mm, 2/3" | 2/3" | 1 | 110 | $1,239.00 | View |
| LS-TCL-2046 | 1x, WD 450 mm, 2/3" | 2/3" | 1 | 450 | $1,239.00 | View |
| LS-TCL-2047 | 1x, WD 450 mm, 2/3" | 2/3" | 1 | 450 | $1,239.00 | View |
| LS-TCL-2083 | 1.25x, WD 96 mm, 2/3", C-mount | 2/3" | 1.25 | 96 | $1,239.00 | View |
| LS-TCL-2084 | 1.25x, WD 96 mm, 2/3", C-mount | 2/3" | 1.25 | 96 | $1,239.00 | View |
| LS-TCL-2085 | 1.25x, WD 96 mm, 2/3", C-mount | 2/3" | 1.25 | 96 | $1,239.00 | View |
| LS-TCL-2086 | 1.25x, WD 96 mm, 2/3" | 2/3" | 1.25 | 96 | $1,239.00 | View |
| LS-TCL-2087 | 1.25x, WD 96 mm, 2/3", C-mount | 2/3" | 1.25 | 96 | $1,239.00 | View |
| LS-TCL-2088 | 1.25x, WD 96 mm, 2/3" | 2/3" | 1.25 | 96 | $1,239.00 | View |
| LS-TCL-2048 | 1.3x, WD 73 mm, 2/3", C-mount | 2/3" | 1.3 | 73 | $1,239.00 | View |
| LS-TCL-2053 | 1.5x, WD 110 mm, 2/3", C-mount | 2/3" | 1.5 | 110 | $1,239.00 | View |
| LS-TCL-2054 | 1.5x, WD 110 mm, 2/3", C-mount | 2/3" | 1.5 | 110 | $1,239.00 | View |
| LS-TCL-2055 | 1.5x, WD 135 mm, 2/3", C-mount | 2/3" | 1.5 | 135 | $1,239.00 | View |
| LS-TCL-2056 | 1.5x, WD 135 mm, 2/3", C-mount | 2/3" | 1.5 | 135 | $1,239.00 | View |
| LS-TCL-2057 | 1.5x, WD 200 mm, 2/3", C-mount | 2/3" | 1.5 | 200 | $1,239.00 | View |
| LS-TCL-2058 | 1.5x, WD 200 mm, 2/3", C-mount | 2/3" | 1.5 | 200 | $1,239.00 | View |
| LS-TCL-2059 | 1.5x, WD 230 mm, 2/3", C-mount | 2/3" | 1.5 | 230 | $1,239.00 | View |
| LS-TCL-2060 | 1.5x, WD 230 mm, 2/3", C-mount | 2/3" | 1.5 | 230 | $1,239.00 | View |
| LS-TCL-2061 | 1.5x, WD 330 mm, 2/3", C-mount | 2/3" | 1.5 | 330 | $1,239.00 | View |
| LS-TCL-2062 | 1.5x, WD 330 mm, 2/3", C-mount | 2/3" | 1.5 | 330 | $1,239.00 | View |
| LS-TCL-2063 | 1.5x, WD 410 mm, 2/3", C-mount | 2/3" | 1.5 | 410 | $1,239.00 | View |
| LS-TCL-2064 | 1.5x, WD 410 mm, 2/3", C-mount | 2/3" | 1.5 | 410 | $1,239.00 | View |
| LS-TCL-2049 | 1.5x, WD 65 mm, 2/3", C-mount | 2/3" | 1.5 | 65 | $1,239.00 | View |
| LS-TCL-2050 | 1.5x, WD 65 mm, 2/3", C-mount | 2/3" | 1.5 | 65 | $1,239.00 | View |
| LS-TCL-2051 | 1.5x, WD 85 mm, 2/3", C-mount | 2/3" | 1.5 | 85 | $1,239.00 | View |
| LS-TCL-2052 | 1.5x, WD 85 mm, 2/3", C-mount | 2/3" | 1.5 | 85 | $1,239.00 | View |
| LS-TCL-1961 | 1x, WD 110 mm, 2/3", C-mount | 2/3" | 1.0 | 110 | $1,239.00 | View |
| LS-TCL-1962 | 1x, WD 110 mm, 2/3", C-mount | 2/3" | 1.0 | 110 | $1,239.00 | View |
| LS-TCL-1963 | 1x, WD 110 mm, 2/3", C-mount | 2/3" | 1.0 | 110 | $1,239.00 | View |
| LS-TCL-1964 | 1x, WD 110 mm, 2/3", C-mount | 2/3" | 1.0 | 110 | $1,239.00 | View |
| LS-TCL-1966 | 1x, WD 180 mm, 2/3", C-mount | 2/3" | 1 | 180 | $1,239.00 | View |
| LS-TCL-1967 | 1x, WD 180 mm, 2/3", C-mount | 2/3" | 1 | 180 | $1,239.00 | View |
| LS-TCL-1968 | 1x, WD 330 mm, 2/3", C-mount | 2/3" | 1 | 330 | $1,239.00 | View |
| LS-TCL-1969 | 1x, WD 330 mm, 2/3", C-mount | 2/3" | 1 | 330 | $1,239.00 | View |
| LS-TCL-1970 | 1x, WD 410 mm, 2/3", C-mount | 2/3" | 1.0 | 410 | $1,239.00 | View |
| LS-TCL-1971 | 1x, WD 410 mm, 2/3", C-mount | 2/3" | 1.0 | 410 | $1,239.00 | View |
| LS-TCL-1972 | 1x, WD 440 mm, 2/3", C-mount | 2/3" | 1.0 | 440 | $1,239.00 | View |
| LS-TCL-1973 | 1x, WD 440 mm, 2/3", C-mount | 2/3" | 1.0 | 440 | $1,239.00 | View |
| LS-TCL-1974 | 1x, WD 510 mm, 2/3", C-mount | 2/3" | 1.0 | 510 | $1,239.00 | View |
| LS-TCL-1975 | 1x, WD 510 mm, 2/3", C-mount | 2/3" | 1.0 | 510 | $1,239.00 | View |
| LS-TCL-1959 | 1x, WD 65 mm, 2/3", C-mount | 2/3" | 1.0 | 65 | $1,239.00 | View |
| LS-TCL-1960 | 1x, WD 65 mm, 2/3", C-mount | 2/3" | 1.0 | 65 | $1,239.00 | View |
| LS-TCL-1976 | 1x, WD 700 mm, 2/3", C-mount | 2/3" | 1.0 | 700 | $1,239.00 | View |
| LS-TCL-2067 | 2x, WD 110 mm, 2/3" | 2/3" | 2 | 110 | $1,239.00 | View |
| LS-TCL-2066 | 2x, WD 65 mm, 2/3" | 2/3" | 2 | 65 | $1,239.00 | View |
| LS-TCL-2069 | 2.5x, WD 300 mm, 2/3", C-mount | 2/3" | 2.5 | 300 | $1,239.00 | View |
| LS-TCL-2070 | 2.5x, WD 300 mm, 2/3", C-mount | 2/3" | 2.5 | 300 | $1,239.00 | View |
| LS-TCL-1979 | 2x, WD 110 mm, 2/3", C-mount | 2/3" | 2.0 | 110 | $1,239.00 | View |
| LS-TCL-1980 | 2x, WD 110 mm, 2/3", C-mount | 2/3" | 2.0 | 110 | $1,239.00 | View |
| LS-TCL-1981 | 2x, WD 110 mm, 2/3", C-mount | 2/3" | 2.0 | 110 | $1,239.00 | View |
| LS-TCL-1982 | 2x, WD 110 mm, 2/3", C-mount | 2/3" | 2.0 | 110 | $1,239.00 | View |
| LS-TCL-1983 | 2x, WD 135 mm, 2/3", C-mount | 2/3" | 2.0 | 135 | $1,239.00 | View |
| LS-TCL-1984 | 2x, WD 135 mm, 2/3", C-mount | 2/3" | 2.0 | 135 | $1,239.00 | View |
| LS-TCL-1985 | 2x, WD 150 mm, 2/3", C-mount | 2/3" | 2.0 | 150 | $1,239.00 | View |
| LS-TCL-1986 | 2x, WD 150 mm, 2/3", C-mount | 2/3" | 2.0 | 150 | $1,239.00 | View |
| LS-TCL-1987 | 2x, WD 200 mm, 2/3", C-mount | 2/3" | 2.0 | 200 | $1,239.00 | View |
| LS-TCL-1988 | 2x, WD 200 mm, 2/3", C-mount | 2/3" | 2.0 | 200 | $1,239.00 | View |
| LS-TCL-1989 | 2x, WD 330 mm, 2/3", C-mount | 2/3" | 2.0 | 330 | $1,239.00 | View |
| LS-TCL-1990 | 2x, WD 330 mm, 2/3", C-mount | 2/3" | 2.0 | 330 | $1,239.00 | View |
| LS-TCL-1978 | 2x, WD 65 mm, 2/3", C-mount | 2/3" | 2 | 65 | $1,239.00 | View |
| LS-TCL-1993 | 3x, WD 110 mm, 2/3", C-mount | 2/3" | 3 | 110 | $1,239.00 | View |
| LS-TCL-1994 | 3x, WD 110 mm, 2/3", C-mount | 2/3" | 3 | 110 | $1,239.00 | View |
| LS-TCL-1991 | 3x, WD 65 mm, 2/3", C-mount | 2/3" | 3 | 65 | $1,239.00 | View |
| LS-TCL-1992 | 3x, WD 65 mm, 2/3", C-mount | 2/3" | 3 | 65 | $1,239.00 | View |
| LS-TCL-2001 | 4x, WD 110 mm, 2/3", C-mount | 2/3" | 4 | 110 | $1,239.00 | View |
| LS-TCL-2002 | 4x, WD 110 mm, 2/3", C-mount | 2/3" | 4 | 110 | $1,239.00 | View |
| LS-TCL-2003 | 4x, WD 150 mm, 2/3", C-mount | 2/3" | 4 | 150 | $1,239.00 | View |
| LS-TCL-2004 | 4x, WD 150 mm, 2/3", C-mount | 2/3" | 4 | 150 | $1,239.00 | View |
| LS-TCL-1997 | 4x, WD 65 mm, 2/3", C-mount | 2/3" | 4.0 | 65 | $1,239.00 | View |
| LS-TCL-1998 | 4x, WD 65 mm, 2/3", C-mount | 2/3" | 4.0 | 65 | $1,239.00 | View |
| LS-TCL-1999 | 4x, WD 65 mm, 2/3", C-mount | 2/3" | 4.0 | 65 | $1,239.00 | View |
| LS-TCL-2000 | 4x, WD 65 mm, 2/3", C-mount | 2/3" | 4.0 | 65 | $1,239.00 | View |
| LS-TCL-1937 | 1.7x, WD 200 mm, 1/2", C-mount | 1/2" | 1.7 | 200 | $1,249.00 | View |
| LS-TCL-1938 | 1.7x, WD 200 mm, 1/2", C-mount | 1/2" | 1.7 | 200 | $1,249.00 | View |
| LS-TCL-1951 | 1.3x, WD 200 mm, 1/1.8", C-mount | 1/1.8" | 1.3 | 200 | $1,249.00 | View |
| LS-TCL-1952 | 1.3x, WD 200 mm, 1/1.8", C-mount | 1/1.8" | 1.3 | 200 | $1,249.00 | View |
| LS-TCL-1953 | 1.3x, WD 210 mm, 1/1.8", C-mount | 1/1.8" | 1.3 | 210 | $1,249.00 | View |
| LS-TCL-1943 | 1.5x, WD 410 mm, 1/3", C-mount | 1/3" | 1.5 | 410 | $1,299.00 | View |
| LS-TCL-2068 | $1,309.00 | View | ||||
| LS-TCL-1995 | $1,309.00 | Request a quote | ||||
| LS-TCL-2074 | $1,309.00 | Request a quote | ||||
| LS-TCL-2006 | 0.5x, WD 110 mm, 2/3", C-mount | 2/3" | 0.5 | 110 | $1,309.00 | Request a quote |
| LS-TCL-2007 | 0.5x, WD 110 mm, 2/3", C-mount | 2/3" | 0.5 | 110 | $1,309.00 | Request a quote |
| LS-TCL-2008 | 0.5x, WD 110 mm, 2/3", C-mount | 2/3" | 0.5 | 110 | $1,309.00 | Request a quote |
| LS-TCL-2009 | 0.5x, WD 110 mm, 2/3", C-mount | 2/3" | 0.5 | 110 | $1,309.00 | Request a quote |
| LS-TCL-2010 | 0.5x, WD 150 mm, 2/3", C-mount | 2/3" | 0.5 | 150 | $1,309.00 | Request a quote |
| LS-TCL-2012 | 0.5x, WD 180 mm, 2/3" | 2/3" | 0.5 | 180 | $1,309.00 | Request a quote |
| LS-TCL-2014 | $1,309.00 | Request a quote | ||||
| LS-TCL-2015 | $1,309.00 | Request a quote | ||||
| LS-TCL-2005 | 0.5x, WD 65 mm, 2/3" | 2/3" | 0.5 | 65 | $1,309.00 | Request a quote |
| LS-TCL-2075 | 0.48x, WD 240 mm, 2/3" | 2/3" | 0.48 | 240 | $1,329.00 | Request a quote |
| LS-TCL-2072 | 0.45x, WD 135 mm, 2/3", C-mount | 2/3" | 0.45 | 135 | $1,369.00 | Request a quote |
| LS-TCL-2073 | 0.45x, WD 135 mm, 2/3", C-mount | 2/3" | 0.45 | 135 | $1,369.00 | Request a quote |
| LS-TCL-1941 | 0.8x, WD 65 mm, 1/3", C-mount | 1/3" | 0.8 | 65 | $1,409.00 | Request a quote |
| LS-TCL-1942 | 0.8x, WD 65 mm, 1/3", C-mount | 1/3" | 0.8 | 65 | $1,409.00 | Request a quote |
| LS-TCL-1920 | 0.3x, WD 110 mm, 1/2", C-mount | 1/2" | 0.3 | 110 | $1,419.00 | Request a quote |
| LS-TCL-1932 | 1x, WD 410 mm, 1/2" | 1/2" | 1 | 410 | $1,429.00 | Request a quote |
| LS-TCL-1933 | 1x, WD 410 mm, 1/2" | 1/2" | 1 | 410 | $1,429.00 | Request a quote |
| LS-TCL-1934 | 1x, WD 510 mm, 1/2" | 1/2" | 1 | 510 | $1,429.00 | Request a quote |
| LS-TCL-1935 | 1x, WD 510 mm, 1/2" | 1/2" | 1 | 510 | $1,429.00 | Request a quote |
| LS-TCL-1916 | 1x, WD 180 mm, 1/2", C-mount | 1/2" | 1 | 180 | $1,429.00 | Request a quote |
| LS-TCL-1917 | 1x, WD 180 mm, 1/2", C-mount | 1/2" | 1 | 180 | $1,429.00 | Request a quote |
| LS-TCL-1918 | 1x, WD 300 mm, 1/2", C-mount | 1/2" | 1 | 300 | $1,429.00 | Request a quote |
| LS-TCL-1919 | 1x, WD 300 mm, 1/2", C-mount | 1/2" | 1 | 300 | $1,429.00 | Request a quote |
| LS-TCL-2071 | 0.35x, WD 560 mm, 2/3" | 2/3" | 0.35 | 560 | $1,529.00 | Request a quote |
| LS-TCL-1912 | 0.5x, WD 600 mm, 1" | 1" | 0.5 | 600 | $1,539.00 | Request a quote |
| LS-TCL-1939 | 0.5x, WD 65 mm, 1/3", C-mount | 1/3" | 0.5 | 65 | $1,559.00 | Request a quote |
| LS-TCL-1940 | 0.5x, WD 65 mm, 1/3", C-mount | 1/3" | 0.5 | 65 | $1,559.00 | Request a quote |
| LS-TCL-1944 | 0.46x, WD 90 mm, 1/3", C-mount | 1/3" | 0.46 | 90 | $1,589.00 | Request a quote |
| LS-TCL-1958 | 0.22x, WD 250 mm, 1/2.5", C-mount | 1/2.5" | 0.22 | 250 | $1,589.00 | Request a quote |
| LS-TCL-1965 | 1x, WD 150 mm, C-mount | 1 | 150 | $1,629.00 | Request a quote | |
| LS-TCL-1956 | 0.5x, WD 260 mm, 1/2.5", C-mount | 1/2.5" | 0.5 | 260 | $1,639.00 | Request a quote |
| LS-TCL-1957 | 0.5x, WD 260 mm, 1/2.5", C-mount | 1/2.5" | 0.5 | 260 | $1,639.00 | Request a quote |
| LS-TCL-1996 | 0.3x, WD 470 mm, 2/3" | 2/3" | 0.3 | 470 | $1,649.00 | Request a quote |
| LS-TCL-1945 | 0.3x, WD 110 mm, 1/1.8", C-mount | 1/1.8" | 0.3 | 110 | $1,709.00 | Request a quote |
| LS-TCL-1946 | 0.3x, WD 110 mm, 1/1.8", C-mount | 1/1.8" | 0.3 | 110 | $1,709.00 | Request a quote |
| LS-TCL-1949 | 0.5x, WD 510 mm, 1/1.8", C-mount | 1/1.8" | 0.5 | 510 | $1,719.00 | Request a quote |
| LS-TCL-1950 | 0.5x, WD 510 mm, 1/1.8", C-mount | 1/1.8" | 0.5 | 510 | $1,719.00 | Request a quote |
| LS-TCL-1913 | 0.35x, WD 560 mm, 1" | 1" | 0.35 | 560 | $1,859.00 | Request a quote |
| LS-TCL-1936 | 0.15x, WD 450 mm, 1/2" | 1/2" | 0.15 | 450 | $2,029.00 | Request a quote |
| LS-TCL-2065 | 0.15x, WD 680 mm, 2/3" | 2/3" | 0.15 | 680 | $2,489.00 | Request a quote |
Pictures of 128 of the 170 models; the table lists every model. Search the series
