Telecentric lenses

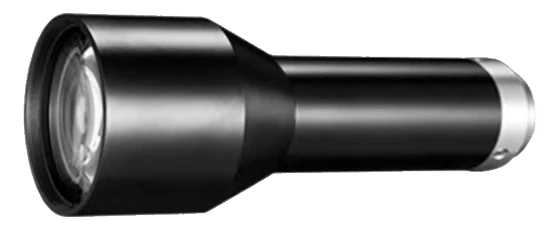

LS-TCL-S40 Series Bi-Telecentric lenses
- 9 models
- from $929.00
- Series LS-TCL-S40
The LS-TCL-S40 Series Bi-Telecentric lenses is a range of 9 telecentric lenses from LumaSpec Vision, from $929.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.095x, 273 mm WD, 2/3", 0.158x, 178 mm WD, 2/3", 0.178x, 158 mm WD, 2/3", 0.204x, 138 mm WD, 2/3", 0.238x, 128 mm WD, 2/3", 0.271x, 118 mm WD, 2/3", 0.317x, 110 mm WD, 2/3", 0.438x, 73 mm WD, 2/3", 0.500x, 65 mm WD, 2/3"
- Image circle
- 8-11 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Mount
- C-mount
- Sensor format
- 2/3"
Features
- High resolution with consistent sharpness across the image
- Low distortion and high telecentricity for high-precision measurement and positioning
- Supports cameras up to 2/3"
All 9 models in the LS-TCL-S40 Series Bi-Telecentric lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-0706 | 0.500x, 65 mm WD, 2/3" | 0.500 | 65 mm | F5 | $929.00 | View |
| LS-TCL-0714 | 0.438x, 73 mm WD, 2/3" | 0.438 | 73 mm | F6 | $1,029.00 | View |
| LS-TCL-0713 | 0.317x, 110 mm WD, 2/3" | 0.317 | 110 mm | F5.4 | $1,039.00 | View |
| LS-TCL-0712 | 0.271x, 118 mm WD, 2/3" | 0.271 | 118 mm | F4.9 | $1,279.00 | View |
| LS-TCL-0711 | 0.238x, 128 mm WD, 2/3" | 0.238 | 128 mm | F5.4 | $1,379.00 | View |
| LS-TCL-0710 | 0.204x, 138 mm WD, 2/3" | 0.204 | 138 mm | F4.9 | $1,409.00 | View |
| LS-TCL-0709 | 0.178x, 158 mm WD, 2/3" | 0.178 | 158 mm | F4.9 | $1,649.00 | View |
| LS-TCL-0708 | 0.158x, 178 mm WD, 2/3" | 0.158 | 178 mm | F4.9 | $1,689.00 | View |
| LS-TCL-0707 | 0.095x, 273 mm WD, 2/3" | 0.095 | 273 mm | F4.9 | $2,529.00quote | View |
