Telecentric lenses

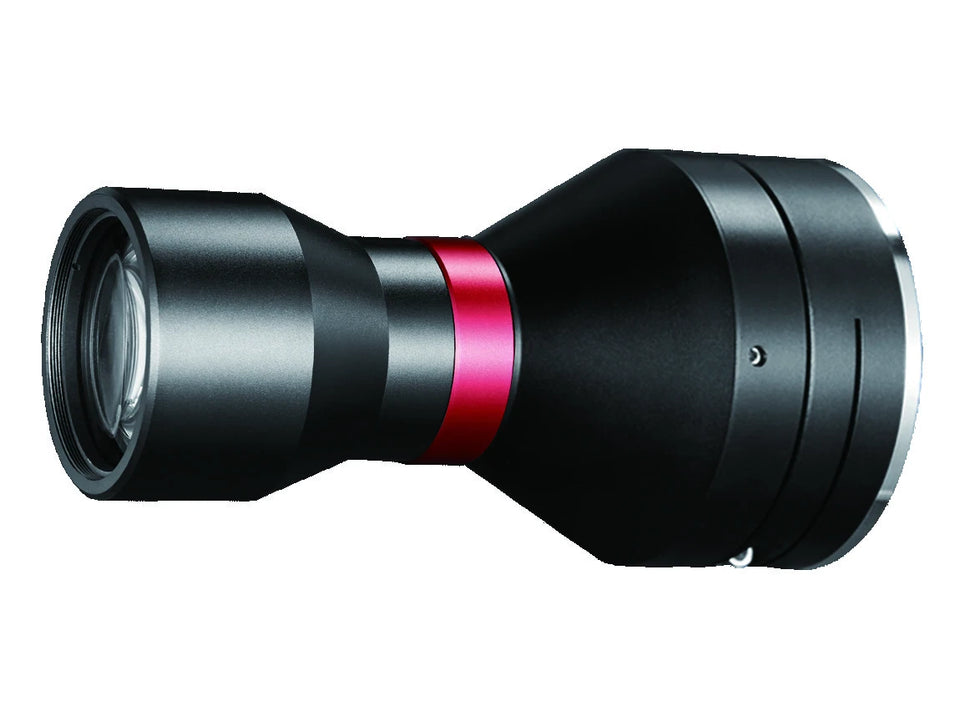

Bi-telecentric lens for 1.75" cameras (LS-TCL-S80)
- 20 models
- from $1,409.00
- Series LS-TCL-S80
The Bi-telecentric lens for 1.75" cameras (LS-TCL-S80) is a range of 20 telecentric lenses from LumaSpec Vision, from $1,409.00. It comes in 20 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.097x, WD 465 mm, 1.75", F or Other-mount, 0.12x, WD 410 mm, 1.75", 0.153x, WD 330 mm, 1.75", F or Other-mount, 0.171x, WD 318 mm, 1.75", 0.193x, WD 301 mm, 1.75", 0.214x, WD 288 mm, 1.75", 0.242x, WD 280 mm, 1.75", F or Other-mount, 0.261x, WD 251 mm, 1.75", 0.312x, WD 254 mm, 1.75", 0.322x, WD 208 mm, 1.75", F or Other-mount, 0.36x, WD 229 mm, 1.75", 0.401x, WD 178 mm, 1.75", 0.452x, WD 159 mm, 1.75", 0.456x, WD 187 mm, 1.75", 0.517x, WD 138 mm, 1.75", 0.603x, WD 128 mm, 1.75" and 4 more
- Mount
- F-mount
- Image circle
- 22-30 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 4/3" - APS-C
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 20 models in the Bi-telecentric lens for 1.75" cameras (LS-TCL-S80)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2625 | 1.115x, WD 72 mm, 1.75" | 1.115 | 72±2 | 15.0 | from $1,409.00 | View |
| LS-TCL-2626 | 0.798x, WD 111 mm, 1.75" | 0.798 | 111±2 | 13.5 | from $1,639.00 | View |
| LS-TCL-2627 | 0.686x, WD 119 mm, 1.75" | 0.686 | 119±2 | from $1,779.00 | View | |
| LS-TCL-2628 | 0.603x, WD 128 mm, 1.75" | 0.603 | 128±2 | 11.3 | from $1,909.00 | View |
| LS-TCL-2629 | 0.604x, WD 138 mm, 1.75", F or Other-mount | 0.604 | 138±3 | 17.1 | $1,909.00 | View |
| LS-TCL-2630 | 0.517x, WD 138 mm, 1.75" | 0.517 | 138±2 | 9.7 | from $2,099.00 | View |
| LS-TCL-2631 | 0.456x, WD 187 mm, 1.75" | 0.456 | 187±2 | 17.1 | from $2,259.00 | View |
| LS-TCL-2632 | 0.452x, WD 159 mm, 1.75" | 0.452 | 159±2 | from $2,289.00 | View | |
| LS-TCL-2633 | 0.401x, WD 178 mm, 1.75" | 0.401 | 178±2 | 8.5 | from $2,479.00 | View |
| LS-TCL-2634 | 0.36x, WD 229 mm, 1.75" | 0.360 | 229±2 | 17.1 | from $2,679.00 | View |
| LS-TCL-2635 | 0.322x, WD 208 mm, 1.75", F or Other-mount | 0.322 | 208±3 | 8.5 | $2,899.00 | View |
| LS-TCL-2636 | 0.312x, WD 254 mm, 1.75" | 0.312 | 254±3 | from $2,999.00 | View | |
| LS-TCL-2637 | 0.261x, WD 251 mm, 1.75" | 0.261 | 251±3 | from $3,429.00 | View | |
| LS-TCL-2638 | 0.242x, WD 280 mm, 1.75", F or Other-mount | 0.242 | 280±5 | 9.7 | $3,629.00 | View |
| LS-TCL-2639 | 0.214x, WD 288 mm, 1.75" | 0.214 | 288±4 | 8 | from $4,069.00 | View |
| LS-TCL-2640 | 0.193x, WD 301 mm, 1.75" | 0.193 | 301±4 | 9.7 | from $4,369.00 | View |
| LS-TCL-2641 | 0.171x, WD 318 mm, 1.75" | 0.171 | 318±4 | 8 | from $4,789.00 | View |
| LS-TCL-2642 | 0.153x, WD 330 mm, 1.75", F or Other-mount | 0.153 | 330±5 | 6.8 | $5,379.00 | View |
| LS-TCL-2643 | 0.12x, WD 410 mm, 1.75" | 0.120 | 410±5 | 8 | from $6,669.00 | View |
| LS-TCL-2644 | 0.097x, WD 465 mm, 1.75", F or Other-mount | 0.097 | 465±6 | 8.5 | $8,699.00quote | View |
