Telecentric lenses

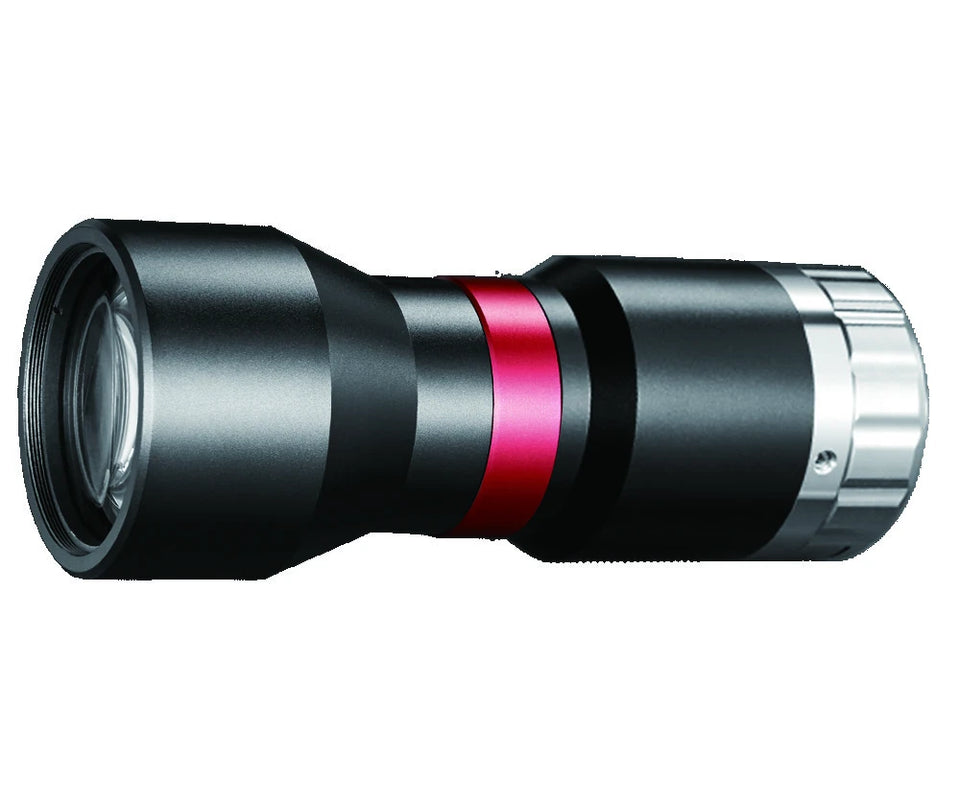

Bi-telecentric lens for 1.1" cameras (LS-TCL-S71)
- 23 models
- from $1,399.00
- Series LS-TCL-S71
The Bi-telecentric lens for 1.1" cameras (LS-TCL-S71) is a range of 23 telecentric lenses from LumaSpec Vision, from $1,399.00. It comes in 22 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.061x, WD 465 mm, 1.1", C-mount, 0.069x, WD 438 mm, 1.1", C-Mount, 0.078x, WD 410 mm, 1.1", C-Mount, 0.085x, WD 372 mm, 1.1", C-mount, 0.097x, WD 330 mm, 1.1", C-mount, 0.11x, WD 318 mm, 1.1", C-Mount, 0.125x, WD 301 mm, 1.1", C-Mount, 0.138x, WD 288 mm, 1.1", C-Mount, 0.153x, WD 273 mm, 1.1", C-mount, 0.168x, WD 251 mm, 1.1", C-Mount, 0.201x, WD 254 mm, 1.1", C-Mount, 0.204x, WD 208 mm, 1.1", C-mount, 0.233x, WD 229 mm, 1.1", C-Mount, 0.26x, WD 178 mm, 1.1", C-Mount, 0.292x, WD 159 mm, 1.1", C-Mount, 0.293x, WD 187 mm, 1.1", C-Mount and 6 more
- Mount
- C-mount
- Image circle
- 16-22 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 1.1" - 1.2"
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 23 models in the Bi-telecentric lens for 1.1" cameras (LS-TCL-S71)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2459 | 0.72x, WD 72 mm, 1.1", C-Mount | 0.720 | 72±2 | 9.6 | $1,399.00 | View |
| LS-TCL-2460 | 0.516x, WD 111 mm, 1.1", C-Mount | 0.516 | 111±2 | 8.7 | $1,629.00 | View |
| LS-TCL-2461 | 0.444x, WD 119 mm, 1.1", C-Mount | 0.444 | 119±2 | 7.2 | $1,769.00 | View |
| LS-TCL-2463 | 0.383x, WD 138 mm, 1.1", C-mount | 0.383 | 138±3 | 10.8 | $1,899.00 | View |
| LS-TCL-2462 | 0.389x, WD 128 mm, 1.1", C-Mount | 0.389 | 128±2 | 7.2 | $1,909.00 | View |
| LS-TCL-2464 | 0.334x, WD 138 mm, 1.1", C-Mount | 0.334 | 138±2 | 6.2 | $2,069.00 | View |
| LS-TCL-2465 | 0.293x, WD 187 mm, 1.1", C-Mount | 0.293 | 187±2 | $2,259.00 | View | |
| LS-TCL-2466 | 0.292x, WD 159 mm, 1.1", C-Mount | 0.292 | 159±2 | $2,259.00 | View | |
| LS-TCL-2467 | 0.26x, WD 178 mm, 1.1", C-Mount | 0.260 | 178±2 | 6.2 | $2,449.00 | View |
| LS-TCL-2469 | 0.233x, WD 229 mm, 1.1", C-Mount | 229 | $2,619.00 | View | ||
| LS-TCL-2468 | 0.233x, WD 229 mm, 1.1", C-Mount | 0.233 | 229±2 | 10.8 | $2,639.00 | View |
| LS-TCL-2470 | 0.204x, WD 208 mm, 1.1", C-mount | 0.204 | 208±3 | 6.2 | $2,889.00 | View |
| LS-TCL-2471 | 0.201x, WD 254 mm, 1.1", C-Mount | 0.201 | 254±3 | $2,969.00 | View | |
| LS-TCL-2472 | 0.168x, WD 251 mm, 1.1", C-Mount | 0.168 | 251±3 | $3,399.00 | View | |
| LS-TCL-2473 | 0.153x, WD 273 mm, 1.1", C-mount | 0.153 | 273±5 | 6.2 | $3,629.00 | View |
| LS-TCL-2474 | 0.138x, WD 288 mm, 1.1", C-Mount | 0.138 | 288±4 | $4,009.00 | View | |
| LS-TCL-2475 | 0.125x, WD 301 mm, 1.1", C-Mount | 0.125 | 301±4 | 6.2 | $4,319.00 | View |
| LS-TCL-2476 | 0.11x, WD 318 mm, 1.1", C-Mount | 0.110 | 318±4 | $4,779.00 | View | |
| LS-TCL-2477 | 0.097x, WD 330 mm, 1.1", C-mount | 0.097 | 330±5 | 6.2 | $5,379.00 | View |
| LS-TCL-2478 | 0.085x, WD 372 mm, 1.1", C-mount | 0.085 | 372±5 | 6.2 | $6,029.00 | View |
| LS-TCL-2480 | 0.069x, WD 438 mm, 1.1", C-Mount | 0.069 | 438±6 | 6.2 | $6,039.00 | View |
| LS-TCL-2479 | 0.078x, WD 410 mm, 1.1", C-Mount | 0.078 | 410±5 | 6.2 | $6,599.00 | View |
| LS-TCL-2481 | 0.061x, WD 465 mm, 1.1", C-mount | 0.061 | 465±6 | 6.2 | $8,689.00quote | View |
