Telecentric lenses

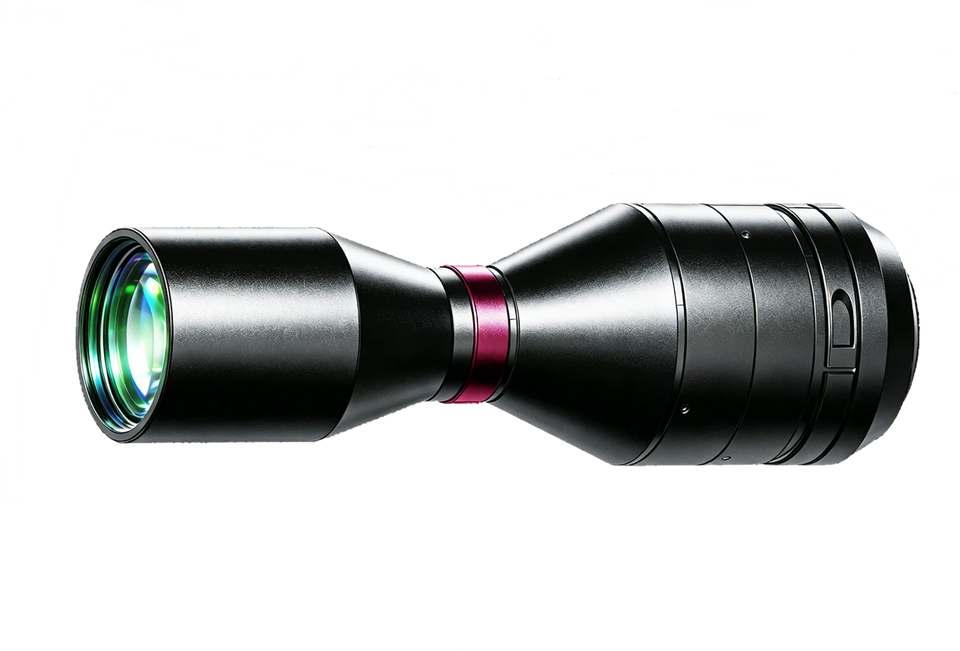

LS-TCL-S37 Series Bi-Telecentric lenses
- 37 models
- from $859.00
- Series LS-TCL-S37
The LS-TCL-S37 Series Bi-Telecentric lenses is a range of 37 telecentric lenses from LumaSpec Vision, from $859.00. It comes in 37 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.085x, 372 mm WD, 1.1", 0.087x, 330 mm WD, 1", 0.108x, 318 mm WD, 1.1", 0.122x, 288 mm WD, 1", 0.138x, 273 mm WD, 1", 0.153x, 273 mm WD, 1.1", 0.166x, 238 mm WD, 1", 0.167x, 263 mm WD, 1.1", 0.175x, 160 mm WD, 1.1", 0.184x, 208 mm WD, 1", 0.184x, 238 mm WD, 1.1", 0.204x, 208 mm WD, 1.1", 0.208x, 228 mm WD, 1", 0.23x, 228 mm WD, 1.1", 0.231x, 178 mm WD, 1", 0.256x, 178 mm WD, 1.1" and 21 more
- Image circle
- 11-16 mm, 16-22 mm, 22-30 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x
- Working distance
- Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
- Mount
- M42, M58, C-mount
- Sensor format
- 1", 1.1" - 1.2", 4/3" - APS-C
Features
- High resolution with consistent sharpness across the image
- Low distortion and high telecentricity for high-precision measurement and positioning
- Supports cameras up to 1.75"
- Supports cameras up to 1"
- Supports cameras up to 1.1"
All 37 models in the LS-TCL-S37 Series Bi-Telecentric lenses
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-0566 | 0.806x, 110 mm WD, 1.75" | 0.806 | 110 mm | F13.5 | $859.00 | View |
| LS-TCL-0561 | 0.503x, 48 mm WD, 1" | 0.503 | 48 mm | F6.5 | $929.00 | View |
| LS-TCL-0563 | 0.634x, 45 mm WD, 1.1" | 0.634 | 45 mm | F6.2 | $999.00 | View |
| LS-TCL-0565 | 0.708x, 73 mm WD, 1.1" | 0.708 | 73 mm | F9.6 | $999.00 | View |
| LS-TCL-0564 | 0.638x, 73 mm WD, 1" | 0.638 | 73 mm | F8.7 | $999.00 | View |
| LS-TCL-0562 | 0.511x, 110 mm WD, 1.1" | 0.511 | 110 mm | F8.7 | $1,019.00 | View |
| LS-TCL-0556 | 0.377x, 82 mm WD, 1" | 0.377 | 82 mm | F6.5 | $1,029.00 | View |
| LS-TCL-0531 | 0.69x, 118 mm WD, 1.75" | 0.69 | 118 mm | F11.4 | $1,109.00 | View |
| LS-TCL-0530 | 0.46x, 110 mm WD, 1" | 0.46 | 110 mm | F7.8 | $1,169.00 | View |
| LS-TCL-0560 | 0.438x, 118 mm WD, 1.1" | 0.438 | 118 mm | F7.2 | $1,269.00 | View |
| LS-TCL-0558 | 0.395x, 118 mm WD, 1" | 0.395 | 118 mm | F6.5 | $1,279.00 | View |
| LS-TCL-0557 | 0.383x, 128 mm WD, 1.1" | 0.383 | 128 mm | F7.2 | $1,379.00 | View |
| LS-TCL-0553 | 0.329x, 138 mm WD, 1.1" | 0.329 | 138 mm | F6.2 | $1,379.00 | View |
| LS-TCL-0554 | 0.346x, 128 mm WD, 1" | 0.346 | 128 mm | F6.5 | $1,379.00 | View |
| LS-TCL-0559 | 0.403x, 178 mm WD, 1.75" | 0.403 | 178 mm | F8.5 | $1,519.00 | View |
| LS-TCL-0550 | 0.296x, 138 mm WD, 1" | 0.296 | 138 mm | F6.5 | $1,599.00 | View |
| LS-TCL-0549 | 0.288x, 158 mm WD, 1.1" | 0.288 | 158 mm | F6.2 | $1,609.00 | View |
| LS-TCL-0547 | 0.256x, 178 mm WD, 1.1" | 0.256 | 178 mm | F6.2 | $1,649.00 | View |
| LS-TCL-0540 | 0.175x, 160 mm WD, 1.1" | 0.175 | 160 mm | F8 | $1,649.00 | View |
| LS-TCL-0552 | 0.322x, 208 mm WD, 1.75" | 0.322 | 208 mm | F8.5 | $1,749.00 | View |
| LS-TCL-0548 | 0.259x, 158 mm WD, 1" | 0.259 | 158 mm | F6.5 | $1,759.00 | View |
| LS-TCL-0546 | 0.231x, 178 mm WD, 1" | 0.231 | 178 mm | F6.5 | $1,789.00 | View |
| LS-TCL-0555 | 0.363x, 228 mm WD, 1.75" | 0.363 | 228 mm | F6.8 | $1,809.00 | View |
| LS-TCL-0545 | 0.23x, 228 mm WD, 1.1" | 0.23 | 228 mm | F6.2 | $1,909.00 | View |
| LS-TCL-0544 | 0.208x, 228 mm WD, 1" | 0.208 | 228 mm | F6.5 | $1,929.00 | View |
| LS-TCL-0543 | 0.204x, 208 mm WD, 1.1" | 0.204 | 208 mm | F6.2 | $1,929.00 | View |
| LS-TCL-0541 | 0.184x, 208 mm WD, 1" | 0.184 | 208 mm | F6.5 | $2,099.00 | View |
| LS-TCL-0542 | 0.184x, 238 mm WD, 1.1" | 0.184 | 238 mm | F6.2 | $2,229.00 | View |
| LS-TCL-0538 | 0.166x, 238 mm WD, 1" | 0.166 | 238 mm | F6.5 | $2,269.00 | View |
| LS-TCL-0539 | 0.167x, 263 mm WD, 1.1" | 0.167 | 263 mm | F6.2 | $2,269.00 | View |
| LS-TCL-0537 | 0.153x, 273 mm WD, 1.1" | 0.153 | 273 mm | F6.2 | $2,529.00quote | View |
| LS-TCL-0536 | 0.138x, 273 mm WD, 1" | 0.138 | 273 mm | F6.5 | $2,779.00quote | View |
| LS-TCL-0535 | 0.122x, 288 mm WD, 1" | 0.122 | 288 mm | F6.5 | $2,889.00quote | View |
| LS-TCL-0551 | 0.315x, 350 mm WD, 1.75" | 0.315 | 350 mm | F9.7 | $2,909.00quote | View |
| LS-TCL-0534 | 0.108x, 318 mm WD, 1.1" | 0.108 | 318 mm | F6.2 | $3,049.00quote | View |
| LS-TCL-0533 | 0.087x, 330 mm WD, 1" | 0.087 | 330 mm | F6.5 | $3,549.00quote | View |
| LS-TCL-0532 | 0.085x, 372 mm WD, 1.1" | 0.085 | 372 mm | F6.2 | $3,679.00quote | View |
