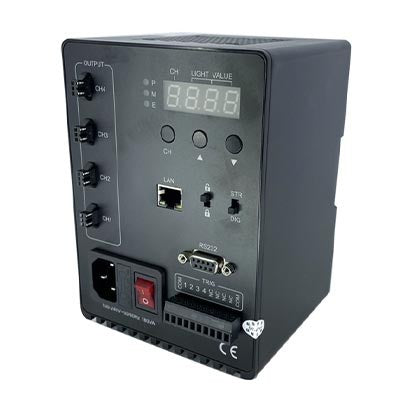

4-Channel Digital LED Light Controller, 24 V 120 W, with Strobe Trigger

Model LS-HDPS24120C-4T

  • Channels4
  • ControlAnalog
  • InputAC 100-240 V, 50/60 Hz
  • DimmingConstant voltage, 256-step PWM
$269.00

In stock - ships the same business day (5 available, order by 2 PM ET)

1.3 kg shipping weight

Volume pricing, Net 30 or a formal quote?

Four-channel constant-voltage LED light controller for machine-vision lighting. 256-step PWM dimming per channel, constant / on-off / strobe modes and opto-isolated trigger inputs synchronize each light with the camera. Set levels from the front panel or from the PC or PLC over serial.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

DimmingConstant voltage, 256-step PWM
ModesConstant, on/off, strobe

Interfaces and I/O

Control interfaceFront-panel keys, RS232; Ethernet on some builds (confirm at order)
Output connectorSMP-03V-BC (pin 1 +, pin 3 -)

Environment and compliance

Operating environment0-40 C, 20-85% RH, forced cooling

Electrical

Channels4
Output24 V DC, 120 W total (3 A max per channel, 5 A total)
InputAC 100-240 V, 50/60 Hz
Trigger inputDC 12-24 V, opto-isolated

Mechanical

SizeApprox. 116 x 114 x 165 mm
Mounting35 mm DIN rail or screws
Net weight720 g

Specifications are the published figures for this 24 V / 120 W / 4-channel controller family. Interface options vary by build; we confirm the exact unit when you order.
