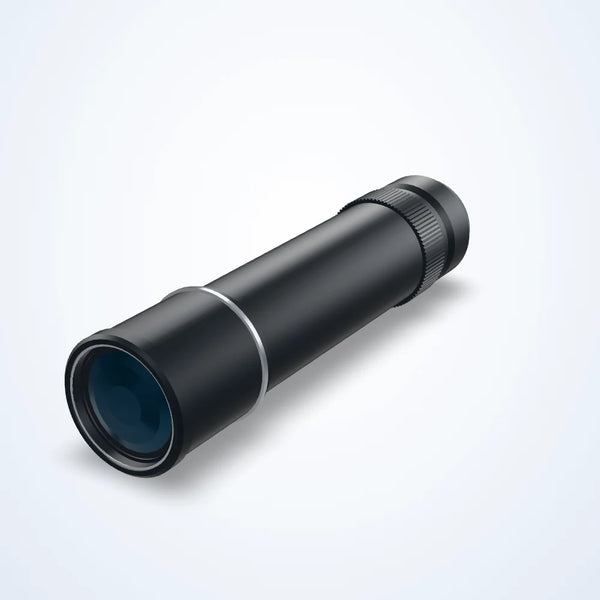

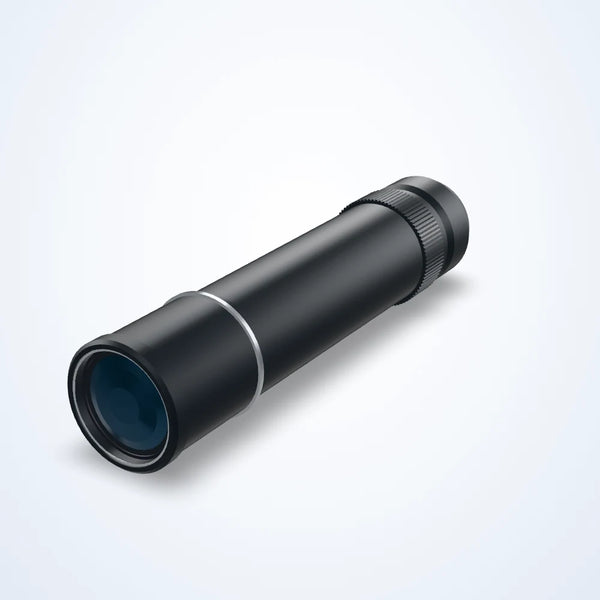

0.34x bi-telecentric lens, WD 190 mm, 4/3"
LS-TCL-1306
- Magnification 0.34x
- Mount C-mount
- Sensor 4/3"
$1,925.00
Ships in 3-4 weeks
Lenses
Telecentric lenses
Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. Pick by magnification (sensor size / field of view), working distance and the largest sensor you use.
Shop by sensor format: 4/3-inch telecentric lenses · 1.1-inch telecentric lenses · 1-inch telecentric lenses · 2/3-inch telecentric lenses · 1/1.8-inch telecentric lenses · 1/2-inch telecentric lenses · 1/2.5-inch telecentric lenses · APS-C telecentric lenses · APS-H telecentric lenses · Full frame telecentric lenses
Shop by mount: F-mount telecentric lenses · M58-mount telecentric lenses · M42-mount telecentric lenses · M72-mount telecentric lenses
Shop by magnification: 0.1x telecentric lenses · 0.2x telecentric lenses · 0.3x telecentric lenses · 0.4x telecentric lenses · 0.5x telecentric lenses · 0.6x telecentric lenses · 0.7x telecentric lenses · 0.8x telecentric lenses · 1x telecentric lenses · 1.5x telecentric lenses · 2x telecentric lenses · 2.5x telecentric lenses · 3x telecentric lenses · 4x telecentric lenses · 6x telecentric lenses
Products
0.38x bi-telecentric lens, WD 195 mm, 4/3"
LS-TCL-1307
- Magnification 0.38x
- Mount C-mount
- Sensor 4/3"
$1,925.00
Ships in 3-4 weeks
0.3x bi-telecentric lens, WD 210 mm, 4/3"
LS-TCL-1305
- Magnification 0.3x
- Mount C-mount
- Sensor 4/3"
$1,925.00
Ships in 3-4 weeks
0.159x bi-telecentric lens, WD 310 mm, 4/3"
LS-TCL-1301
- Magnification 0.159x
- Mount C-mount
- Sensor 4/3"
$1,925.00
Ships in 3-4 weeks
0.242x bi-telecentric lens, WD 280 mm, 4/3"
LS-TCL-1303
- Magnification 0.242x
- Mount C-mount
- Sensor 4/3"
$1,925.00
Ships in 3-4 weeks
0.27x bi-telecentric lens, WD 190 mm, 4/3"
LS-TCL-1304
- Magnification 0.27x
- Mount C-mount
- Sensor 4/3"
$1,925.00
Ships in 3-4 weeks
0.198x bi-telecentric lens, WD 270 mm, 4/3"
LS-TCL-1302
- Magnification 0.198x
- Mount C-mount
- Sensor 4/3"
$1,925.00
Ships in 3-4 weeks
0.128x bi-telecentric lens, WD 302 mm, 4/3"
LS-TCL-1300
- Magnification 0.128x
- Mount C-mount
- Sensor 4/3"
$1,925.00
Ships in 3-4 weeks
0.1x bi-telecentric lens, WD 420 mm, 4/3"
LS-TCL-1299
- Magnification 0.1x
- Mount C-mount
- Sensor 4/3"
$1,925.00
Ships in 3-4 weeks
0.51x bi-telecentric lens, WD 125 mm, 4/3"
LS-TCL-1309
- Magnification 0.51x
- Mount C-mount
- Sensor 4/3"
$1,715.00
Ships in 3-4 weeks
1.1x bi-telecentric lens, WD 40 mm, 4/3"
LS-TCL-1314
- Magnification 1.1x
- Mount C-mount
- Sensor 4/3"
$645.00
Ships in 3-4 weeks
0.87x bi-telecentric lens, WD 55 mm, 4/3"
LS-TCL-1312
- Magnification 0.87x
- Mount C-mount
- Sensor 4/3"
$645.00
Ships in 3-4 weeks
0.06x bi-telecentric lens, WD 565 mm, 4/3"
LS-TCL-1298
- Magnification 0.06x
- Mount C-mount
- Sensor 4/3"
$1,925.00
Ships in 3-4 weeks
0.44x bi-telecentric lens, WD 150 mm, 4/3"
LS-TCL-1308
- Magnification 0.44x
- Mount C-mount
- Sensor 4/3"
$1,715.00
Ships in 3-4 weeks
0.58x bi-telecentric lens, WD 130 mm, 4/3"
LS-TCL-1310
- Magnification 0.58x
- Mount C-mount
- Sensor 4/3"
$645.00
Ships in 3-4 weeks
0.93x bi-telecentric lens, WD 80 mm, 4/3"
LS-TCL-1313
- Magnification 0.93x
- Mount C-mount
- Sensor 4/3"
$645.00
Ships in 3-4 weeks
0.66x bi-telecentric lens, WD 118 mm, 4/3"
LS-TCL-1311
- Magnification 0.66x
- Mount C-mount
- Sensor 4/3"
$645.00
Ships in 3-4 weeks
0.048x bi-telecentric lens, WD 410 mm, 2/3"
LS-TCL-1220
- Magnification 0.048x
- Mount C-mount
- Sensor 2/3"
$5,060.00
Ships in 3-4 weeks
0.053x bi-telecentric lens, WD 372 mm, 2/3"
LS-TCL-1221
- Magnification 0.053x
- Mount C-mount
- Sensor 2/3"
$4,730.00
Ships in 3-4 weeks
0.038x bi-telecentric lens, WD 465 mm, 2/3"
LS-TCL-1218
- Magnification 0.038x
- Mount C-mount
- Sensor 2/3"
$8,500.00Quote
Ships in 3-4 weeks
0.044x bi-telecentric lens, WD 338 mm, 2/3"
LS-TCL-1219
- Magnification 0.044x
- Mount C-mount
- Sensor 2/3"
$6,380.00
Ships in 3-4 weeks
4x liquid-focus telecentric lens, WD 64.7 mm, 2/3", C-mount
LS-TCL-1294
- Magnification 4.0x
- Mount C-mount
- Sensor 2/3"
$2,500.00
Ships in 3-4 weeks
0.06x bi-telecentric lens, WD 330 mm, 2/3"
LS-TCL-1222
- Magnification 0.06x
- Mount C-mount
- Sensor 2/3"
$3,520.00
Ships in 3-4 weeks
4x liquid-focus telecentric lens, 2/3", C-mount
LS-TCL-1289
- Magnification 4.0x
- Mount C-mount
- Sensor 2/3"
$2,400.00
Ships in 3-4 weeks
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-13060.34x bi-telecentric lens, WD 190 mm, 4/3"
| 0.34x | C-mount | 4/3" | 190 mm | dia. 68 mm | - | $1,925.00 | Ships in 3-4 weeks | |
|
LS-TCL-13070.38x bi-telecentric lens, WD 195 mm, 4/3"
| 0.38x | C-mount | 4/3" | 195 mm | dia. 61 mm | - | $1,925.00 | Ships in 3-4 weeks | |
|
LS-TCL-13050.3x bi-telecentric lens, WD 210 mm, 4/3"
| 0.3x | C-mount | 4/3" | 210 mm | dia. 77 mm | - | $1,925.00 | Ships in 3-4 weeks | |
|
LS-TCL-13010.159x bi-telecentric lens, WD 310 mm, 4/3"
| 0.159x | C-mount | 4/3" | 310 mm | dia. 145 mm | - | $1,925.00 | Ships in 3-4 weeks | |
|
LS-TCL-13030.242x bi-telecentric lens, WD 280 mm, 4/3"
| 0.242x | C-mount | 4/3" | 280 mm | dia. 95 mm | - | $1,925.00 | Ships in 3-4 weeks | |
|
LS-TCL-13040.27x bi-telecentric lens, WD 190 mm, 4/3"
| 0.27x | C-mount | 4/3" | 190 mm | dia. 85 mm | - | $1,925.00 | Ships in 3-4 weeks | |
|
LS-TCL-13020.198x bi-telecentric lens, WD 270 mm, 4/3"
| 0.198x | C-mount | 4/3" | 270 mm | dia. 116 mm | - | $1,925.00 | Ships in 3-4 weeks | |
|
LS-TCL-13000.128x bi-telecentric lens, WD 302 mm, 4/3"
| 0.128x | C-mount | 4/3" | 302 mm | dia. 180 mm | - | $1,925.00 | Ships in 3-4 weeks | |
|
LS-TCL-12990.1x bi-telecentric lens, WD 420 mm, 4/3"
| 0.1x | C-mount | 4/3" | 420 mm | dia. 230 mm | - | $1,925.00 | Ships in 3-4 weeks | |
|
LS-TCL-13090.51x bi-telecentric lens, WD 125 mm, 4/3"
| 0.51x | C-mount | 4/3" | 125 mm | dia. 45 mm | - | $1,715.00 | Ships in 3-4 weeks | |
|
LS-TCL-13141.1x bi-telecentric lens, WD 40 mm, 4/3"
| 1.1x | C-mount | 4/3" | 40 mm | dia. 21 mm | - | $645.00 | Ships in 3-4 weeks | |
|
LS-TCL-13120.87x bi-telecentric lens, WD 55 mm, 4/3"
| 0.87x | C-mount | 4/3" | 55 mm | dia. 26 mm | - | $645.00 | Ships in 3-4 weeks | |
|
LS-TCL-12980.06x bi-telecentric lens, WD 565 mm, 4/3"
| 0.06x | C-mount | 4/3" | 565 mm | dia. 383 mm | - | $1,925.00 | Ships in 3-4 weeks | |
|
LS-TCL-13080.44x bi-telecentric lens, WD 150 mm, 4/3"
| 0.44x | C-mount | 4/3" | 150 mm | dia. 52 mm | - | $1,715.00 | Ships in 3-4 weeks | |
|
LS-TCL-13100.58x bi-telecentric lens, WD 130 mm, 4/3"
| 0.58x | C-mount | 4/3" | 130 mm | dia. 40 mm | - | $645.00 | Ships in 3-4 weeks | |
|
LS-TCL-13130.93x bi-telecentric lens, WD 80 mm, 4/3"
| 0.93x | C-mount | 4/3" | 80 mm | dia. 25 mm | - | $645.00 | Ships in 3-4 weeks | |
|
LS-TCL-13110.66x bi-telecentric lens, WD 118 mm, 4/3"
| 0.66x | C-mount | 4/3" | 118 mm | dia. 35 mm | - | $645.00 | Ships in 3-4 weeks | |
 LS-TCL-12200.048x bi-telecentric lens, WD 410 mm, 2/3"
| 0.048x | C-mount | 2/3" | 410±6 mm | dia. 240 mm | F4.9 | $5,060.00 | Ships in 3-4 weeks | |
|
LS-TCL-12210.053x bi-telecentric lens, WD 372 mm, 2/3"
| 0.053x | C-mount | 2/3" | 372±5 mm | dia. 216 mm | 4.9 | $4,730.00 | Ships in 3-4 weeks | |
|
LS-TCL-12180.038x bi-telecentric lens, WD 465 mm, 2/3"
| 0.038x | C-mount | 2/3" | 465±6 mm | dia. 300 mm | F4.9 | $8,500.00Quote | Ships in 3-4 weeks | |
|
LS-TCL-12190.044x bi-telecentric lens, WD 338 mm, 2/3"
| 0.044x | C-mount | 2/3" | 338±5 mm | dia. 258 mm | 4.9 | $6,380.00 | Ships in 3-4 weeks | |
 LS-TCL-12944x liquid-focus telecentric lens, WD 64.7 mm, 2/3", C-mount
| 4.0x | C-mount | 2/3" | 64.7 mm | - | 17 | $2,500.00 | Ships in 3-4 weeks | |
|
LS-TCL-12220.06x bi-telecentric lens, WD 330 mm, 2/3"
| 0.06x | C-mount | 2/3" | 330±5 mm | dia. 190 mm | F4.9 | $3,520.00 | Ships in 3-4 weeks | |
|
LS-TCL-12894x liquid-focus telecentric lens, 2/3", C-mount
| 4.0x | C-mount | 2/3" | - | - | 17 | $2,400.00 | Ships in 3-4 weeks |
How to choose a telecentric lens
A telecentric lens keeps the image size of the part constant when the part moves closer or farther within the depth of field, and removes perspective, so edges and holes are measured at their true size. Choose by magnification, sensor and working distance.
1. Magnification = sensor size / field of view
The field of view is the sensor size divided by the magnification. Pick the magnification that fits the part with a small margin, or let the telecentric lens calculator work it out for your sensor and part:
| Magnification | Field of view, 2/3-inch sensor (8.8 x 6.6 mm) | Field of view, 1.1-inch sensor (14.1 x 10.3 mm) |
|---|---|---|
| 0.1x | 88 x 66 mm | 141 x 103 mm |
| 0.2x | 44 x 33 mm | 70.5 x 51.5 mm |
| 0.3x | 29.3 x 22 mm | 47 x 34.3 mm |
| 0.5x | 17.6 x 13.2 mm | 28.2 x 20.6 mm |
| 0.8x | 11 x 8.3 mm | 17.6 x 12.9 mm |
| 1x | 8.8 x 6.6 mm | 14.1 x 10.3 mm |
| 2x | 4.4 x 3.3 mm | 7.1 x 5.2 mm |
| 4x | 2.2 x 1.7 mm | 3.5 x 2.6 mm |
2. Sensor format
The lens must be rated for the camera's sensor format or larger, or the corners go dark. Larger sensors need larger (and longer) lenses with F-mount or M58 / M72 mounts.
3. Object-side or bi-telecentric
Object-side telecentric lenses keep the magnification constant as the part moves. Bi-telecentric lenses are telecentric on the camera side too, so small focus changes and sensor tilt do not change the size either: the choice for the highest measuring accuracy.
4. Working distance, depth of field, front size
Check the working distance against the space in the machine, and the depth of field against how much the part height varies. The front of the lens must be larger than the field of view - a telecentric lens only sees what fits in front of it.
5. Lighting
For silhouettes, pair the lens with a collimated backlight: parallel light gives the sharpest edges. For surface features use a coaxial light that fits the lens.
