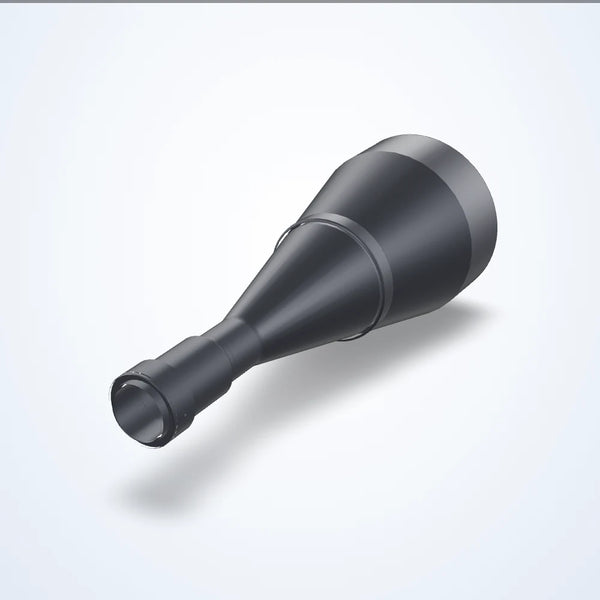

0.609x bi-telecentric lens, WD 158 mm
LS-TCL-0926
- Magnification 0.609x
- Mount M42
- Sensor APS-H
$2,090.00
Ships in 3-4 weeks
Lenses
M42-mount telecentric lenses
Telecentric and bi-telecentric lenses keep magnification constant through the depth of field, so parts measure the same size wherever they sit. M42-mount lenses fit cameras with a M42-mount lens mount directly; other mounts need an adapter, which changes the flange distance.
All telecentric lenses · F-mount telecentric lenses · M58-mount telecentric lenses · M72-mount telecentric lenses
Products
0.325x bi-telecentric lens, WD 273 mm
LS-TCL-0895
- Magnification 0.325x
- Mount M42
- Sensor APS-H
$3,000.00
Ships in 3-4 weeks
0.355x bi-telecentric lens, WD 263 mm
LS-TCL-0897
- Magnification 0.355x
- Mount M42
- Sensor APS-H
$1,870.00
Ships in 3-4 weeks
0.112x bi-telecentric lens, WD 338 mm, 1.75"
LS-TCL-1189
- Magnification 0.112x
- Mount M42
- Sensor 1.75"
$8,345.00
Ships in 3-4 weeks
0.171x bi-telecentric lens, WD 318 mm, 1.75"
LS-TCL-1193
- Magnification 0.171x
- Mount M42
- Sensor 1.75"
$3,650.00
Ships in 3-4 weeks
0.213x bi-telecentric lens, WD 288 mm, 1.75"
LS-TCL-1195
- Magnification 0.213x
- Mount M42
- Sensor 1.75"
$2,750.00
Ships in 3-4 weeks
0.134x bi-telecentric lens, WD 372 mm, 1.75"
LS-TCL-1191
- Magnification 0.134x
- Mount M42
- Sensor 1.75"
$5,340.00
Ships in 3-4 weeks
0.264x bi-telecentric lens, WD 263 mm, 1.75"
LS-TCL-1197
- Magnification 0.264x
- Mount M42
- Sensor 1.75"
$1,340.00
Ships in 3-4 weeks
0.181x bi-telecentric lens, WD 372 mm
LS-TCL-0864
- Magnification 0.181x
- Mount M42
- Sensor APS-H
$5,500.00
Ships in 3-4 weeks
0.151x bi-telecentric lens, WD 338 mm
LS-TCL-0861
- Magnification 0.151x
- Mount M42
- Sensor APS-H
$8,000.00
Ships in 3-4 weeks
0.229x bi-telecentric lens, WD 318 mm
LS-TCL-0872
- Magnification 0.229x
- Mount M42
- Sensor APS-H
$3,850.00
Ships in 3-4 weeks
0.138x bi-telecentric lens, WD 410 mm, 2"
LS-TCL-1210
- Magnification 0.138x
- Mount M42
- Sensor APS-H
$7,315.00
Ships in 3-4 weeks
0.11x bi-telecentric lens, WD 465 mm, 2"
LS-TCL-1209
- Magnification 0.110x
- Mount M42
- Sensor APS-H
$8,855.00Quote
Ships in 3-4 weeks
0.22x bi-telecentric lens, WD 300 mm, 2"
LS-TCL-1212
- Magnification 0.220x
- Mount M42
- Sensor APS-H
$3,850.00
Ships in 3-4 weeks
0.174x bi-telecentric lens, WD 330 mm, 2"
LS-TCL-1211
- Magnification 0.174x
- Mount M42
- Sensor APS-H
$4,280.00
Ships in 3-4 weeks
0.243x bi-telecentric lens, WD 288 mm, 2"
LS-TCL-1213
- Magnification 0.243x
- Mount M42
- Sensor APS-H
$3,630.00
Ships in 3-4 weeks
0.688x bi-telecentric lens, WD 128 mm, 2"
LS-TCL-1216
- Magnification 0.688x
- Mount M42
- Sensor APS-H
$2,035.00
Ships in 3-4 weeks
0.917x bi-telecentric lens, WD 110 mm, 2"
LS-TCL-1217
- Magnification 0.917x
- Mount M42
- Sensor APS-H
$1,815.00
Ships in 3-4 weeks
0.059× telecentric lens, 4/3", M42-mount
LS-TCL-0337
- Magnification 0.059×
- Mount M42
- Sensor 4/3"
$55,459.00Quote
Lead time confirmed with your quote
0.073× telecentric lens, 4/3", M42-mount
LS-TCL-0334
- Magnification 0.073×
- Mount M42
- Sensor 4/3"
$18,129.00Quote
Lead time confirmed with your quote
0.091× telecentric lens, 4/3", M42-mount
LS-TCL-0331
- Magnification 0.091×
- Mount M42
- Sensor 4/3"
$12,879.00Quote
Lead time confirmed with your quote
0.122× telecentric lens, 4/3", M42-mount
LS-TCL-0328
- Magnification 0.122×
- Mount M42
- Sensor 4/3"
$6,749.00Quote
Lead time confirmed with your quote
0.143× telecentric lens, 4/3", M42-mount
LS-TCL-0325
- Mount M42
- Sensor 4/3"
- Resolution 35 μm
$5,589.00Quote
Lead time confirmed with your quote
0.185× telecentric lens, 4/3", M42-mount
LS-TCL-0322
- Magnification 0.185×
- Mount M42
- Sensor 4/3"
$3,859.00Quote
Lead time confirmed with your quote
| Compare | |||||||||
|---|---|---|---|---|---|---|---|---|---|
 LS-TCL-09260.609x bi-telecentric lens, WD 158 mm
| 0.609x | M42 | APS-H | 158±3 mm | 11.5 | 71 MP | $2,090.00 | Ships in 3-4 weeks | |
|
LS-TCL-08950.325x bi-telecentric lens, WD 273 mm
| 0.325x | M42 | APS-H | 273±5 mm | 7.6 | 71 MP | $3,000.00 | Ships in 3-4 weeks | |
|
LS-TCL-08970.355x bi-telecentric lens, WD 263 mm
| 0.355x | M42 | APS-H | 263±4 mm | 8.3 | 71 MP | $1,870.00 | Ships in 3-4 weeks | |
 LS-TCL-11890.112x bi-telecentric lens, WD 338 mm, 1.75"
| 0.112x | M42 | 1.75" | 338±5 mm | 6.8 | - | $8,345.00 | Ships in 3-4 weeks | |
|
LS-TCL-11930.171x bi-telecentric lens, WD 318 mm, 1.75"
| 0.171x | M42 | 1.75" | 318±5 mm | 6.8 | - | $3,650.00 | Ships in 3-4 weeks | |
|
LS-TCL-11950.213x bi-telecentric lens, WD 288 mm, 1.75"
| 0.213x | M42 | 1.75" | 288±5 mm | 6.8 | - | $2,750.00 | Ships in 3-4 weeks | |
|
LS-TCL-11910.134x bi-telecentric lens, WD 372 mm, 1.75"
| 0.134x | M42 | 1.75" | 372±5 mm | 6.8 | - | $5,340.00 | Ships in 3-4 weeks | |
|
LS-TCL-11970.264x bi-telecentric lens, WD 263 mm, 1.75"
| 0.264x | M42 | 1.75" | 263±4 mm | 6.8 | - | $1,340.00 | Ships in 3-4 weeks | |
|
LS-TCL-08640.181x bi-telecentric lens, WD 372 mm
| 0.181x | M42 | APS-H | 372±5 mm | 6.5 | 71 MP | $5,500.00 | Ships in 3-4 weeks | |
|
LS-TCL-08610.151x bi-telecentric lens, WD 338 mm
| 0.151x | M42 | APS-H | 338±5 mm | 6.5 | 71 MP | $8,000.00 | Ships in 3-4 weeks | |
|
LS-TCL-08720.229x bi-telecentric lens, WD 318 mm
| 0.229x | M42 | APS-H | 318±5 mm | 6.5 | 71 MP | $3,850.00 | Ships in 3-4 weeks | |
 LS-TCL-12100.138x bi-telecentric lens, WD 410 mm, 2"
| 0.138x | M42 | APS-H | 410±6 mm | 7.8 | - | $7,315.00 | Ships in 3-4 weeks | |
|
LS-TCL-12090.11x bi-telecentric lens, WD 465 mm, 2"
| 0.110x | M42 | APS-H | 465±6 mm | 7.8 | - | $8,855.00Quote | Ships in 3-4 weeks | |
|
LS-TCL-12120.22x bi-telecentric lens, WD 300 mm, 2"
| 0.220x | M42 | APS-H | 300±5 mm | 11.1 | - | $3,850.00 | Ships in 3-4 weeks | |
|
LS-TCL-12110.174x bi-telecentric lens, WD 330 mm, 2"
| 0.174x | M42 | APS-H | 330±5 mm | 7.8 | - | $4,280.00 | Ships in 3-4 weeks | |
|
LS-TCL-12130.243x bi-telecentric lens, WD 288 mm, 2"
| 0.243x | M42 | APS-H | 288±5 mm | 7.8 | - | $3,630.00 | Ships in 3-4 weeks | |
|
LS-TCL-12160.688x bi-telecentric lens, WD 128 mm, 2"
| 0.688x | M42 | APS-H | 128±3 mm | 12.9 | - | $2,035.00 | Ships in 3-4 weeks | |
|
LS-TCL-12170.917x bi-telecentric lens, WD 110 mm, 2"
| 0.917x | M42 | APS-H | 110±2 mm | 15.5 | - | $1,815.00 | Ships in 3-4 weeks | |
 LS-TCL-03370.059× telecentric lens, 4/3", M42-mount
| 0.059× | M42 | 4/3" | 500 mm | - | 86 μm | $55,459.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03340.073× telecentric lens, 4/3", M42-mount
| 0.073× | M42 | 4/3" | 492.8 mm | - | 70 μm | $18,129.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03310.091× telecentric lens, 4/3", M42-mount
| 0.091× | M42 | 4/3" | 527.6 mm | - | 56 μm | $12,879.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03280.122× telecentric lens, 4/3", M42-mount
| 0.122× | M42 | 4/3" | 396 mm | - | 42 μm | $6,749.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03250.143× telecentric lens, 4/3", M42-mount
| - | M42 | 4/3" | - | - | 35 μm | $5,589.00Quote | Lead time confirmed with your quote | |
 LS-TCL-03220.185× telecentric lens, 4/3", M42-mount
| 0.185× | M42 | 4/3" | 278.6 mm | - | 27 μm | $3,859.00Quote | Lead time confirmed with your quote |
