0.059× telecentric lens, 4/3", M42-mount (LS-TCL-0337)

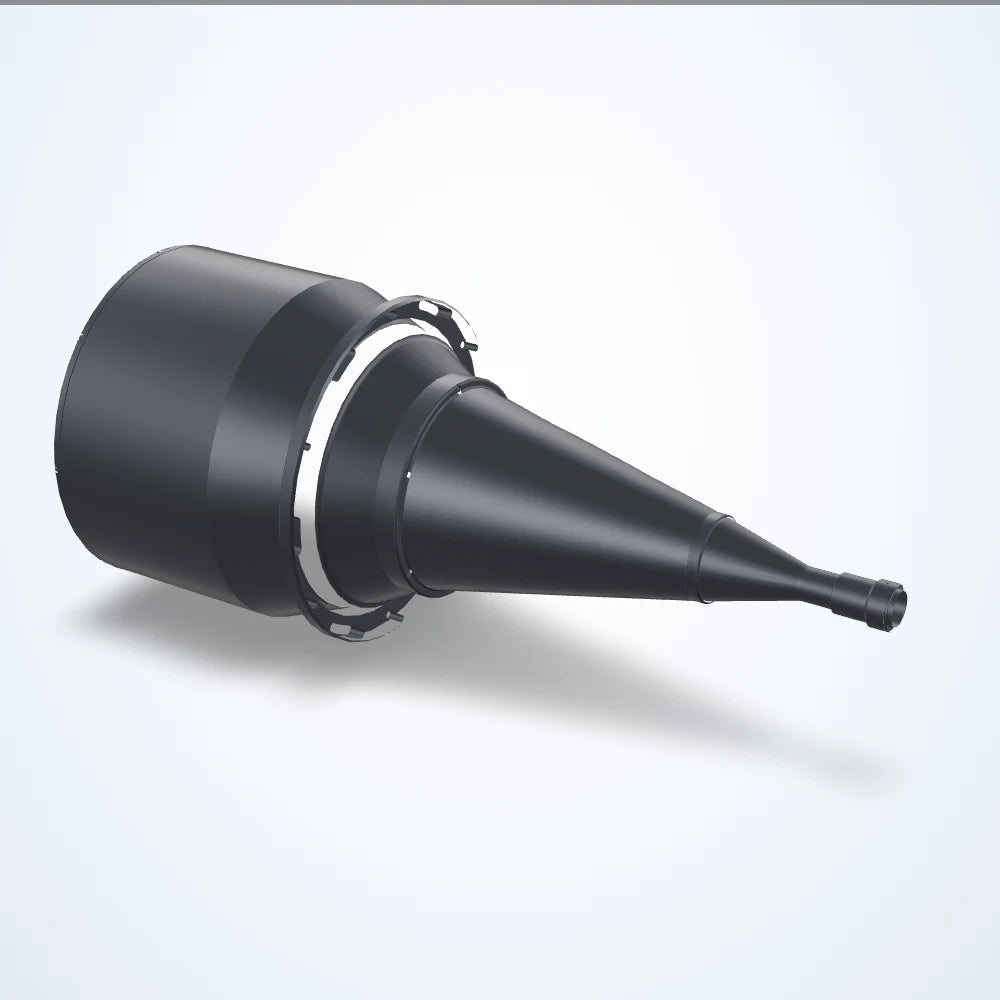

  • 0.059× telecentric lens, 4/3", M42-mount (LS-TCL-0337)

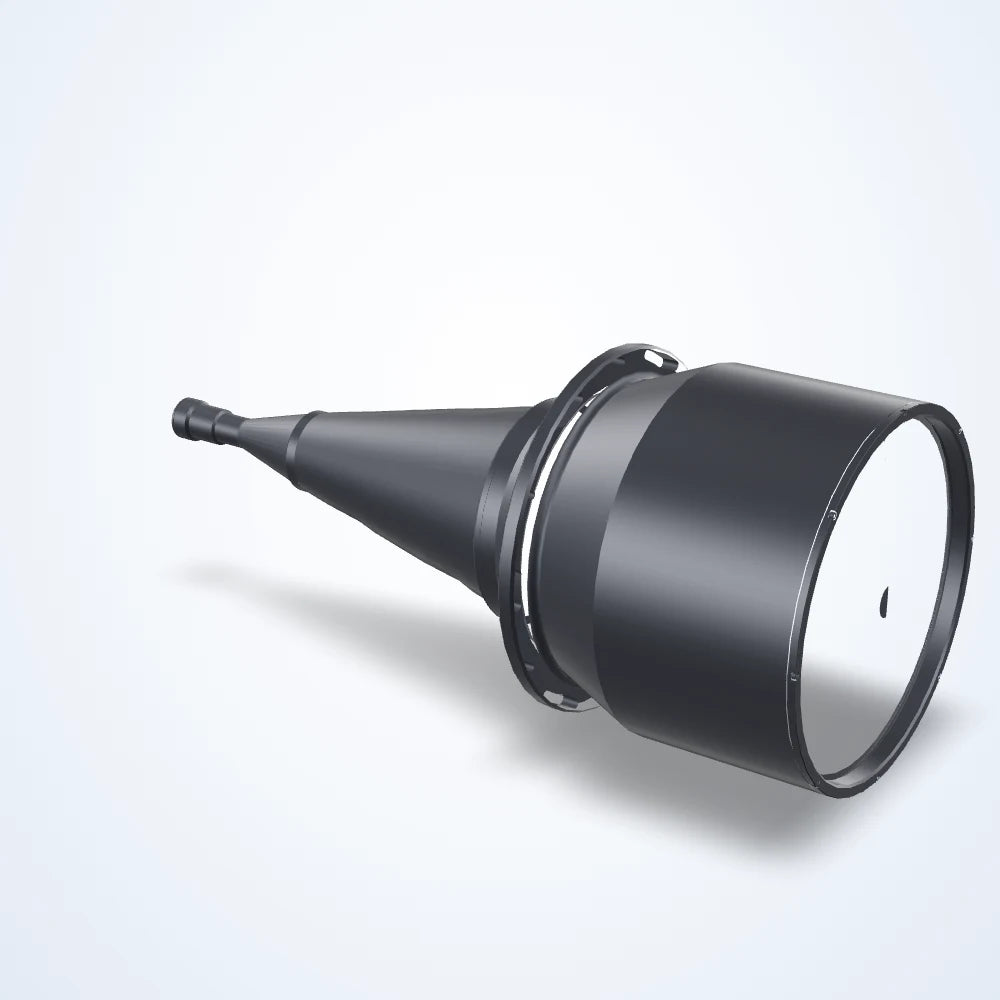

  • 0.059× telecentric lens, 4/3", M42-mount (LS-TCL-0337) - view 2

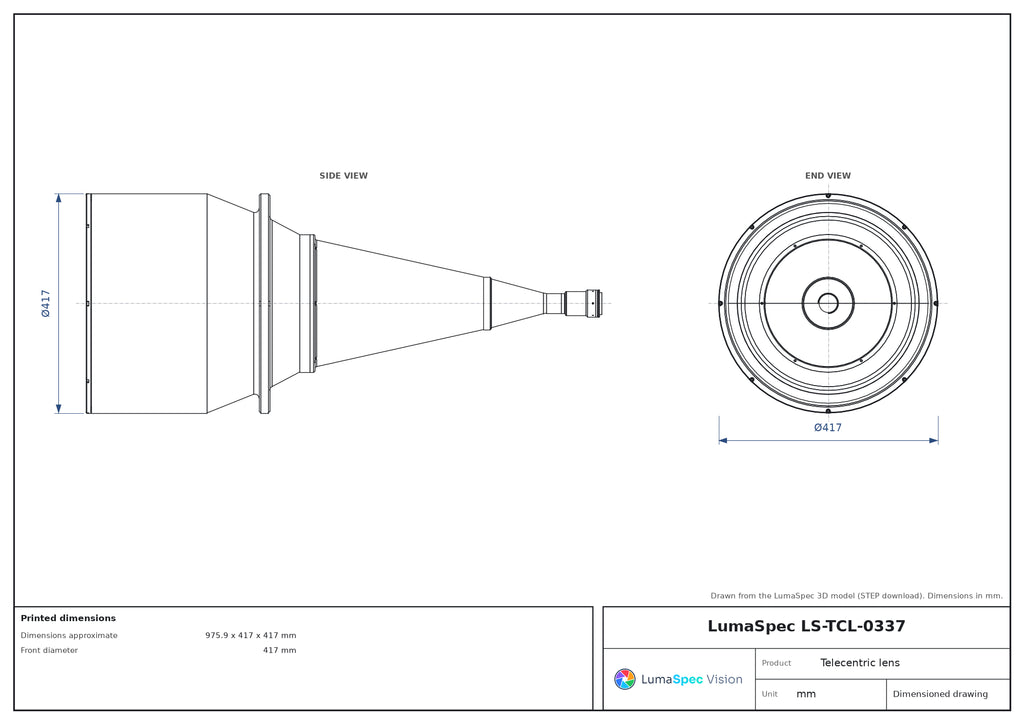

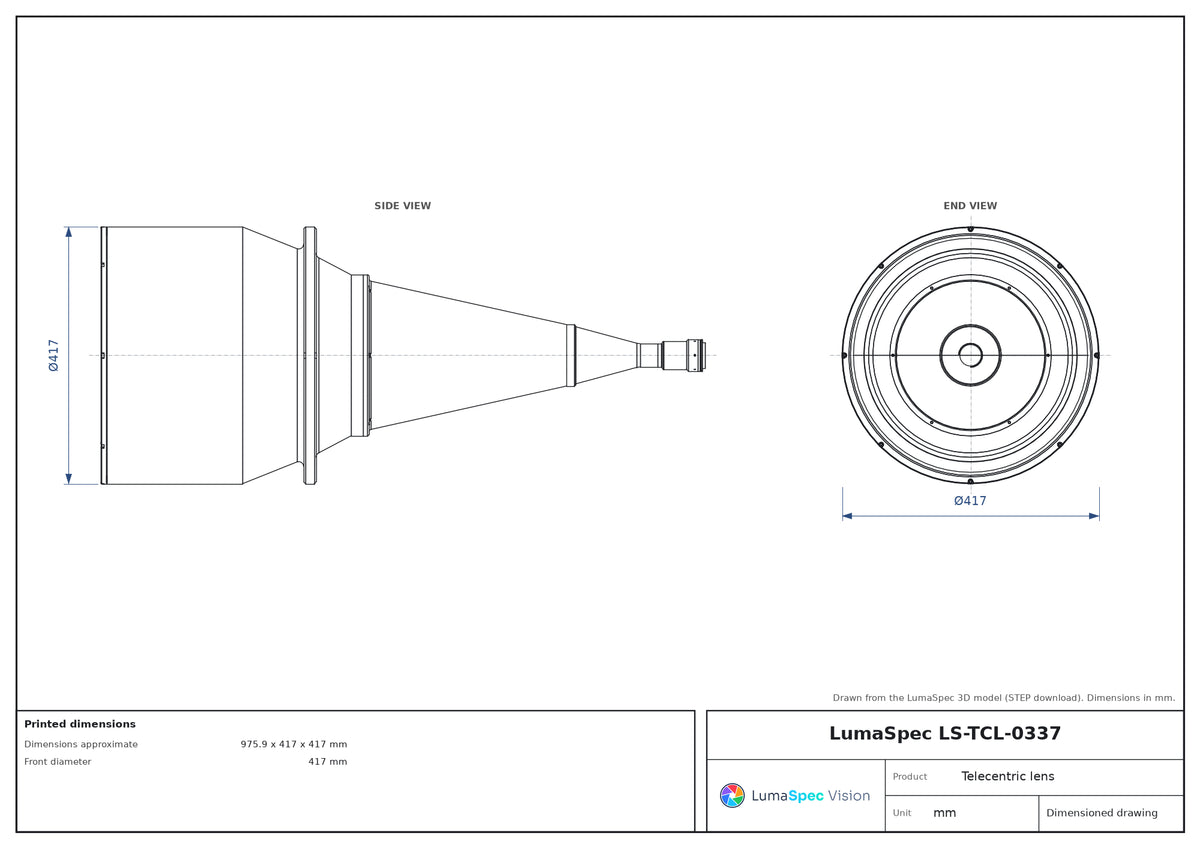

  • LS-TCL-0337 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.059× telecentric lens, 4/3", M42-mount (LS-TCL-0337)

Model LS-TCL-0337

  • Magnification0.059×
  • MountM42
  • Sensor4/3"
  • Working distance500 mm
  • Resolution86 μm
$55,459.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 500 mm; depth of field 118.9 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0337
FOV @ 1.1″240.00 x 175.76 mm
FOV @ 1″240.51 x 127.29 mm
Fov @ 4/3″320.85 x 179.83 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.059×
Working distance500 mm
Depth of field118.9 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.07
Filter threadNo Filter Threads
Image circle21.8 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.09°

Sensor and imaging

Sensor format4/3"
Resolution (pixel size)86 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions approximate975.9 x 417 x 417 mm
Front diameter417 mm
Weight38685 Grams
