Telecentric lens series (S18)

Telecentric lenses

Telecentric lens series (S18)

  • 47 models
  • from $2,459.00
  • Series LS-TCL-S18

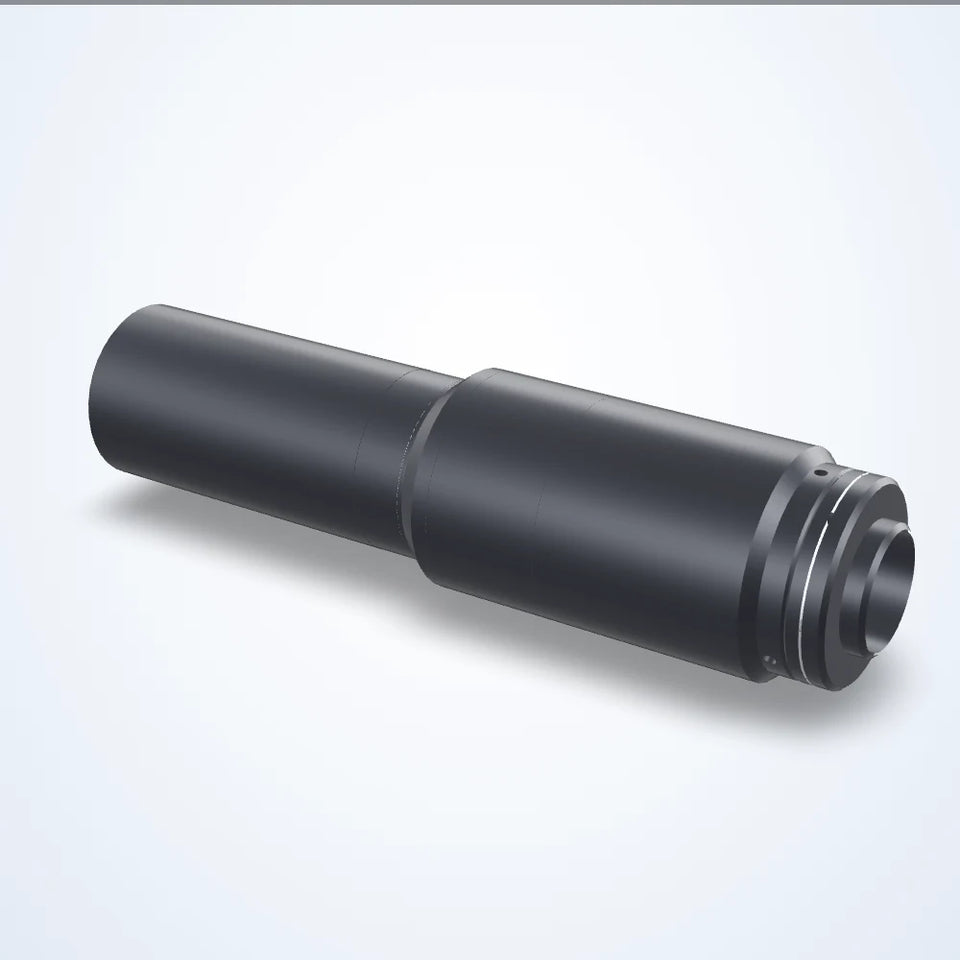

The Telecentric lens series (S18) is a range of 47 telecentric lenses from LumaSpec Vision, from $2,459.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 47 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.059×, 0.073×, 0.091×, 0.122×, 0.185×, 0.22×, 0.274×, 0.313×, 0.366×, 0.486×, 0.699×, 1.054×, 2×, 2.667×, 4×
Mount
M42, C-mount, F-mount
Image circle
16-22 mm
Type
Object-side telecentric
Magnification
Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x +
Working distance
Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
Sensor format
4/3" - APS-C

All 47 models in the Telecentric lens series (S18)

Link
LS-TCL-02991.054×10 μm43.1 mmC-mount$2,459.00quoteView
LS-TCL-03001.054×10 μm43.1 mmF-mount$2,459.00quoteView
LS-TCL-03011.054×10 μm43.1 mmM42-mount$2,459.00quoteView
LS-TCL-03020.699×10 μm67.2 mmC-mount$2,499.00quoteView
LS-TCL-03030.699×10 μm67.2 mmF-mount$2,499.00quoteView
LS-TCL-03040.699×10 μm67.2 mmM42-mount$2,499.00quoteView
LS-TCL-02932.667×4 μm60.1 mmC-mount$2,659.00quoteView
LS-TCL-02942.667×4 μm60.1 mmF-mount$2,659.00quoteView
LS-TCL-02952.667×4 μm60.1 mmM42-mount$2,659.00quoteView
LS-TCL-02962×5 μm62.2 mmC-mount$2,659.00quoteView
LS-TCL-02972×5 μm62.2 mmF-mount$2,659.00quoteView
LS-TCL-02982×5 μm62.2 mmM42-mount$2,659.00quoteView
LS-TCL-03050.486×14 μm102.6 mmC-mount$2,669.00quoteView
LS-TCL-03060.486×14 μm102.6 mmF-mount$2,669.00quoteView
LS-TCL-03070.486×14 μm102.6 mmM42-mount$2,669.00quoteView
LS-TCL-03110.313×16 μm157.8 mmC-mount$2,879.00quoteView
LS-TCL-03120.313×16 μm157.8 mmF-mount$2,879.00quoteView
LS-TCL-03130.313×16 μm157.8 mmM42-mount$2,879.00quoteView
LS-TCL-03080.366×14 μm132.9 mmC-mount$2,919.00quoteView
LS-TCL-03090.366×14 μm132.9 mmF-mount$2,919.00quoteView
LS-TCL-03100.366×14 μm132.9 mmM42-mount$2,919.00quoteView
LS-TCL-02904×3 μm56 mmC-mount$3,149.00quoteView
LS-TCL-02914×3 μm56 mmF-mount$3,149.00quoteView
LS-TCL-02924×3 μm56 mmM42-mount$3,149.00quoteView
LS-TCL-03140.274×19 μm181.9 mmC-mount$3,319.00quoteView
LS-TCL-03150.274×19 μm181.9 mmF-mount$3,319.00quoteView
LS-TCL-03160.274×19 μm181.9 mmM42-mount$3,319.00quoteView
LS-TCL-03170.22×23 μm226.8 mmC-mount$3,669.00quoteView
LS-TCL-03180.22×23 μm226.8 mmF-mount$3,669.00quoteView
LS-TCL-03190.22×23 μm226.8 mmM42-mount$3,669.00quoteView
LS-TCL-03200.185×27 μm278.6 mmC-mount$3,859.00quoteView
LS-TCL-03210.185×27 μm278.6 mmF-mount$3,859.00quoteView
LS-TCL-03220.185×27 μm278.6 mmM42-mount$3,859.00quoteView
LS-TCL-032335 μmC-mount$5,589.00quoteView
LS-TCL-032435 μmF-mount$5,589.00quoteView
LS-TCL-032535 μmM42-mount$5,589.00quoteView
LS-TCL-03260.122×42 μm396 mmC-mount$6,749.00quoteView
LS-TCL-03270.122×42 μm396 mmF-mount$6,749.00quoteView
LS-TCL-03280.122×42 μm396 mmM42-mount$6,749.00quoteView
LS-TCL-03290.091×56 μm527.6 mmC-mount$12,879.00quoteView
LS-TCL-03300.091×56 μm527.6 mmF-mount$12,879.00quoteView
LS-TCL-03310.091×56 μm527.6 mmM42-mount$12,879.00quoteView
LS-TCL-03320.073×70 μm492.8 mmC-mount$18,129.00quoteView
LS-TCL-03340.073×70 μm492.8 mmM42-mount$18,129.00quoteView
LS-TCL-03350.059×86 μm500 mmC-mount$55,459.00quoteView
LS-TCL-03360.059×86 μm500 mmF-mount$55,459.00quoteView
LS-TCL-03370.059×86 μm500 mmM42-mount$55,459.00quoteView
