2.667× telecentric lens, 4/3", M42-mount (LS-TCL-0295)

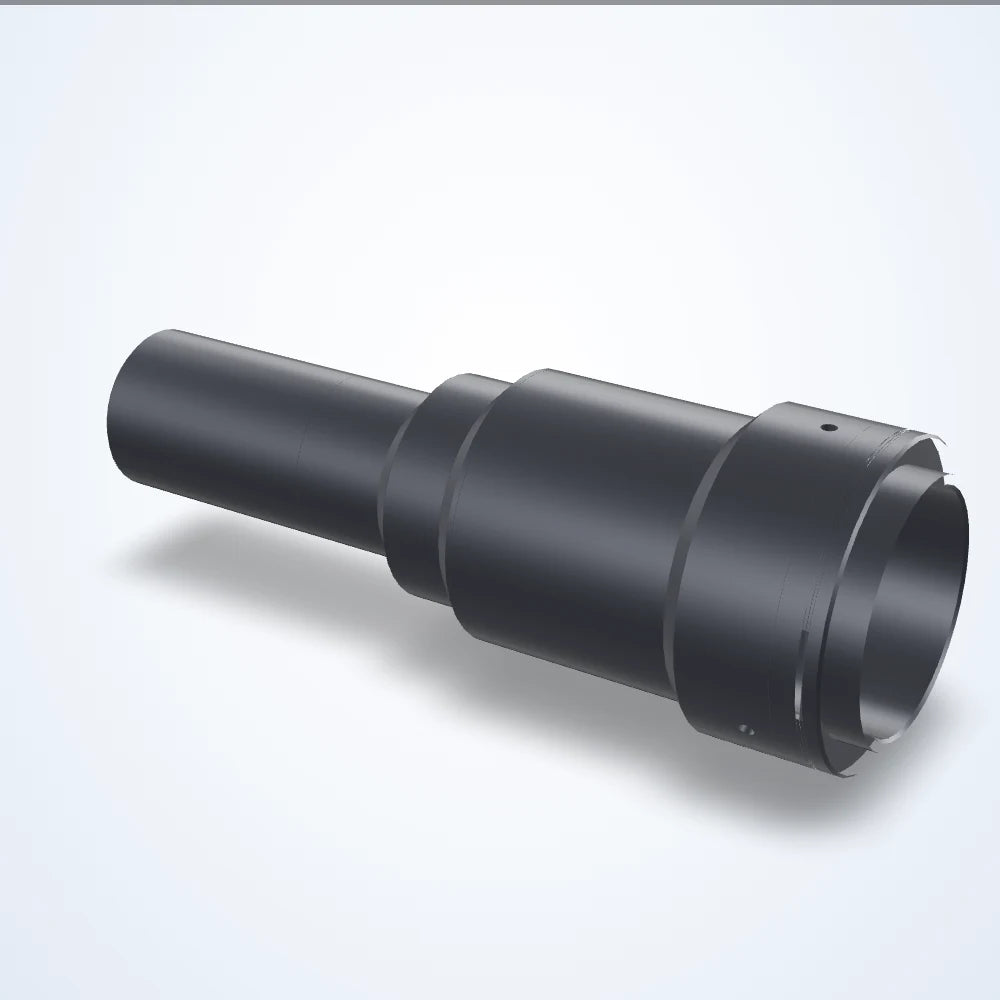

  • 2.667× telecentric lens, 4/3", M42-mount (LS-TCL-0295)

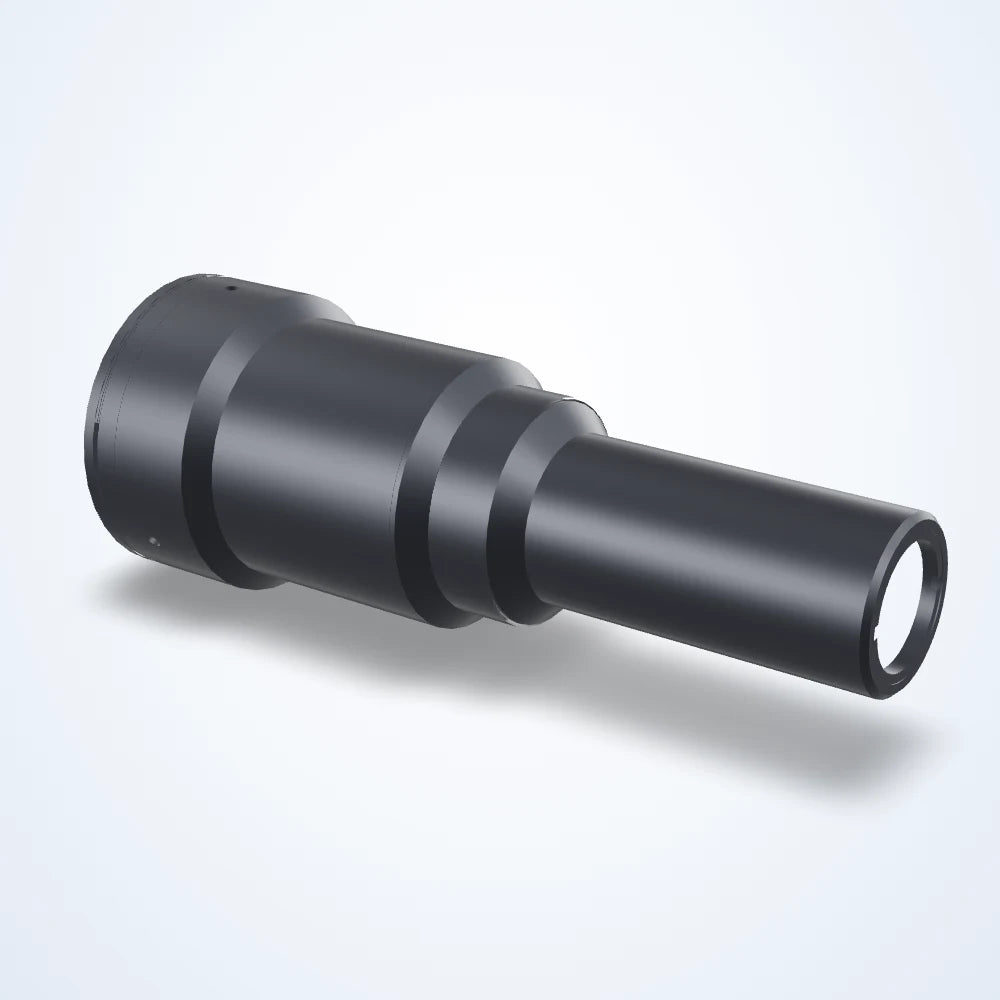

  • 2.667× telecentric lens, 4/3", M42-mount (LS-TCL-0295) - view 2

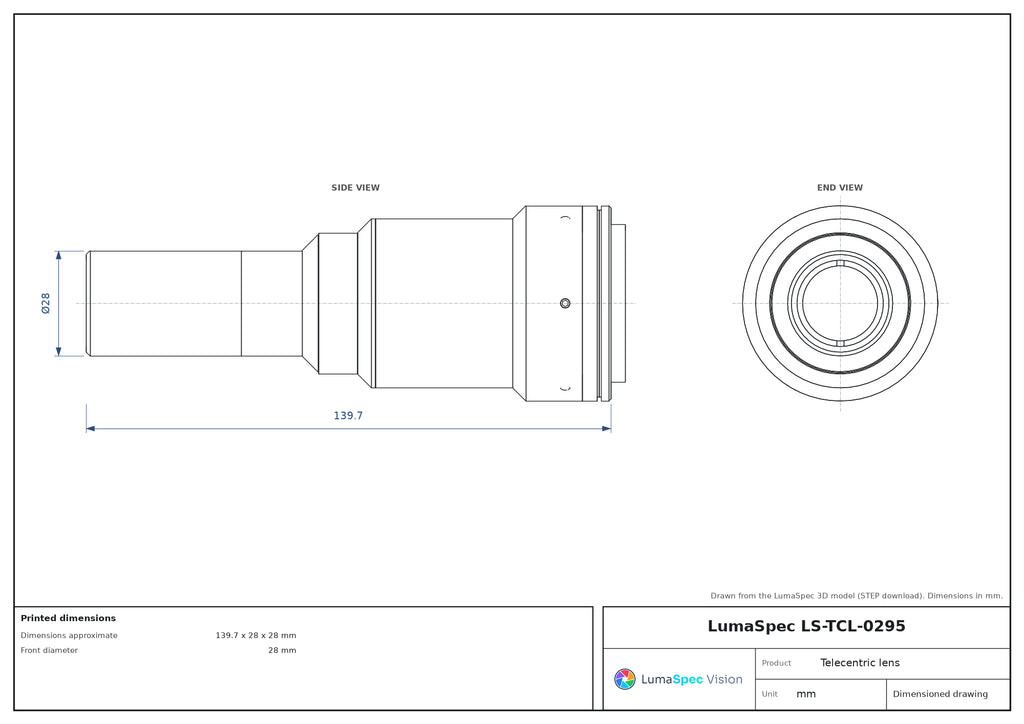

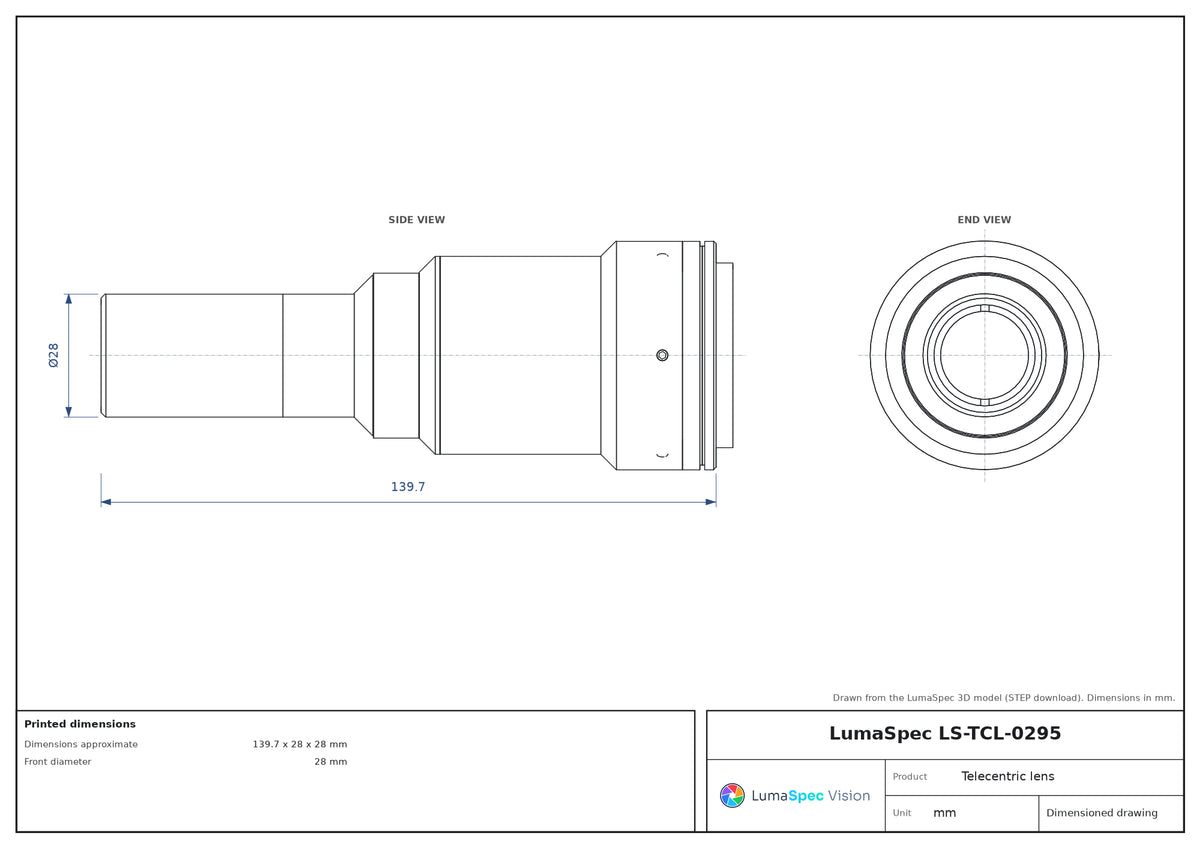

  • LS-TCL-0295 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

2.667× telecentric lens, 4/3", M42-mount (LS-TCL-0295)

Model LS-TCL-0295

  • Magnification2.667×
  • MountM42
  • Sensor4/3"
  • Working distance60.1 mm
  • Resolution4 μm
$2,659.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 60.1 mm; depth of field 0.1 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0295
FOV @ 1.1″5.31 x 3.89 mm
FOV @ 1″5.32 x 2.82 mm
Fov @ 4/3″7.10 x 3.98 mm
Lens typeTelecentric
Working ƒ/nf/16

Optics

Magnification2.667×
Working distance60.1 mm
Depth of field0.1 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle22 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor format4/3"
Resolution (pixel size)4 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions approximate139.7 x 28 x 28 mm
Front diameter28 mm
Weight287 Grams
