0.486× telecentric lens, 4/3", F-mount (LS-TCL-0306)

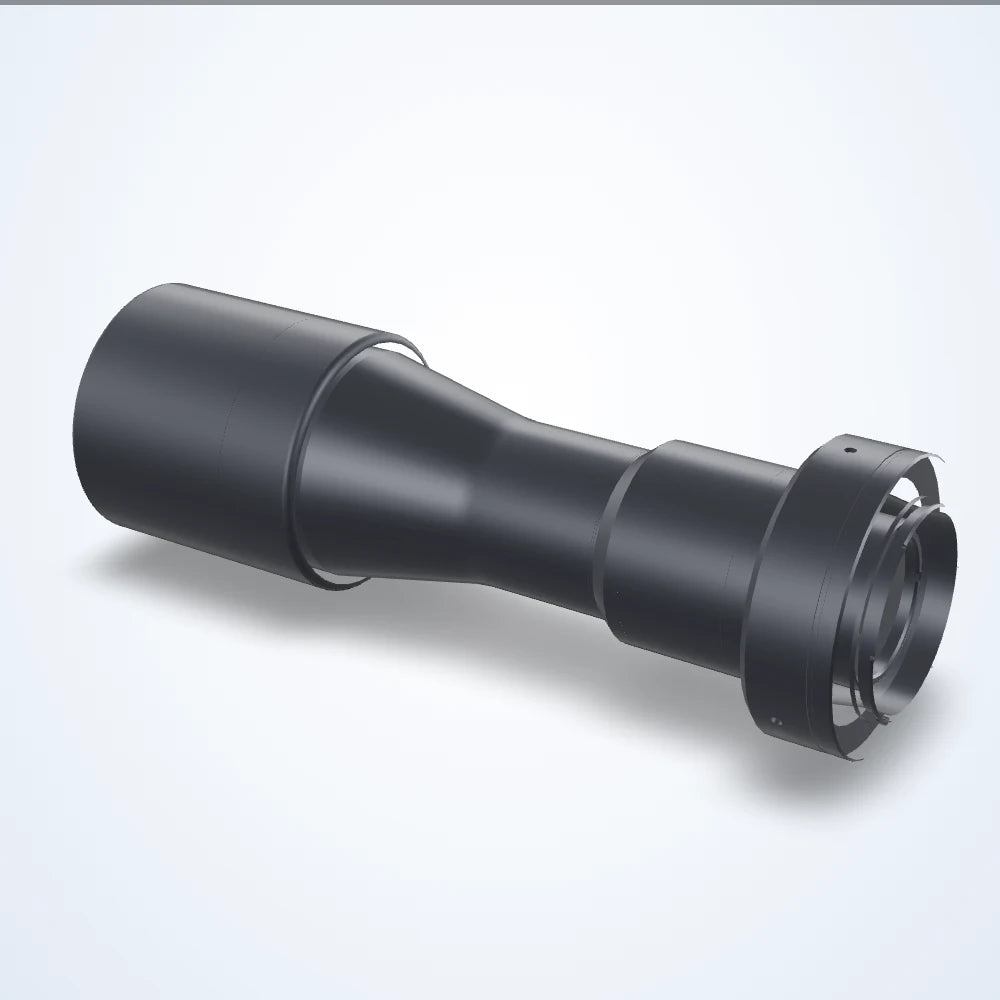

  • 0.486× telecentric lens, 4/3", F-mount (LS-TCL-0306)

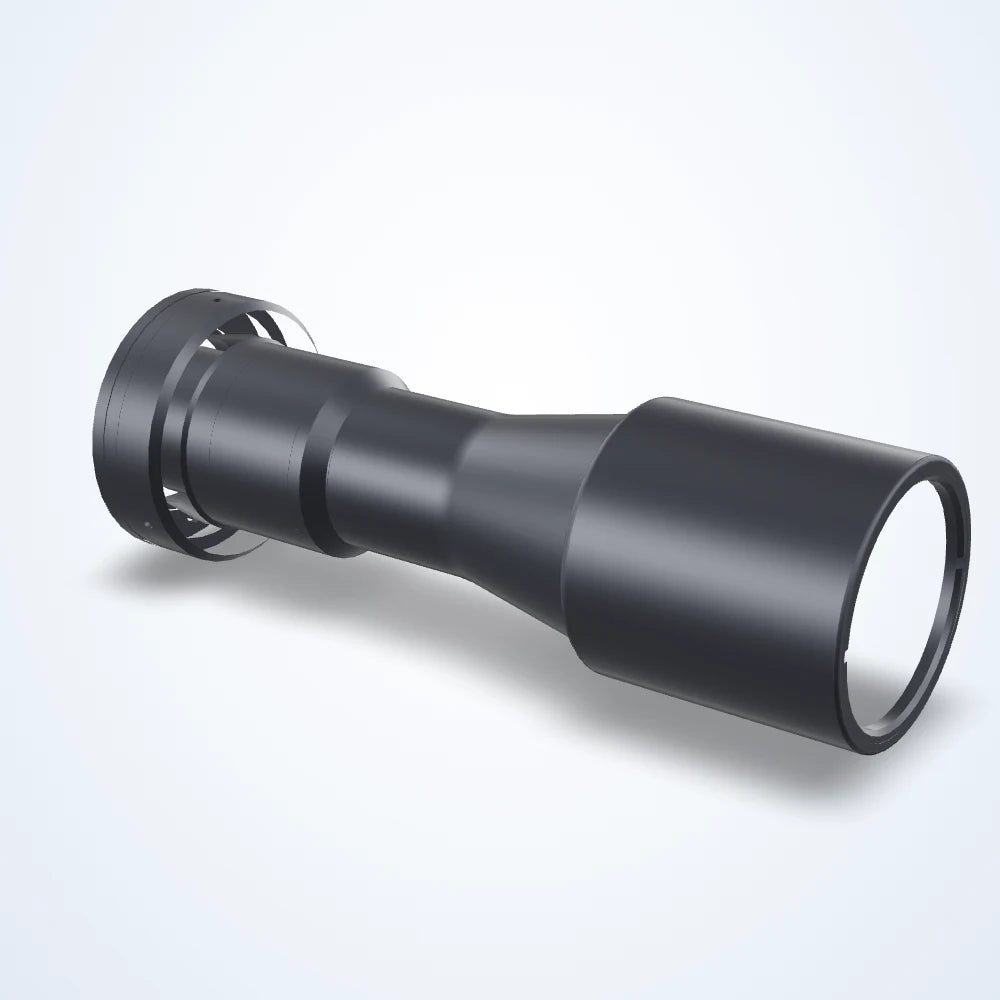

  • 0.486× telecentric lens, 4/3", F-mount (LS-TCL-0306) - view 2

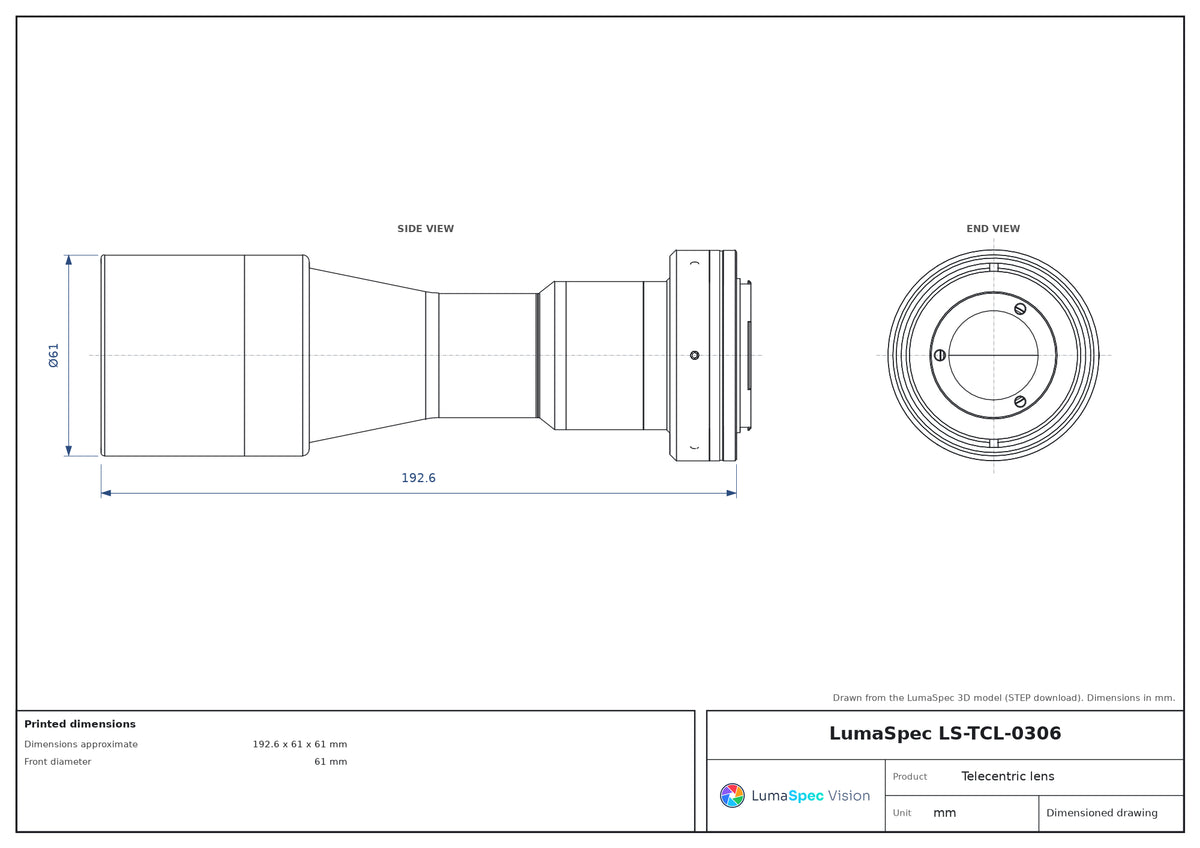

  • LS-TCL-0306 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.486× telecentric lens, 4/3", F-mount (LS-TCL-0306)

Model LS-TCL-0306

  • Magnification0.486×
  • MountF-mount
  • Sensor4/3"
  • Working distance102.6 mm
  • Resolution14 μm
$2,669.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 102.6 mm; depth of field 2.4 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0306
FOV @ 1.1″29.14 x 21.34 mm
FOV @ 1″29.2 x 15.45 mm
Fov @ 4/3″38.95 x 21.83 mm
Lens typeTelecentric
Working ƒ/nf/11

Optics

Magnification0.486×
Working distance102.6 mm
Depth of field2.4 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.06
Filter threadNo Filter Threads
Image circle22 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.04°

Sensor and imaging

Sensor format4/3"
Resolution (pixel size)14 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountF-mount
Dimensions approximate192.6 x 61 x 61 mm
Front diameter61 mm
Weight699 Grams
