Light controllers
PCIE light control card, 2 ch, 48 W (LS-PCIE2448A-2T)
Model LS-PCIE2448A-2T
- Channels2
- OutputDC 24V
- InputDC12V 5A
- Total output48 W
- ControlPCIe X1
$119.00
In stock - ships the same business day (4 available, order by 2 PM ET)
0.3 kg shipping weight
Volume pricing, Net 30 or a formal quote?
Light control card with a standard PCIe-X1 interface (fits PCIe-X4, X8 and X16 slots), powered from the host computer, two 24 V outputs of up to 1 A each, controlled through a serial COM port created by the driver, 0-255 brightness with constant-on / constant-off modes and optocoupler external trigger.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-PCIE2448A-2T |
|---|---|
| Drive method | Constant voltage |
| Light control mode | 0-255 level PWM / serial port |
| Cooling method | Natural cooling |
Interfaces and I/O
| Communication interface | PCIe X1 |
|---|---|
| Power interface | Large 4-pin D-type connector (PC host power) |
Environment and compliance
| Operating temp/humidity | 0~40 °C, 20~85 %RH (non-condensing) |
|---|---|
| Storage temp/humidity | -20~60 °C, 20~85 %RH (non-condensing) |
Electrical
| Input voltage | DC12V 5A |
|---|---|
| Channels | 2 |
| Output voltage | DC 24V |
| Max output current | 2A (single channel max current 1A) |
| Total power | 48W |
| Output port | SMP-03V-BC (1: output+ 2: NC 3: output-) |
| External trigger voltage | DC5V~24V (current about 5.6mA) |
| Trigger delay | <10us |
| Trigger port | 1+/1-, 2+/2- (CH1/CH2 external trigger positive / negative); a DC5-24V signal on a channel gives a valid trigger; constant-off mode: light on while triggered, constant-on mode: light off while triggered |
| Total output (W) | 48 |
Mechanical

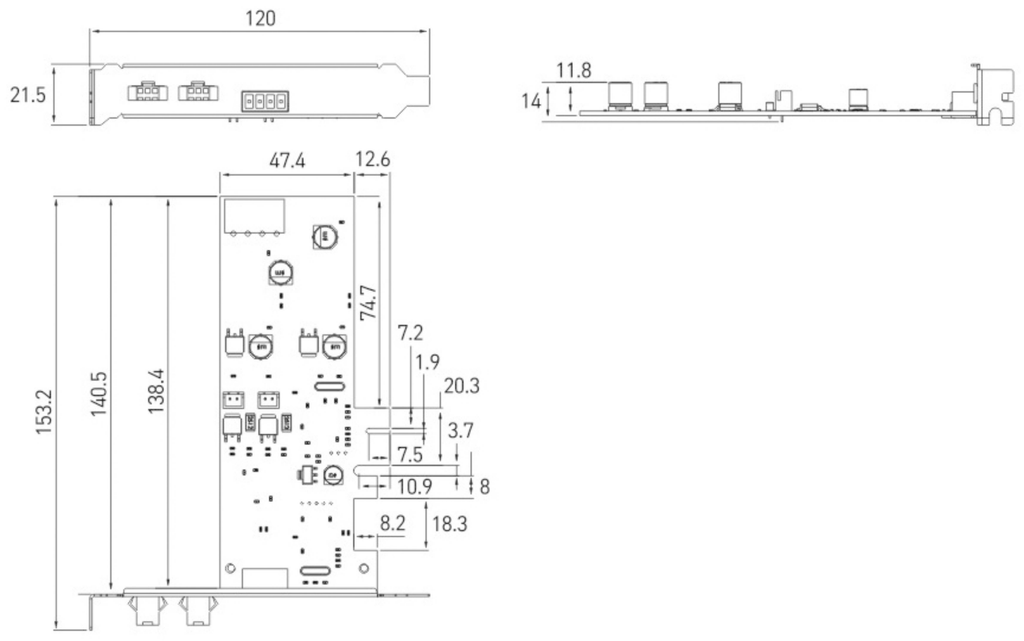

| Dimensions (mm) | Bracket 120 x 21.5; card 153.2 / 140.5 / 138.4 x 47.4 (+12.6); thickness 11.8-14 |
|---|---|
| Shipping weight | 0.30 kg |
