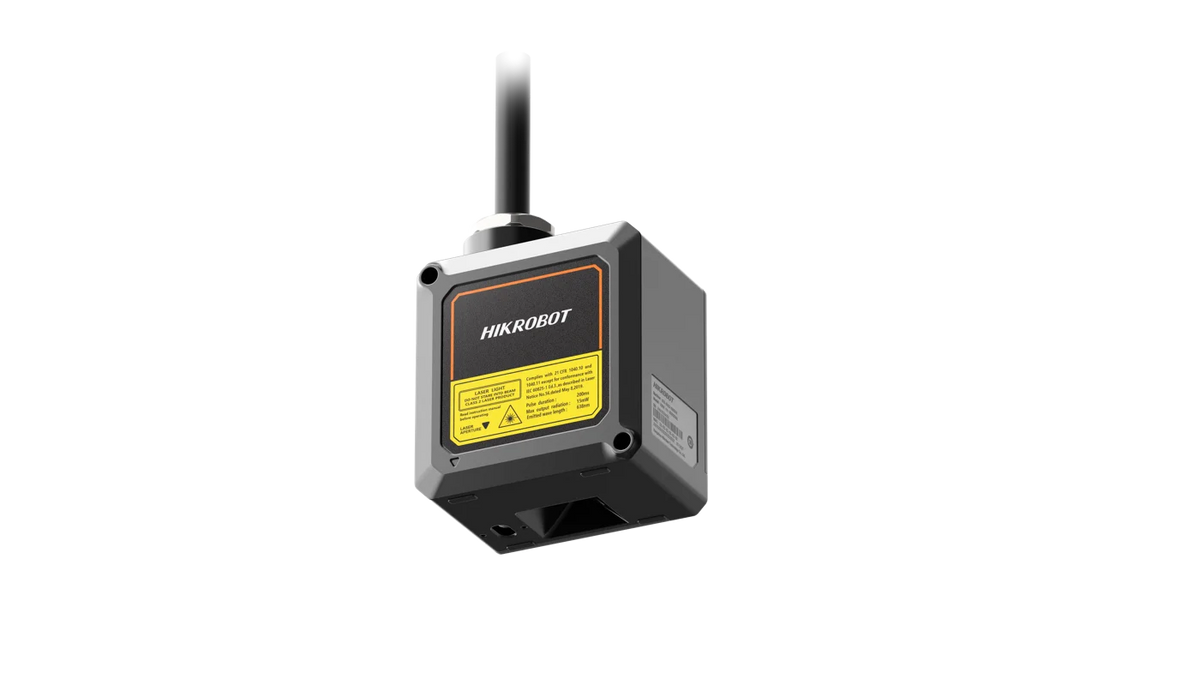

Hikrobot MV-DD020-03H Point laser displacement sensing
Model MV-DD020-03HHikrobot
- Range6 mm
- Spot diameterФ55 μm
- Reference distance20 mm
- Trigger modeExternal encoder trigger
Price on request
Ships in 2-3 weeks
0.55 kg shipping weight
Not available in the United States. Available for delivery to other countries.
Hikrobot MV-DD020-03H Point laser displacement sensing. Ultra-high-speed chip with frame rates up to 592 kHz Sub-pixel algorithms deliver sub-micron precision
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | MV-DD020-03H |
|---|---|
| Brand | Hikrobot |
| Reference distance | 20 mm |
| Measurement range (Z-axis) | 6 mm |
| Repeatability (Z-axis)* | 0.05 μm @ standard gauge block measured with the sensor on an optical table |
| Linearity Z-axis (±% of MR) | 0.03 |
| Sampling frequency | 1 kHz, 2 kHz, 5 kHz, 10 kHz, 20 kHz, 50 kHz, 88 kHz, 200 kHz, 400 kHz, 592 kHz (10 selectable levels) |
| Laser safety class | 660 nm |
Interfaces and I/O
| Data interface | Gigabit Ethernet (1000 Mbit/s), compatible with Fast Ethernet (100 Mbit/s) |
|---|---|
| Digital I/O | 12-pin M12 connector for power and I/O, Includes 2 digital signal inputs, 4 digital signal outputs, 1 analog output (voltage 0 to 10 V or current 4 to 20 mA) |
| Client software | Point laser client software |
Environment and compliance
| Ingress protection | IP67 |
|---|---|
| Temperature | Operating temperature: 0°C to 45°C, Storage temp.: -30 °C to 80 °C; Operating temperature: 0 °C to 45 °C, Storage temp.: -30 °C to 80 °C; 12→34; 12 → 34 |
| Humidity | 20% RH to 85% RH (no condensation) |
Computing
| Operating system | Windows 7/10/11 64bits |
|---|
Electrical
| Trigger mode | External encoder trigger |
|---|---|
| Power supply | 24 VDC |
| Power consumption | 5 W@24 VDC |
Mechanical
| Spot diameter | Ф55 μm |
|---|---|
| Installation method | Diffuse reflection |

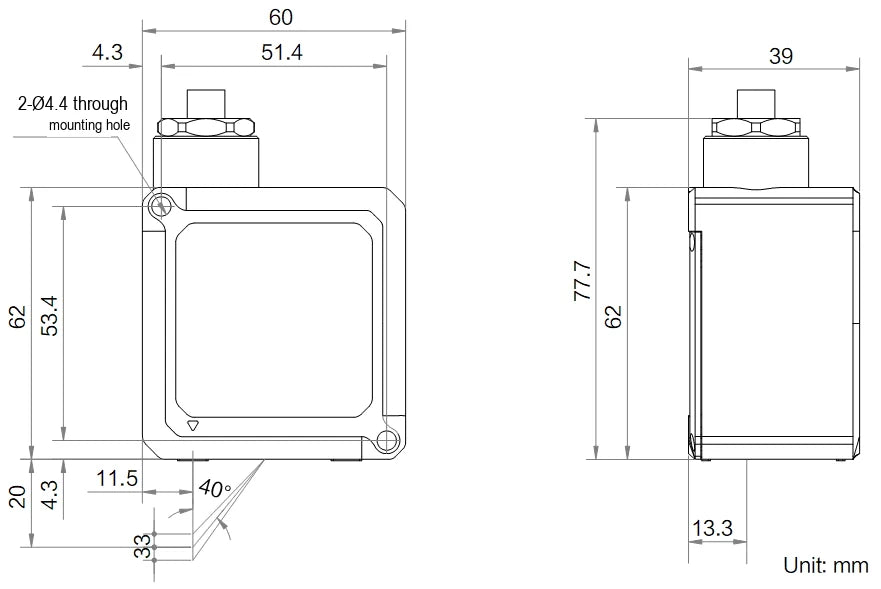

| Dimension | 62 mm × 60 mm × 39 mm (excl. SR cable) |
| Weight | Approx. 320 g (0.7 lb.) |
| Shipping weight (estimated) | 0.55 kg |
