0.366× telecentric lens, 4/3", M42-mount (LS-TCL-0310)

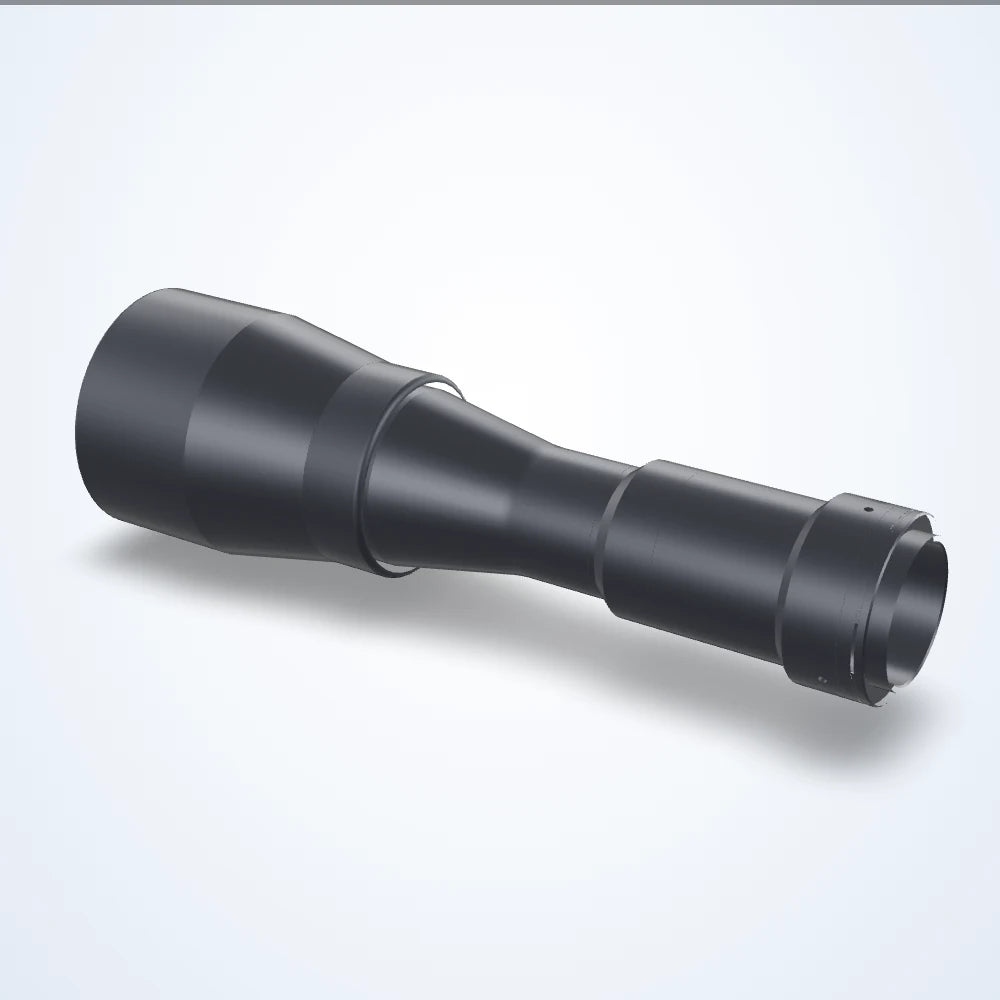

  • 0.366× telecentric lens, 4/3", M42-mount (LS-TCL-0310)

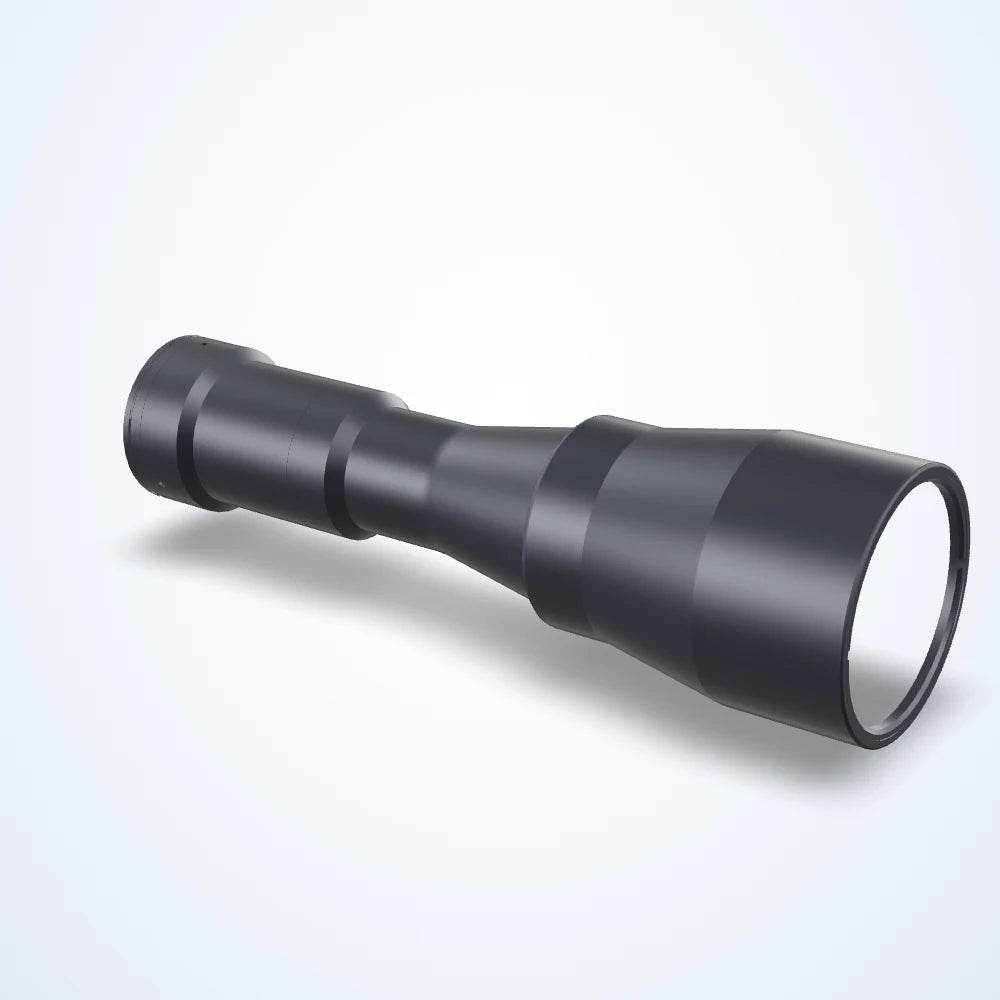

  • 0.366× telecentric lens, 4/3", M42-mount (LS-TCL-0310) - view 2

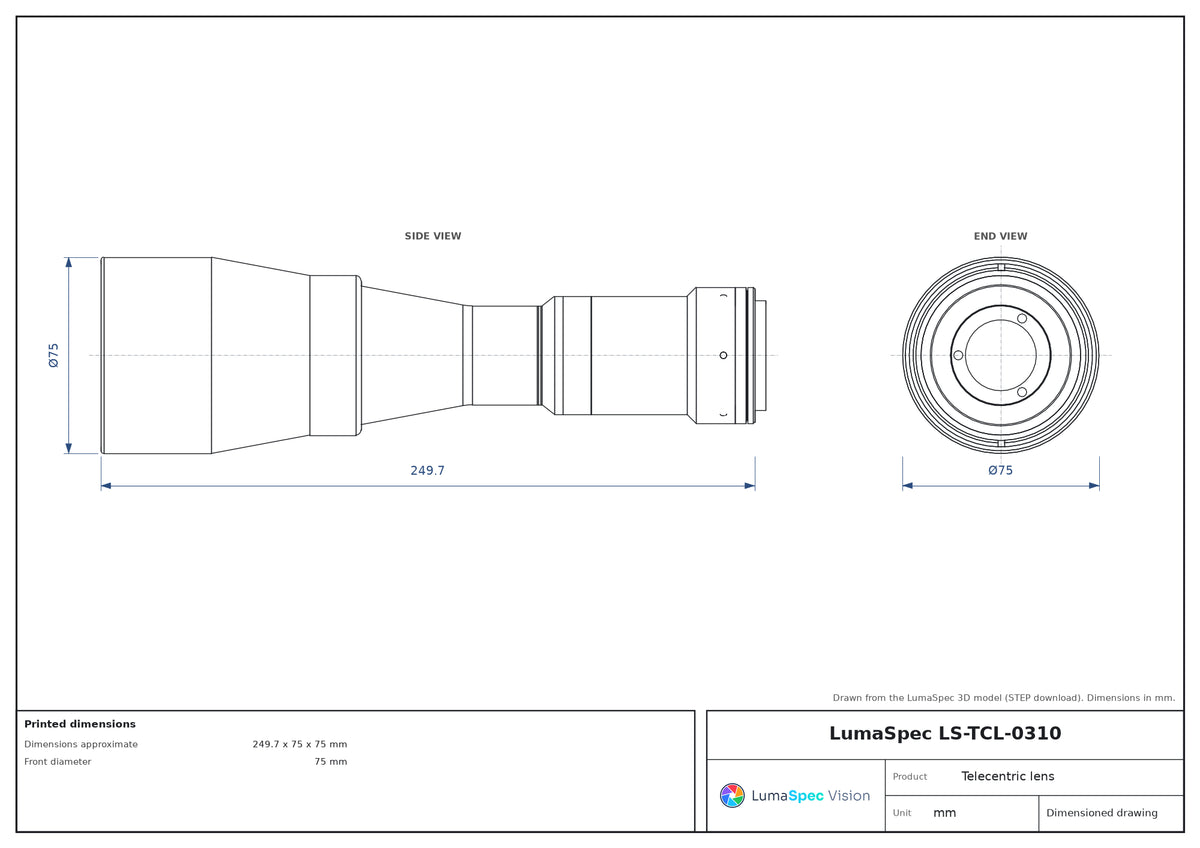

  • LS-TCL-0310 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.366× telecentric lens, 4/3", M42-mount (LS-TCL-0310)

Model LS-TCL-0310

  • Magnification0.366×
  • MountM42
  • Sensor4/3"
  • Working distance132.9 mm
  • Resolution14 μm
$2,919.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Request a quote

0.366× telecentric lens, 4/3", M42-mount (LS-TCL-0310)LS-TCL-0310

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 132.9 mm; depth of field 3.1 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0310
FOV @ 1.1″38.69 x 28.33 mm
FOV @ 1″38.77 x 20.52 mm
Fov @ 4/3″51.72 x 28.99 mm
Lens typeTelecentric
Working ƒ/nf/11

Optics

Magnification0.366×
Working distance132.9 mm
Depth of field3.1 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.05
Filter threadNo Filter Threads
Image circle22 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor format4/3"
Resolution (pixel size)14 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions approximate249.7 x 75 x 75 mm
Front diameter75 mm
Weight804 Grams
