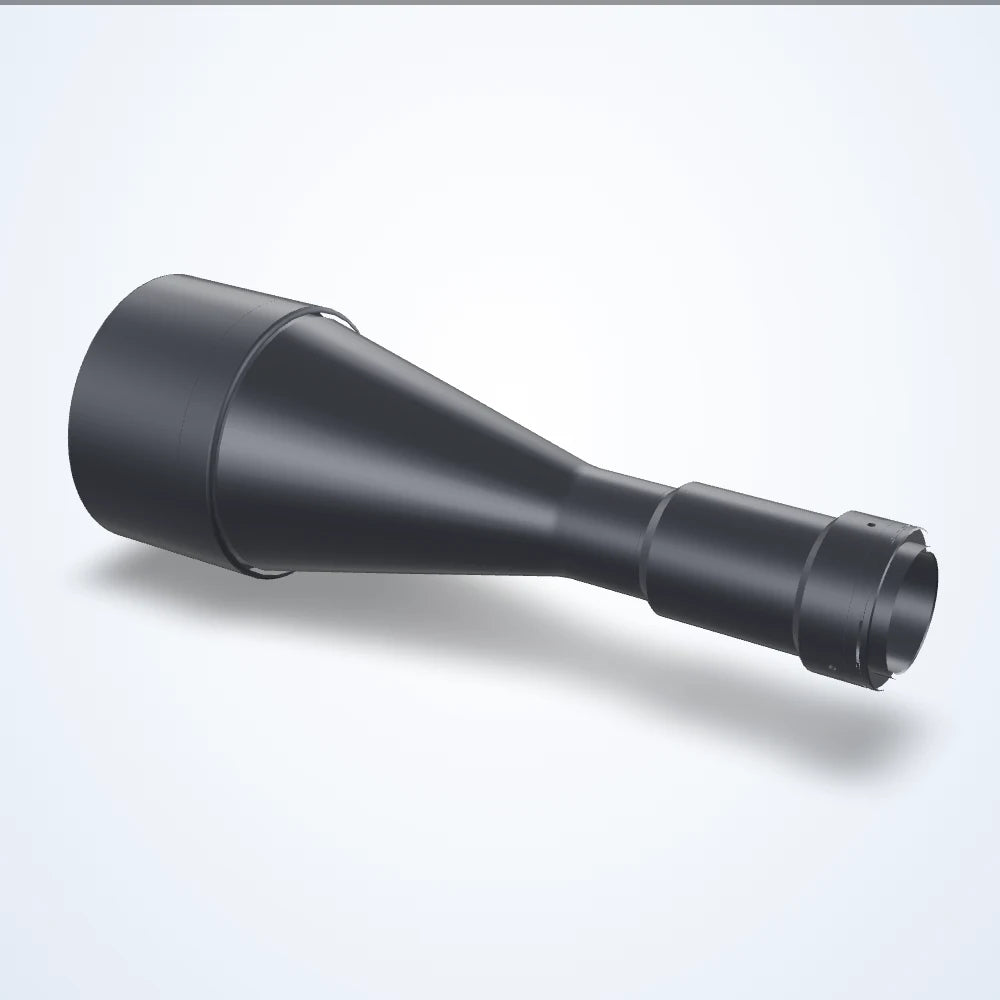

  • 0.274× telecentric lens, 4/3", M42-mount (LS-TCL-0316)

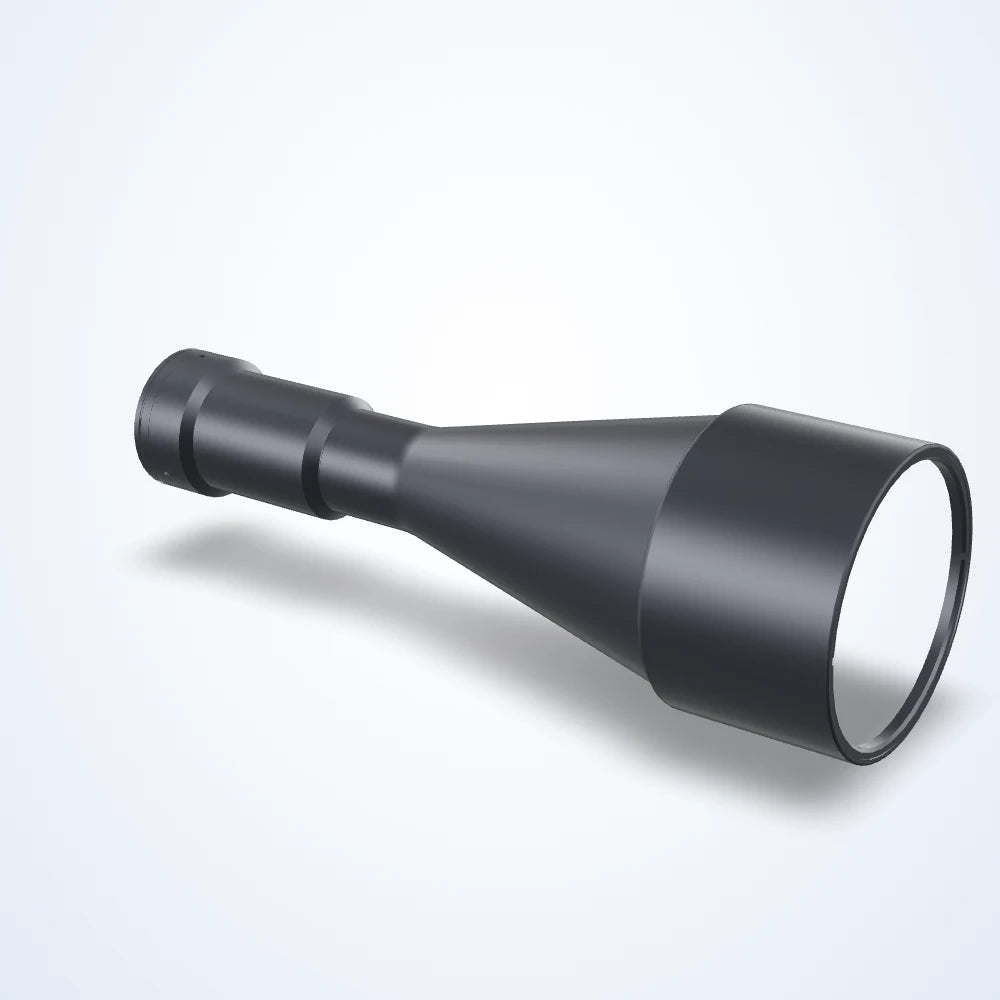

  • 0.274× telecentric lens, 4/3", M42-mount (LS-TCL-0316) - view 2

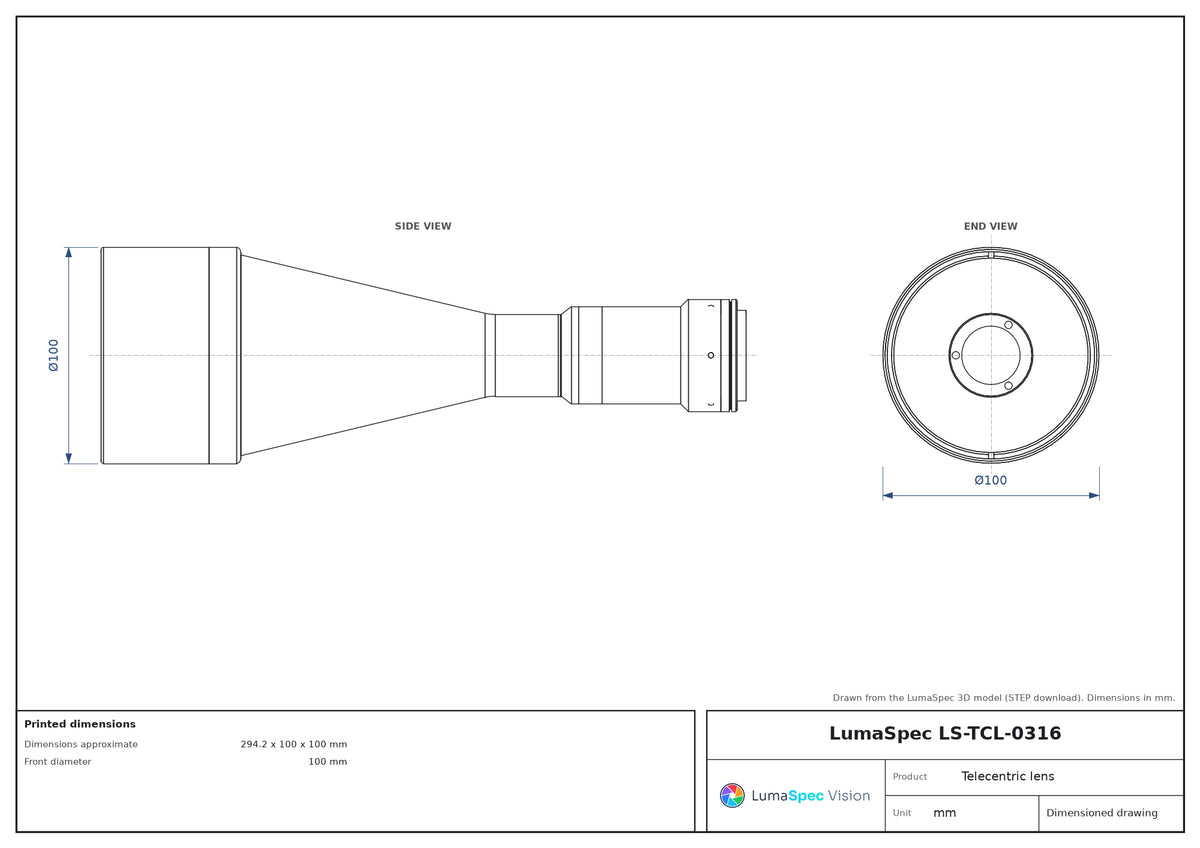

  • LS-TCL-0316 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.274× telecentric lens, 4/3", M42-mount (LS-TCL-0316)

Model LS-TCL-0316

  • Magnification0.274×
  • MountM42
  • Sensor4/3"
  • Working distance181.9 mm
  • Resolution19 μm
$3,319.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 181.9 mm; depth of field 5.5 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0316
FOV @ 1.1″51.68 x 37.85 mm
FOV @ 1″51.79 x 27.41 mm
Fov @ 4/3″69.09 x 38.72 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.274×
Working distance181.9 mm
Depth of field5.5 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle22 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.04°

Sensor and imaging

Sensor format4/3"
Resolution (pixel size)19 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions approximate294.2 x 100 x 100 mm
Front diameter100 mm
Weight1131 Grams
