0.143× telecentric lens, 4/3", F-mount (LS-TCL-0324)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.143× telecentric lens, 4/3", F-mount (LS-TCL-0324)

Model LS-TCL-0324

MountF-mount
Sensor4/3"
Resolution35 μm
Sensor format4/3"

$5,589.00

Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Quantity

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-TCL-0324
Flange distance	46.5 mm (F-mount)
FOV @ 1.1″	99.02 x 72.52 mm
FOV @ 1″	99.23 x 52.52 mm
Fov @ 4/3″	132.38 x 74.20 mm
Front flange holes	M5 x4 and Ø8 x4 on Ø165 circle
Lens type	Telecentric
Phase adjustment	yes
Working ƒ/n	f/8

Optics

Clear aperture	Ø166
Distortion maximum (%)	< 0.1
Distortion typical (%)	< 0.05
Image circle	22 mm
Telecentricity maximum	0.10°
Telecentricity typical	< 0.05°

Sensor and imaging

Resolution (pixel size)	35 μm

Environment and compliance

Operating temperature range	0 to 40°C
Storage temperature range	0 to 50°C

Mechanical

Mount	F-mount

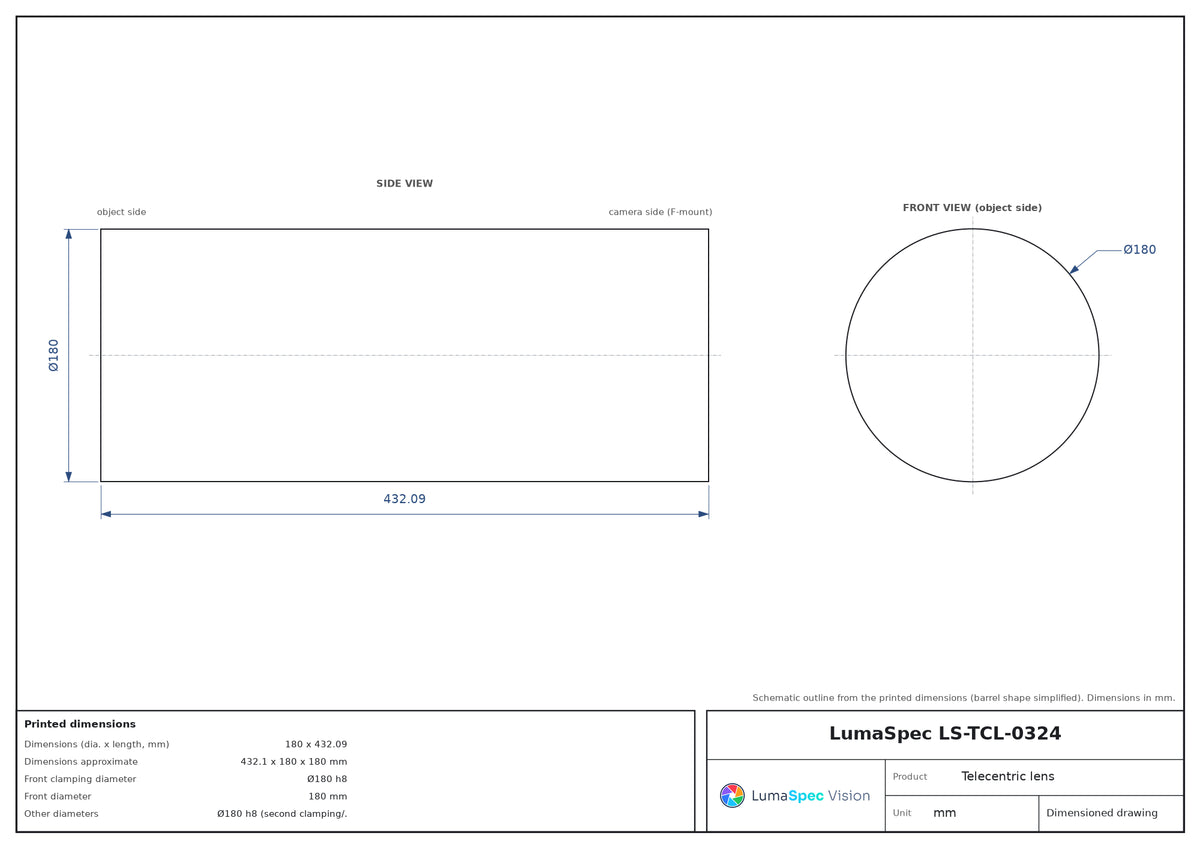

Dimensions (dia. x length, mm)	180 x 432.09
Dimensions approximate	432.1 x 180 x 180 mm
Front clamping diameter	Ø180 h8
Front diameter	180 mm
Other diameters	Ø180 h8 (second clamping/flange), Ø100 (rear cone start), Ø37.80 h8 (rear clamping), Ø45, Ø64 (mount ring)
Rear protrusion behind mount	4.3 mm
Weight (g)	4857
