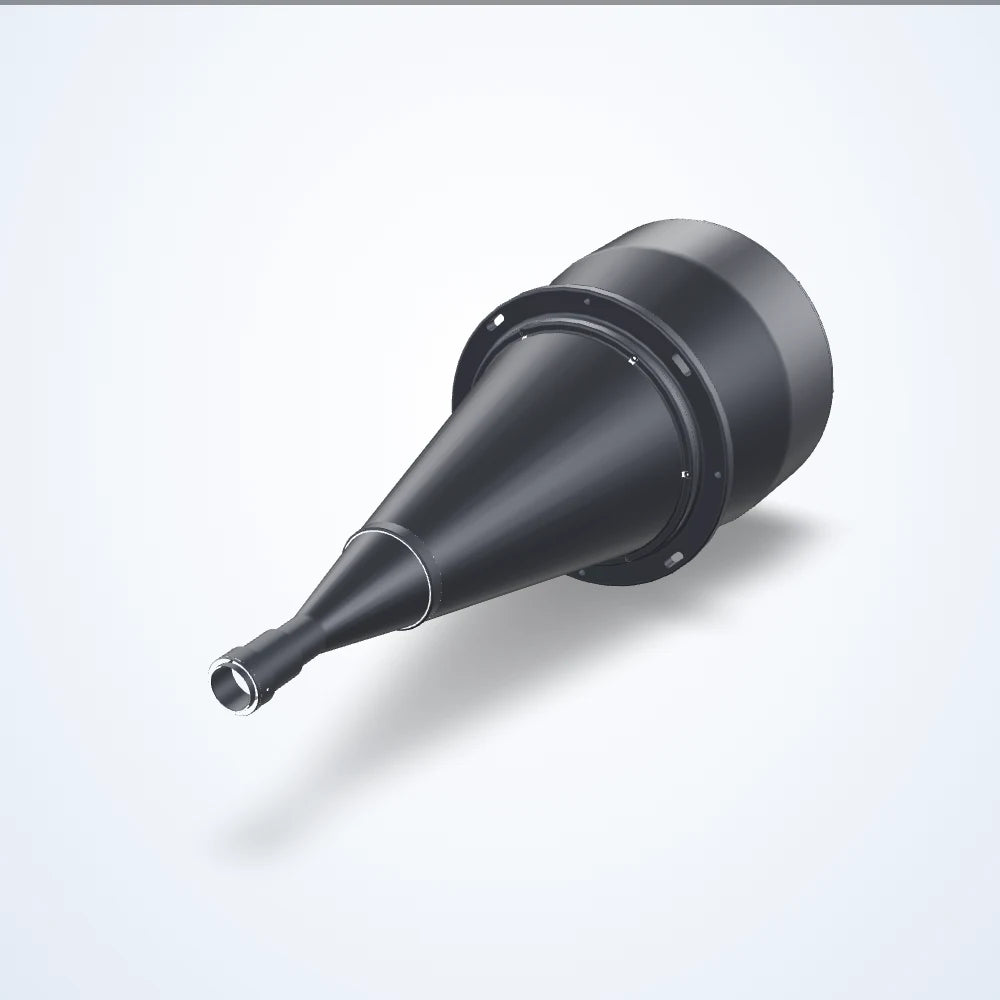

  • 0.073× telecentric lens, 4/3", M42-mount (LS-TCL-0334)

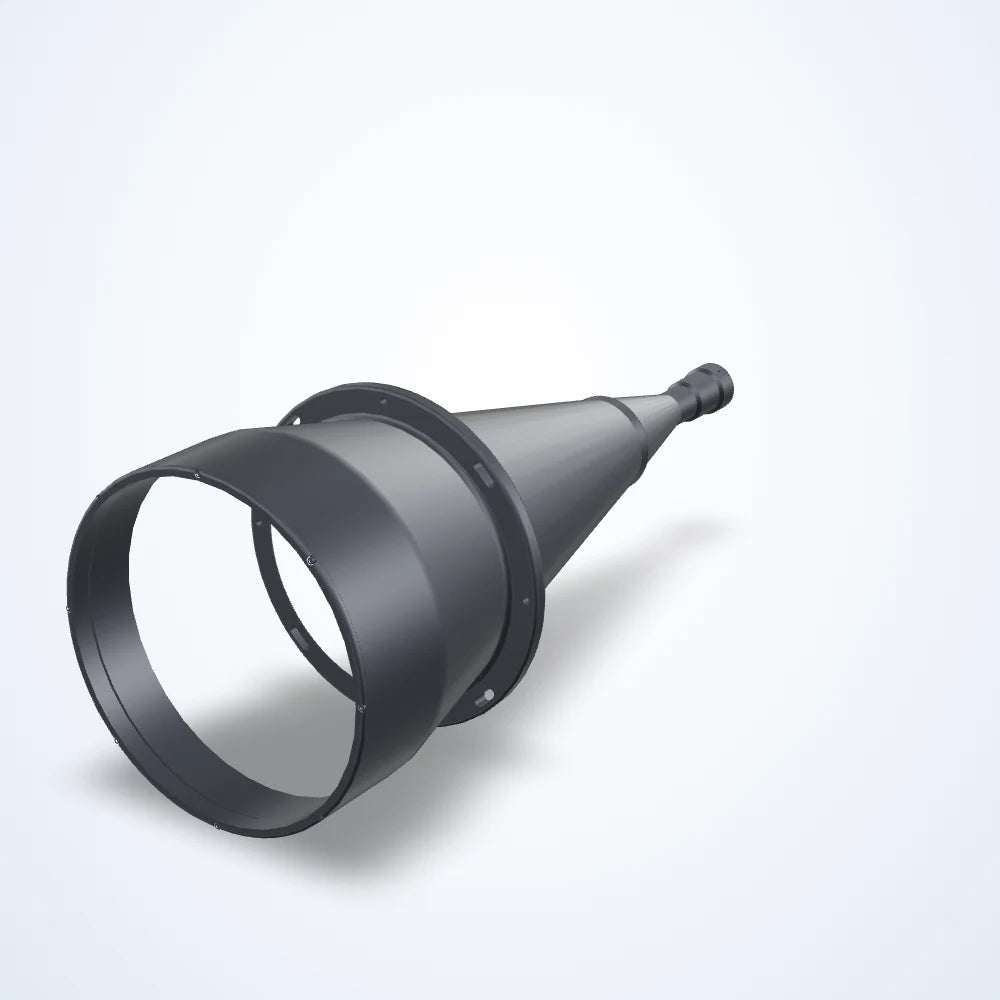

  • 0.073× telecentric lens, 4/3", M42-mount (LS-TCL-0334) - view 2

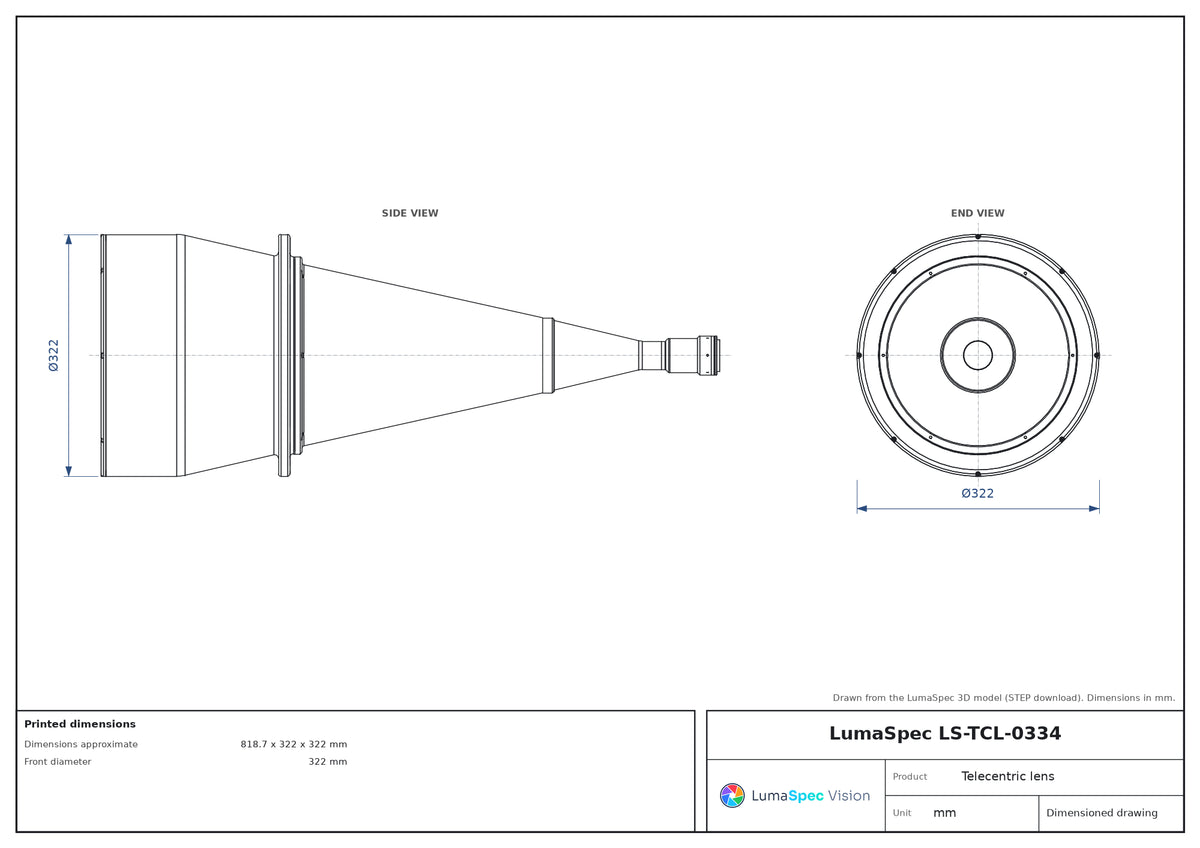

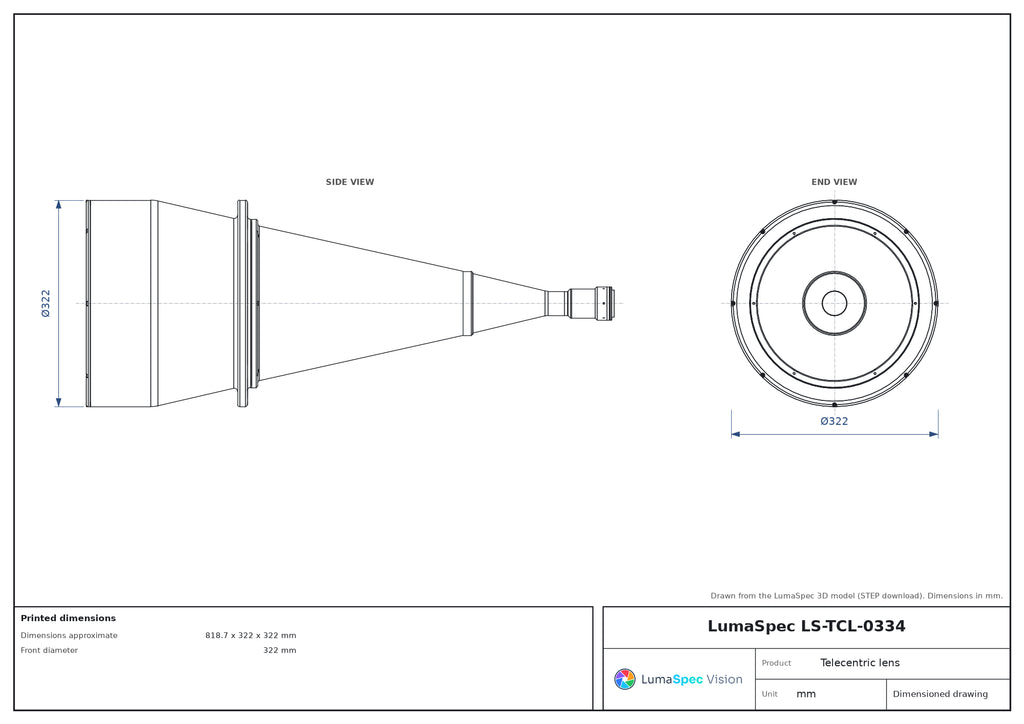

  • LS-TCL-0334 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.073× telecentric lens, 4/3", M42-mount (LS-TCL-0334)

Model LS-TCL-0334

  • Magnification0.073×
  • MountM42
  • Sensor4/3"
  • Working distance492.8 mm
  • Resolution70 μm
$18,129.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 492.8 mm; depth of field 77.7 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0334
FOV @ 1.1″193.97 x 142.05 mm
FOV @ 1″194.38 x 102.88 mm
Fov @ 4/3″259.32 x 145.34 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.073×
Working distance492.8 mm
Depth of field77.7 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle21.8 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.04°

Sensor and imaging

Sensor format4/3"
Resolution (pixel size)70 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions approximate818.7 x 322 x 322 mm
Front diameter322 mm
Weight18332 Grams
