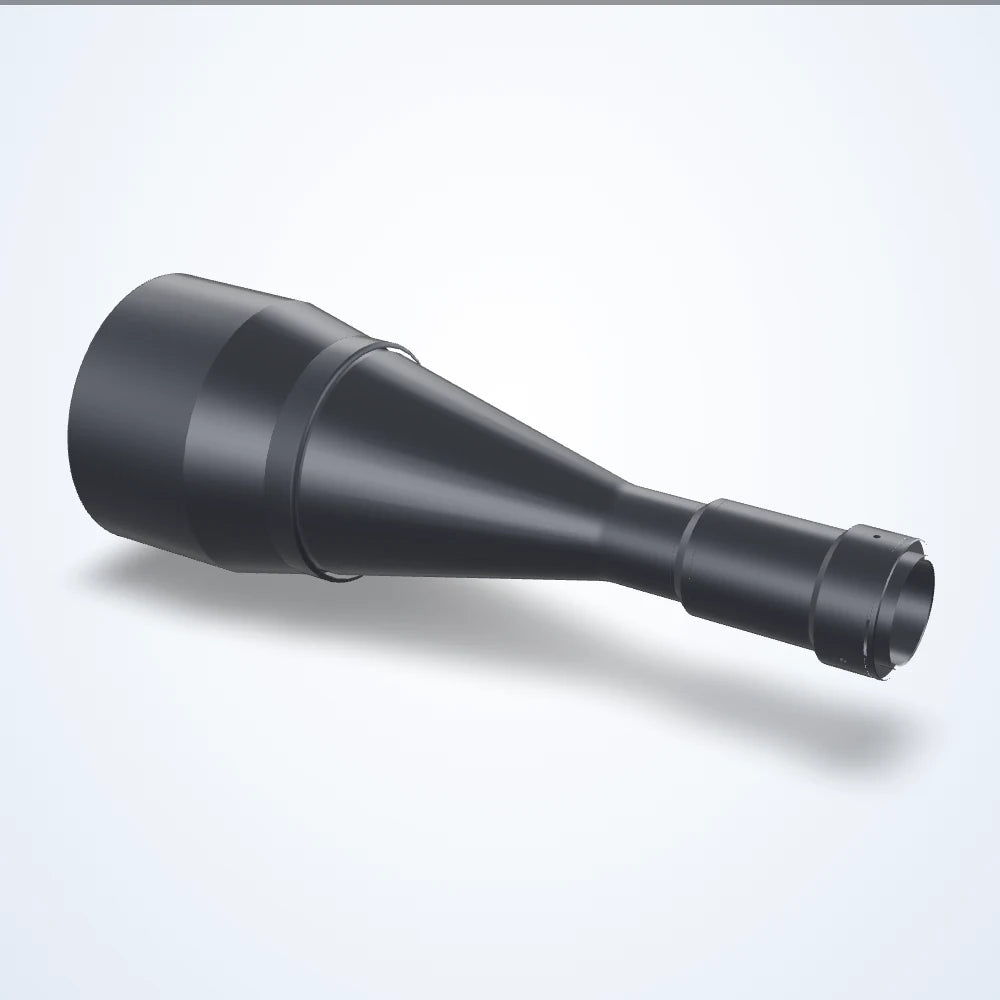

  • 0.22× telecentric lens, 4/3", M42-mount (LS-TCL-0319)

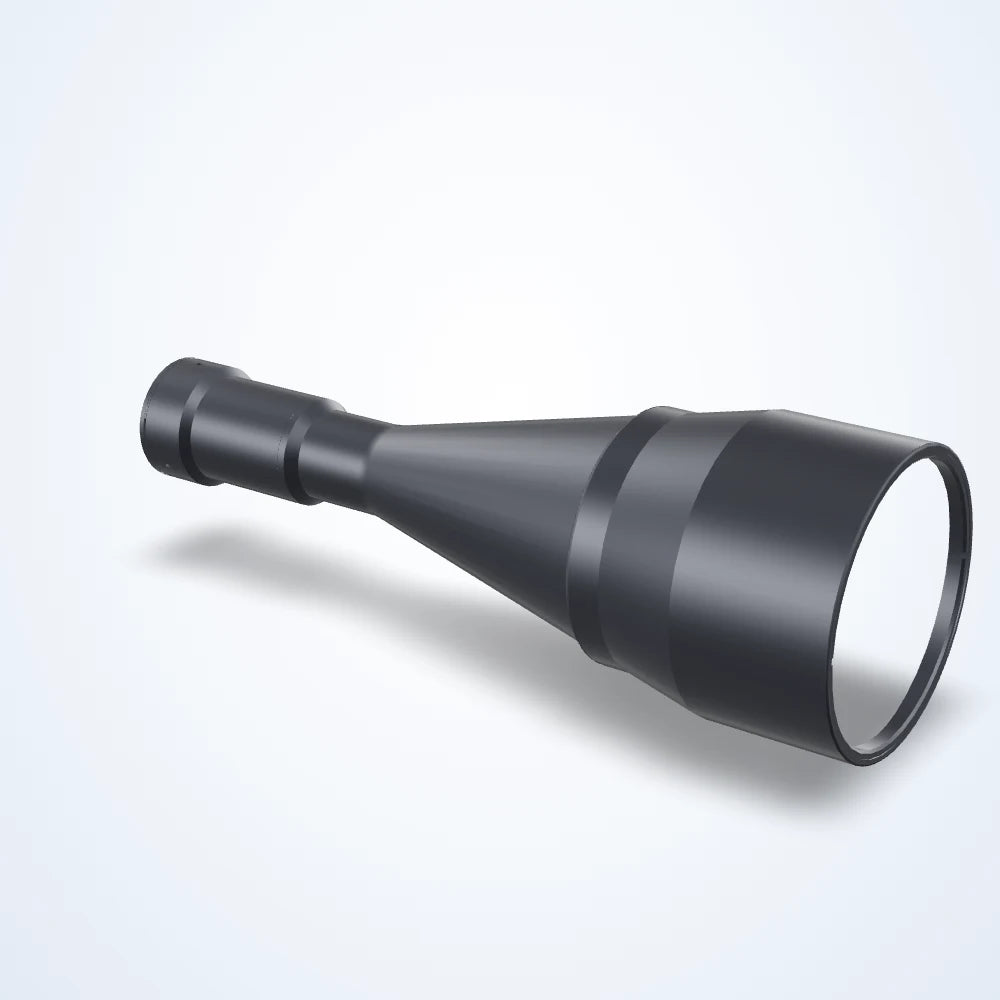

  • 0.22× telecentric lens, 4/3", M42-mount (LS-TCL-0319) - view 2

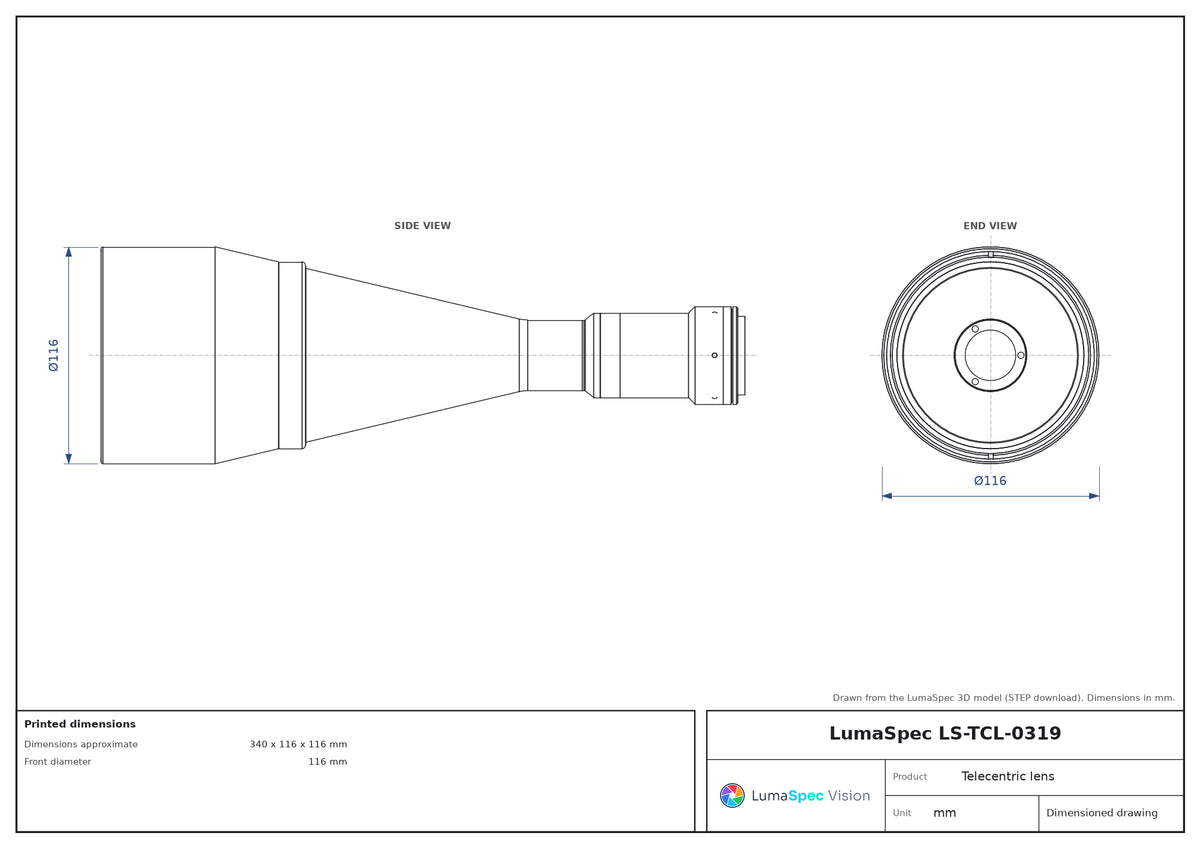

  • LS-TCL-0319 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.22× telecentric lens, 4/3", M42-mount (LS-TCL-0319)

Model LS-TCL-0319

  • Magnification0.22×
  • MountM42
  • Sensor4/3"
  • Working distance226.8 mm
  • Resolution23 μm
$3,669.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 226.8 mm; depth of field 8.6 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0319
FOV @ 1.1″64.36 x 47.14 mm
FOV @ 1″64.50 x 34.14 mm
Fov @ 4/3″86.05 x 48.23 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.22×
Working distance226.8 mm
Depth of field8.6 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.08
Filter threadNo Filter Threads
Image circle22 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.04°

Sensor and imaging

Sensor format4/3"
Resolution (pixel size)23 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountM42-mount
Dimensions approximate340 x 116 x 116 mm
Front diameter116 mm
Weight1564 Grams
