1.054× telecentric lens, 4/3", C-mount (LS-TCL-0299)

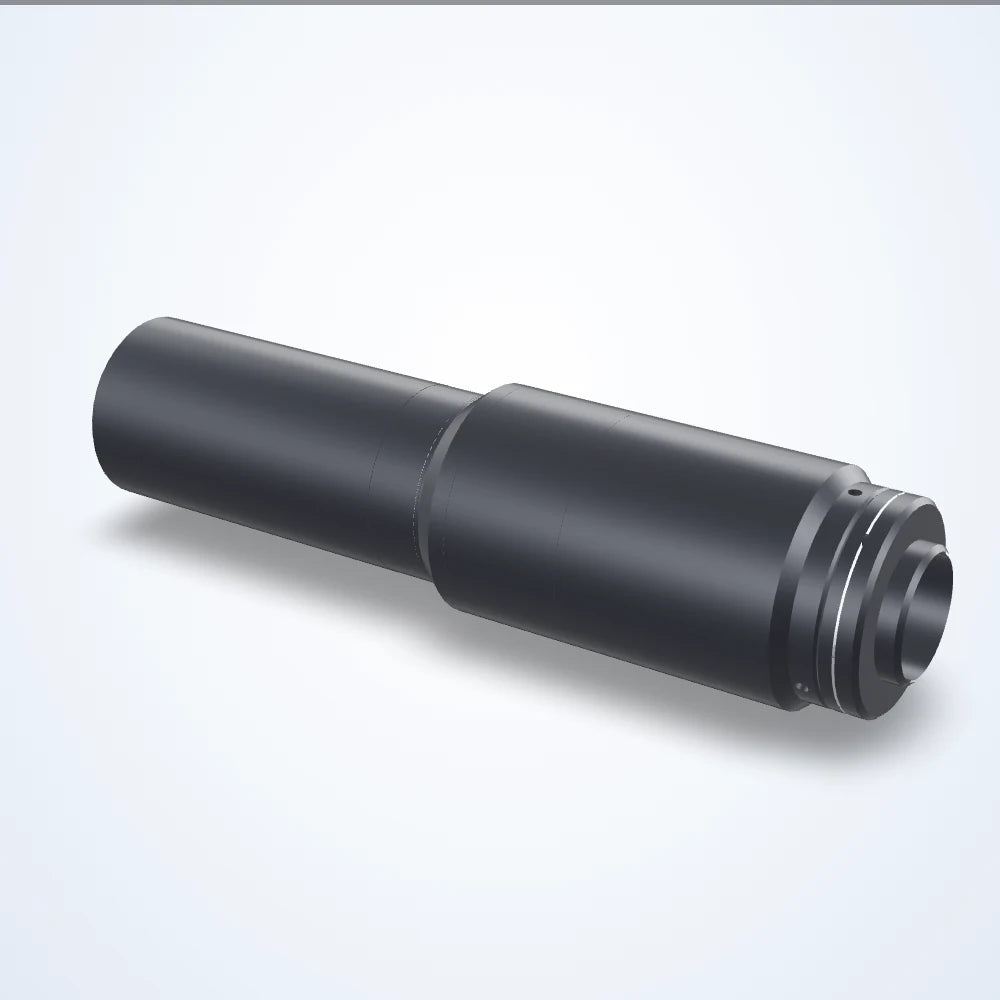

  • 1.054× telecentric lens, 4/3", C-mount (LS-TCL-0299)

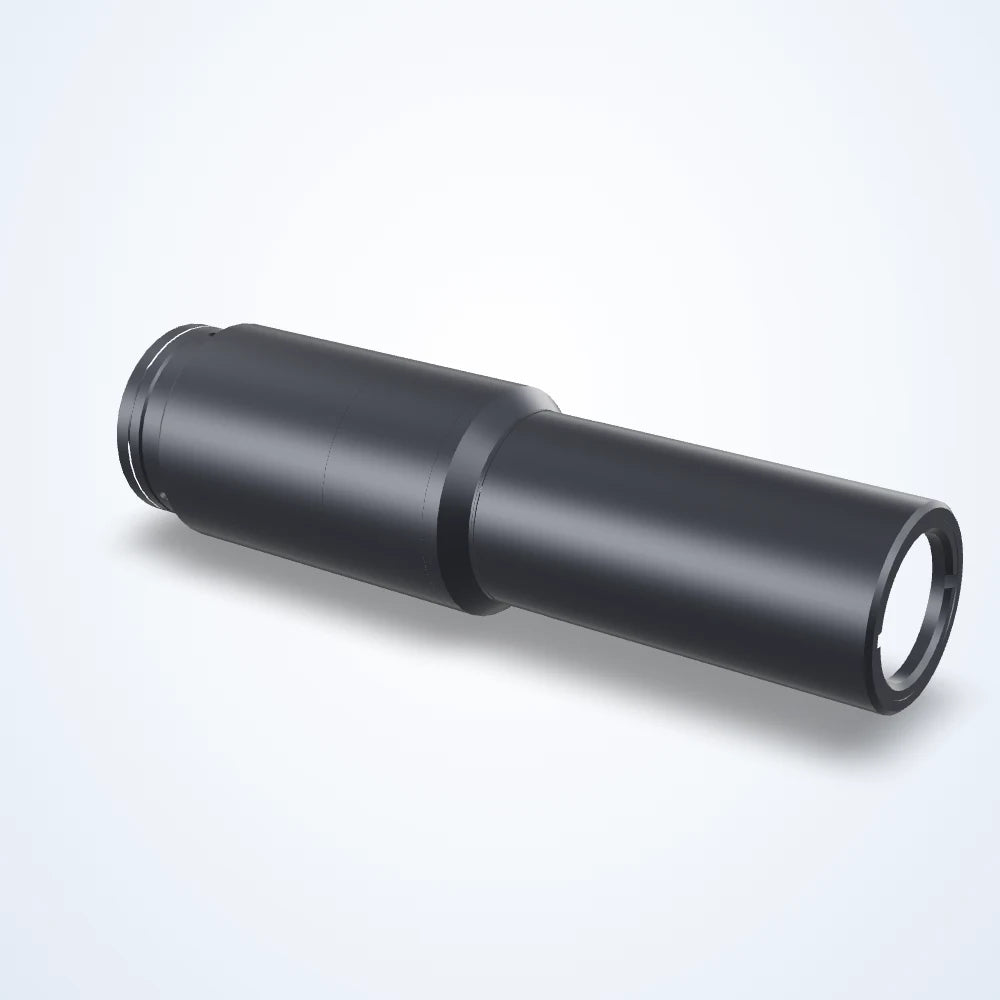

  • 1.054× telecentric lens, 4/3", C-mount (LS-TCL-0299) - view 2

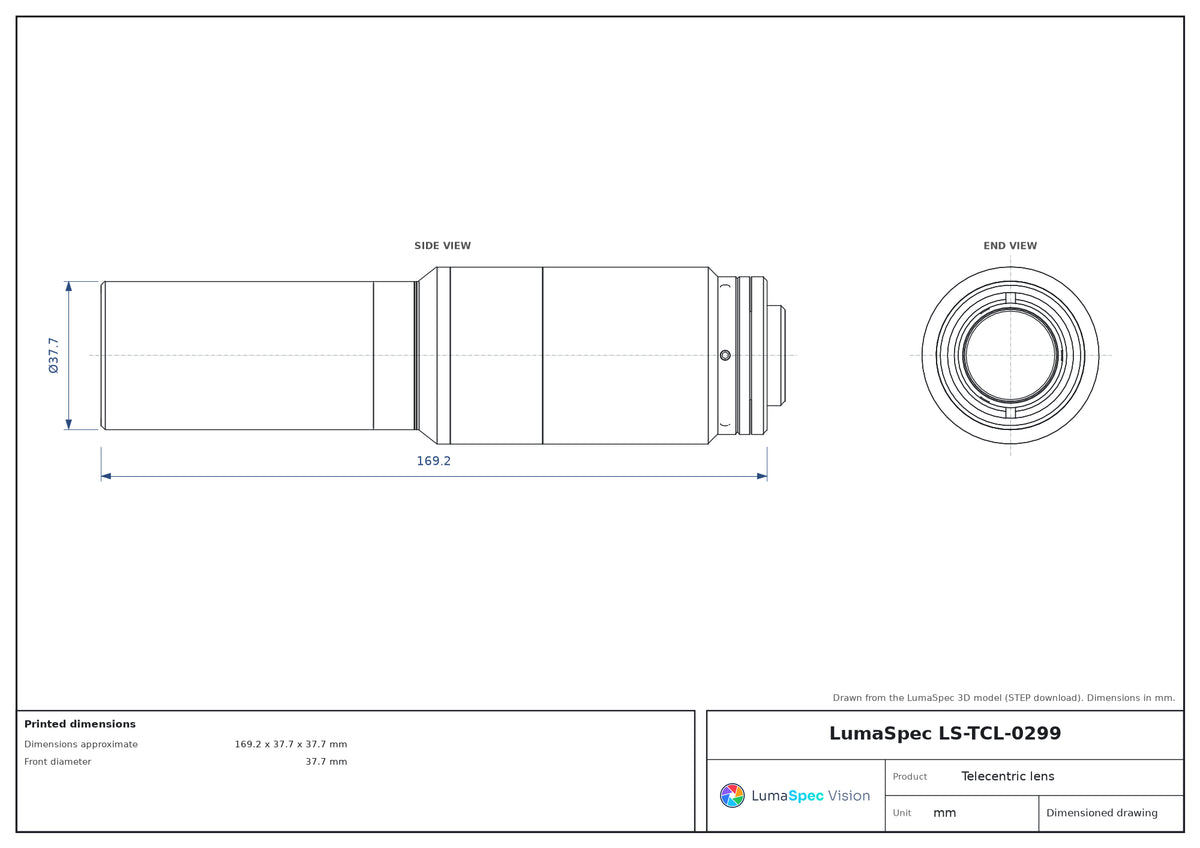

  • LS-TCL-0299 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

1.054× telecentric lens, 4/3", C-mount (LS-TCL-0299)

Model LS-TCL-0299

  • Magnification1.054×
  • MountC-mount
  • Sensor4/3"
  • Working distance43.1 mm
  • Resolution10 μm
$2,459.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 43.1 mm; depth of field 0.7 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0299
FOV @ 1.1″13.43 x 9.84 mm
FOV @ 1″13.46 x 7.13 mm
Fov @ 4/3″17.96 x 10.07 mm
Lens typeTelecentric
Working ƒ/nf/16

Optics

Magnification1.054×
Working distance43.1 mm
Depth of field0.7 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.05
Filter threadNo Filter Threads
Image circle22 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.07°

Sensor and imaging

Sensor format4/3"
Resolution (pixel size)10 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate169.2 x 37.7 x 37.7 mm
Front diameter37.7 mm
Weight398 Grams
