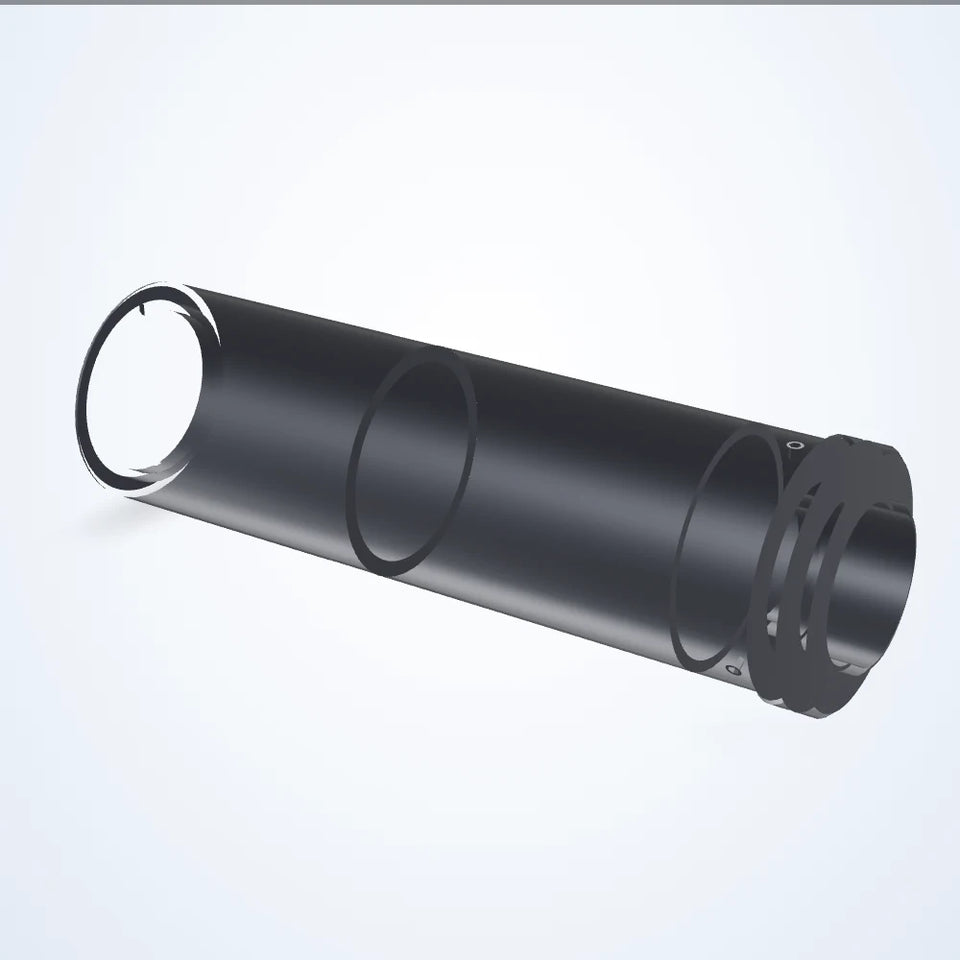

Telecentric lens series, 2/3", C-mount (S29)

Telecentric lenses

Telecentric lens series, 2/3", C-mount (S29)

  • 7 models
  • from $1,849.00
  • Series LS-TCL-S29

The Telecentric lens series, 2/3", C-mount (S29) is a range of 7 telecentric lenses from LumaSpec Vision, from $1,849.00. It comes in 7 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 7 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.5×, 0.66×, 0.75×, 1×, 1.5×, 2.5×, 3.5×
Mount
C-mount
Image circle
8-11 mm
Type
Object-side telecentric
Magnification
0.3-0.6x, 0.6-1x, 1-2x, 2x +
Working distance
110-200 mm
Sensor format
2/3"

All 7 models in the Telecentric lens series, 2/3", C-mount (S29)

Link
LS-TCL-04330.5×15 μm130.7 x 37.7 x 37.7 mm2.5 mm$1,849.00quoteView
LS-TCL-04340.66×12 μm149.3 x 37.7 x 37.7 mm1.4 mm$1,849.00quoteView
LS-TCL-04350.75×10 μm155 x 37.7 x 37.7 mm1.1 mm$1,849.00quoteView
LS-TCL-04361×8 μm126 x 37.7 x 37.7 mm0.6 mm$1,849.00quoteView
LS-TCL-04371.5×7 μm140.4 x 37.7 x 37.7 mm0.4 mm$2,369.00quoteView
LS-TCL-04382.5×5 μm157 x 37.7 x 37.7 mm0.2 mm$2,369.00quoteView
LS-TCL-04393.5×4 μm174.7 x 37.7 x 37.7 mm0.1 mm$2,369.00quoteView
