Telecentric lenses

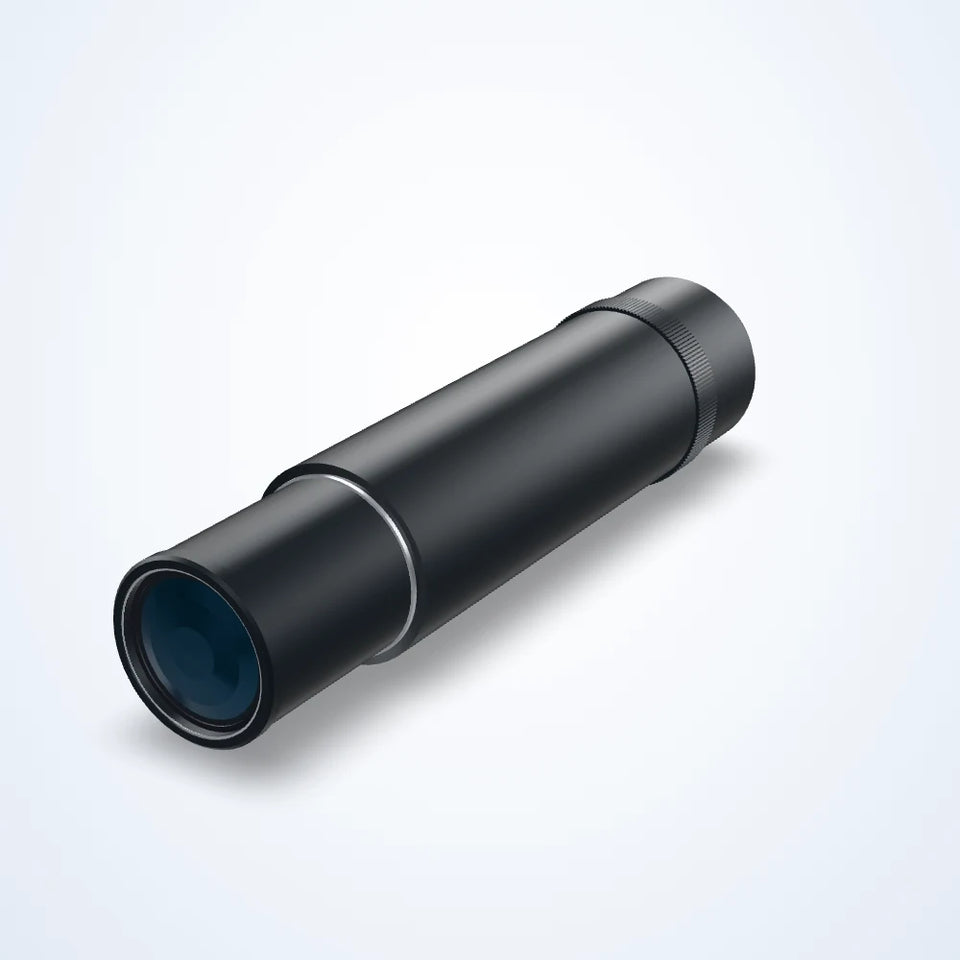

Bi-telecentric lenses, 2" (LS-TCL-S53)
- 9 models
- from $1,815.00
- Series LS-TCL-S53
The Bi-telecentric lenses, 2" (LS-TCL-S53) is a range of 9 telecentric lenses from LumaSpec Vision, from $1,815.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.11x, WD 465 mm, 2", 0.138x, WD 410 mm, 2", 0.174x, WD 330 mm, 2", 0.22x, WD 300 mm, 2", 0.243x, WD 288 mm, 2", 0.275x, WD 273 mm, 2", 0.516x, WD 158 mm, 2", 0.688x, WD 128 mm, 2", 0.917x, WD 110 mm, 2"
- Image circle
- 30-45 mm
- Type
- Bi-telecentric
- Magnification
- 0.1-0.3x, 0.3-0.6x, 0.6-1x
- Working distance
- 110-200 mm, 200 mm +
- Sensor format
- APS-H / Full frame
Features
- Constant magnification over the depth of field: size readings do not change with distance
- Low distortion for measurement
All 9 models in the Bi-telecentric lenses, 2" (LS-TCL-S53)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-1217 | 0.917x, WD 110 mm, 2" | 0.917x | 110±2 mm | dia. 36 mm | $1,815.00 | View |
| LS-TCL-1216 | 0.688x, WD 128 mm, 2" | 0.688x | 128±3 mm | dia. 48 mm | $2,035.00 | View |
| LS-TCL-1215 | 0.516x, WD 158 mm, 2" | 0.516x | 158±3 mm | dia. 64 mm | $2,650.00 | View |
| LS-TCL-1214 | 0.275x, WD 273 mm, 2" | 0.275x | 273±5 mm | dia. 120 mm | $3,585.00 | View |
| LS-TCL-1213 | 0.243x, WD 288 mm, 2" | 0.243x | 288±5 mm | dia. 136 mm | $3,630.00 | View |
| LS-TCL-1212 | 0.22x, WD 300 mm, 2" | 0.220x | 300±5 mm | dia. 150 mm | $3,850.00 | View |
| LS-TCL-1211 | 0.174x, WD 330 mm, 2" | 0.174x | 330±5 mm | dia. 190 mm | $4,280.00 | View |
| LS-TCL-1210 | 0.138x, WD 410 mm, 2" | 0.138x | 410±6 mm | dia. 240 mm | $7,315.00 | View |
| LS-TCL-1209 | 0.11x, WD 465 mm, 2" | 0.110x | 465±6 mm | dia. 300 mm | $8,855.00quote | View |
