Telecentric lenses

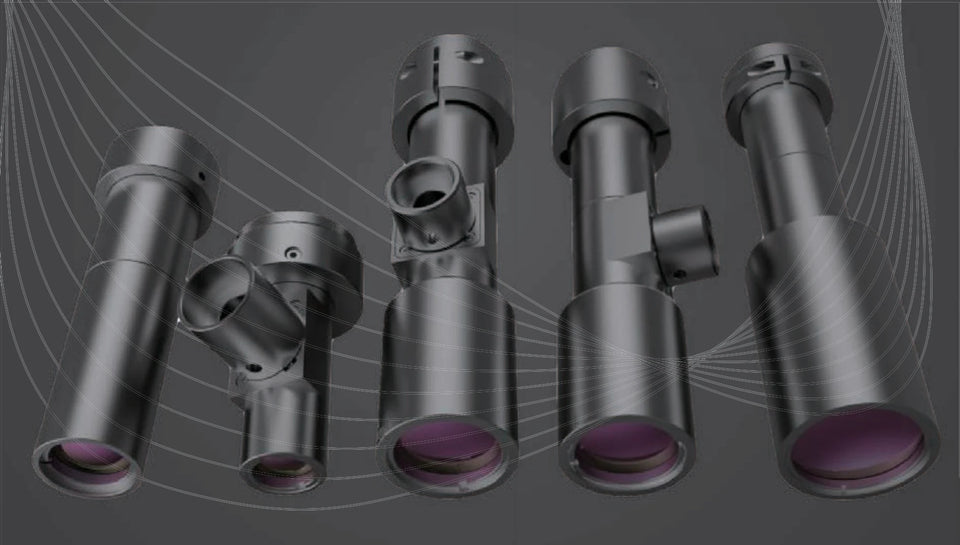

Telecentric lens, WD 110-220 mm ( 110 - 220 mm) (LS-TCL-S69)
- 16 models
- from $839.00
- Series LS-TCL-S69
The Telecentric lens, WD 110-220 mm ( 110 - 220 mm) (LS-TCL-S69) is a range of 16 telecentric lenses from LumaSpec Vision, from $839.00. It comes in 9 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.22x, WD 220 mm, 2/3", C-Mount, 0.3x, WD 180 mm, 1/1.8", C-Mount, 0.3x, WD 180 mm, 2/3", C-Mount, 0.3x, WD 220 mm, 2/3", C-Mount, 0.5x, WD 220 mm, 1", C-Mount, 1x, WD 110 mm, 1.1", C-Mount, 1.5x, WD 110 mm, 1.1", C-Mount, 2x, WD 110 mm, 1.1", C-Mount, 3x, WD 110 mm, 1.1", C-Mount
- Mount
- C-mount
- Image circle
- 8-11 mm, 11-16 mm, 16-22 mm
- Type
- Object-side telecentric
- Coaxial light
- Built-in coaxial light, No coaxial port
- Magnification
- 0.1-0.3x, 0.3-0.6x, 1-2x, 2x +
- Working distance
- 110-200 mm, 200 mm +
- Sensor format
- 1/1.8" - 1/1.56", 2/3", 1", 1.1" - 1.2"
Features
- Full range of object side telecentric fixed magnification lenses, with multiple working distances / magnification / CCD for selection
- Perfect image and supports all kinds of Mega camera
- High contrast, low distortion, high resolution, compact design with coaxial illumination options
- Widely used in high-precision visual positioning and other occasions
Typical uses
- High-precision visual positioning
All 16 models in the Telecentric lens, WD 110-220 mm ( 110 - 220 mm) (LS-TCL-S69)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2423 | 1x, WD 110 mm, 1.1", C-Mount | 1.1" | 1.0 | 110±2 | $839.00 | View |
| LS-TCL-2424 | 1x, WD 110 mm, 1.1", C-Mount | 1.1" | 1.0 | 110±2 | $839.00 | View |
| LS-TCL-2430 | 3x, WD 110 mm, 1.1", C-Mount | 1.1" | 3.0 | 110±2 | $1,199.00 | View |
| LS-TCL-2429 | 3x, WD 110 mm, 1.1", C-Mount | 1.1" | 3.0 | 110±2 | $1,199.00 | View |
| LS-TCL-2428 | 2x, WD 110 mm, 1.1", C-Mount | 1.1" | 2.0 | 110±2 | $1,199.00 | View |
| LS-TCL-2425 | 1.5x, WD 110 mm, 1.1", C-Mount | 1.1" | 1.5 | 110±2 | $1,199.00 | View |
| LS-TCL-2426 | 1.5x, WD 110 mm, 1.1", C-Mount | 1.1" | 1.5 | 110±2 | $1,199.00 | View |
| LS-TCL-2427 | 2x, WD 110 mm, 1.1", C-Mount | 1.1" | 2.0 | 110±2 | $1,199.00 | View |
| LS-TCL-2415 | 0.22x, WD 220 mm, 2/3", C-Mount | 2/3" | 0.22 | 220±3 | $1,229.00 | View |
| LS-TCL-2417 | 0.3x, WD 180 mm, 2/3", C-Mount | 2/3" | 0.3 | 180±2 | $1,229.00 | View |
| LS-TCL-2418 | 0.3x, WD 180 mm, 2/3", C-Mount | 2/3" | 0.3 | 180±2 | $1,229.00 | View |
| LS-TCL-2419 | 0.3x, WD 220 mm, 2/3", C-Mount | 2/3" | 0.3 | 220±3 | $1,229.00 | View |
| LS-TCL-2420 | 0.3x, WD 220 mm, 2/3", C-Mount | 2/3" | 0.3 | 220±3 | $1,229.00 | View |
| LS-TCL-2421 | 0.5x, WD 220 mm, 1", C-Mount | 1" | 0.5 | 220±3 | $1,399.00 | View |
| LS-TCL-2422 | 0.5x, WD 220 mm, 1", C-Mount | 1" | 0.5 | 220±3 | $1,399.00 | View |
| LS-TCL-2416 | 0.3x, WD 180 mm, 1/1.8", C-Mount | 1/1.8" | 0.3 | 180±2 | $1,739.00 | View |
