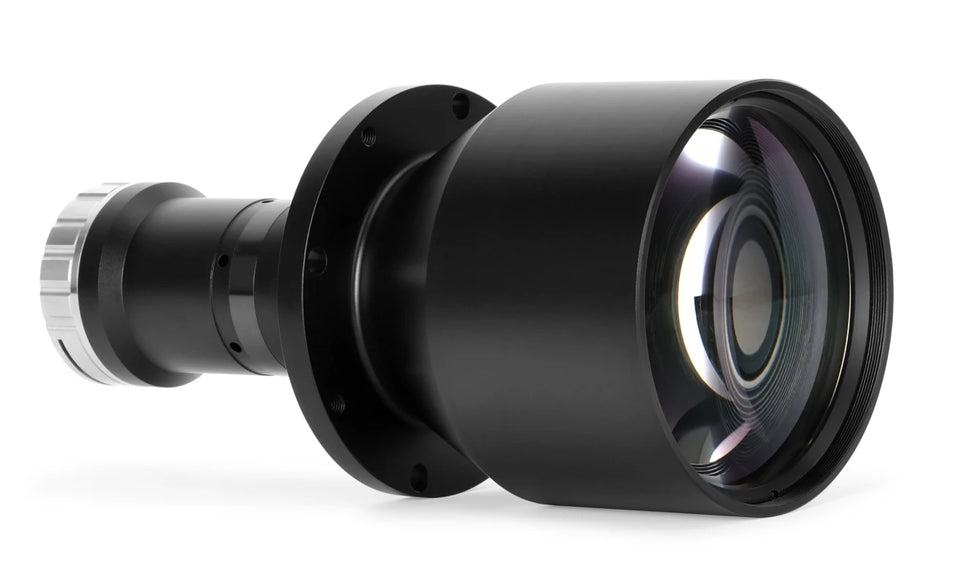

Bi-telecentric lens for 23x23mm sensor (LS-TCL-S34)
- 15 models
- from $1,489.00
- Series LS-TCL-S34
The Bi-telecentric lens for 23x23mm sensor (LS-TCL-S34) is a range of 15 telecentric lenses from LumaSpec Vision, from $1,489.00. It comes in 15 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.12x, WD 410 mm, F/M58-mount, 0.17x, WD 320 mm, F/M58-mount, 0.19x, WD 300 mm, F/M58-mount, 0.21x, WD 285 mm, F/M58-mount, 0.26x, WD 250 mm, F/M58-mount, 0.31x, WD 250 mm, F/M58-mount, 0.36x, WD 230 mm, F/M58-mount, 0.45x, WD 158 mm, F/M58-mount, 0.55x, WD 250 mm, F/M58-mount, 0.63x, WD 130 mm, F/M58-mount, 0.68x, WD 120 mm, F/M58-mount, 0.8x, WD 110 mm, F/M58-mount, 0.9x, WD 175 mm, F/M58-mount, 1.4x, WD 110 mm, F/M58-mount, 1.75x, WD 110 mm, F/M58-mount
- Mount
- F-mount
- Image circle
- 22-30 mm
- Type
- Bi-telecentric
- Coaxial light
- No coaxial port
- Magnification
- 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
- Working distance
- 110-200 mm, 200 mm +
- Sensor format
- 4/3" - APS-C
Features
- Maximum support for a 23 x 23 mm target face camera
- Excellent bilateral telecentric optical path, ultra low distortion design
- Large depth of field design for high and low difference imaging products
- High-precision tuning: hardware measurement error in the full field of view is <0.3 pixel
- Lightweight fastening structure designed to perform stably at high speed
- 25 million pixels
- National technology patent
Typical uses
- Imaging products with high and low differences (large depth of field)
All 15 models in the Bi-telecentric lens for 23x23mm sensor (LS-TCL-S34)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-0467 | 1.4x, WD 110 mm, F/M58-mount | 1.4 | 110 | F11 | $1,489.00 | View |
| LS-TCL-0472 | 0.9x, WD 175 mm, F/M58-mount | 0.9 | 175 | F7 | $1,679.00 | View |
| LS-TCL-0466 | 0.8x, WD 110 mm, F/M58-mount | 0.8 | 110 | F18 | $1,739.00 | View |
| LS-TCL-0469 | 0.68x, WD 120 mm, F/M58-mount | 0.68 | 120 | F12 | $1,839.00 | View |
| LS-TCL-0470 | 0.63x, WD 130 mm, F/M58-mount | 0.63 | 130 | F7.5 | $1,899.00 | View |
| LS-TCL-0476 | 0.55x, WD 250 mm, F/M58-mount | 0.55 | 250 | F8 | $2,009.00 | View |
| LS-TCL-0468 | 1.75x, WD 110 mm, F/M58-mount | 1.75 | 110 | F11 | $2,139.00 | View |
| LS-TCL-0471 | 0.45x, WD 158 mm, F/M58-mount | 0.45 | 158 | F7 | $2,189.00 | View |
| LS-TCL-0473 | 0.36x, WD 230 mm, F/M58-mount | 0.36 | 230 | F18 | $2,449.00 | View |
| LS-TCL-0475 | 0.31x, WD 250 mm, F/M58-mount | 0.31 | 250 | F12 | $2,659.00 | View |
| LS-TCL-0474 | 0.26x, WD 250 mm, F/M58-mount | 0.26 | 250 | F8 | $2,839.00 | View |
| LS-TCL-0477 | 0.21x, WD 285 mm, F/M58-mount | 0.21 | 285 | F8 | $3,209.00 | View |
| LS-TCL-0478 | 0.19x, WD 300 mm, F/M58-mount | 0.19 | 300 | F7 | $3,609.00 | View |
| LS-TCL-0479 | 0.17x, WD 320 mm, F/M58-mount | 0.17 | 320 | F8 | $3,899.00 | View |
| LS-TCL-0480 | 0.12x, WD 410 mm, F/M58-mount | 0.12 | 410 | F8 | $5,039.00 | View |
