Telecentric lenses

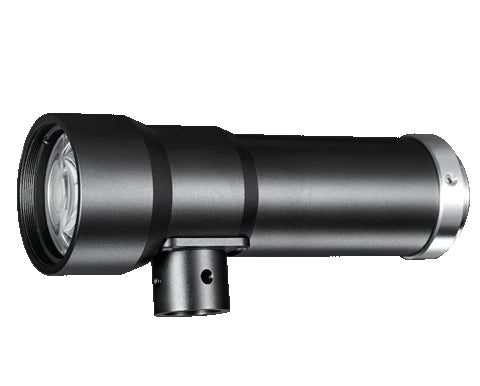

Variable iris bi-telecentric lens (LS-TCL-S68)
- 7 models
- from $1,199.00
- Series LS-TCL-S68
The Variable iris bi-telecentric lens (LS-TCL-S68) is a range of 7 telecentric lenses from LumaSpec Vision, from $1,199.00. It comes in 4 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.166x, WD 166 mm, 2/3", C-Mount, 0.3x, WD 110 mm, 2/3", C-Mount, 0.4x, WD 96 mm, 2/3", C-Mount, 0.5x, WD 65 mm, 2/3", C-Mount
- Mount
- C-mount
- Image circle
- 8-11 mm
- Type
- Bi-telecentric
- Coaxial light
- Built-in coaxial light, No coaxial port
- Magnification
- 0.1-0.3x, 0.3-0.6x
- Working distance
- 65-110 mm, 110-200 mm
- Sensor format
- 2/3"
Features
- Support up to 8M Pixel cameras
- Zero perspective error over the entire Field of View
- Big depth of field and constant magnification over defined depth of field
- Customization available with best performance/ cost rate
- Equipped with a Manual Iris for adjusting the Depth of Field.
All 7 models in the Variable iris bi-telecentric lens (LS-TCL-S68)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2408 | 0.5x, WD 65 mm, 2/3", C-Mount | 0.5 | 65±1 | 5.0 | $1,199.00 | View |
| LS-TCL-2409 | 0.5x, WD 65 mm, 2/3", C-Mount | 0.5 | 65±1 | 5.0 | $1,199.00 | View |
| LS-TCL-2410 | 0.4x, WD 96 mm, 2/3", C-Mount | 0.4 | 96±2 | 10.7 | $1,289.00 | View |
| LS-TCL-2411 | 0.4x, WD 96 mm, 2/3", C-Mount | 0.4 | 96±2 | 5.0 | $1,289.00 | View |
| LS-TCL-2412 | 0.3x, WD 110 mm, 2/3", C-Mount | 0.3 | 110±2 | 3.75 | $1,529.00 | View |
| LS-TCL-2413 | 0.3x, WD 110 mm, 2/3", C-Mount | 0.3 | 110±2 | 3.75 | $1,529.00 | View |
| LS-TCL-2414 | 0.166x, WD 166 mm, 2/3", C-Mount | 0.166 | 166±3 | 3.3 | $2,139.00 | View |
