Telecentric lenses

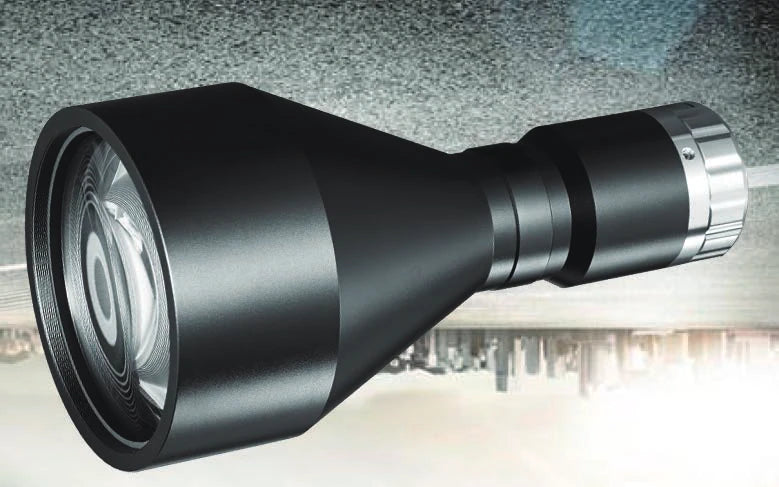

Bi-telecentric lens for 1" cameras (LS-TCL-S70)
- 28 models
- from $1,189.00
- Series LS-TCL-S70
The Bi-telecentric lens for 1" cameras (LS-TCL-S70) is a range of 28 telecentric lenses from LumaSpec Vision, from $1,189.00. It comes in 28 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.047x, WD 330 mm, 1/1.8", C-mount, 0.055x, WD 465 mm, 1", C-mount, 0.069x, WD 410 mm, 1", C-Mount, 0.098x, WD 318 mm, 1", C-Mount, 0.111x, WD 301 mm, 1", C-Mount, 0.122x, WD 288 mm, 1", C-Mount, 0.138x, WD 280 mm, 1", C-mount, 0.15x, WD 251 mm, 1", C-Mount, 0.168x, WD 238 mm, 1", C-mount, 0.179x, WD 254 mm, 1", C-Mount, 0.185x, WD 208 mm, 1", C-mount, 0.208x, WD 229 mm, 1", C-Mount, 0.208x, WD 230 mm, 1", C-mount, 0.231x, WD 178 mm, 1", C-Mount, 0.26x, WD 159 mm, 1", C-Mount, 0.26x, WD 187 mm, 1", C-Mount and 12 more
- Mount
- C-mount
- Image circle
- 16-22 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
- Working distance
- Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 1"
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 28 models in the Bi-telecentric lens for 1" cameras (LS-TCL-S70)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2431 | 1x, WD 24 mm, 1", C-Mount | 1.000 | 24±1 | 6.5 | $1,189.00 | View |
| LS-TCL-2433 | 0.641x, WD 72 mm, 1", C-Mount | 0.642x | 72±2 | 9 | $1,399.00 | View |
| LS-TCL-2432 | 0.638x, WD 73 mm, 1", C-mount | 0.638 | 73±1 | 8.7 | $1,399.00 | View |
| LS-TCL-2435 | 0.461x, WD 111 mm, 1", C-Mount | 0.461 | 111±2 | 7.8 | $1,629.00 | View |
| LS-TCL-2434 | 0.46x, WD 110 mm, 1", C-mount | 0.460 | 110±2 | 7.8 | $1,629.00 | View |
| LS-TCL-2437 | 0.396x, WD 119 mm, 1", C-Mount | 0.396 | 119±2 | $1,769.00 | View | |
| LS-TCL-2436 | 0.395x, WD 118 mm, 1" | 0.395 | 118±3 | 6.5 | $1,769.00 | View |
| LS-TCL-2438 | 0.398x, WD 118 mm, 1", C-mount | 118±2 | 6.5 | $1,769.00 | View | |
| LS-TCL-2440 | 0.347x, WD 128 mm, 1", C-Mount | 0.347 | 128±2 | 8 | $1,899.00 | View |
| LS-TCL-2441 | 0.346x, WD 138 mm, 1", C-mount | 0.346 | 138±3 | 9.8 | $1,899.00 | View |
| LS-TCL-2439 | 0.346x, WD 128 mm, 1", C-mount | 0.346 | 128±3 | 6.5 | $1,899.00 | View |
| LS-TCL-2442 | 0.298x, WD 138 mm, 1", C-Mount | 0.298 | 138±2 | 6.5 | $2,099.00 | View |
| LS-TCL-2443 | 0.26x, WD 187 mm, 1", C-Mount | 0.260 | 187±2 | 9.8 | $2,279.00 | View |
| LS-TCL-2444 | 0.26x, WD 159 mm, 1", C-Mount | 0.259x | 159±2 | 6 | $2,279.00 | View |
| LS-TCL-2445 | 0.231x, WD 178 mm, 1", C-Mount | 0.231 | 178±2 | 6.5 | $2,469.00 | View |
| LS-TCL-2447 | 0.208x, WD 230 mm, 1", C-mount | 230±2 | 6.5 | $2,659.00 | View | |
| LS-TCL-2446 | 0.208x, WD 229 mm, 1", C-Mount | 0.208 | 229±2 | 9.8 | $2,669.00 | View |
| LS-TCL-2448 | 0.185x, WD 208 mm, 1", C-mount | 0.184 | 208±2 | 6.5 | $2,889.00 | View |
| LS-TCL-2449 | 0.179x, WD 254 mm, 1", C-Mount | 0.179 | 254±3 | $2,989.00 | View | |
| LS-TCL-2450 | 0.168x, WD 238 mm, 1", C-mount | 238±3 | 6.5 | $3,139.00 | View | |
| LS-TCL-2451 | 0.15x, WD 251 mm, 1", C-Mount | 0.149x | 251±3 | 6 | $3,419.00 | View |
| LS-TCL-2452 | 0.138x, WD 280 mm, 1", C-mount | 0.138 | 280±5 | 6.5 | $3,629.00 | View |
| LS-TCL-2453 | 0.122x, WD 288 mm, 1", C-Mount | 0.122 | 288±4 | 6 | $4,049.00 | View |
| LS-TCL-2454 | 0.111x, WD 301 mm, 1", C-Mount | 0.111 | 301±4 | 6.5 | $4,359.00 | View |
| LS-TCL-2455 | 0.098x, WD 318 mm, 1", C-Mount | 0.098 | 318±4 | 6 | $4,799.00 | View |
| LS-TCL-2456 | 0.047x, WD 330 mm, 1/1.8", C-mount | 0.047 | 330±5 | 4.6 | $5,369.00 | View |
| LS-TCL-2457 | 0.069x, WD 410 mm, 1", C-Mount | 0.069 | 410±5 | 6.5 | $6,659.00 | View |
| LS-TCL-2458 | 0.055x, WD 465 mm, 1", C-mount | 0.055 | 465±6 | 6.5 | $8,689.00quote | View |
