Telecentric lenses

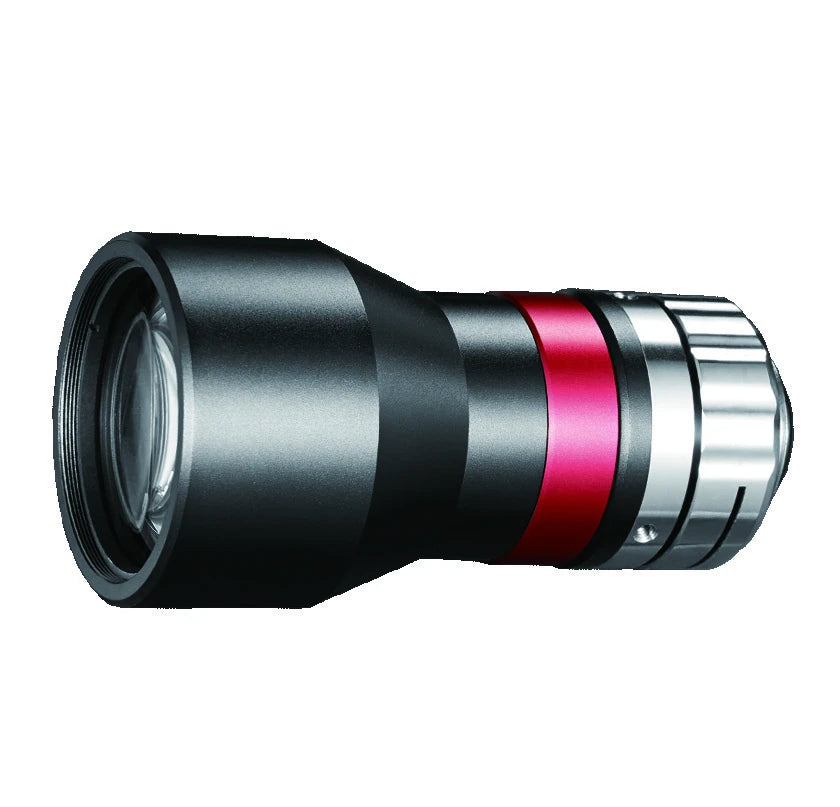

Bi-telecentric lens for 1/2.3" cameras (LS-TCL-S75)
- 20 models
- from $1,399.00
- Series LS-TCL-S75
The Bi-telecentric lens for 1/2.3" cameras (LS-TCL-S75) is a range of 20 telecentric lenses from LumaSpec Vision, from $1,399.00. It comes in 20 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- C-mount, 0.027x, WD 465 mm, 1/2", C-mount, 0.033x, WD 410 mm, 1/2", C-Mount, 0.047x, WD 318 mm, 1/2", C-Mount, 0.054x, WD 301 mm, 1/2", C-Mount, 0.059x, WD 288 mm, 1/2", C-Mount, 0.067x, WD 280 mm, 1/2", C-mount, 0.072x, WD 251 mm, 1/2", C-Mount, 0.086x, WD 254 mm, 1/2", C-Mount, 0.089x, WD 208 mm, 1/2", C-mount, 0.1x, WD 229 mm, 1/2", C-Mount, 0.112x, WD 178 mm, 1/2", C-Mount, 0.125x, WD 159 mm, 1/2", C-Mount, 0.126x, WD 187 mm, 1/2", C-Mount, 0.144x, WD 138 mm, 1/2", C-Mount, 0.167x, WD 128 mm, 1/2", C-Mount and 4 more
- Mount
- C-mount
- Image circle
- Up to 8 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 1/2"
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 20 models in the Bi-telecentric lens for 1/2.3" cameras (LS-TCL-S75)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2536 | 0.309x, WD 72 mm, 1/2", C-Mount | 0.309 | 72±2 | 4.2 | $1,399.00 | View |
| LS-TCL-2537 | 0.222x, WD 111 mm, 1/2", C-Mount | 0.222 | 111±2 | 4.2 | $1,629.00 | View |
| LS-TCL-2538 | 0.192x, WD 119 mm, 1/2", C-Mount | 0.192 | 119±2 | 4.2 | $1,769.00 | View |
| LS-TCL-2539 | 0.167x, WD 128 mm, 1/2", C-Mount | 0.167 | 128±2 | 4.2 | $1,899.00 | View |
| LS-TCL-2540 | 0.167x, WD 138 mm, 1/2", C-mount | 0.167 | 138±3 | 4.7 | $1,899.00 | View |
| LS-TCL-2541 | 0.144x, WD 138 mm, 1/2", C-Mount | 0.144 | 138±2 | 4.2 | $2,089.00 | View |
| LS-TCL-2542 | 0.126x, WD 187 mm, 1/2", C-Mount | 0.126 | 187±2 | 4.2 | $2,269.00 | View |
| LS-TCL-2543 | 0.125x, WD 159 mm, 1/2", C-Mount | 0.125 | 159±2 | $2,279.00 | View | |
| LS-TCL-2544 | 0.112x, WD 178 mm, 1/2", C-Mount | 0.111 | 178±2 | 4.2 | $2,459.00 | View |
| LS-TCL-2545 | 0.1x, WD 229 mm, 1/2", C-Mount | 0.100 | 229±2 | 4.7 | $2,659.00 | View |
| LS-TCL-2546 | 0.089x, WD 208 mm, 1/2", C-mount | 0.089 | 208±3 | 4.2 | $2,879.00 | View |
| LS-TCL-2547 | 0.086x, WD 254 mm, 1/2", C-Mount | 0.086 | 254±3 | $2,979.00 | View | |
| LS-TCL-2548 | 0.072x, WD 251 mm, 1/2", C-Mount | 0.072 | 251±3 | 4 | $3,419.00 | View |
| LS-TCL-2549 | 0.067x, WD 280 mm, 1/2", C-mount | 0.067 | 280±5 | 4.2 | $3,619.00 | View |
| LS-TCL-2550 | 0.059x, WD 288 mm, 1/2", C-Mount | 0.059 | 288±4 | 4 | $4,049.00 | View |
| LS-TCL-2551 | 0.054x, WD 301 mm, 1/2", C-Mount | 0.054 | 301±4 | 4.2 | $4,309.00 | View |
| LS-TCL-2553 | C-mount | $4,539.00 | View | |||
| LS-TCL-2552 | 0.047x, WD 318 mm, 1/2", C-Mount | 0.047 | 318±4 | 4.5 | $4,799.00 | View |
| LS-TCL-2554 | 0.033x, WD 410 mm, 1/2", C-Mount | 0.033 | 410±5 | 4.2 | $6,659.00 | View |
| LS-TCL-2555 | 0.027x, WD 465 mm, 1/2", C-mount | 0.027 | 465±6 | 4.2 | $8,689.00quote | View |
