Telecentric lenses

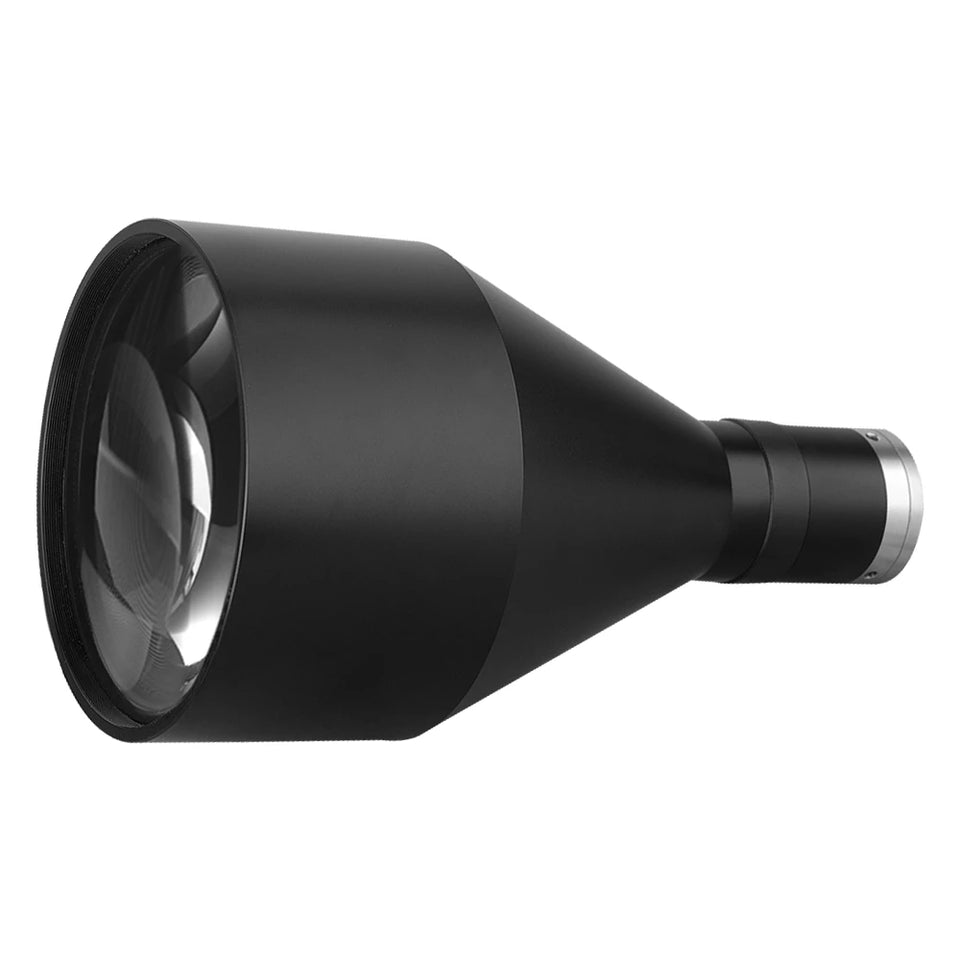

Bi-telecentric lens for 1/2.5" cameras - B variant (LS-TCL-S78)
- 10 models
- from $1,399.00
- Series LS-TCL-S78
The Bi-telecentric lens for 1/2.5" cameras - B variant (LS-TCL-S78) is a range of 10 telecentric lenses from LumaSpec Vision, from $1,399.00. It comes in 10 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.072x, WD 238 mm, 1/2.5", C-mount, 0.08x, WD 208 mm, 1/2.5", C-mount, 0.09x, WD 230 mm, 1/2.5", C-mount, 0.1x, WD 178 mm, 1/2.5", C-mount, 0.113x, WD 187 mm, 1/2.5", C-mount, 0.129x, WD 138 mm, 1/2.5", C-mount, 0.15x, WD 128 mm, 1/2.5", C-mount, 0.172x, WD 118 mm, 1/2.5", C-mount, 0.199x, WD 111 mm, 1/2.5", C-mount, 0.277x, WD 72 mm, 1/2.5", C-mount
- Mount
- C-mount
- Image circle
- Up to 8 mm
- Type
- Bi-telecentric
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 1/2.5" and smaller
All 10 models in the Bi-telecentric lens for 1/2.5" cameras - B variant (LS-TCL-S78)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2593 | 0.277x, WD 72 mm, 1/2.5", C-mount | 72±2 | 4.8 | 20.5x15.4 | $1,399.00 | View |
| LS-TCL-2594 | 0.199x, WD 111 mm, 1/2.5", C-mount | 111±2 | 4.8 | 28.6x21.5 | $1,629.00 | View |
| LS-TCL-2595 | 0.172x, WD 118 mm, 1/2.5", C-mount | 118±2 | 4.2 | 33.1x24.8 | $1,769.00 | View |
| LS-TCL-2596 | 0.15x, WD 128 mm, 1/2.5", C-mount | 128±2 | 4.5 | 38.0x28.5 | $1,899.00 | View |
| LS-TCL-2597 | 0.129x, WD 138 mm, 1/2.5", C-mount | 138±2 | 4.5 | 44.1x33.1 | $2,089.00 | View |
| LS-TCL-2598 | 0.113x, WD 187 mm, 1/2.5", C-mount | 187±2 | 4.2 | 50.4x37.8 | $2,269.00 | View |
| LS-TCL-2599 | 0.1x, WD 178 mm, 1/2.5", C-mount | 178±2 | 4.2 | 57.0x42.8 | $2,459.00 | View |
| LS-TCL-2600 | 0.09x, WD 230 mm, 1/2.5", C-mount | 230±2 | 4.2 | 63.3x47.5 | $2,659.00 | View |
| LS-TCL-2601 | 0.08x, WD 208 mm, 1/2.5", C-mount | 208±2 | 4.2 | 71.2x53.5 | $2,879.00 | View |
| LS-TCL-2602 | 0.072x, WD 238 mm, 1/2.5", C-mount | 238±3 | 4.2 | 79.1x59.4 | $3,139.00 | View |
