Telecentric lenses

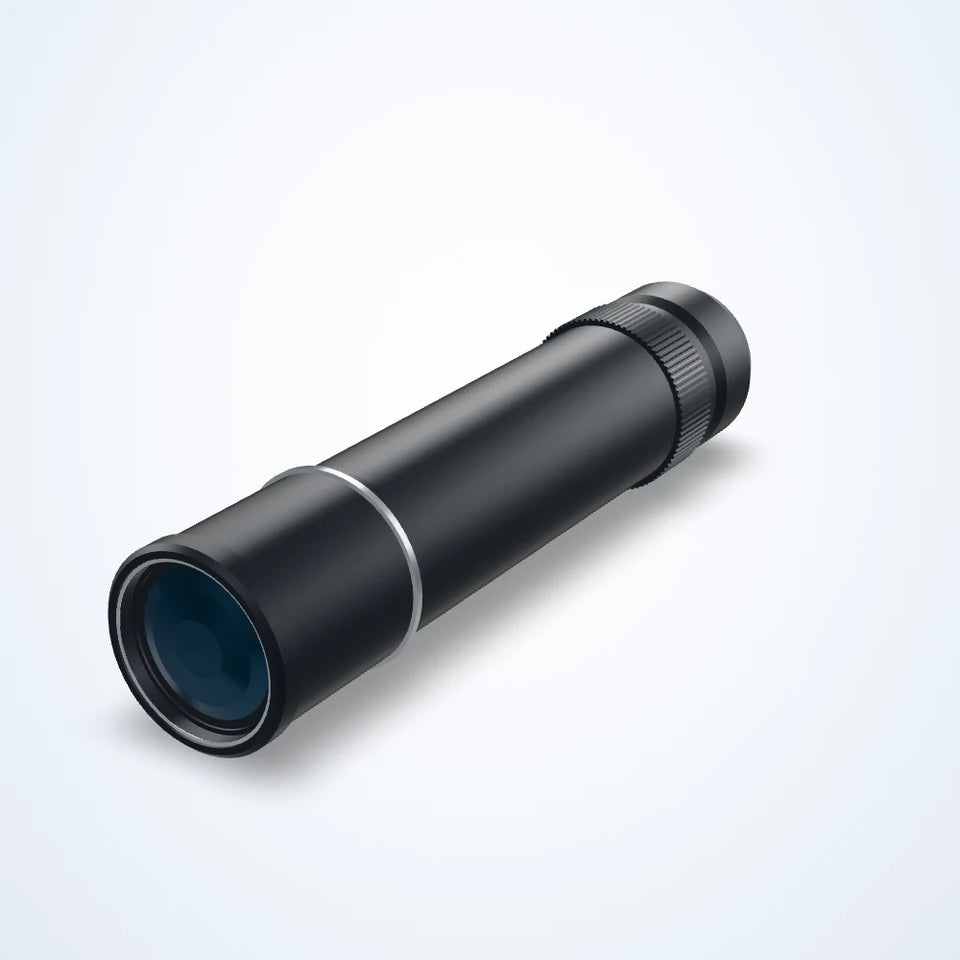

Bi-telecentric lenses, 4/3" (LS-TCL-S55)
- 17 models
- from $645.00
- Series LS-TCL-S55
The Bi-telecentric lenses, 4/3" (LS-TCL-S55) is a range of 17 telecentric lenses from LumaSpec Vision, from $645.00. It comes in 17 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.06x, WD 565 mm, 4/3", 0.1x, WD 420 mm, 4/3", 0.128x, WD 302 mm, 4/3", 0.159x, WD 310 mm, 4/3", 0.198x, WD 270 mm, 4/3", 0.242x, WD 280 mm, 4/3", 0.27x, WD 190 mm, 4/3", 0.3x, WD 210 mm, 4/3", 0.34x, WD 190 mm, 4/3", 0.38x, WD 195 mm, 4/3", 0.44x, WD 150 mm, 4/3", 0.51x, WD 125 mm, 4/3", 0.58x, WD 130 mm, 4/3", 0.66x, WD 118 mm, 4/3", 0.87x, WD 55 mm, 4/3", 0.93x, WD 80 mm, 4/3" and 1 more
- Image circle
- 16-22 mm
- Type
- Bi-telecentric
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
- Working distance
- Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 4/3" - APS-C
Features
- Constant magnification over the depth of field: size readings do not change with distance
- Low distortion for measurement
All 17 models in the Bi-telecentric lenses, 4/3" (LS-TCL-S55)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-1310 | 0.58x, WD 130 mm, 4/3" | 0.58x | 130 mm | dia. 40 mm | $645.00 | View |
| LS-TCL-1311 | 0.66x, WD 118 mm, 4/3" | 0.66x | 118 mm | dia. 35 mm | $645.00 | View |
| LS-TCL-1312 | 0.87x, WD 55 mm, 4/3" | 0.87x | 55 mm | dia. 26 mm | $645.00 | View |
| LS-TCL-1313 | 0.93x, WD 80 mm, 4/3" | 0.93x | 80 mm | dia. 25 mm | $645.00 | View |
| LS-TCL-1314 | 1.1x, WD 40 mm, 4/3" | 1.1x | 40 mm | dia. 21 mm | $645.00 | View |
| LS-TCL-1308 | 0.44x, WD 150 mm, 4/3" | 0.44x | 150 mm | dia. 52 mm | $1,715.00 | View |
| LS-TCL-1309 | 0.51x, WD 125 mm, 4/3" | 0.51x | 125 mm | dia. 45 mm | $1,715.00 | View |
| LS-TCL-1298 | 0.06x, WD 565 mm, 4/3" | 0.06x | 565 mm | dia. 383 mm | $1,925.00 | View |
| LS-TCL-1299 | 0.1x, WD 420 mm, 4/3" | 0.1x | 420 mm | dia. 230 mm | $1,925.00 | View |
| LS-TCL-1300 | 0.128x, WD 302 mm, 4/3" | 0.128x | 302 mm | dia. 180 mm | $1,925.00 | View |
| LS-TCL-1301 | 0.159x, WD 310 mm, 4/3" | 0.159x | 310 mm | dia. 145 mm | $1,925.00 | View |
| LS-TCL-1302 | 0.198x, WD 270 mm, 4/3" | 0.198x | 270 mm | dia. 116 mm | $1,925.00 | View |
| LS-TCL-1303 | 0.242x, WD 280 mm, 4/3" | 0.242x | 280 mm | dia. 95 mm | $1,925.00 | View |
| LS-TCL-1304 | 0.27x, WD 190 mm, 4/3" | 0.27x | 190 mm | dia. 85 mm | $1,925.00 | View |
| LS-TCL-1305 | 0.3x, WD 210 mm, 4/3" | 0.3x | 210 mm | dia. 77 mm | $1,925.00 | View |
| LS-TCL-1306 | 0.34x, WD 190 mm, 4/3" | 0.34x | 190 mm | dia. 68 mm | $1,925.00 | View |
| LS-TCL-1307 | 0.38x, WD 195 mm, 4/3" | 0.38x | 195 mm | dia. 61 mm | $1,925.00 | View |
