Telecentric lenses

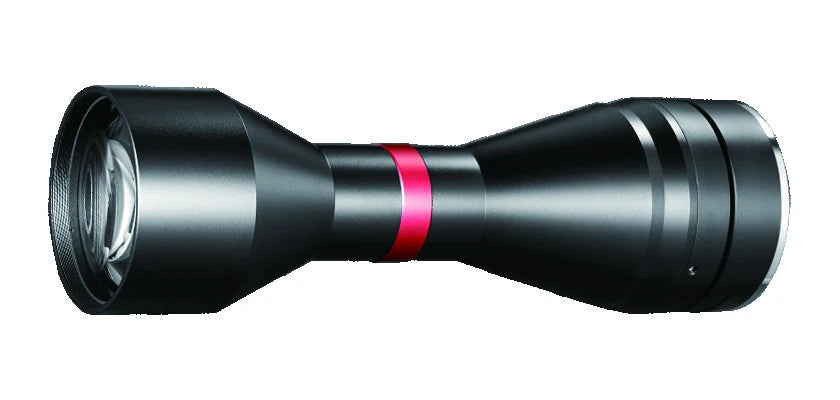

Bi-telecentric lens for 39mm cameras (LS-TCL-S87)
- 23 models
- from $1,949.00
- Series LS-TCL-S87
The Bi-telecentric lens for 39mm cameras (LS-TCL-S87) is a range of 23 telecentric lenses from LumaSpec Vision, from $1,949.00. It comes in 23 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.13x, WD 465 mm, F or Other-mount, 0.163x, WD 410 mm, 0.205x, WD 330 mm, F or Other-mount, 0.23x, WD 318 mm, 0.261x, WD 301 mm, 0.287x, WD 288 mm, 0.325x, WD 280 mm, F or Other-mount, 0.351x, WD 251 mm, 0.393x, WD 238 mm, F-mount, 0.419x, WD 254 mm, 0.434x, WD 208 mm, F-mount, 0.487x, WD 229 mm, 0.488x, WD 230 mm, F-mount, 0.543x, WD 178 mm, 0.61x, WD 159 mm, 0.613x, WD 187 mm and 7 more
- Mount
- F-mount
- Image circle
- 30-45 mm
- Type
- Bi-telecentric
- Magnification
- 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- APS-H / Full frame
Features
- Matrix design with extremely high imaging quality
- Standard FOV from 26 to 240 mm, covering almost all industrial imaging applications
- Compatible with all C-mount cameras from 1/2.5" to 1.1", and F/M-mount cameras from 4/3" to 59 mm
- More than 168 standard types and hundreds of customised items
- Excellent F-number, high telecentricity, extremely low distortion, very large DoF
- Each lens comes with an imaging quality test report
- Lens mount with conveniently adjustable flange distance (AL)
- Matrix-design with extremely high imaging quality
Typical uses
- Industrial imaging applications (standard FOV 26 to 240 mm)
All 23 models in the Bi-telecentric lens for 39mm cameras (LS-TCL-S87)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2771 | 0.929x, WD 119 mm | 0.929 | 119±2 | 15.3 | from $1,949.00 | View |
| LS-TCL-2773 | 0.814x, WD 128 mm | 0.814 | 128±2 | 15.3 | from $1,949.00 | View |
| LS-TCL-2772 | 0.931x, WD 118 mm, F-mount | 0.931 | 118±2 | 15.3 | $1,949.00 | View |
| LS-TCL-2774 | 0.813x, WD 138 mm, F or Other-mount | 0.813 | 138±3 | 22.9 | $1,949.00 | View |
| LS-TCL-2769 | 1.503x, WD 72 mm | 1.503 | 72±2 | from $2,029.00 | View | |
| LS-TCL-2770 | 1.08x, WD 111 mm | 1.080 | 111±2 | 18.3 | from $2,049.00 | View |
| LS-TCL-2775 | 0.698x, WD 138 mm | 0.698 | 138±2 | 13.1 | from $2,149.00 | View |
| LS-TCL-2776 | 0.613x, WD 187 mm | 0.613 | 187±2 | 22.9 | from $2,289.00 | View |
| LS-TCL-2777 | 0.61x, WD 159 mm | 0.610 | 159±2 | from $2,299.00 | View | |
| LS-TCL-2780 | 0.488x, WD 230 mm, F-mount | 0.488 | 230±2 | 11.5 | $2,449.00 | View |
| LS-TCL-2781 | 0.434x, WD 208 mm, F-mount | 0.433 | 208±2 | 10.2 | $2,469.00 | View |
| LS-TCL-2778 | 0.543x, WD 178 mm | 0.543 | 178±2 | from $2,479.00 | View | |
| LS-TCL-2779 | 0.487x, WD 229 mm | 0.487 | 229±2 | 22.9 | from $2,669.00 | View |
| LS-TCL-2783 | 0.393x, WD 238 mm, F-mount | 0.393 | 238±3 | 9.1 | $2,669.00 | View |
| LS-TCL-2782 | 0.419x, WD 254 mm | 0.419 | 254±3 | from $3,009.00 | View | |
| LS-TCL-2784 | 0.351x, WD 251 mm | 0.351 | 251±3 | from $3,439.00 | View | |
| LS-TCL-2785 | 0.325x, WD 280 mm, F or Other-mount | 0.325 | 280±5 | 13.1 | $3,629.00 | View |
| LS-TCL-2786 | 0.287x, WD 288 mm | 0.287 | 288±4 | from $4,069.00 | View | |
| LS-TCL-2787 | 0.261x, WD 301 mm | 0.261 | 301±4 | 13.1 | from $4,379.00 | View |
| LS-TCL-2788 | 0.23x, WD 318 mm | 0.230 | 318±4 | from $4,839.00 | View | |
| LS-TCL-2789 | 0.205x, WD 330 mm, F or Other-mount | 0.205 | 330±5 | 9.2 | $5,379.00 | View |
| LS-TCL-2790 | 0.163x, WD 410 mm | 0.163 | 410±5 | 9.2 | from $6,679.00 | View |
| LS-TCL-2791 | 0.13x, WD 465 mm, F or Other-mount | 0.130 | 465±6 | 6.5 | $8,699.00quote | View |
