Telecentric lenses

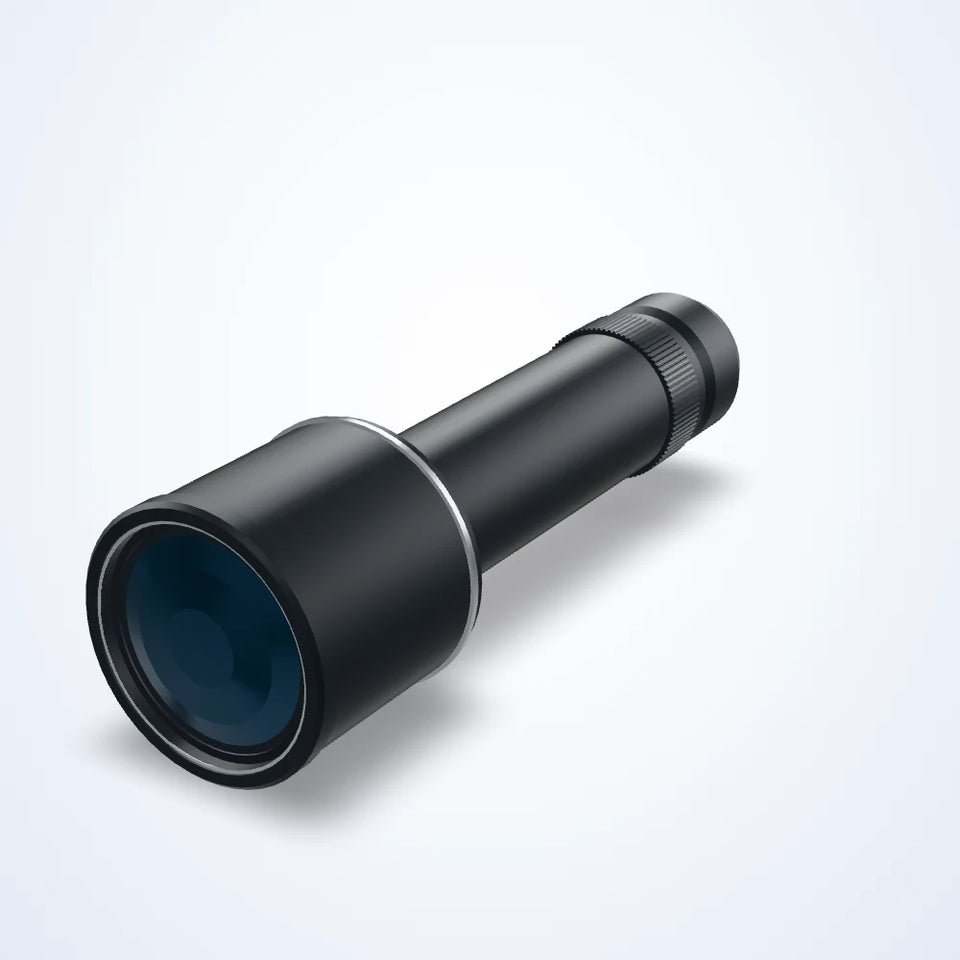

Telecentric lenses, 1.1" (LS-TCL-S48)
- 49 models
- from $620.00
- Series LS-TCL-S48
The Telecentric lenses, 1.1" (LS-TCL-S48) is a range of 49 telecentric lenses from LumaSpec Vision, from $620.00. It comes in 41 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.061x, WD 465 mm, 1.1", 0.071x, WD 338 mm, 1.1", 0.077x, WD 410 mm, 1.1", 0.085x, WD 372 mm, 1.1", 0.097x, WD 330 mm, 1.1", 0.108x, WD 318 mm, 1.1", 0.123x, WD 300 mm, 1.1", 0.135x, WD 288 mm, 1.1", 0.153x, WD 273 mm, 1.1", 0.167x, WD 263 mm, 1.1", 0.184x, WD 258 mm, 1.1", 0.204x, WD 208 mm, 1.1", 0.22x, 1.1", 0.23x, 1.1", 0.23x, WD 228 mm, 1.1", 0.246x, 1.1" and 25 more
- Mount
- C-mount
- Resolution
- 6-10 MP
- Image circle
- 16-22 mm, 22-30 mm
- Type
- Bi-telecentric, Object-side telecentric
- Coaxial light
- Built-in coaxial light, No coaxial port
- Magnification
- Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x +
- Sensor format
- 1.1" - 1.2"
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
Features
- Constant magnification over the depth of field: size readings do not change with distance
- Low distortion for measurement
All 49 models in the Telecentric lenses, 1.1" (LS-TCL-S48)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-1103 | 1x, 1.1", C-mount | 18.0(1.1") | 1x | $620.00 | View | |
| LS-TCL-1109 | 1.5x, WD 110 mm, 1.1" | 18.0(1.1”) | 1.5x | 110±2 mm | $620.00 | View |
| LS-TCL-1110 | 2x, 1.1", C-mount | 18.0(1.1") | 2x | $620.00 | View | |
| LS-TCL-1115 | 3x, 1.1", C-mount | 18.0(1.1") | 3x | $620.00 | View | |
| LS-TCL-1096 | 0.55x, 1.1" | 18.0(1.1") | 0.55x | $670.00 | View | |
| LS-TCL-1102 | 0.8x, 1.1", C-mount | 18.0(1.1") | 0.8x | $700.00 | View | |
| LS-TCL-1097 | 0.55x, 1.1" | 18.0(1.1") | 0.55x | $715.00 | View | |
| LS-TCL-1095 | 0.511x, WD 110 mm, 1.1" | 1.1" | 0.511x | 110±2 mm | $770.00 | View |
| LS-TCL-1093 | 0.428x, WD 118 mm, 1.1" | 1.1" | 0.428x | 118±3 mm | $780.00 | View |
| LS-TCL-1081 | 0.22x, 1.1" | 18.0(1.1") | 0.22x | $808.00 | View | |
| LS-TCL-1082 | 0.23x, 1.1" | 18.0(1.1") | 0.23x | $808.00 | View | |
| LS-TCL-1084 | 0.246x, 1.1" | 18.0(1.1") | 0.246x | $808.00 | View | |
| LS-TCL-1086 | 0.275x, 1.1" | 18.0(1.1") | 0.275x | $808.00 | View | |
| LS-TCL-1089 | 0.345x, 1.1" | 18.0(1.1") | 0.345x | $808.00 | View | |
| LS-TCL-1090 | 0.367x, 1.1" | 18.0(1.1") | 0.367x | $808.00 | View | |
| LS-TCL-1101 | 0.708x, WD 73 mm, 1.1" | 1.1" | 0.708x | 73±1 mm | $870.00 | View |
| LS-TCL-1091 | 0.383x, WD 128 mm, 1.1" | 1.1" | 0.383x | 128±3 mm | $900.00 | View |
| LS-TCL-1092 | 0.383x, WD 138 mm, 1.1" | 1.1" | 0.383x | 138±3 mm | $900.00 | View |
| LS-TCL-1088 | 0.329x, WD 138 mm, 1.1" | 1.1" | 0.329x | 138±3 mm | $1,020.00 | View |
| LS-TCL-1087 | 0.288x, WD 158 mm, 1.1" | 1.1" | 0.288x | 158±3 mm | $1,060.00 | View |
| LS-TCL-1085 | 0.256x, WD 178 mm, 1.1" | 1.1" | 0.256x | 178±3 mm | $1,305.00 | View |
| LS-TCL-1083 | 0.23x, WD 228 mm, 1.1" | 1.1" | 0.23x | 228±4 mm | $1,605.00 | View |
| LS-TCL-1080 | 0.204x, WD 208 mm, 1.1" | 1.1" | 0.204x | 208±3 mm | $1,715.00 | View |
| LS-TCL-1078 | 0.167x, WD 263 mm, 1.1" | 1.1" | 0.167x | 263±4 mm | $1,875.00 | View |
| LS-TCL-1079 | 0.184x, WD 258 mm, 1.1" | 1.1" | 0.184x | 258±4 mm | $1,925.00 | View |
| LS-TCL-1076 | 0.135x, WD 288 mm, 1.1" | 1.1" | 0.135x | 288±5 mm | $2,350.00 | View |
| LS-TCL-1077 | 0.153x, WD 273 mm, 1.1" | 1.1" | 0.153x | 273±5 mm | $2,460.00 | View |
| LS-TCL-1075 | 0.123x, WD 300 mm, 1.1" | 1.1" | 0.123x | 300±5 mm | $2,835.00 | View |
| LS-TCL-1074 | 0.108x, WD 318 mm, 1.1" | 1.1" | 0.108x | 318±5 mm | $3,100.00 | View |
| LS-TCL-1073 | 0.097x, WD 330 mm, 1.1" | 1.1" | 0.097x | 330±5 mm | $4,815.00 | View |
| LS-TCL-1072 | 0.085x, WD 372 mm, 1.1" | 1.1" | 0.085x | 372±5 mm | $4,925.00 | View |
| LS-TCL-1106 | 1x, WD 110 mm, 1.1", C-mount | 1.1" | 1.0x | 110.0 mm | $5,800.00 | View |
| LS-TCL-1107 | 1x, WD 110 mm, 1.1", C-mount | 1.1" | 1.0x | 110.0 mm | $5,800.00 | View |
| LS-TCL-1113 | 2x, WD 110.2 mm, 1.1", C-mount | 1.1" | 2.0x | 110.2 mm | $5,800.00 | View |
| LS-TCL-1114 | 2x, WD 110.2 mm, 1.1", C-mount | 1.1" | 2.0x | 110.2 mm | $5,800.00 | View |
| LS-TCL-1118 | 4x, WD 110.3 mm, 1.1", C-mount | 1.1" | 4.0x | 110.3 mm | $5,800.00 | View |
| LS-TCL-1094 | 0.5x, WD 116.4 mm, 1.1", C-mount | 1.1" | 0.5x | 116.4 mm | $6,400.00 | View |
| LS-TCL-1100 | 0.7x, WD 116 mm, 1.1", C-mount | 1.1" | 0.7x | 116.0 mm | $6,400.00 | View |
| LS-TCL-1098 | 0.7x, WD 110 mm, 1.1", C-mount | Φ20.5 mm | 0.7X | 110 mm | $6,800.00 | View |
| LS-TCL-1099 | 0.7x, WD 110 mm, 1.1", C-mount | Φ20.5 mm | 0.7X | 110 mm | $6,800.00 | View |
| LS-TCL-1104 | 1x, WD 110 mm, 1.1", C-mount | Φ24 mm | 1.0X | 110 mm | $6,800.00 | View |
| LS-TCL-1105 | 1x, WD 110 mm, 1.1", C-mount | Φ24 mm | 1.0X | 110 mm | $6,800.00 | View |
| LS-TCL-1111 | 2x, WD 110 mm, 1.1", C-mount | Φ24 mm | 2.0X | 110 mm | $6,800.00 | View |
| LS-TCL-1112 | 2x, WD 110 mm, 1.1", C-mount | Φ24 mm | 2.0X | 110 mm | $6,800.00 | View |
| LS-TCL-1116 | 4x, WD 110 mm, 1.1", C-mount | Φ20.5 mm | 4.0X | 110 mm | $6,800.00 | View |
| LS-TCL-1117 | 4x, WD 110 mm, 1.1", C-mount | Φ20.5 mm | 4.0X | 110 mm | $6,800.00 | View |
| LS-TCL-1070 | 0.071x, WD 338 mm, 1.1" | 1.1" | 0.071x | 338±5 mm | $8,025.00quote | View |
| LS-TCL-1071 | 0.077x, WD 410 mm, 1.1" | 1.1" | 0.077x | 410±6 mm | $8,025.00 | View |
| LS-TCL-1069 | 0.061x, WD 465 mm, 1.1" | 1.1" | 0.061x | 465±6 mm | $8,560.00quote | View |
