  • 0.7x telecentric lens, WD 116 mm, 1.1", C-mount

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.7x telecentric lens, WD 116 mm, 1.1", C-mount (LS-TCL-1100)

Model LS-TCL-1100

  • Magnification0.7x
  • MountC-mount
  • Sensor1.1"
  • Working distance116.0 mm
  • Aperture6.4
  • Resolution13.4 μm
$6,400.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.7x telecentric lens, WD 116 mm, 1.1", C-mount (LS-TCL-1100)LS-TCL-1100

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.7x telecentric lens for non-contact measurement and gauging. Focal length 0.7 mm; magnification 0.7x; working distance 116 mm; covers sensors up to 1.1"; aperture F6.4; corrected for 950-1800 nm; C-mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1100
Spectral Region950 nm-1800 nm

Optics

Coaxial illumination portYes
Magnification0.7x
Working distance116.0 mm
Aperture6.4
Object-side NA0.055
Depth of field1.05 mm
Filter threadM46×0.75 mm
Distortion0.02 % max

Sensor and imaging

Sensor format1.1"
Resolution13.4 μm

Light

Wavelength range950-1800 nm

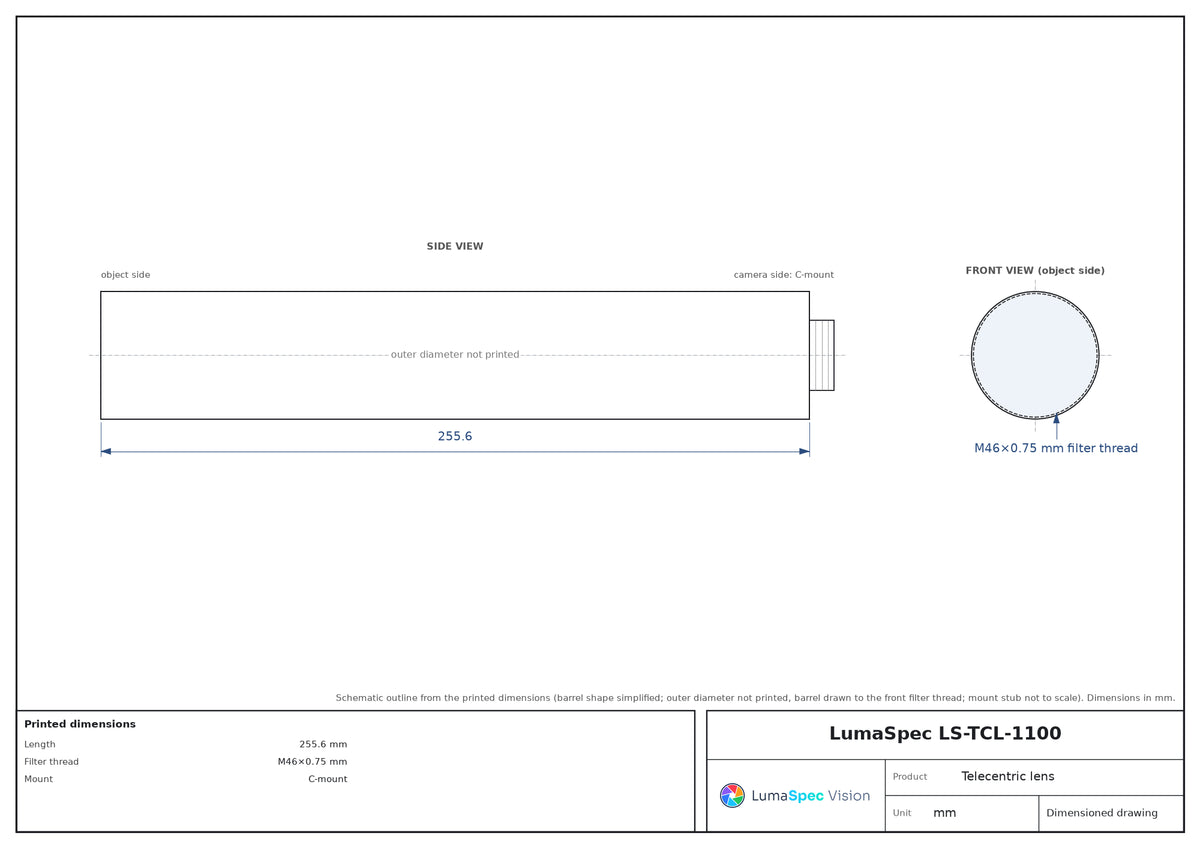

Mechanical

MountC-mount
Flange back length17.526 mm
Length255.6 mm
Shipping weight1.00 kg
