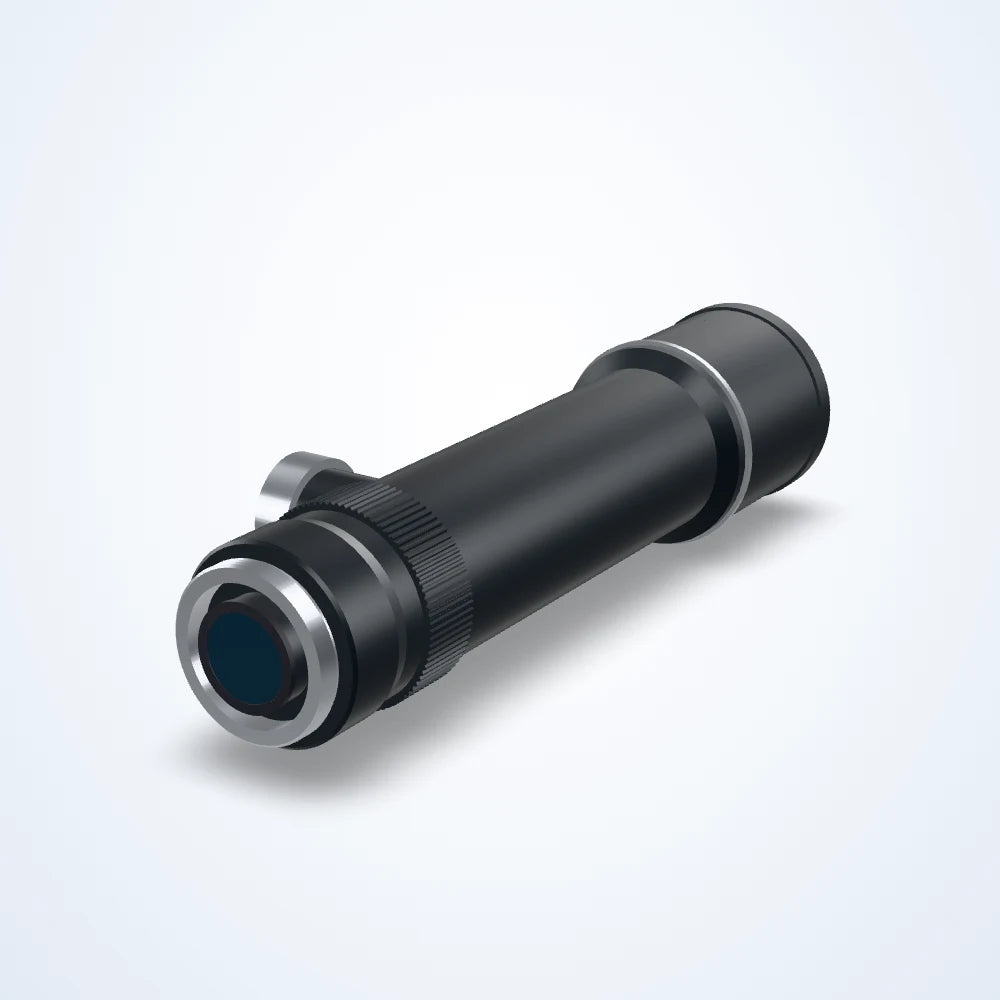

  • Telecentric lens (series view)

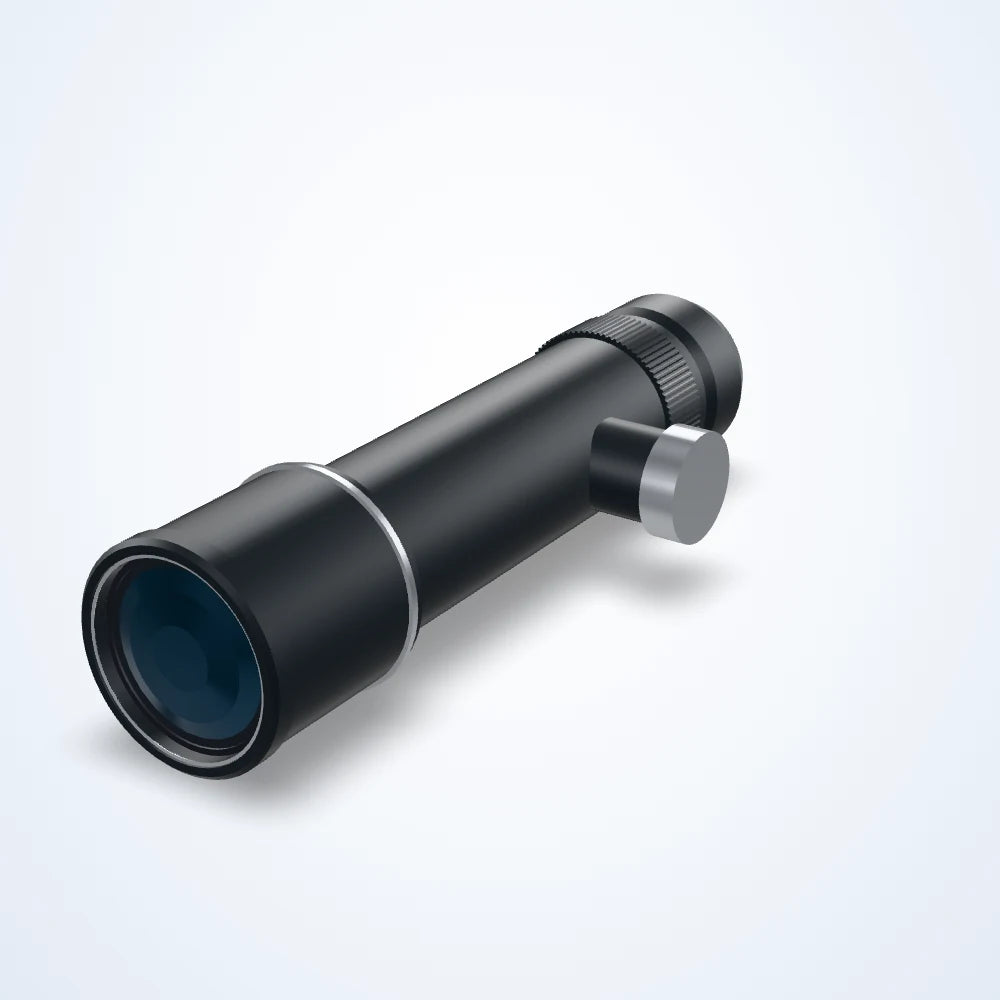

  • Telecentric lens (series view)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

1x telecentric lens, WD 110 mm, 1.1", C-mount, 400-1200 nm 1.1", 1.0x Coaxial (LS-TCL-1104)

Model LS-TCL-1104

  • Magnification1.0X
  • MountC-mount
  • Sensor1.1"
  • Working distance110 mm
$6,800.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

1x telecentric lens, WD 110 mm, 1.1", C-mount, 400-1200 nm 1.1", 1.0x Coaxial (LS-TCL-1104)LS-TCL-1104

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

1x telecentric lens for non-contact measurement and gauging. Magnification 1x; working distance 110 mm; covers sensors up to 1.1"; corrected for 400-1200 nm; C-mount.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1104
Spectral Region400-1200 nm

Optics

Magnification1.0X
Working distance110 mm
Coaxial illumination portYes

Sensor and imaging

Sensor formatΦ24 mm

Light

Wavelength range400-1200 nm

Mechanical

MountC-mount
Shipping weight1.00 kg
