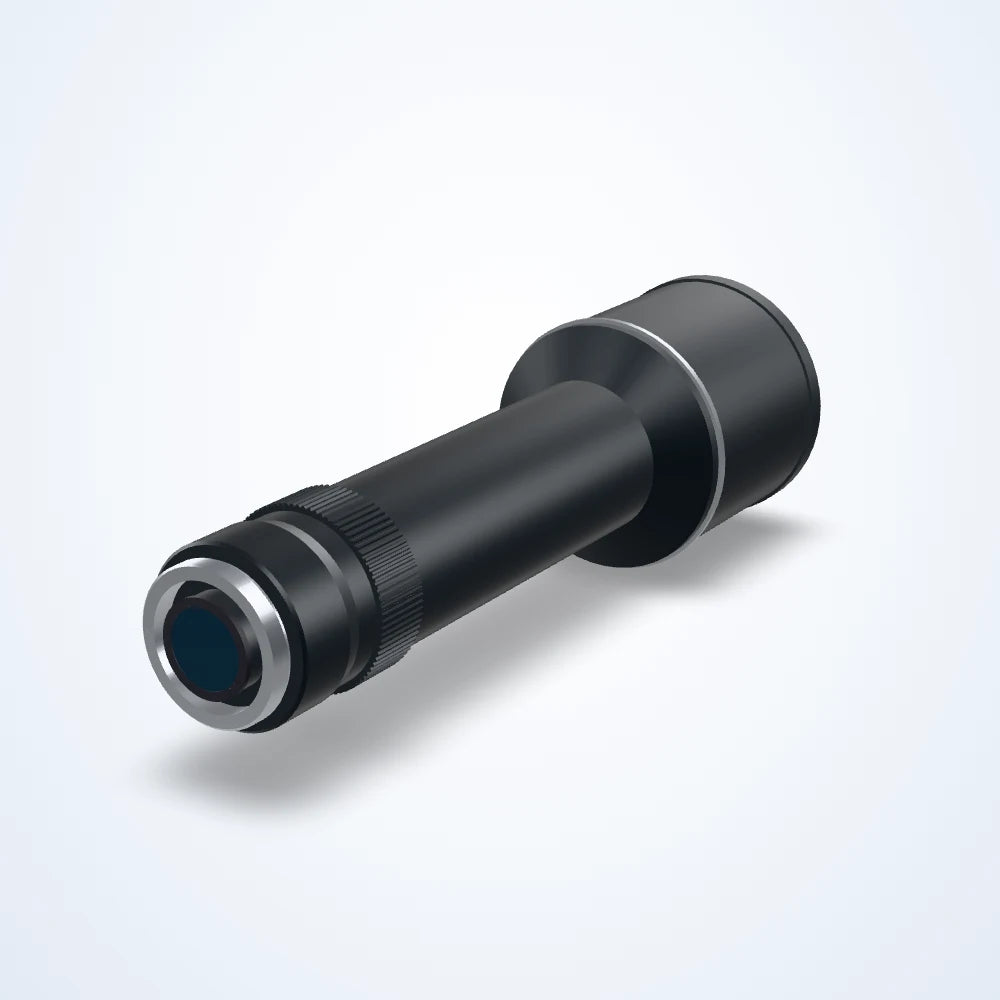

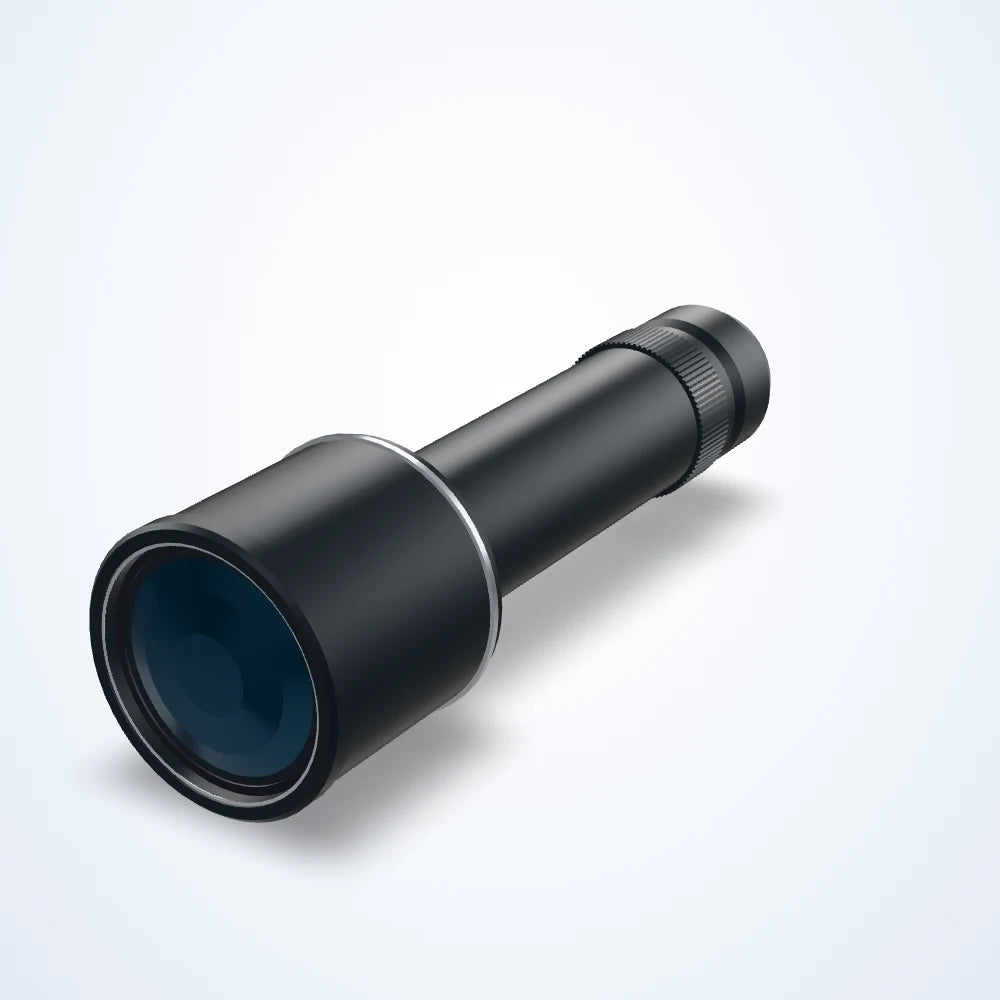

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.8x telecentric lens, 1.1", C-mount (LS-TCL-1102)
Model LS-TCL-1102
- Magnification0.8x
- MountC-mount
- Sensor1.1"
- Working distance110±2 mm
- Aperture7.9
- Resolution10 MP
$700.00
Ships in 3-4 weeks
1.0 kg shipping weight
Volume pricing, Net 30 terms or a formal quote for purchasing?
0.8x telecentric lens for non-contact measurement and gauging. Magnification 0.8x; covers sensors up to 1.1"; resolves 10 MP; C-mount.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-1102 |
|---|
Optics
| Coaxial illumination port | No |
|---|---|
| Magnification | 0.8x |
| Depth of field | ±0.5@F7.9 |
| Working distance | 110±2 mm |
| Aperture | 7.9 |
| MTF | >85 lp/mm |
| Distortion | <0.1 % max |
| Telecentricity | <0.1 ° max |
Sensor and imaging
| Resolution | 10 MP |
|---|---|
| Sensor format | 18.0(1.1") |
Mechanical
| Mount | C Mount |
|---|---|
| Length | 122.7 mm |
| Shipping weight | 1.00 kg |
Other models in the Telecentric lenses, 1.1" (LS-TCL-S48) series
See all 49 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-1103 | 1x, 1.1", C-mount | $620.00 | Ships in 3-4 weeks | View |
| LS-TCL-1109 | 1.5x, WD 110 mm, 1.1" | $620.00 | Ships in 3-4 weeks | View |
| LS-TCL-1110 | 2x, 1.1", C-mount | $620.00 | Ships in 3-4 weeks | View |
| LS-TCL-1115 | 3x, 1.1", C-mount | $620.00 | Ships in 3-4 weeks | View |
| LS-TCL-1096 | 0.55x, 1.1" | $670.00 | Ships in 3-4 weeks | View |
| LS-TCL-1097 | 0.55x, 1.1" | $715.00 | Ships in 3-4 weeks | View |
| LS-TCL-1095 | 0.511x, WD 110 mm, 1.1" | $770.00 | Ships in 3-4 weeks | View |
| LS-TCL-1093 | 0.428x, WD 118 mm, 1.1" | $780.00 | Ships in 3-4 weeks | View |
| LS-TCL-1081 | 0.22x, 1.1" | $808.00 | Ships in 3-4 weeks | View |
| LS-TCL-1082 | 0.23x, 1.1" | $808.00 | Ships in 3-4 weeks | View |
| LS-TCL-1084 | 0.246x, 1.1" | $808.00 | Ships in 3-4 weeks | View |
| LS-TCL-1086 | 0.275x, 1.1" | $808.00 | Ships in 3-4 weeks | View |
| LS-TCL-1089 | 0.345x, 1.1" | $808.00 | Ships in 3-4 weeks | View |
| LS-TCL-1090 | 0.367x, 1.1" | $808.00 | Ships in 3-4 weeks | View |
| LS-TCL-1101 | 0.708x, WD 73 mm, 1.1" | $870.00 | Ships in 3-4 weeks | View |
| LS-TCL-1091 | 0.383x, WD 128 mm, 1.1" | $900.00 | Ships in 3-4 weeks | View |
| LS-TCL-1092 | 0.383x, WD 138 mm, 1.1" | $900.00 | Ships in 3-4 weeks | View |
| LS-TCL-1088 | 0.329x, WD 138 mm, 1.1" | $1,020.00 | Ships in 3-4 weeks | View |
| LS-TCL-1087 | 0.288x, WD 158 mm, 1.1" | $1,060.00 | Ships in 3-4 weeks | View |
| LS-TCL-1085 | 0.256x, WD 178 mm, 1.1" | $1,305.00 | Ships in 3-4 weeks | View |
| LS-TCL-1083 | 0.23x, WD 228 mm, 1.1" | $1,605.00 | Ships in 3-4 weeks | View |
| LS-TCL-1080 | 0.204x, WD 208 mm, 1.1" | $1,715.00 | Ships in 3-4 weeks | View |
| LS-TCL-1078 | 0.167x, WD 263 mm, 1.1" | $1,875.00 | Ships in 3-4 weeks | View |
| LS-TCL-1079 | 0.184x, WD 258 mm, 1.1" | $1,925.00 | Ships in 3-4 weeks | View |
