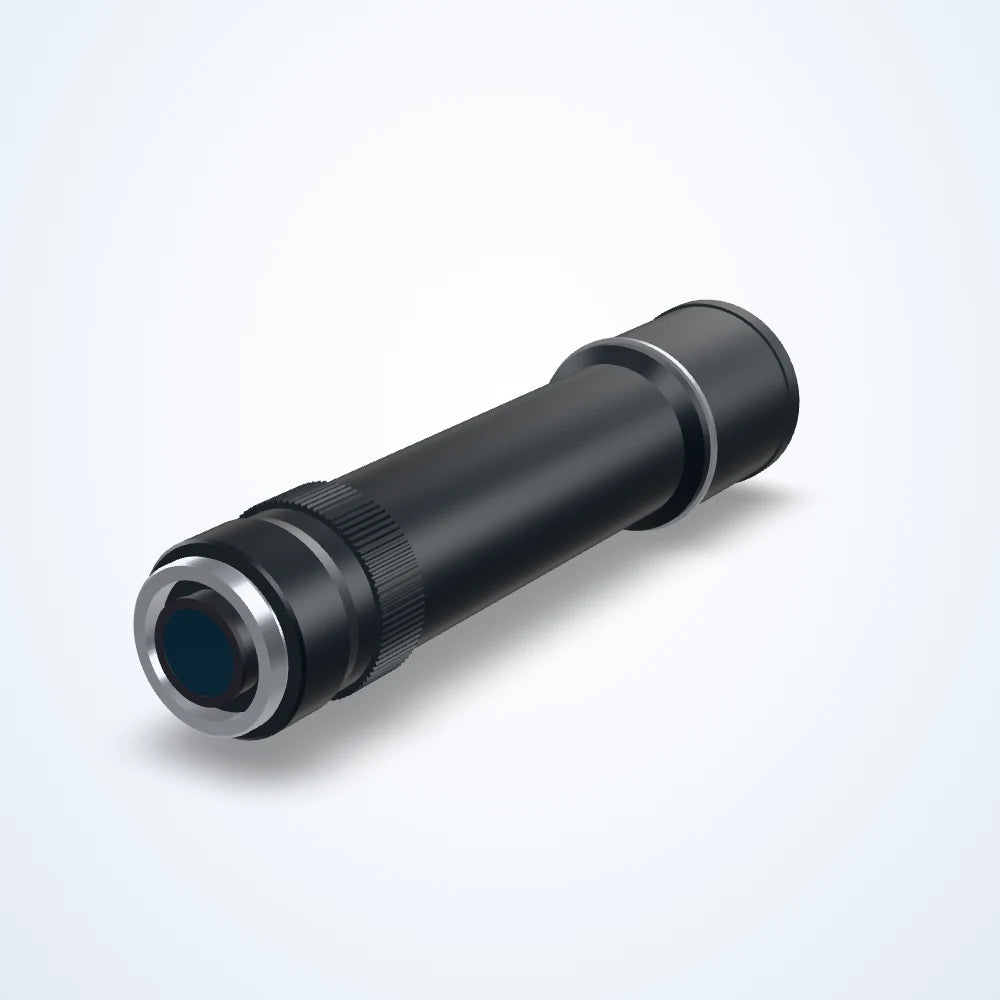

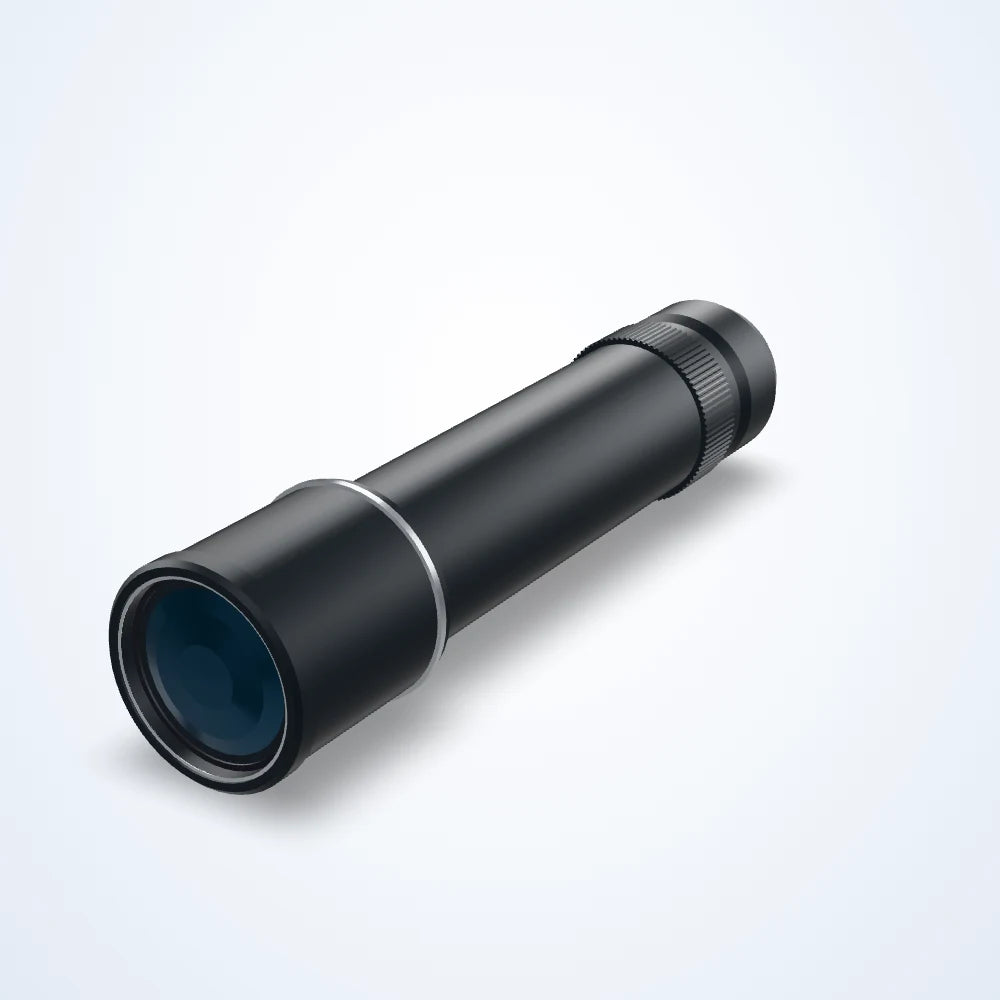

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.23x bi-telecentric lens, WD 228 mm, 1.1" (LS-TCL-1083)

Model LS-TCL-1083

  • Magnification0.23x
  • MountC-mount
  • Sensor1.1"
  • Working distance228±4 mm
  • ApertureF6.2
  • Field of viewdia. 80 mm
$1,605.00

Ships in 3-4 weeks

1.0 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

0.23x bi-telecentric lens, WD 228 mm, 1.1" (LS-TCL-1083)LS-TCL-1083

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

0.23x bi-telecentric lens for non-contact measurement and gauging. Magnification 0.23x; working distance 228 mm; covers sensors up to 1.1".

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-1083

Optics

Working distance228±4 mm
Field of viewdia. 80 mm
Magnification0.23x
ApertureF6.2
MTF>145lp/mm
Depth of field±12.1 mm@F16
Distortion<0.1%
Telecentricity<0.1°
Object-to-image distance457±4 mm

Sensor and imaging

Sensor format1.1"

Environment and compliance

Operating temperature-10 - 50°C(Operating), -20 - 60°C(Storage)

Mechanical

MountC-mount
Length211.7 mm
Weight2.0 Kg

Other models in the Bi-telecentric lenses, 1.1" (LS-TCL-S48) series

See all 49 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-1081 0.22x, 1.1" $808.00 Ships in 3-4 weeks View
LS-TCL-1082 0.23x, 1.1" $808.00 Ships in 3-4 weeks View
LS-TCL-1084 0.246x, 1.1" $808.00 Ships in 3-4 weeks View
LS-TCL-1086 0.275x, 1.1" $808.00 Ships in 3-4 weeks View
LS-TCL-1089 0.345x, 1.1" $808.00 Ships in 3-4 weeks View
LS-TCL-1090 0.367x, 1.1" $808.00 Ships in 3-4 weeks View
LS-TCL-1101 0.708x, WD 73 mm, 1.1" $870.00 Ships in 3-4 weeks View
LS-TCL-1091 0.383x, WD 128 mm, 1.1" $900.00 Ships in 3-4 weeks View
LS-TCL-1092 0.383x, WD 138 mm, 1.1" $900.00 Ships in 3-4 weeks View
LS-TCL-1088 0.329x, WD 138 mm, 1.1" $1,020.00 Ships in 3-4 weeks View
LS-TCL-1087 0.288x, WD 158 mm, 1.1" $1,060.00 Ships in 3-4 weeks View
LS-TCL-1085 0.256x, WD 178 mm, 1.1" $1,305.00 Ships in 3-4 weeks View
LS-TCL-1080 0.204x, WD 208 mm, 1.1" $1,715.00 Ships in 3-4 weeks View
LS-TCL-1078 0.167x, WD 263 mm, 1.1" $1,875.00 Ships in 3-4 weeks View
LS-TCL-1079 0.184x, WD 258 mm, 1.1" $1,925.00 Ships in 3-4 weeks View
LS-TCL-1076 0.135x, WD 288 mm, 1.1" $2,350.00 Ships in 3-4 weeks View
LS-TCL-1077 0.153x, WD 273 mm, 1.1" $2,460.00 Ships in 3-4 weeks View
LS-TCL-1075 0.123x, WD 300 mm, 1.1" $2,835.00 Ships in 3-4 weeks View
LS-TCL-1074 0.108x, WD 318 mm, 1.1" $3,100.00 Ships in 3-4 weeks View
LS-TCL-1073 0.097x, WD 330 mm, 1.1" $4,815.00 Ships in 3-4 weeks View
LS-TCL-1072 0.085x, WD 372 mm, 1.1" $4,925.00 Ships in 3-4 weeks View
LS-TCL-1106 1x, WD 110 mm, 1.1", C-mount $5,800.00 Ships in 3-4 weeks View
LS-TCL-1107 1x, WD 110 mm, 1.1", C-mount $5,800.00 Ships in 3-4 weeks View
LS-TCL-1113 2x, WD 110.2 mm, 1.1", C-mount $5,800.00 Ships in 3-4 weeks View
