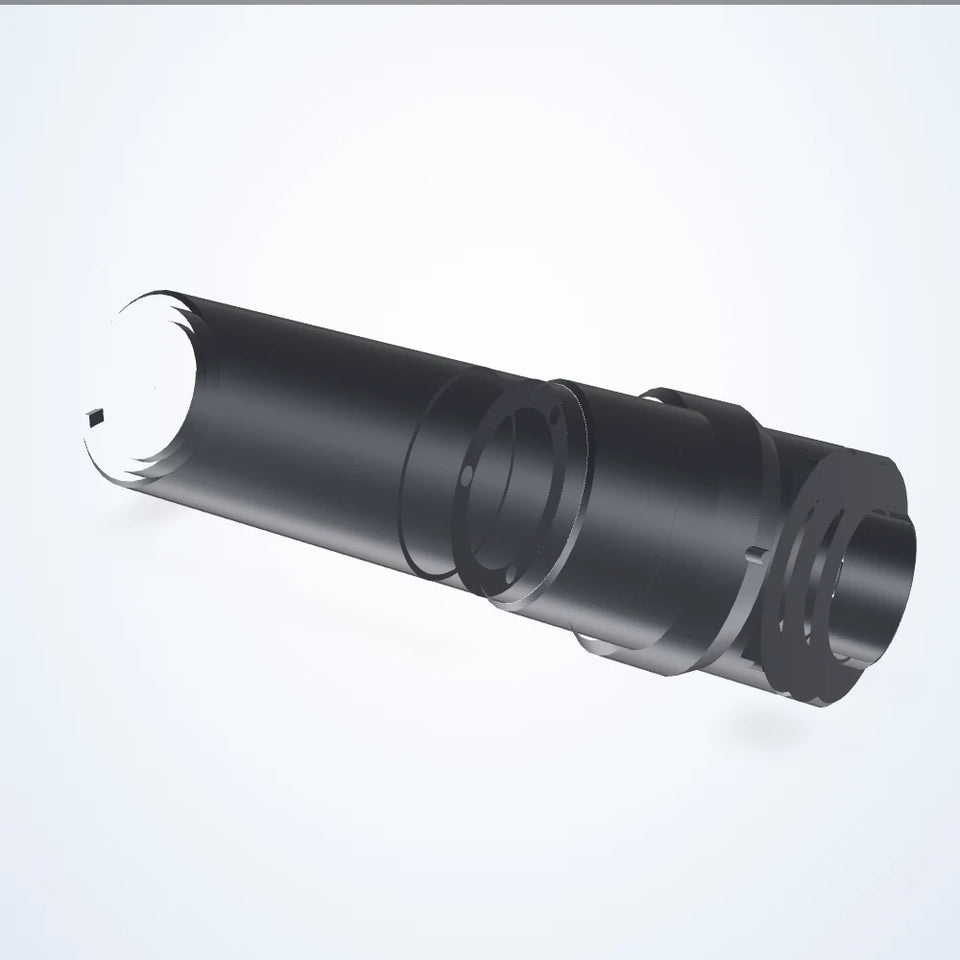

Telecentric lens series, 1", C-mount

Telecentric lenses

Telecentric lens series, 1", C-mount

12 models
from $2,349.00
Series LS-TCL-S15

The Telecentric lens series, 1", C-mount is a range of 12 telecentric lenses from LumaSpec Vision, from $2,349.00. It comes in 12 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 12 models Series datasheet (PDF)

The series at a glance

Sizes / versions: 0.053×, 0.067×, 0.089×, 0.104×, 0.136×, 0.16×, 0.227×, 0.228×, 0.267×, 0.354×, 0.509×, 0.768×
Mount: C-mount
Image circle: 11-16 mm
Type: Object-side telecentric
Magnification: Under 0.1x, 0.1-0.3x, 0.3-0.6x, 0.6-1x
Working distance: Under 65 mm, 65-110 mm, 110-200 mm, 200 mm +
Sensor format: 1"

All 12 models in the Telecentric lens series, 1", C-mount

						Link
LS-TCL-0257	0.768×	13 μm	43.1 mm	142.4 x 37.7 x 37.7 mm	$2,349.00quote	View
LS-TCL-0258	0.509×	14 μm	67.2 mm	167.4 x 44 x 44 mm	$2,489.00quote	View
LS-TCL-0259	0.354×	20 μm	102.6 mm	197.7 x 61 x 61 mm	$2,749.00quote	View
LS-TCL-0260	0.267×	19 μm	132.9 mm	233.7 x 75 x 75 mm	$2,879.00quote	View
LS-TCL-0261	0.228×	22 μm	157.8 mm	256.6 x 80 x 80 mm	$3,139.00quote	View
LS-TCL-0262	0.227×	25 μm	181.9 mm	278.2 x 100 x 100 mm	$3,399.00quote	View
LS-TCL-0263	0.16×	32 μm	226.8 mm	323.9 x 116 x 116 mm	$3,919.00quote	View
LS-TCL-0264	0.136×	37 μm	278.6 mm	365.2 x 143 x 143 mm	$4,739.00quote	View
LS-TCL-0265	0.104×	49 μm	334.6 mm	451.3 x 180 x 180 mm	$5,909.00quote	View
LS-TCL-0266	0.089×	57 μm	396 mm	510.8 x 200 x 200 mm	$7,229.00quote	View
LS-TCL-0267	0.067×	76 μm	527.6 mm	651.2 x 260 x 260 mm	$11,619.00quote	View
LS-TCL-0268	0.053×	96 μm	492.8 mm	790.6 x 322 x 322 mm	$15,619.00quote	View
