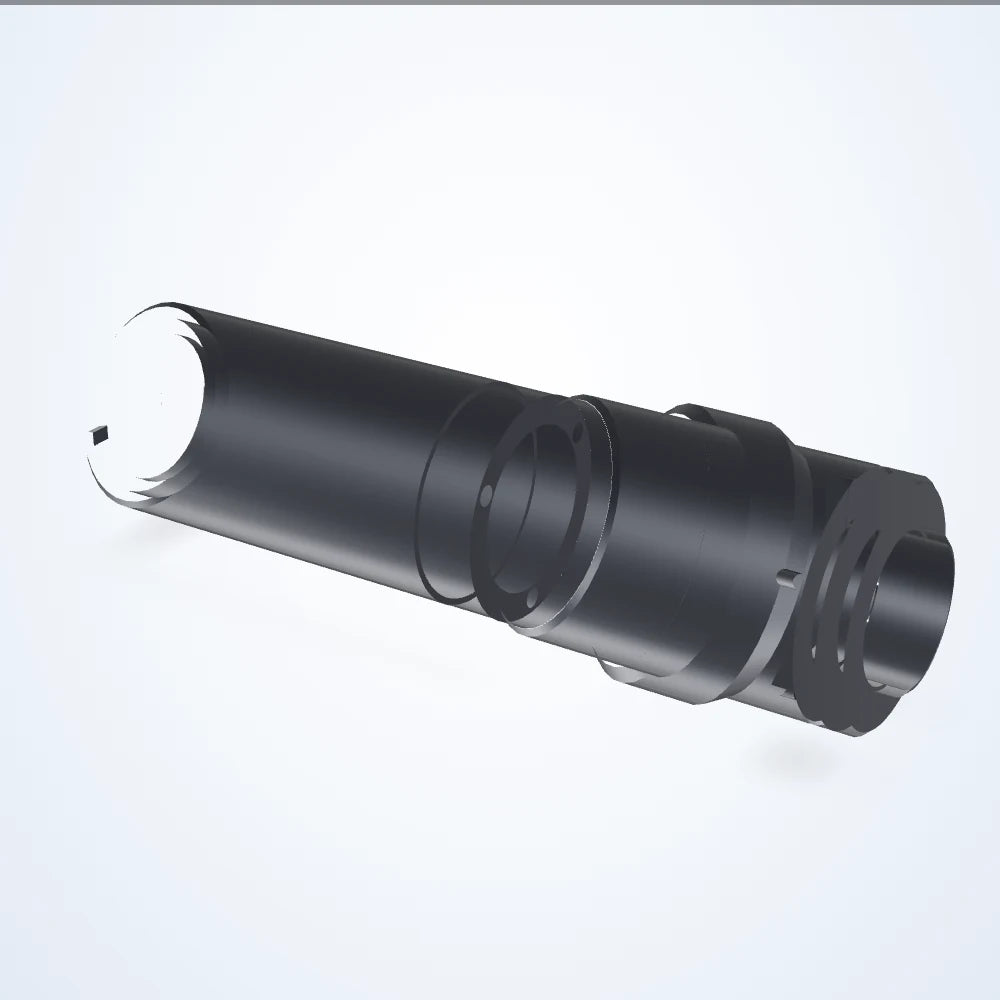

  • 0.768× telecentric lens, 1", C-mount (LS-TCL-0257)

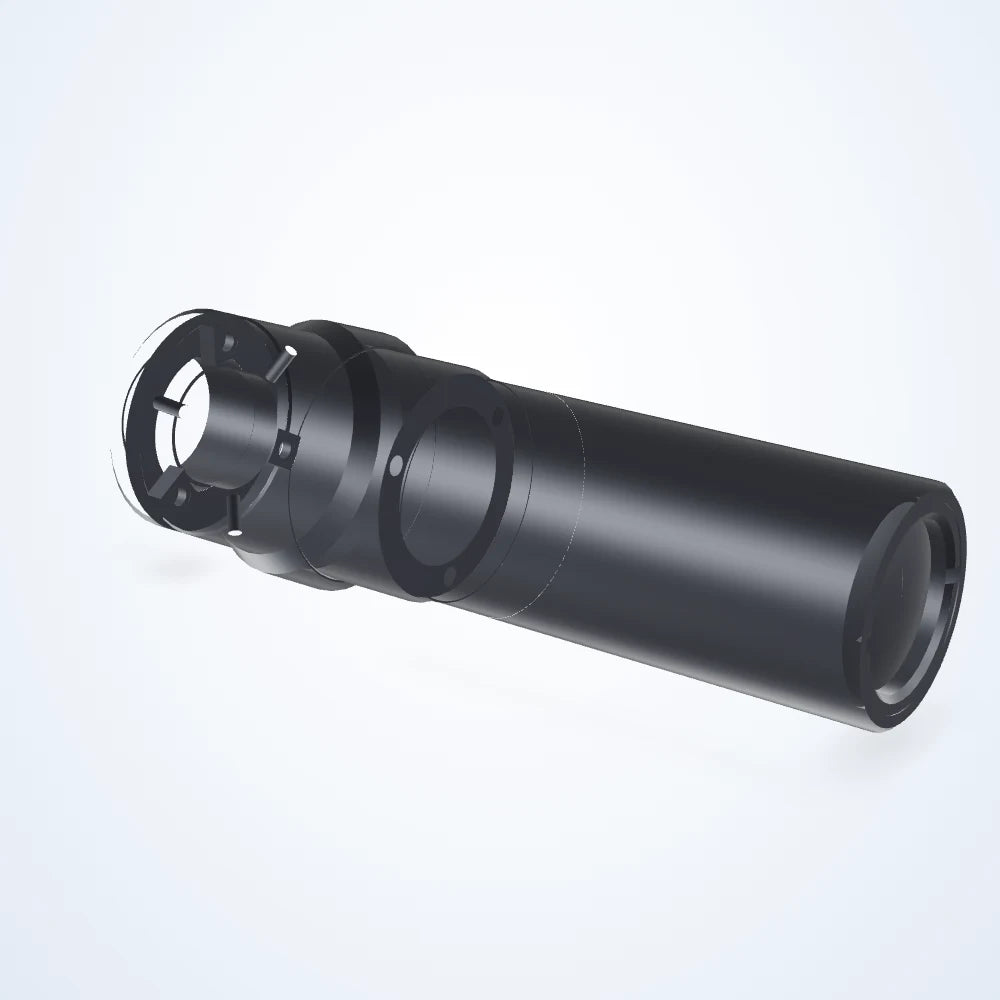

  • 0.768× telecentric lens, 1", C-mount (LS-TCL-0257) - view 2

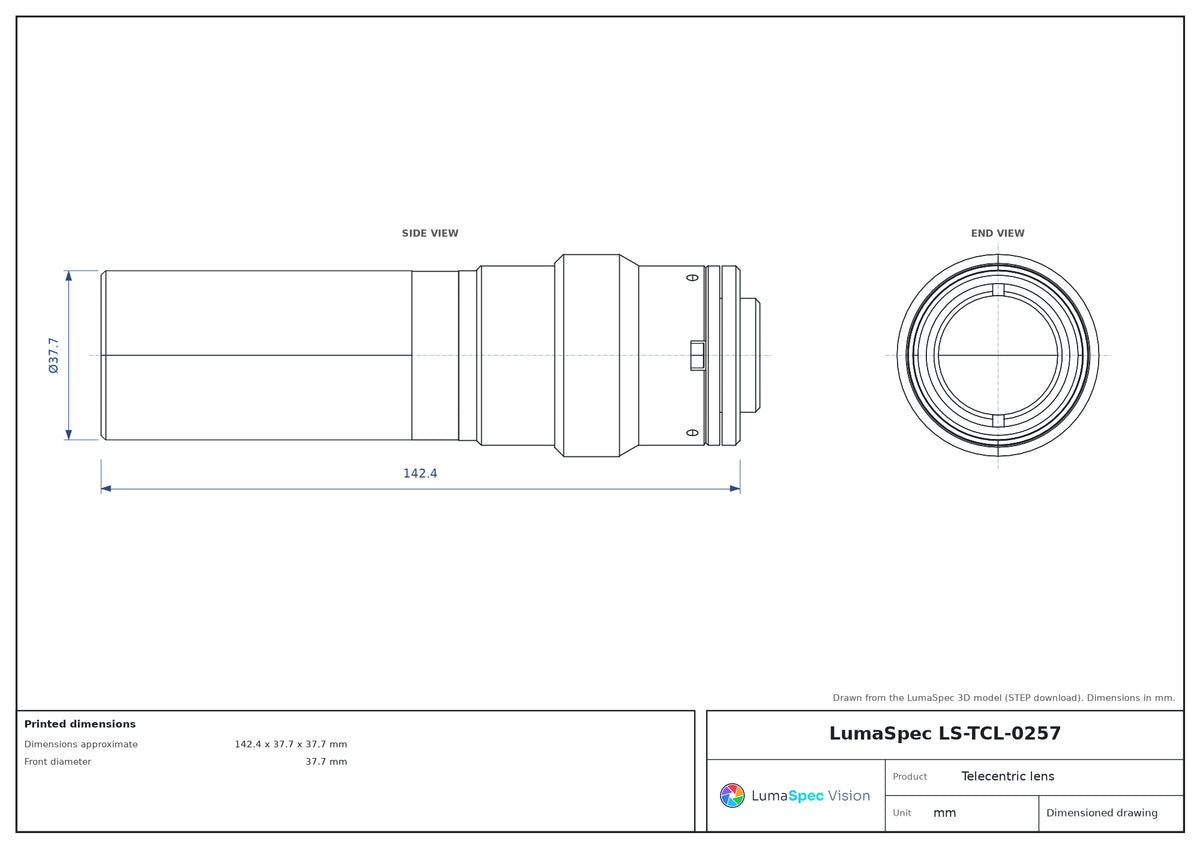

  • LS-TCL-0257 dimensions (mm)

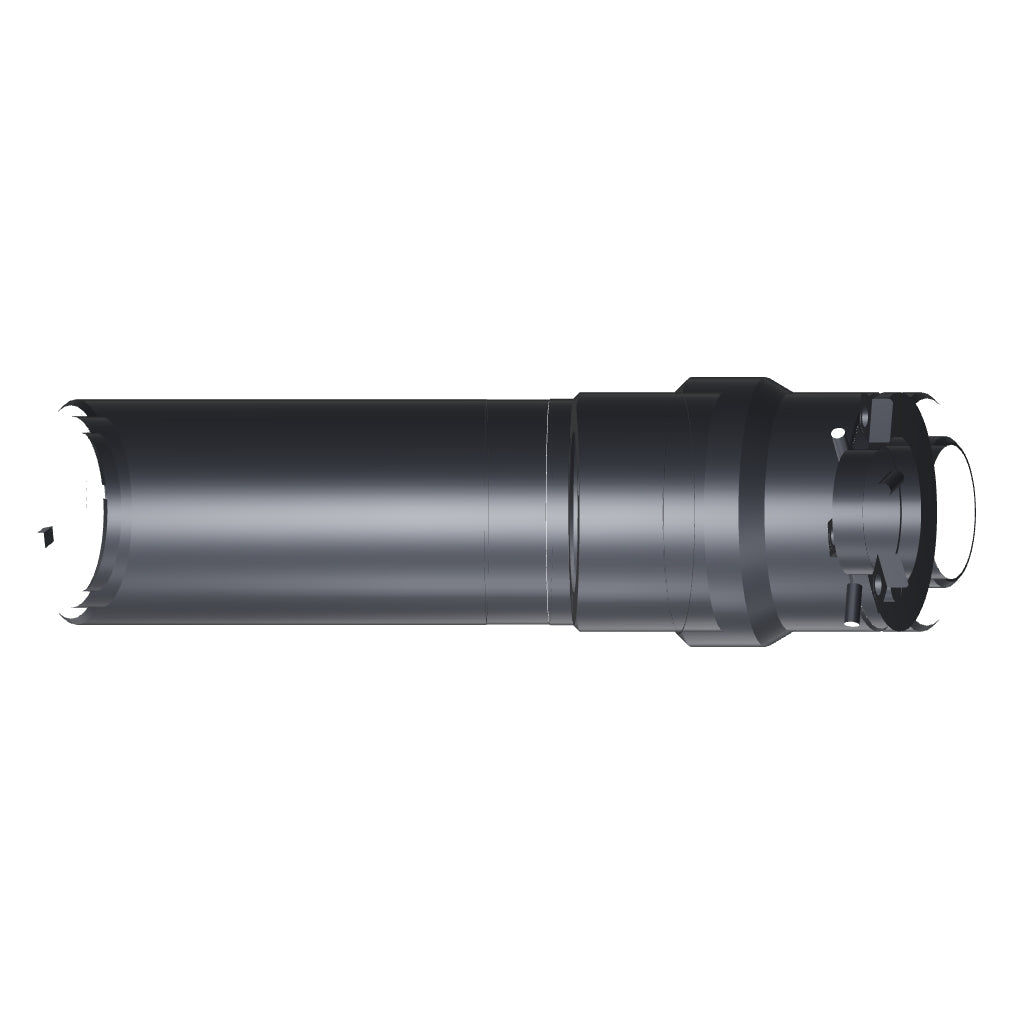

  • LS-TCL-0257 3D model

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.768× telecentric lens, 1", C-mount (LS-TCL-0257)

Model LS-TCL-0257

  • Magnification0.768×
  • MountC-mount
  • Sensor1"
  • Working distance43.1 mm
  • Resolution13 μm
$2,349.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 43.1 mm; depth of field 1.4 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0257
Fov @ 1.2″14.78 x 9.28 mm
FOV @ 1″18.48 x 9.78 mm
FOV @ 2/3″11.07 x 9.23 mm
Lens typeTelecentric
Working ƒ/nf/16

Optics

Magnification0.768×
Working distance43.1 mm
Depth of field1.4 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.04
Filter threadNo Filter Threads
Image circle16 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.08°

Sensor and imaging

Sensor format1"
Resolution (pixel size)13 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate142.4 x 37.7 x 37.7 mm
Front diameter37.7 mm
Weight378 Grams
