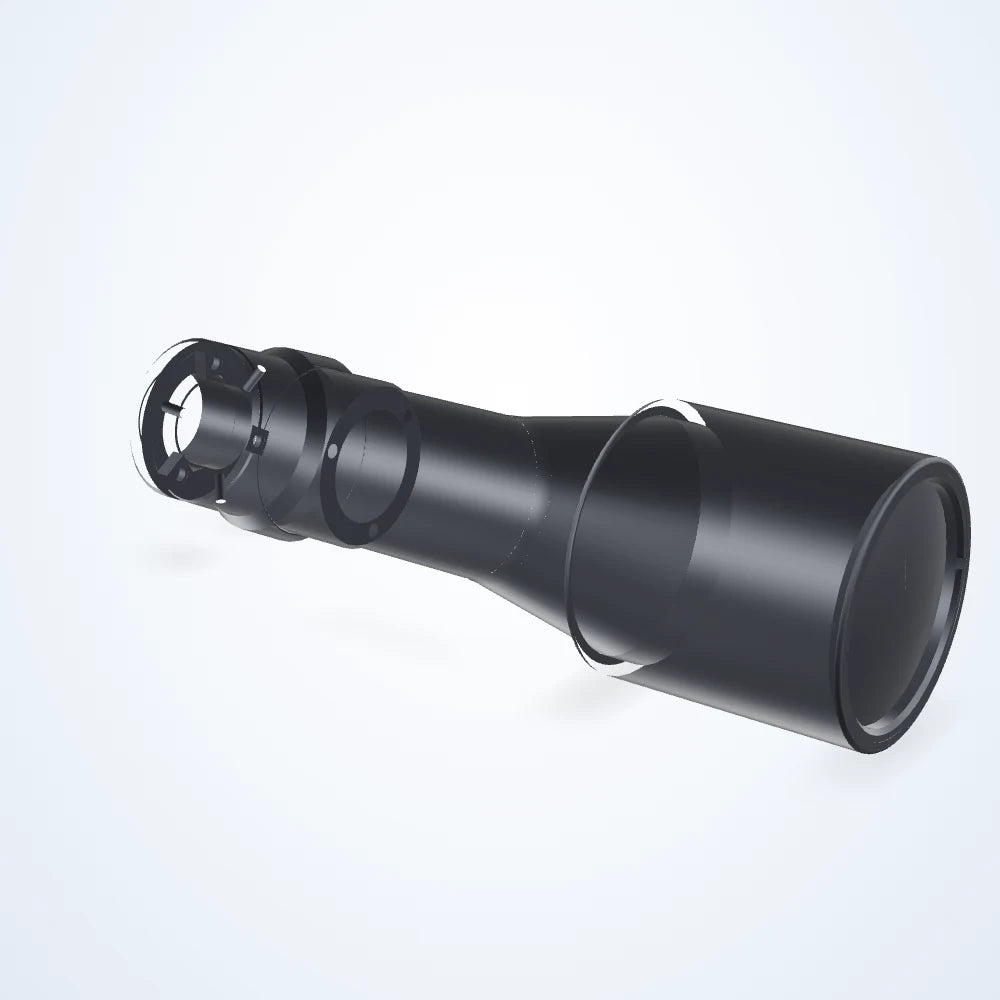

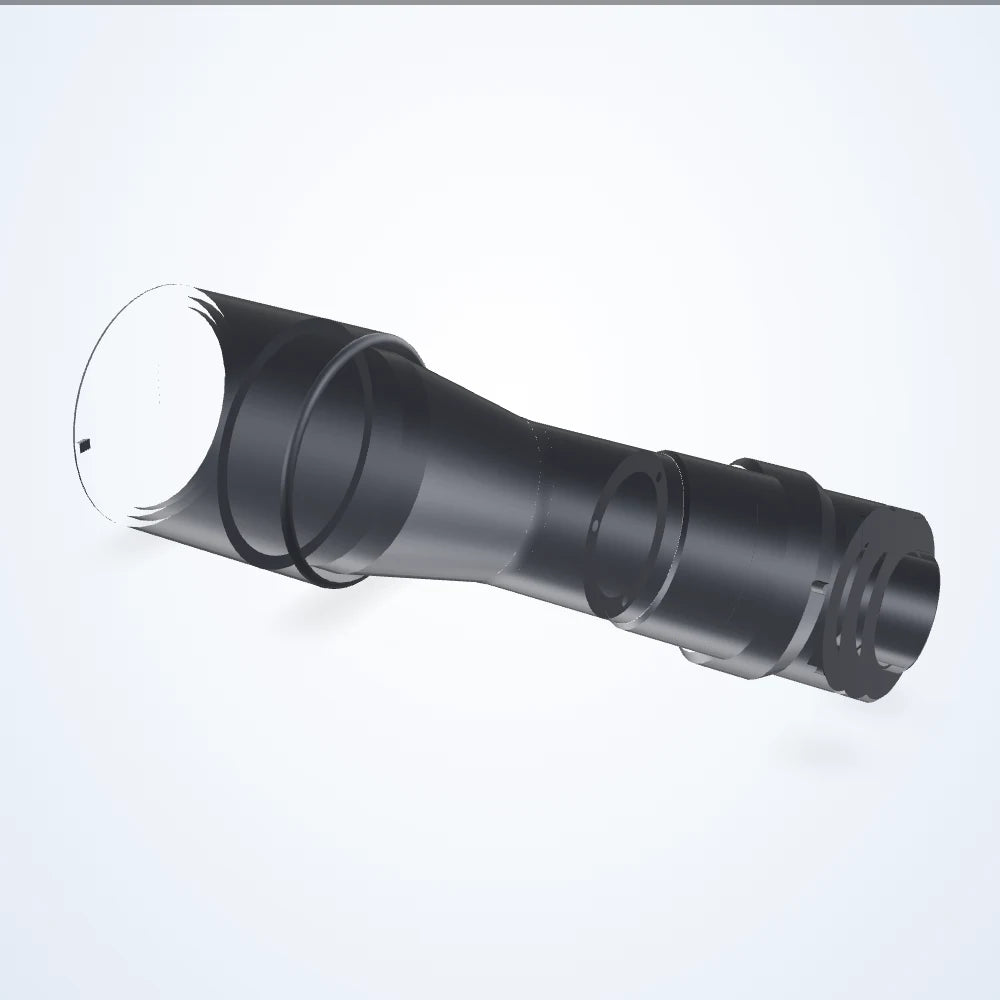

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.354× telecentric lens, 1", C-mount (LS-TCL-0259)
Model LS-TCL-0259
- Magnification0.354×
- MountC-mount
- Sensor1"
- Working distance102.6 mm
- Resolution20 μm
$2,749.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 102.6 mm; depth of field 4.5 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our licensed P.E. engineers
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items; free return label in the US
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0259 |
|---|---|
| Fov @ 1.2″ | 32.06 x 20.14 mm |
| FOV @ 1″ | 40.08 x 21.21 mm |
| FOV @ 2/3″ | 24.01 x 20.03 mm |
| Lens type | Telecentric |
| Working ƒ/n | f/11 |
Optics
| Magnification | 0.354× |
|---|---|
| Working distance | 102.6 mm |
| Depth of field | 4.5 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.08 |
| Filter thread | No Filter Threads |
| Image circle | 16 mm |
| Telecentricity maximum | 0.10° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | 1" |
|---|---|
| Resolution (pixel size) | 20 μm |
Environment and compliance
| Operating temperature range | 0 to 40°C |
|---|---|
| Storage temperature range | 0 to 50°C |

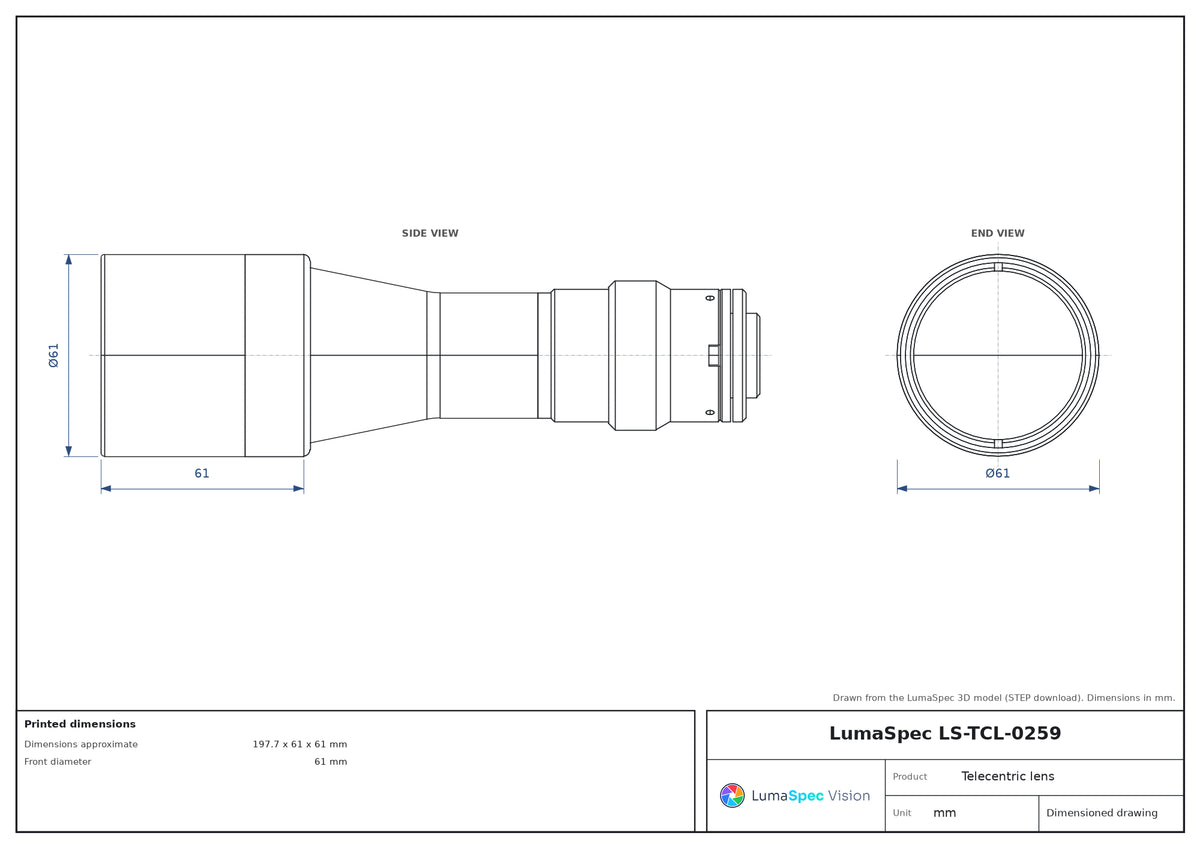

Mechanical
| Mount | C-mount |
|---|---|
| Dimensions approximate | 197.7 x 61 x 61 mm |
| Front diameter | 61 mm |
| Weight | 600 Grams |
