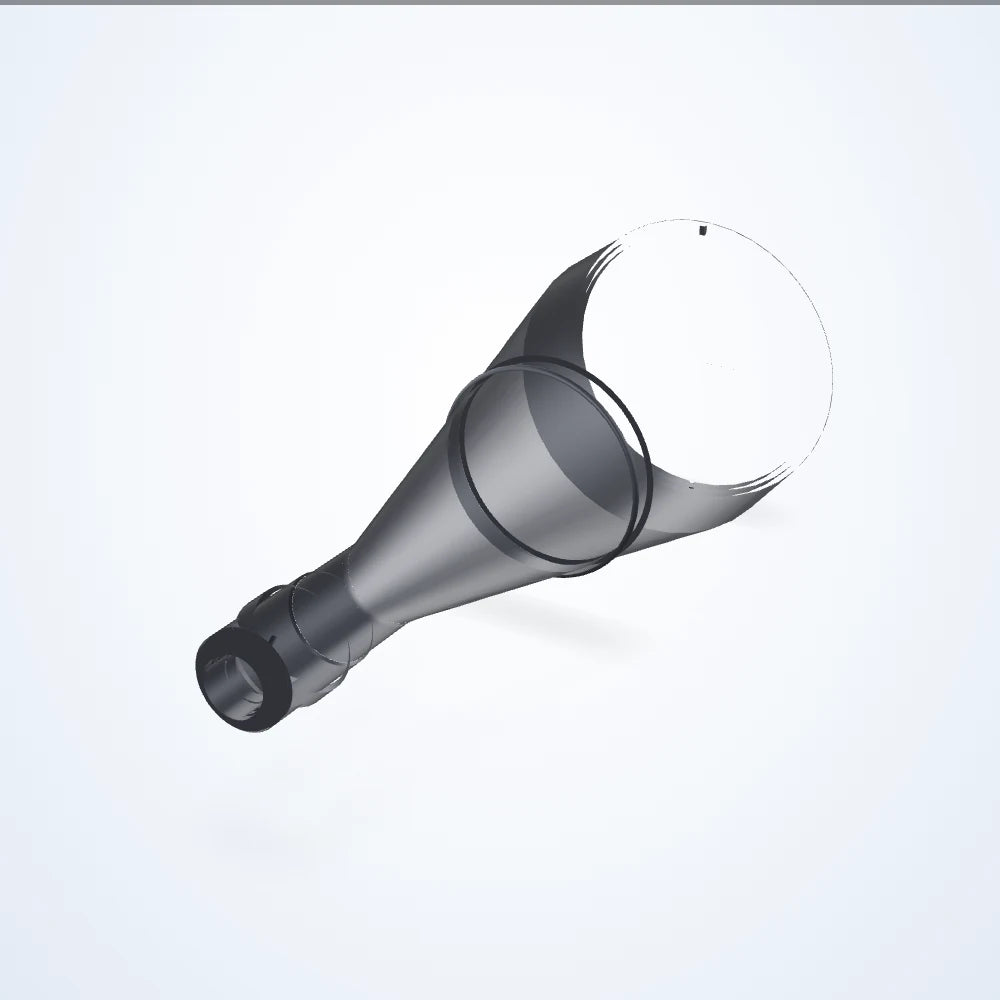

  • 0.136× telecentric lens, 1", C-mount (LS-TCL-0264)

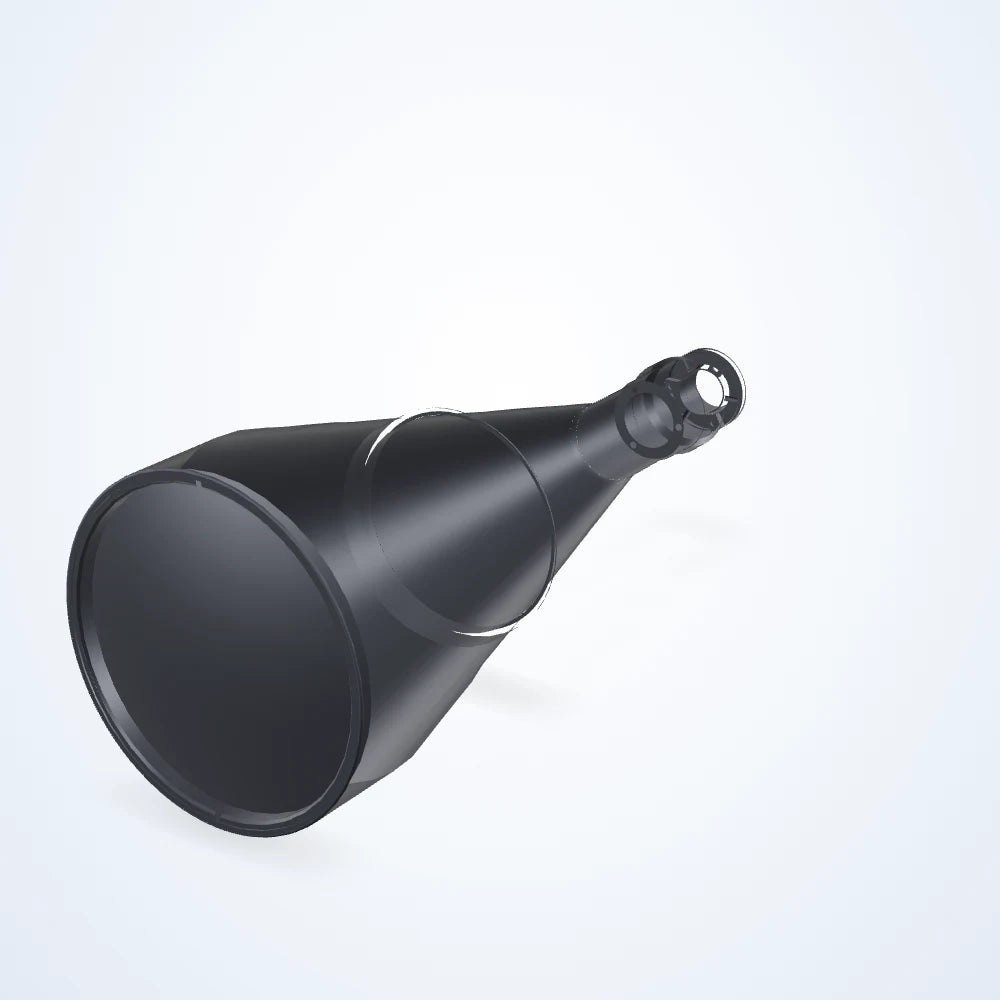

  • 0.136× telecentric lens, 1", C-mount (LS-TCL-0264) - view 2

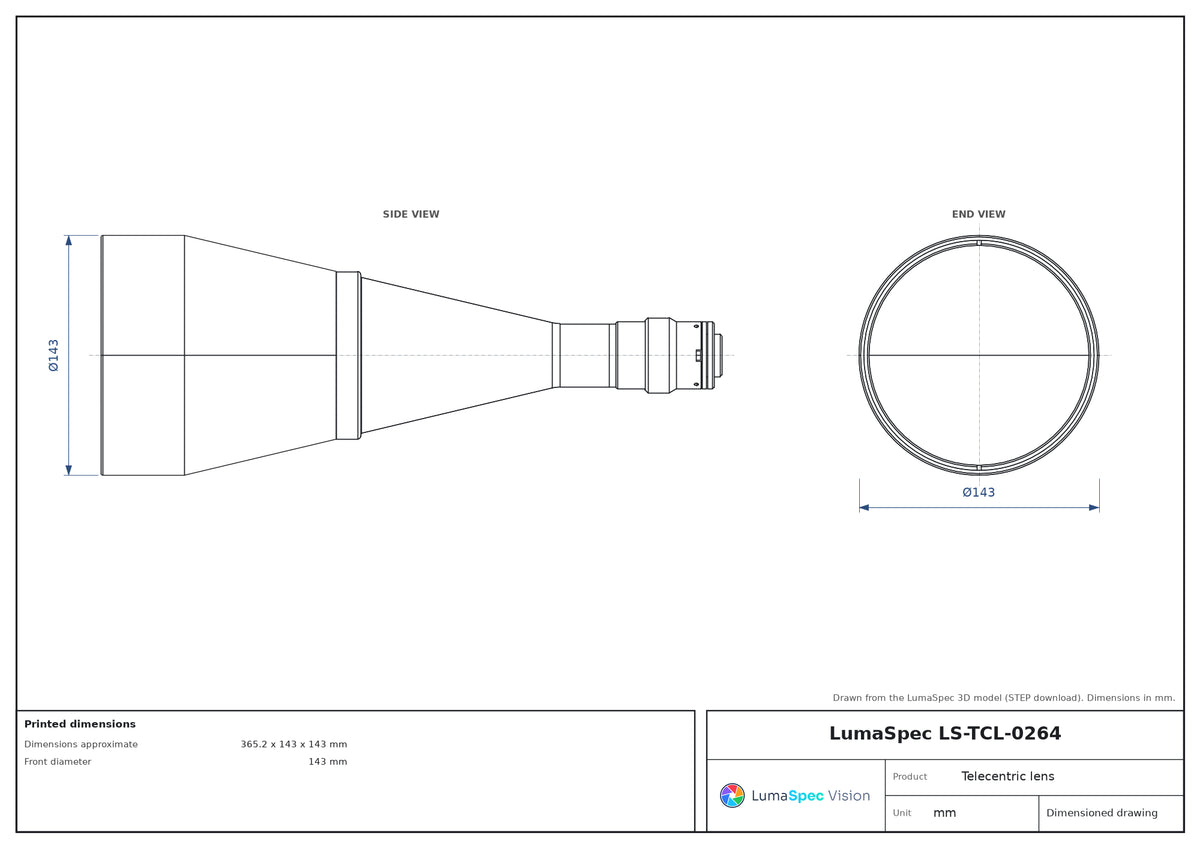

  • LS-TCL-0264 dimensions (mm)

Rendered illustration: the actual product may differ in appearance.

Telecentric lenses

0.136× telecentric lens, 1", C-mount (LS-TCL-0264)

Model LS-TCL-0264

  • Magnification0.136×
  • MountC-mount
  • Sensor1"
  • Working distance278.6 mm
  • Resolution37 μm
$4,739.00
Quote

Quoted price: add to quote for lead time and volume pricing.

Lead time confirmed with your quote

Collect parts in your quote list; we reply with price, lead time and volume pricing.

Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Working distance 278.6 mm; depth of field 22.4 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-0264
Fov @ 1.2″83.46 x 52.43 mm
FOV @ 1″104.34 x 55.22 mm
FOV @ 2/3″62.50 x 52.13 mm
Lens typeTelecentric
Working ƒ/nf/8

Optics

Magnification0.136×
Working distance278.6 mm
Depth of field22.4 mm
Distortion maximum (%)< 0.1
Distortion typical (%)< 0.07
Filter threadNo Filter Threads
Image circle16 mm
Telecentricity maximum0.10°
Telecentricity typical< 0.05°

Sensor and imaging

Sensor format1"
Resolution (pixel size)37 μm

Environment and compliance

Operating temperature range0 to 40°C
Storage temperature range0 to 50°C

Mechanical

MountC-mount
Dimensions approximate365.2 x 143 x 143 mm
Front diameter143 mm
Weight2346 Grams
