Telecentric lenses

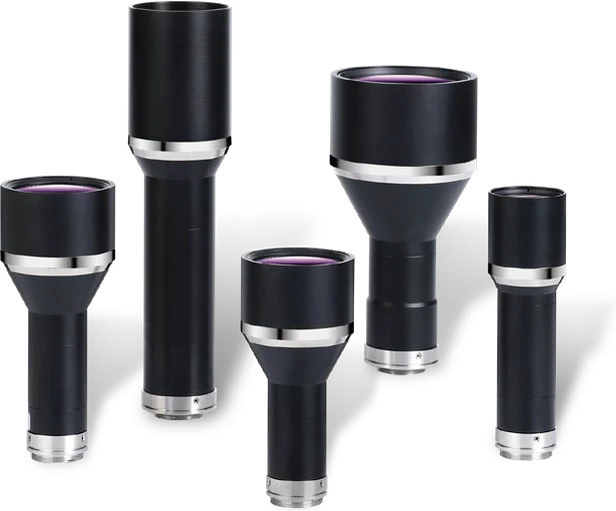

Telecentric lens (STX)
- 15 models
- from $289.00
- Series LENS-STX
The Telecentric lens (STX) is a range of 15 telecentric lenses from LumaSpec Vision, from $289.00. It comes in 10 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- 0.3x, 1", C-mount, 0.3x, 2/3", C-mount, 0.32x, 4K7um", C-mount, 0.47x, 1.1", C-mount, 0.5x, 1", C-mount, 0.5x, 2/3", C-mount, 0.5x, 4K7um", C-mount, 0.75x, 2/3", C-mount, 1x, 2/3", C-mount, 1.5x, 2/3", C-mount
- Mount
- C-mount
- Image circle
- 8-11 mm, 11-16 mm, 16-22 mm
- Type
- Object-side telecentric
- Magnification
- 0.3-0.6x, 0.6-1x, 1-2x
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
- Sensor format
- 2/3", 1", 1.1" - 1.2"
Features
- High resolution
- Uniform imaging
- Low distortion
- Multiple magnifications available
All 15 models in the Telecentric lens (STX)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-STX11C-03-110 | 0.3x, 2/3", C-mount | 0.3 | 110 | 14 | $289.00 | View |
| LS-STX16C-03-138 | 0.3x, 1", C-mount | 0.3 | 138 | 9 | $289.00 | View |
| LS-STX29C-032-207 | 0.32x, 4K7um", C-mount | 0.32 | 207 | 8.5 | $289.00 | View |
| LS-STX11C-05-110 | 0.5x, 2/3", C-mount | 0.5 | 110 | 8.5 | $309.00 | View |
| LS-STX11C-05-110C | 0.5x, 2/3", C-mount | 0.5 | 110 | 8.5 | $309.00 | View |
| LS-STX16C-05-70 | 0.5x, 1", C-mount | 0.5 | 70 | 10 | $309.00 | View |
| LS-STX16C-05-150 | 0.5x, 1", C-mount | 0.5 | 150 | 10 | $309.00 | View |
| LS-STX18C-047-110 | 0.47x, 1.1", C-mount | 0.47 | 110 | 8 | $309.00 | View |
| LS-STX29C-05-110 | 0.5x, 4K7um", C-mount | 0.5 | 110 | 9 | $309.00 | View |
| LS-STX11C-075-110 | 0.75x, 2/3", C-mount | 0.75 | 110 | 9.5 | $349.00 | View |
| LS-STX11C-075-110C | 0.75x, 2/3", C-mount | 0.75 | 110 | 9.5 | $349.00 | View |
| LS-STX11C-10-110 | 1x, 2/3", C-mount | 1 | 110 | 10.5 | $379.00 | View |
| LS-STX11C-10-110C | 1x, 2/3", C-mount | 1 | 110 | 10.5 | $379.00 | View |
| LS-STX11C-15-110 | 1.5x, 2/3", C-mount | 1.5 | 110 | 9 | $449.00 | View |
| LS-STX11C-15-110C | 1.5x, 2/3", C-mount | 1.5 | 110 | 9 | $449.00 | View |
