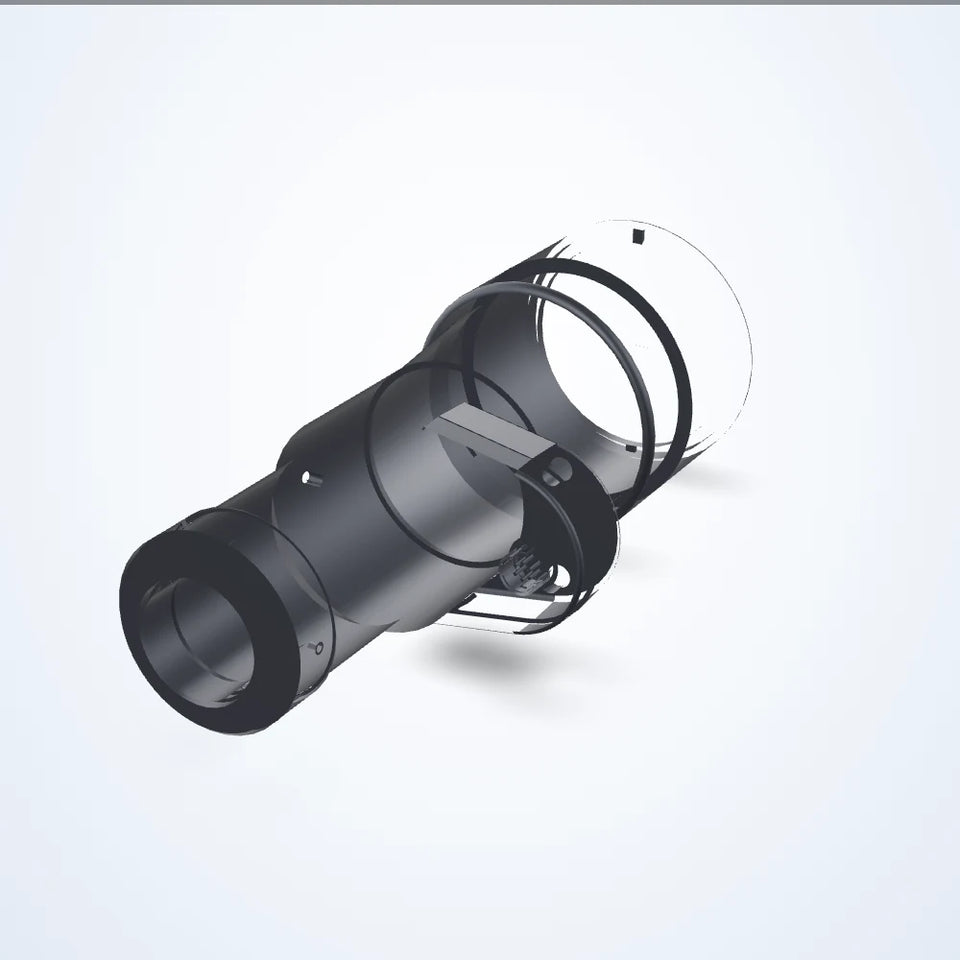

Telecentric lens series, 2/3", C-mount (S28)

Telecentric lenses

Telecentric lens series, 2/3", C-mount (S28)

  • 8 models
  • from $2,959.00
  • Series LS-TCL-S28

The Telecentric lens series, 2/3", C-mount (S28) is a range of 8 telecentric lenses from LumaSpec Vision, from $2,959.00. It comes in 8 sizes or versions. Every model below has its own page with full specifications, drawings and price.

Build a system with this series See all 8 models Series datasheet (PDF)

The series at a glance

Sizes / versions
0.243×, 0.5×, 0.67×, 0.75×, 1×, 1.5×, 2.5×, 3.5×
Mount
C-mount
Image circle
8-11 mm
Type
Object-side telecentric
Magnification
0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x +
Working distance
65-110 mm, 110-200 mm
Sensor format
2/3"

All 8 models in the Telecentric lens series, 2/3", C-mount (S28)

Link
LS-TCL-04300.243×21 μm0.239 - 0.250×73.2 - 122.9 mm$2,959.00quoteView
LS-TCL-04250.5×15 μm0.497 - 0.511×112.2 mm - 146.3 mm$2,989.00quoteView
LS-TCL-04260.67×11 μm0.663 - 0.680×112.3 -146.1 mm$2,989.00quoteView
LS-TCL-04270.75×10 μm0.744 - 0.763×112.5 - 146.1 mm$2,989.00quoteView
LS-TCL-04281×8 μm0.991 - 1.016×118.0 - 142.0 mm$3,149.00quoteView
LS-TCL-04291.5×7 μm1.486 - 1.522×118.0 - 142.0 mm$3,149.00quoteView
LS-TCL-04312.5×5 μm2.473 - 2.536×117.9 - 142.1 mm$3,289.00quoteView
LS-TCL-04323.5×4 μm3.450 - 3.551×117.9 - 142.1 mm$3,289.00quoteView
