Telecentric lenses

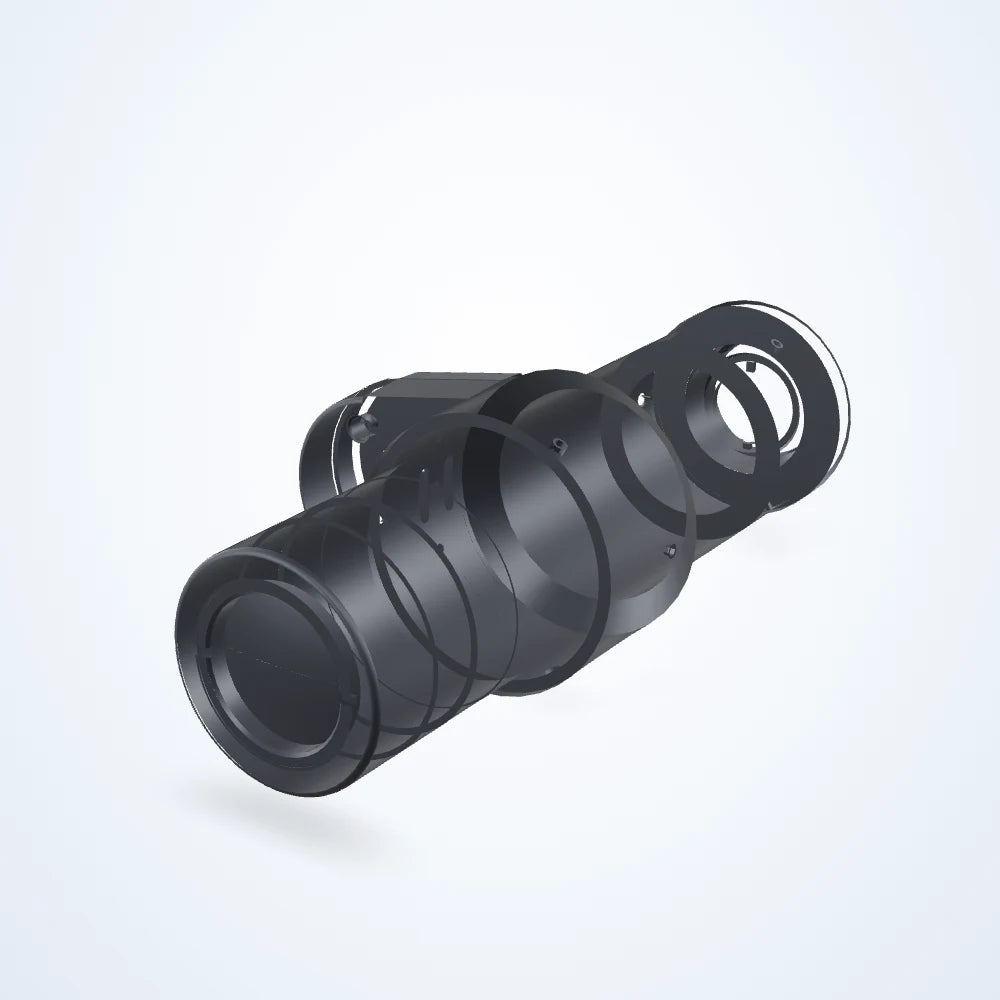

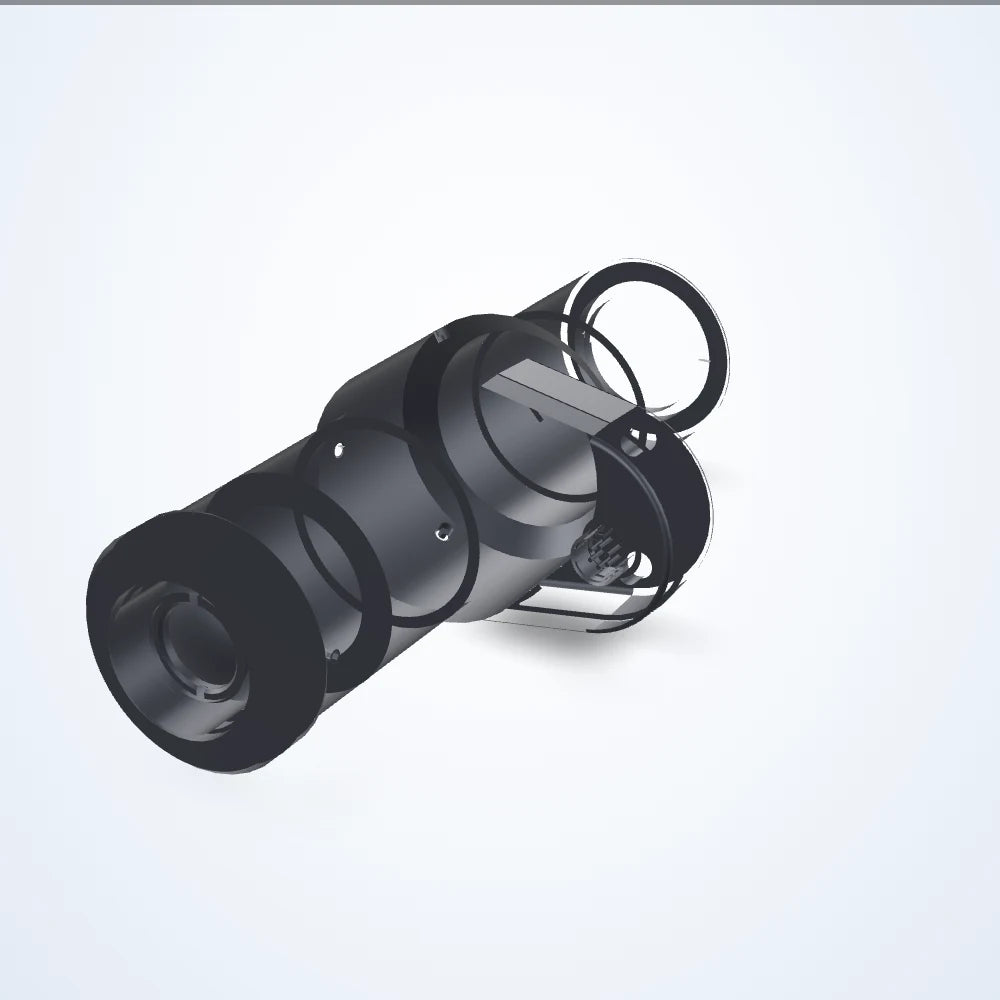

1.5× telecentric lens, 2/3", C-mount, WD 118 mm (LS-TCL-0429)
Model LS-TCL-0429
- Magnification1.5×
- MountC-mount
- Sensor2/3"
- Working distance118.0 - 142.0 mm
- Resolution7 μm
$3,149.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: hr10a-7r-6pbc; working distance 118.0 - 142.0 mm; depth of field 0.4 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0429 |
|---|---|
| FOV @ 1/1.8″ | 4.75 x 3.55 mm |
| Fov @ 1/2.0″ | 4.27 x 3.20 mm |
| Fov @ 1/2.5″ | 3.80 x 2.85 mm |
| FOV @ 1/2″ | 4.27 x 3.20 mm |
| Fov @ 1/3.0″ | 3.20 x 2.40 mm |
| FOV @ 2/3″ | 5.67 x 4.73 mm |
| Lens type | Telecentric |
| Lifecycles (10%-90% sinusoidal) | >1,000,000,000 |
| Liquid lens model | liquid lens |
| Response time | 5 Milliseconds |
| Setting time | 25 Milliseconds |
| Working ƒ/n | f/16 |
Optics
| Magnification | 1.5× |
|---|---|
| Working distance | 118.0 - 142.0 mm |
| Depth of field | 0.4 mm |
| Distortion maximum (%) | < 0.1 |
| Distortion typical (%) | < 0.05 |
| Filter thread | No Filter Threads |
| Focal power mode | Yes |
| Image circle | 11 mm |
| Magnification ranges at -2 dpt to +3 dpt | 1.486 - 1.522× |
| Repeatability using focal power mode (dpt) | ±0.05 (small steps); ±0.1 (large steps) (dpt) |
| Telecentricity maximum | 0.1° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 7 μm |
Interfaces and I/O
| Connector | HR10A-7R-6PBc |
|---|
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Current range | -500 to +500 mA |
|---|
Mechanical
| Mount | C-mount |
|---|---|

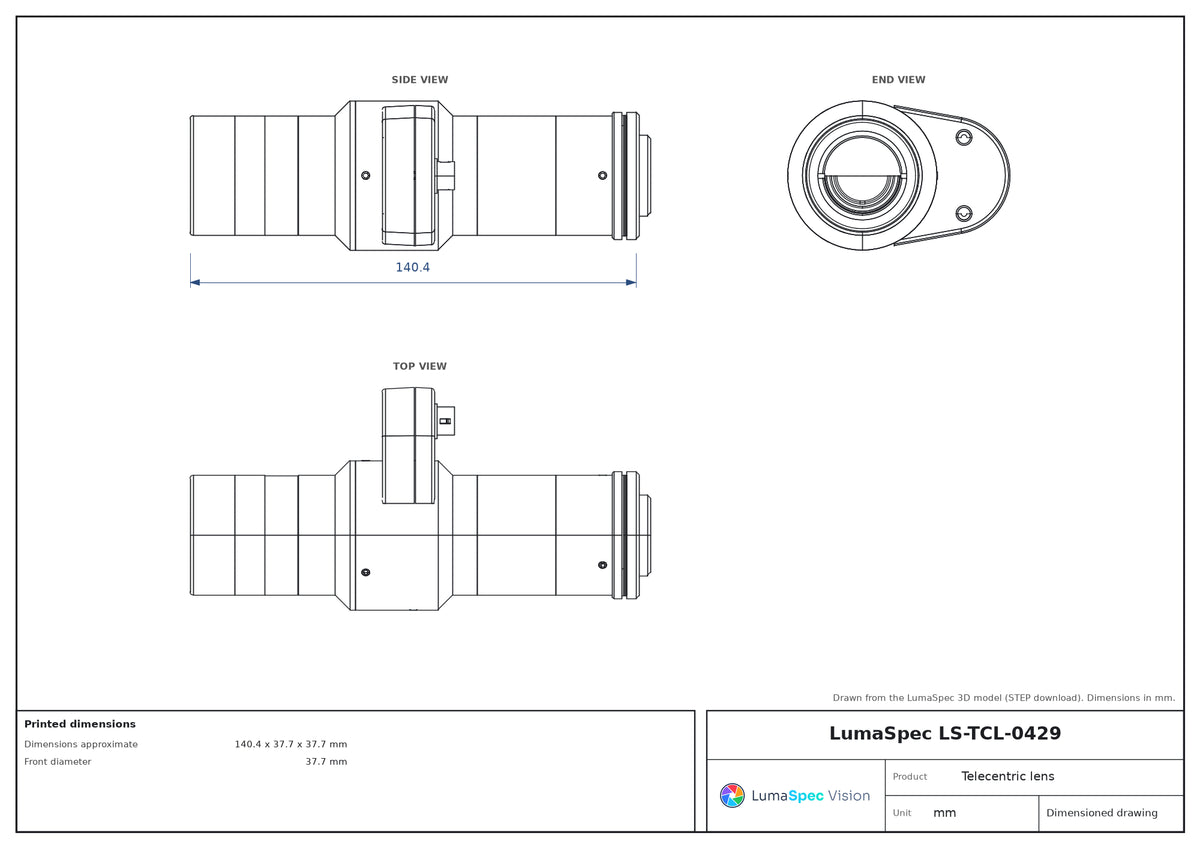

| Dimensions approximate | 140.4 x 37.7 x 37.7 mm |
| Front diameter | 37.7 mm |
| Installation location | Indoor Use Only |
| Weight | 411 Grams |
