Telecentric lenses

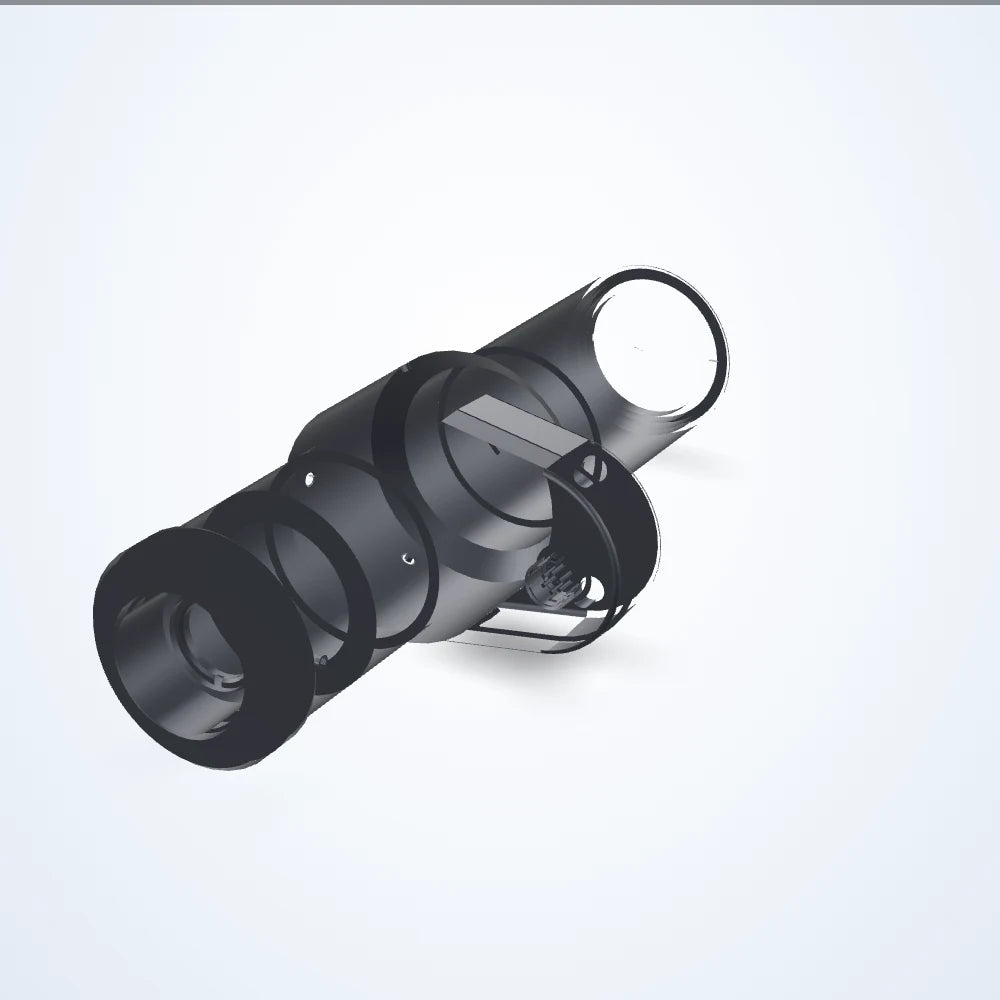

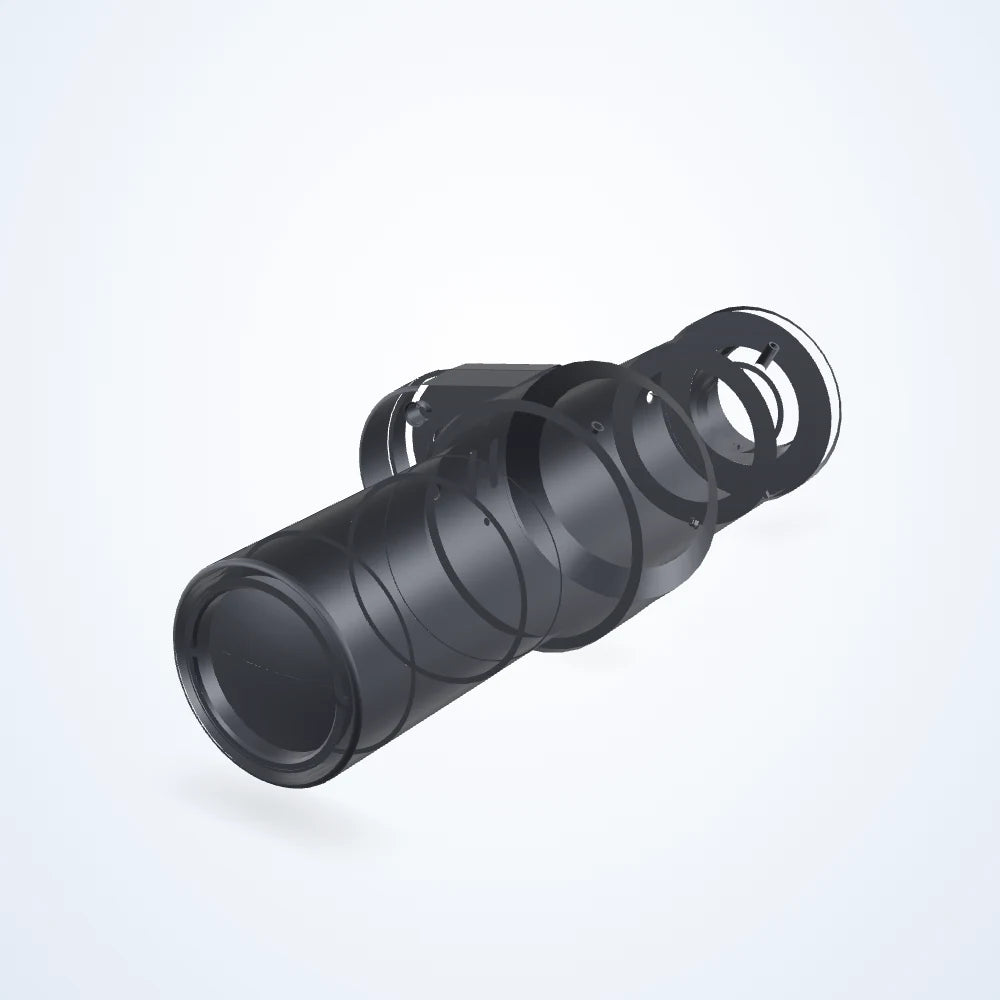

0.75× telecentric lens, 2/3", C-mount, WD 112.5 mm (LS-TCL-0427)
Model LS-TCL-0427
- Magnification0.75×
- MountC-mount
- Sensor2/3"
- Working distance112.5 - 146.1 mm
- Resolution10 μm
$2,989.00
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: hr10a-7r-6pbc; working distance 112.5 - 146.1 mm; depth of field 1.1 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0427 |
|---|---|
| FOV @ 1/1.8″ | 9.51 x 7.11 mm |
| Fov @ 1/2.0″ | 8.53 x 6.40 mm |
| Fov @ 1/2.5″ | 7.60 x 5.71 mm |
| FOV @ 1/2″ | 8.53 x 6.40 mm |
| Fov @ 1/3.0″ | 6.40 x 4.80 mm |
| FOV @ 2/3″ | 11.33 x 9.45 mm |
| Lens type | Telecentric |
| Lifecycles (10%-90% sinusoidal) | >1,000,000,000 |
| Liquid lens model | liquid lens |
| Response time | 5 Milliseconds |
| Setting time | 25 Milliseconds |
| Working ƒ/n | f/12 |
Optics
| Magnification | 0.75× |
|---|---|
| Working distance | 112.5 - 146.1 mm |
| Depth of field | 1.1 mm |
| Distortion maximum (%) | < 0.2 |
| Distortion typical (%) | < 0.1 |
| Filter thread | No Filter Threads |
| Focal power mode | Yes |
| Image circle | 11 mm |
| Magnification ranges at -2 dpt to +3 dpt | 0.744 - 0.763× |
| Repeatability using focal power mode (dpt) | ±0.05 (small steps); ±0.1 (large steps) (dpt) |
| Telecentricity maximum | 0.1° |
| Telecentricity typical | < 0.07° |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 10 μm |
Interfaces and I/O
| Connector | HR10A-7R-6PBc |
|---|
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Current range | -500 to +500 mA |
|---|
Mechanical
| Mount | C-mount |
|---|---|

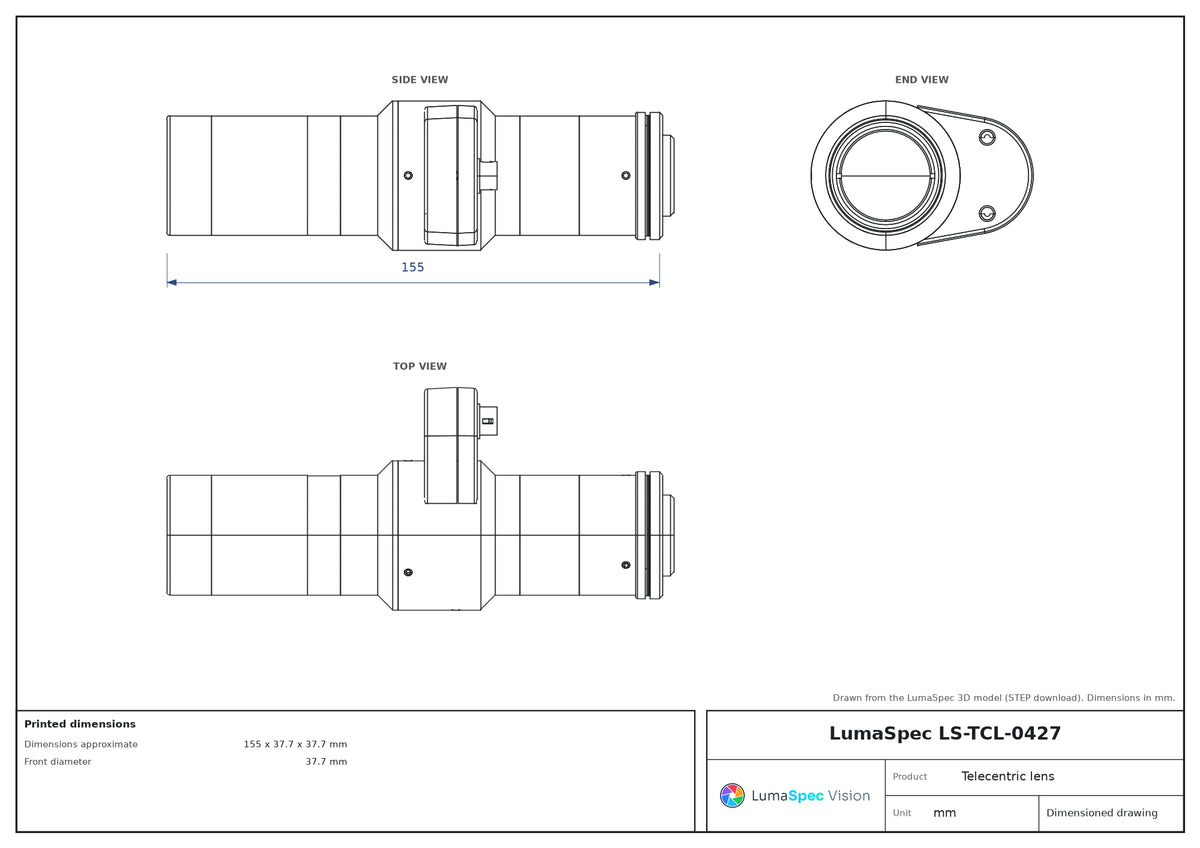

| Dimensions approximate | 155 x 37.7 x 37.7 mm |
| Front diameter | 37.7 mm |
| Installation location | Indoor Use Only |
| Weight | 424 Grams |
Other models in the Telecentric lens series, 2/3", C-mount (S28) series
See all 8 models| Model | Size / key data | Price | Availability | Link |
|---|---|---|---|---|
| LS-TCL-0430 | 0.243× | $2,959.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0425 | 0.5× | $2,989.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0426 | 0.67× | $2,989.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0428 | 1× | $3,149.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0429 | 1.5× | $3,149.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0431 | 2.5× | $3,289.00 Quote | Lead time confirmed with your quote | View |
| LS-TCL-0432 | 3.5× | $3,289.00 Quote | Lead time confirmed with your quote | View |
