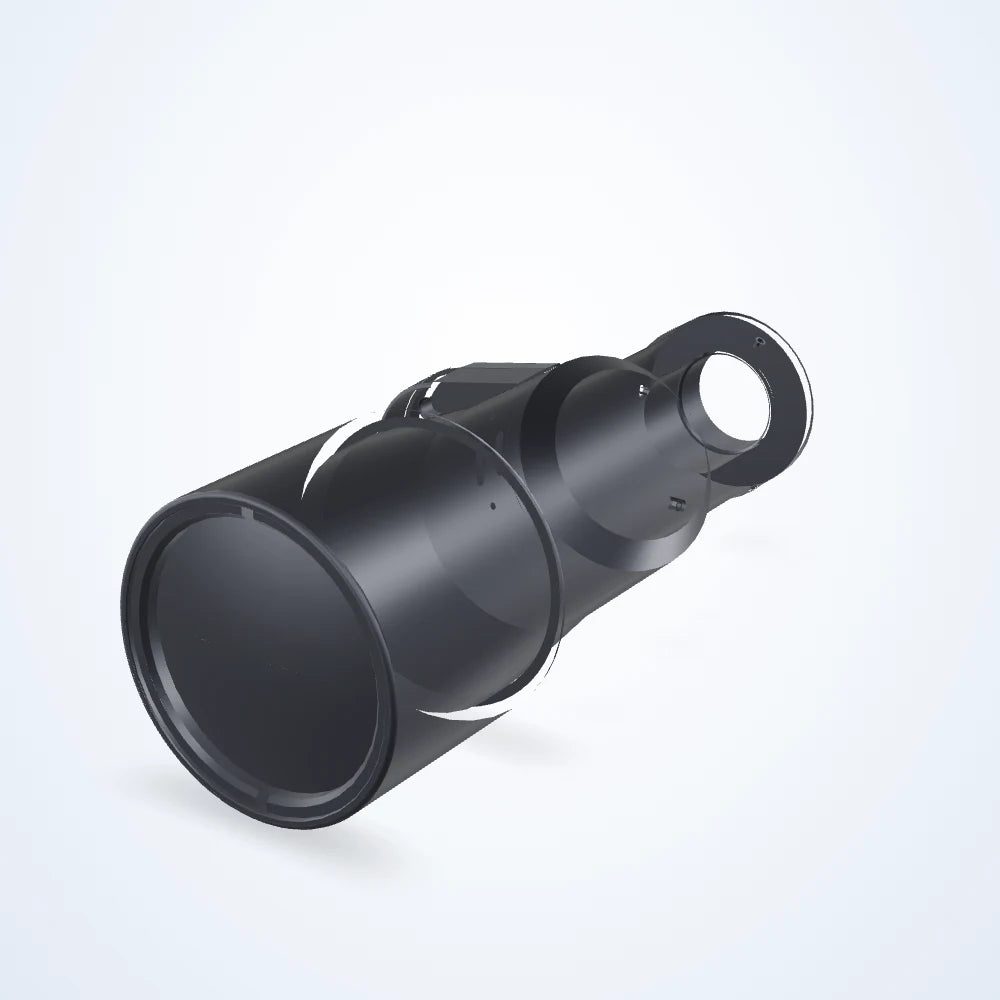

Rendered illustration: the actual product may differ in appearance.
Telecentric lenses
0.243× telecentric lens, 2/3", C-mount, WD 73.2 mm (LS-TCL-0430)
Model LS-TCL-0430
- Magnification0.243×
- MountC-mount
- Sensor2/3"
- Working distance73.2 - 122.9 mm
- Resolution21 μm
Quoted price: add to quote for lead time and volume pricing.
Lead time confirmed with your quote
Collect parts in your quote list; we reply with price, lead time and volume pricing.
Telecentric lens with constant magnification across the depth of field, for measurement and gauging without perspective error. Connection: hr10a-7r-6pbc; working distance 73.2 - 122.9 mm; depth of field 7 mm.
- Same-day shipping on stock itemsTracked UPS or DHL
- 3-year warranty, minimumCovers defects in materials and workmanship
- Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
- Volume discounts and Net 30For approved business accounts; purchase orders welcome
- 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
- Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay
Specifications
General
| Model | LS-TCL-0430 |
|---|---|
| FOV @ 1/1.8″ | 29.34 x 21.93 mm |
| Fov @ 1/2.0″ | 26.34 x 19.75 mm |
| Fov @ 1/2.5″ | 23.46 x 17.61 mm |
| FOV @ 1/2″ | 26.34 x 19.75 mm |
| Fov @ 1/3.0″ | 19.75 x 14.81 mm |
| FOV @ 2/3″ | 34.98 x 29.18 mm |
| Lens type | Telecentric |
| Lifecycles (10%-90% sinusoidal) | >1,000,000,000 |
| Liquid lens model | liquid lens |
| Response time | 5 Milliseconds |
| Setting time | 25 Milliseconds |
| Working ƒ/n | f/8 |
Optics
| Magnification | 0.243× |
|---|---|
| Working distance | 73.2 - 122.9 mm |
| Depth of field | 7 mm |
| Distortion maximum (%) | < 0.15 |
| Distortion typical (%) | < 0.04 |
| Filter thread | No Filter Threads |
| Focal power mode | Yes |
| Image circle | 11 mm |
| Magnification ranges at -2 dpt to +3 dpt | 0.239 - 0.250× |
| Repeatability using focal power mode (dpt) | ±0.05 (small steps); ±0.1 (large steps) (dpt) |
| Telecentricity maximum | 0.1° |
| Telecentricity typical | < 0.08° |
Sensor and imaging
| Sensor format | 2/3" |
|---|---|
| Resolution (pixel size) | 21 μm |
Interfaces and I/O
| Connector | HR10A-7R-6PBc |
|---|
Environment and compliance
| Operating relative humidity (%) | 20-85 Non Condensing |
|---|---|
| Operating temperature range | 0 to 40°C |
| Storage temperature range | 0 to 50°C |
Electrical
| Current range | -500 to +500 mA |
|---|
Mechanical
| Mount | C-mount |
|---|---|

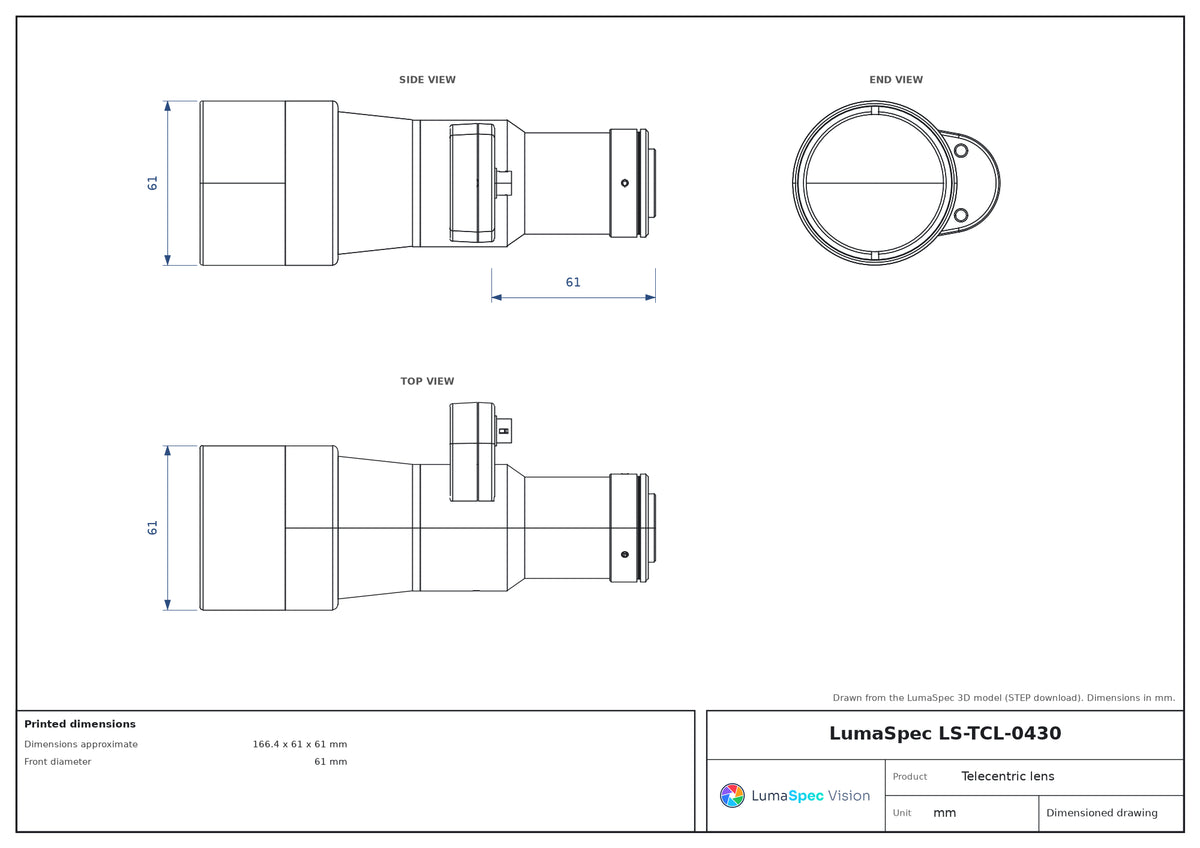

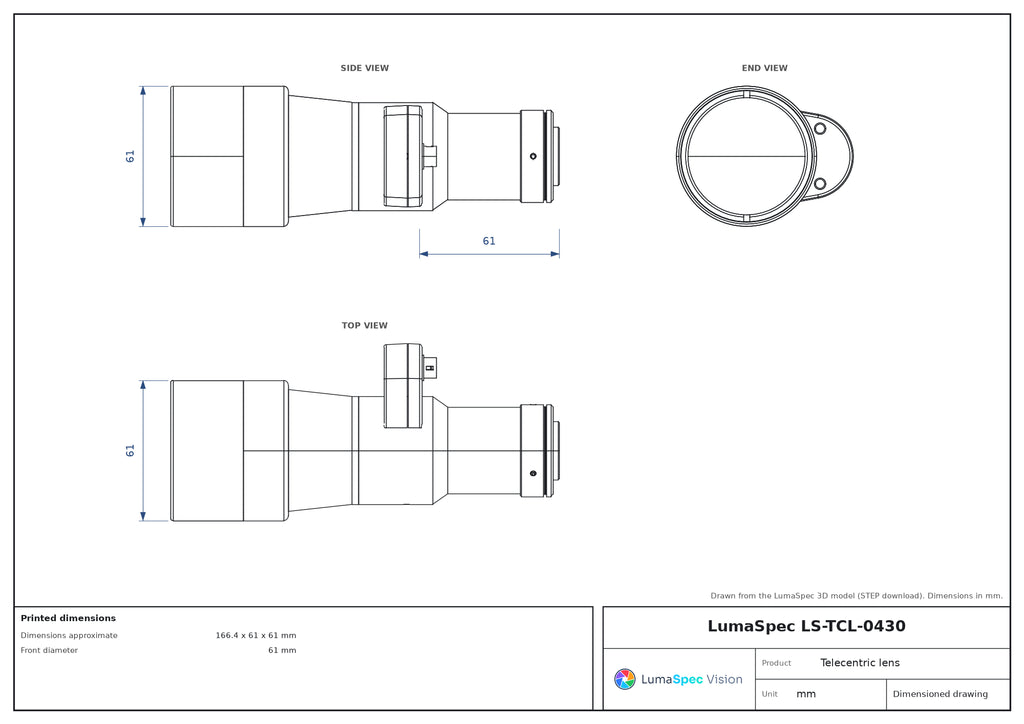

| Dimensions approximate | 166.4 x 61 x 61 mm |
| Front diameter | 61 mm |
| Installation location | Indoor Use Only |
| Weight | 539 Grams |
LS-TCL-0430

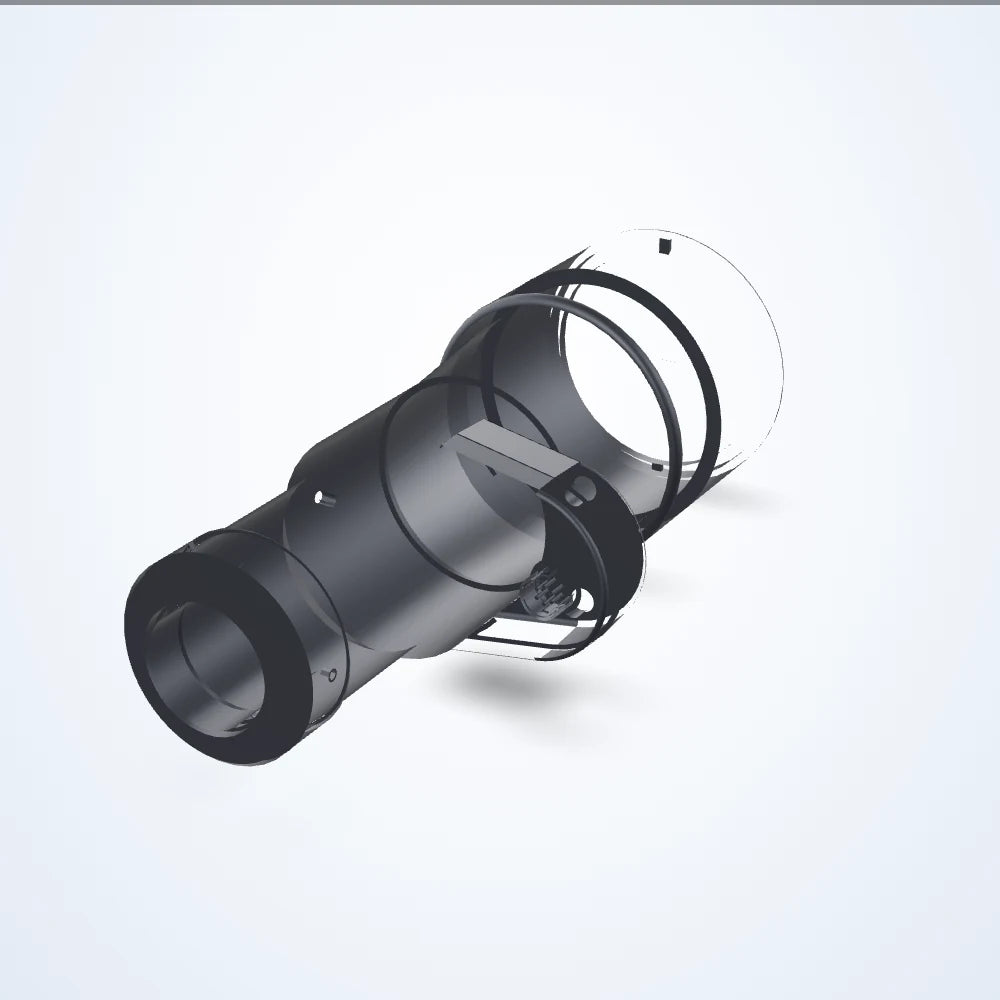

See this component from every angle.
CAD-based illustration; finish is representative.
Source CAD
FROM THE PRINTED SPECIFICATIONS
- Magnification
- 0.243×
- Sensor format
- 2/3"
- Mount
- C-mount
- Working distance
- 73.2 - 122.9 mm
Use the product’s dimensioned drawing, electrical specifications and selected variant for design-in. A render is not a wiring or optical performance simulation.
