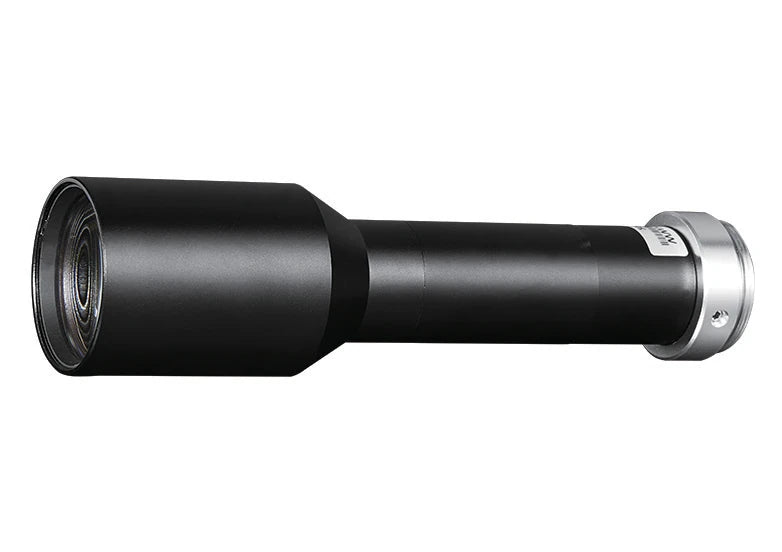

Megapixel telecentric lens (LS-TCL-S91)
- 57 models
- from $1,049.00
- Series LS-TCL-S91
The Megapixel telecentric lens (LS-TCL-S91) is a range of 57 telecentric lenses from LumaSpec Vision, from $1,049.00. It comes in 30 sizes or versions. Every model below has its own page with full specifications, drawings and price.
The series at a glance
- Sizes / versions
- C-mount, 0.18x, WD 150 mm, 2/3", C-Mount, 0.3x, WD 110 mm, 1/1.8", C-Mount, 0.4x, WD 323 mm, 1.1", C-Mount, 0.5x, WD 110 mm, 2/3", C-Mount, 0.5x, WD 150 mm, 2/3", C-Mount, 0.5x, WD 180 mm, 1/2", C-Mount, 0.5x, WD 180 mm, 2/3", C-Mount, 0.5x, WD 510 mm, 1/2", C-Mount, 0.5x, WD 65 mm, 2/3", C-Mount, 0.7x, WD 145 mm, 2/3", C-Mount, 0.7x, WD 145 mm, 2/3", C-mount, 0.7x, WD 273 mm, 2/3", C-Mount, 0.8x, WD 130 mm, 2/3", C-Mount, 0.8x, WD 130 mm, 2/3", C-mount, 0.8x, WD 65 mm, 2/3", C-Mount and 14 more
- Mount
- C-mount
- Image circle
- Up to 8 mm, 8-11 mm, 16-22 mm
- Type
- Object-side telecentric
- Coaxial light
- Built-in coaxial light, No coaxial port
- Sensor format
- 1/2", 1/1.8" - 1/1.56", 2/3", 1.1" - 1.2"
- Magnification
- 0.1-0.3x, 0.3-0.6x, 0.6-1x, 1-2x, 2x +
- Working distance
- 65-110 mm, 110-200 mm, 200 mm +
Features
- Compact design with coaxial illumination options
- Supports all kinds of megapixel cameras
- High contrast, low distortion, high resolution
- Optional adjustable iris for resolution and DOF control
- Megapixel 'object side' telecentric lens with optional long working distance versions with over 500mm working distance
- Perfect image and supports all kinds of Mega camera
- Optional adjustable Iris for resolution and DOF control
All 57 models in the Megapixel telecentric lens (LS-TCL-S91)
| Link | ||||||
|---|---|---|---|---|---|---|
| LS-TCL-2865 | C-mount | $1,049.00 | View | |||
| LS-TCL-2852 | 0.7x, WD 145 mm, 2/3", C-Mount | 11.05 | 2/3" | 0.7 | $1,089.00 | View |
| LS-TCL-2855 | 0.7x, WD 145 mm, 2/3", C-Mount | 11.05 | 2/3" | 0.7 | $1,089.00 | View |
| LS-TCL-2858 | 0.7x, WD 273 mm, 2/3", C-Mount | 12.4 | 2/3" | 0.7 | $1,089.00 | View |
| LS-TCL-2857 | 0.7x, WD 145 mm, 2/3", C-mount | 16.2 | 0.7 | $1,089.00 | View | |
| LS-TCL-2856 | 0.7x, WD 145 mm, 2/3", C-mount | 16.2 | 0.7 | $1,089.00 | View | |
| LS-TCL-2854 | 0.7x, WD 145 mm, 2/3", C-mount | 16.2 | 0.7 | $1,089.00 | View | |
| LS-TCL-2853 | 0.7x, WD 145 mm, 2/3", C-mount | 16.2 | 0.7 | $1,089.00 | View | |
| LS-TCL-2849 | 0.5x, WD 180 mm, 1/2", C-Mount | 12.4 | 1/2" | 0.5 | $1,099.00 | View |
| LS-TCL-2850 | 0.5x, WD 510 mm, 1/2", C-Mount | 19.3 | 1/2" | 0.5 | $1,109.00 | View |
| LS-TCL-2851 | 0.5x, WD 510 mm, 1/2", C-Mount | 19.3 | 1/2" | 0.5 | $1,109.00 | View |
| LS-TCL-2843 | 0.5x, WD 110 mm, 2/3", C-Mount | 12.9 | 2/3" | 0.5 | $1,199.00 | View |
| LS-TCL-2844 | 0.5x, WD 110 mm, 2/3", C-Mount | 12.9 | 2/3" | 0.5 | $1,199.00 | View |
| LS-TCL-2845 | 0.5x, WD 110 mm, 2/3", C-Mount | 12.9 | 2/3" | 0.5 | $1,199.00 | View |
| LS-TCL-2846 | 0.5x, WD 110 mm, 2/3", C-Mount | 12.9 | 2/3" | 0.5 | $1,199.00 | View |
| LS-TCL-2847 | 0.5x, WD 150 mm, 2/3", C-Mount | 9.7 | 2/3" | 0.5 | $1,199.00 | View |
| LS-TCL-2848 | 0.5x, WD 180 mm, 2/3", C-Mount | 12.4 | 2/3" | 0.5 | $1,199.00 | View |
| LS-TCL-2842 | 0.5x, WD 65 mm, 2/3", C-Mount | 9.7 | 2/3" | 0.5 | $1,199.00 | View |
| LS-TCL-2861 | 0.8x, WD 130 mm, 2/3", C-Mount | 8.77 | 2/3" | 0.8 | $1,199.00 | View |
| LS-TCL-2864 | 0.8x, WD 130 mm, 2/3", C-Mount | 8.77 | 2/3" | 0.8 | $1,199.00 | View |
| LS-TCL-2859 | 0.8x, WD 65 mm, 2/3", C-Mount | 8.4 | 2/3" | 0.8 | $1,199.00 | View |
| LS-TCL-2860 | 0.8x, WD 65 mm, 2/3", C-Mount | 8.4 | 2/3" | 0.8 | $1,199.00 | View |
| LS-TCL-2866 | 0.8x, WD 130 mm, 2/3", C-mount | 10.6 | 0.8 | $1,199.00 | View | |
| LS-TCL-2863 | 0.8x, WD 130 mm, 2/3", C-mount | 10.6 | 0.8 | $1,199.00 | View | |
| LS-TCL-2862 | 0.8x, WD 130 mm, 2/3", C-mount | 10.6 | 0.8 | $1,199.00 | View | |
| LS-TCL-2894 | 4x, WD 110 mm, 2/3", C-Mount | 4.5 | 2/3" | 4.0 | $1,229.00 | View |
| LS-TCL-2895 | 4x, WD 110 mm, 2/3", C-Mount | 4.5 | 2/3" | 4.0 | $1,229.00 | View |
| LS-TCL-2867 | 1x, WD 65 mm, 2/3", C-mount | 7.5 | 2/3" | 1.0 | $1,239.00 | View |
| LS-TCL-2869 | 1x, WD 110 mm, 2/3", C-Mount | 7.1 | 2/3" | 1.0 | $1,239.00 | View |
| LS-TCL-2870 | 1x, WD 110 mm, 2/3", C-Mount | 7.1 | 2/3" | 1.0 | $1,239.00 | View |
| LS-TCL-2871 | 1x, WD 110 mm, 2/3", C-Mount | 7.1 | 2/3" | 1.0 | $1,239.00 | View |
| LS-TCL-2872 | 1x, WD 110 mm, 2/3", C-Mount | 7.1 | 2/3" | 1.0 | $1,239.00 | View |
| LS-TCL-2875 | 1x, WD 330 mm, 2/3", C-Mount | 19.3 | 2/3" | 1.0 | $1,239.00 | View |
| LS-TCL-2876 | 1x, WD 330 mm, 2/3", C-Mount | 19.3 | 2/3" | 1.0 | $1,239.00 | View |
| LS-TCL-2879 | 1x, WD 510 mm, 2/3", C-Mount | 17.0 | 2/3" | 1.0 | $1,239.00 | View |
| LS-TCL-2868 | 1x, WD 65 mm, 2/3", C-Mount | 7.5 | 2/3" | 1.0 | $1,239.00 | View |
| LS-TCL-2883 | 1.5x, WD 110 mm, 2/3", C-Mount | 6.2 | 2/3" | 1.5 | $1,239.00 | View |
| LS-TCL-2884 | 1.5x, WD 110 mm, 2/3", C-Mount | 6.2 | 2/3" | 1.5 | $1,239.00 | View |
| LS-TCL-2885 | 1.5x, WD 135 mm, 2/3", C-Mount | 6.2 | 2/3" | 1.5 | $1,239.00 | View |
| LS-TCL-2886 | 1.5x, WD 135 mm, 2/3", C-Mount | 6.2 | 2/3" | 1.5 | $1,239.00 | View |
| LS-TCL-2881 | 1.5x, WD 65 mm, 2/3", C-Mount | 5.6 | 2/3" | 1.5 | $1,239.00 | View |
| LS-TCL-2882 | 1.5x, WD 65 mm, 2/3", C-Mount | 5.6 | 2/3" | 1.5 | $1,239.00 | View |
| LS-TCL-2890 | 2x, WD 110 mm, 2/3", C-Mount | 6.3 | 2/3" | 2.0 | $1,239.00 | View |
| LS-TCL-2891 | 2x, WD 110 mm, 2/3", C-Mount | 6.3 | 2/3" | 2.0 | $1,239.00 | View |
| LS-TCL-2892 | 2x, WD 110 mm, 2/3", C-Mount | 6.3 | 2/3" | 2.0 | $1,239.00 | View |
| LS-TCL-2893 | 2x, WD 110 mm, 2/3", C-Mount | 6.3 | 2/3" | 2.0 | $1,239.00 | View |
| LS-TCL-2888 | 2x, WD 65 mm, 2/3", C-Mount | 4.5 | 2/3" | 2.0 | $1,239.00 | View |
| LS-TCL-2889 | 2x, WD 65 mm, 2/3", C-Mount | 4.5 | 2/3" | 2.0 | $1,239.00 | View |
| LS-TCL-2873 | 1x, WD 180 mm, 1/2", C-Mount | 6.2 | 1/2" | 1.0 | $1,379.00 | View |
| LS-TCL-2874 | 1x, WD 180 mm, 1/2", C-Mount | 6.2 | 1/2" | 1.0 | $1,379.00 | View |
| LS-TCL-2877 | 1x, WD 410 mm, 1/2", C-Mount | 12.3 | 1/2" | 1.0 | $1,379.00 | View |
| LS-TCL-2878 | 1x, WD 410 mm, 1/2", C-Mount | 12.3 | 1/2" | 1.0 | $1,379.00 | View |
| LS-TCL-2880 | 1x, WD 510 mm, 1/2", C-Mount | 17.0 | 1/2" | 1.0 | $1,379.00 | View |
| LS-TCL-2841 | 0.4x, WD 323 mm, 1.1", C-Mount | 12.1 | 1.1" | 0.4 | $1,619.00 | View |
| LS-TCL-2839 | 0.3x, WD 110 mm, 1/1.8", C-Mount | 20.1 | 1/1.8" | 0.3 | $1,739.00 | View |
| LS-TCL-2840 | 0.3x, WD 110 mm, 1/1.8", C-Mount | 20.1 | 1/1.8" | 0.3 | $1,739.00 | View |
| LS-TCL-2887 | 0.18x, WD 150 mm, 2/3", C-Mount | 31.25 | 2/3" | 0.18 | $2,139.00 | View |
