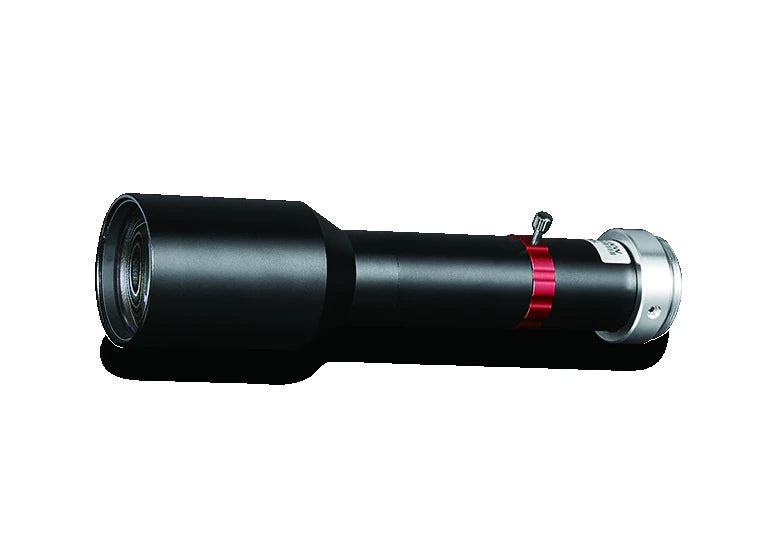

Megapixel telecentric lens, 0.8x, WD 130 mm, 2/3", C-mount, 117.1 mm long (LS-TCL-2863)
  • Megapixel telecentric lens, 0.8x, WD 130 mm, 2/3", C-mount, 117.1 mm long (LS-TCL-2863)

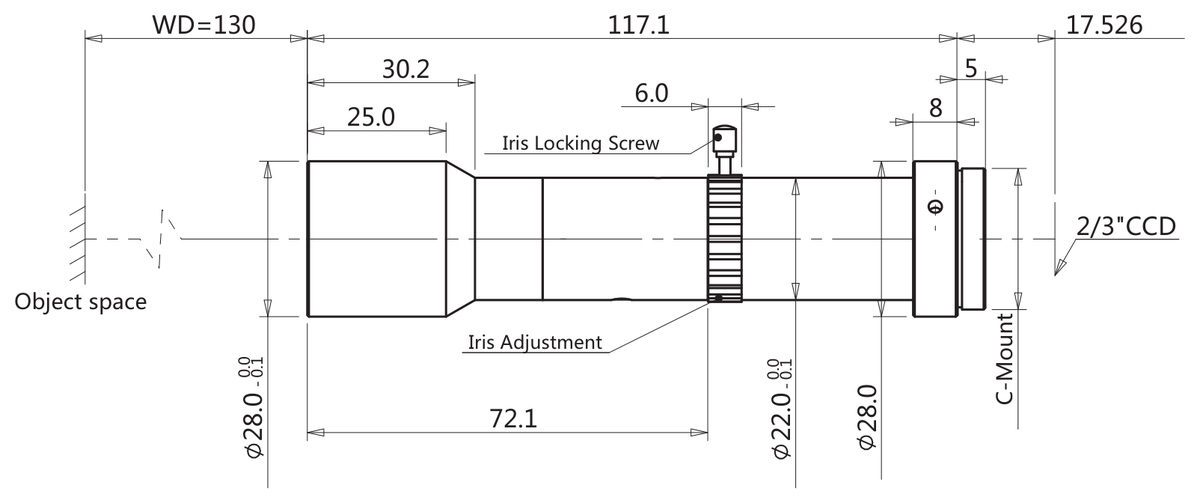

  • LS-TCL-2863 dimensions (mm)

Telecentric lenses

Megapixel telecentric lens, 0.8x, WD 130 mm, 2/3", C-mount, 117.1 mm long, yes iris (LS-TCL-2863)

Model LS-TCL-2863

  • Magnification0.8x
  • MountC-mount
  • Sensor2/3"
  • Working distance130±2 mm
  • Aperture12.6
  • Resolution10.6
$1,199.00

Ships in 2-3 weeks

0.58 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Megapixel telecentric lens, 0.8x, WD 130 mm, 2/3", C-mount, 117.1 mm long, yes iris (LS-TCL-2863)LS-TCL-2863

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

LS-TCL-2863: magnification 0.8x, working distance 130±2 mm, NA 0.0316, depth of field 1.6 mm, length 117.1 mm.

Megapixel 'object side' telecentric lens with a compact design and coaxial illumination options; high contrast, low distortion and high resolution, with optional adjustable iris and long working distance versions over 500 mm.

  • Tracked worldwide shippingTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; no restocking fee
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2863
NA0.0316

Optics

Working distance (mm)130±2
Aperture (F/#)12.6
Distortion typical (max) (%)0.42
MTF30 (lp/mm)65
Depth of field (mm)1.6
Field of view with ICX625/655 (8.47x 7.10 sensor) (mm x mm)10.6x8.9
Coaxial lightNo
IrisYes
Magnification (x)0.8
Telecentricity typical (max) (deg)<0.17

Sensor and imaging

Sensor format2/3"
Max sensor size (dia. mm)11.0
Resolution (μm)10.6

Mechanical

MountC
Length (mm)117.1
Shipping weight0.58 kg

Engineering data

Field of view with the LS-TCL-2863

Worked out from this lens's own magnification and image circle: the field it sees on each sensor format.

Image circleØ 11 mmCovers sensors up to 2/3"
Magnification0.8×
Working distance130 mmDepth of field 1.6 mm
Distortion0.42 %
Total length117.1 mm
NA0.0316
MTF65 lp/mmat 30 % contrast
Field of view (width × height) by sensor format
Sensor format0.8×
1/2.9"4.98 × 3.74 mm6.2 × 4.7 mm
1/2"6.4 × 4.8 mm8 × 6 mm
1/1.8"7.07 × 5.3 mm8.8 × 6.6 mm
2/3"8.45 × 7.07 mm10.6 × 8.8 mm

Field of view = sensor size ÷ magnification. Sensor sizes are typical for each optical format.
