Megapixel telecentric lens, 1x, WD 330 mm, 2/3", C-Mount, 199.7 mm long (LS-TCL-2875)

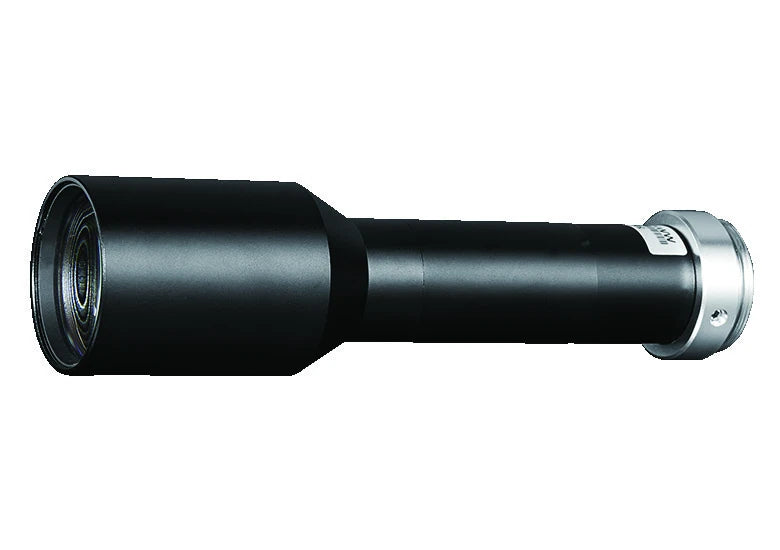

  • Megapixel telecentric lens, 1x, WD 330 mm, 2/3", C-Mount, 199.7 mm long (LS-TCL-2875)
  • LS-TCL-2875 dimensions (mm)

Telecentric lenses

Megapixel telecentric lens, 1x, WD 330 mm, 2/3", C-Mount, 199.7 mm long (LS-TCL-2875)

Model LS-TCL-2875

  • Magnification1.0x
  • MountC-mount
  • Sensor2/3"
  • Working distance330±3
  • Aperture28.6
  • Resolution19.3
$1,239.00

Ships in 2-3 weeks

0.56 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Megapixel telecentric lens, 1x, WD 330 mm, 2/3", C-Mount, 199.7 mm long (LS-TCL-2875)LS-TCL-2875

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Megapixel 'object side' telecentric lens with a compact design and coaxial illumination options; high contrast, low distortion and high resolution, with optional adjustable iris and long working distance versions over 500 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2875
NA0.0174

Optics

Working distance (mm)330±3
Aperture (F/#)28.6
Distortion typical (max) (%)0.32
MTF30 (lp/mm)30
Depth of field (mm)2.3
Coaxial lightNo
IrisNo
Magnification (x)1.0
Telecentricity typical (max) (deg)<0.1
Field of view with ICX625/655 (8.47x 7.10 sensor) (mm x mm)8.5x7.1

Sensor and imaging

Max sensor size (dia. mm)11.0(2/3")
Resolution (μm)19.3
Sensor format2/3"

Mechanical

MountC
Length (mm)199.7
Shipping weight0.56 kg
