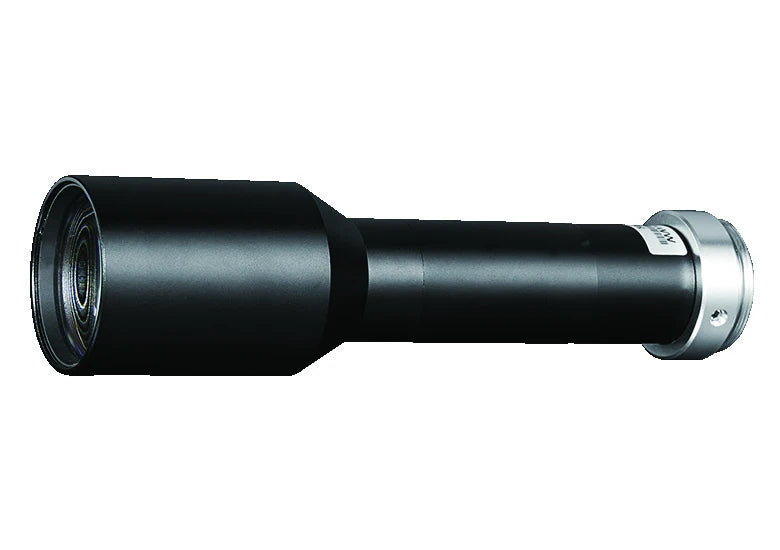

Megapixel telecentric lens, 1.5x, WD 65 mm, 2/3", C-Mount (LS-TCL-2881)
  • Megapixel telecentric lens, 1.5x, WD 65 mm, 2/3", C-Mount (LS-TCL-2881)

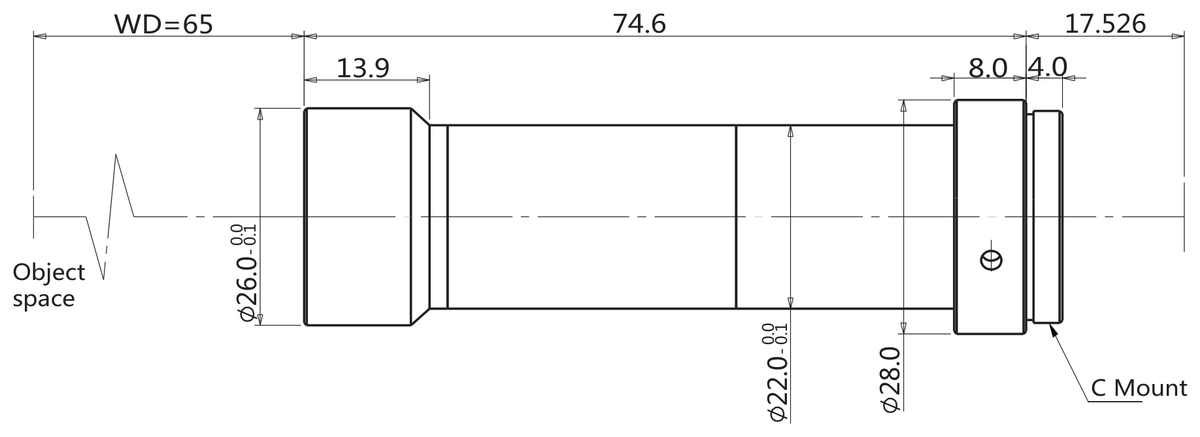

  • LS-TCL-2881 dimensions (mm)

Telecentric lenses

Megapixel telecentric lens, 1.5x, WD 65 mm, 2/3", C-Mount (LS-TCL-2881)

Model LS-TCL-2881

  • Magnification1.5x
  • MountC-mount
  • Sensor2/3"
  • Working distance65±1
  • Aperture12.5
  • Resolution5.6
$1,239.00

Ships in 2-3 weeks

0.52 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Megapixel telecentric lens, 1.5x, WD 65 mm, 2/3", C-Mount (LS-TCL-2881)LS-TCL-2881

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Megapixel 'object side' telecentric lens with a compact design and coaxial illumination options; high contrast, low distortion and high resolution, with optional adjustable iris and long working distance versions over 500 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2881
NA0.06

Optics

Working distance (mm)65±1
Aperture (F/#)12.5
Distortion typical (max) (%)0.5
MTF30 (lp/mm)65
Depth of field (mm)0.4
Coaxial lightNo
IrisNo
Magnification (x)1.5
Telecentricity typical (max) (deg)<0.1
Field of view with ICX625/655 (8.47x 7.10 sensor) (mm x mm)5.7x4.7

Sensor and imaging

Max sensor size (dia. mm)11.0(2/3")
Resolution (μm)5.6
Sensor format2/3"

Mechanical

MountC
Length (mm)74.6
Shipping weight0.52 kg

Other models in the Megapixel telecentric lens (LS-TCL-S91) series

See all 57 models
ModelSize / key dataPriceAvailabilityLink
LS-TCL-2869 1x, WD 110 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2870 1x, WD 110 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2871 1x, WD 110 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2872 1x, WD 110 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2875 1x, WD 330 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2876 1x, WD 330 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2879 1x, WD 510 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2868 1x, WD 65 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2883 1.5x, WD 110 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2884 1.5x, WD 110 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2885 1.5x, WD 135 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2886 1.5x, WD 135 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2882 1.5x, WD 65 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2890 2x, WD 110 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2891 2x, WD 110 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2892 2x, WD 110 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2893 2x, WD 110 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2888 2x, WD 65 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2889 2x, WD 65 mm, 2/3", C-Mount $1,239.00 Ships in 2-3 weeks View
LS-TCL-2873 1x, WD 180 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
LS-TCL-2874 1x, WD 180 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
LS-TCL-2877 1x, WD 410 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
LS-TCL-2878 1x, WD 410 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
LS-TCL-2880 1x, WD 510 mm, 1/2", C-Mount $1,379.00 Ships in 2-3 weeks View
