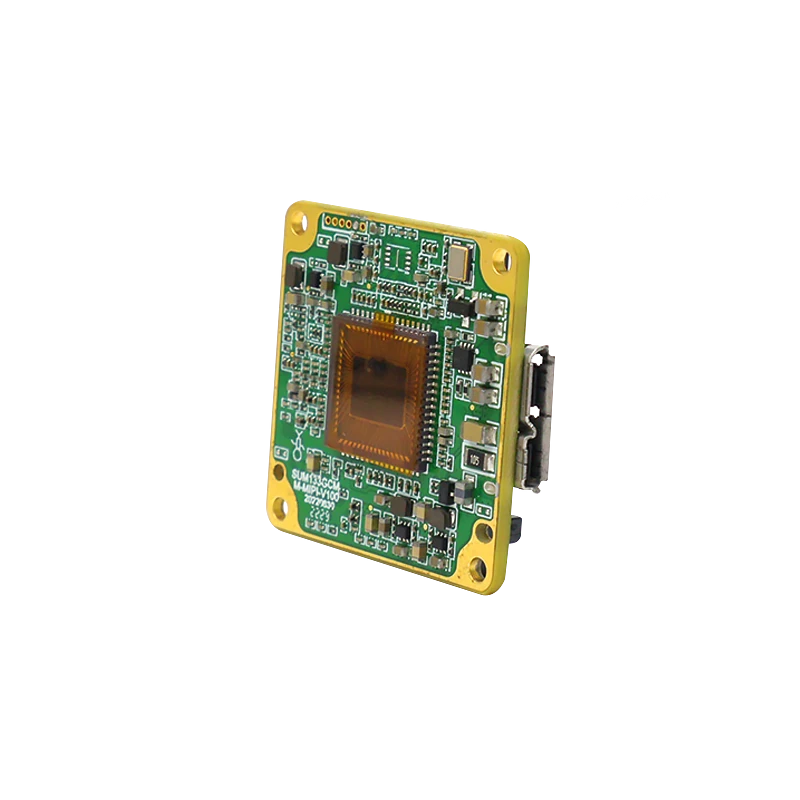

USB3.0 board camera / module, 1.3 MP, USB3, Color (LS-BCM-0046)

Model LS-BCM-0046

Resolution1280x1024
InterfaceUSB3.0 MicroB
Speed221.25
Lens mountC-mount
Pixel size4 μm BSI

$179.00

Ships in 2-3 weeks

0.2 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

USB3.0 single board modules designed to be compatible with the USB3 Vision and GenICam standards and with LabVIEW, Halcon, VisionPro and other mainstream vision software. Applicable to electronics, semiconductor, factory automation, food and beverage, medical packaging and image measurement.

Same-day shipping on stock itemsTracked UPS or DHL
3-year warranty, minimumCovers defects in materials and workmanship
Expert machine-vision support includedFrom our engineering team, incl. a licensed P.E.
Volume discounts and Net 30For approved business accounts; purchase orders welcome
90-day returnsUnused items, counted from delivery; free US return label; restocking fee up to 15% may apply
Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

Model	LS-BCM-0046
Acquisition mode	Continuous / soft trigger / hard trigger
Frame cache	128MB
User-defined data	2KB
Driver	DirectShow component Halcon special component LabVIEW special driver OCX component Twain component
Programming language pack	C/C++/C#/VB6/VB.NET/Delphi/BCB/Python/Java
Other functions	Support any size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, etc.
Suffix options	T-B: module (bare board), Recommended; -T-C: C-Mount, Recommended; -T-M: M12-Mount, Recommended
Sensitivity	8V/Lux·s
Frame buffer	128MB
Camera custom data	2KB
Drivers	Directshow component Halcon Dedicated Component Labview Dedicated Driver OCX Component TWAIN component
Programming language package	Support arbitrary size ROI custom resolution, contrast and gamma adjustment, saturation adjustment, white balance correction, black level correction, custom dead point coordinate correction, ISP image processing acceleration, 3D noise reduction, custom LUT table, frame rate adjustment, custom camera name, and more

Sensor and imaging

Effective pixels	1.3MP
Sensor	CMOS
Shutter	Global
Max resolution	1280x1024
Pixel size	4 μm BSI
Frame rate (FPS)	221.25
Maximum gain	6
Exposure time range (ms)	0.0043~35.2
Sensor	1/2.7"CMOS
Resolution	1.3MP
Frame rate	[email protected]
Output pixel width	8 bits
Exposure time (ms)	0.0043~35.2
SNR	40dB

Interfaces and I/O

Lens interface	Veneer (bare board) / C-Mount / M12
Visual standards protocol	USB3.0Vision, GenICam
Data interface	USB3.0 MicroB
GPIO	2 bidirectional IO, each IO has input or output function, which can be configured as input/output/trigger/flash in IO control
Connector pinout (Port A)	1 Red NC; 2 Black GND (GPIO common port); 3 Yellow GPIO1+ (bidirectional IO 1, default trigger); 4 Green GPIO2+ (bidirectional IO 2, default flash mode)
Video output format	Bayer BG 8bit / Mono 8bit

Light

Color	Color
Color/Mono	Color/Mono
Mono / colour	Color

Environment and compliance

Operating temperature @ humidity	0~50℃ @ 20%~80% (no condensation)
Storage temperature @ humidity	-30~60℃ @ 20%~95% (no condensation)
Temperature	Working temperature:0~50° Storage temperature:-30~60°

Computing

Operating system	WIINXP, WIN7/8/10 32@64 Bit system, Linux and arm linux driver, Android platform driver, Mac OS System

Electrical

Power supply	5V
Trigger mode	Continuous/software triggered/hardware triggered
Power	<2W
Voltage	5V

Mechanical

Weight	Veneer: <10g; C-Mount/M12-Mount: <30g

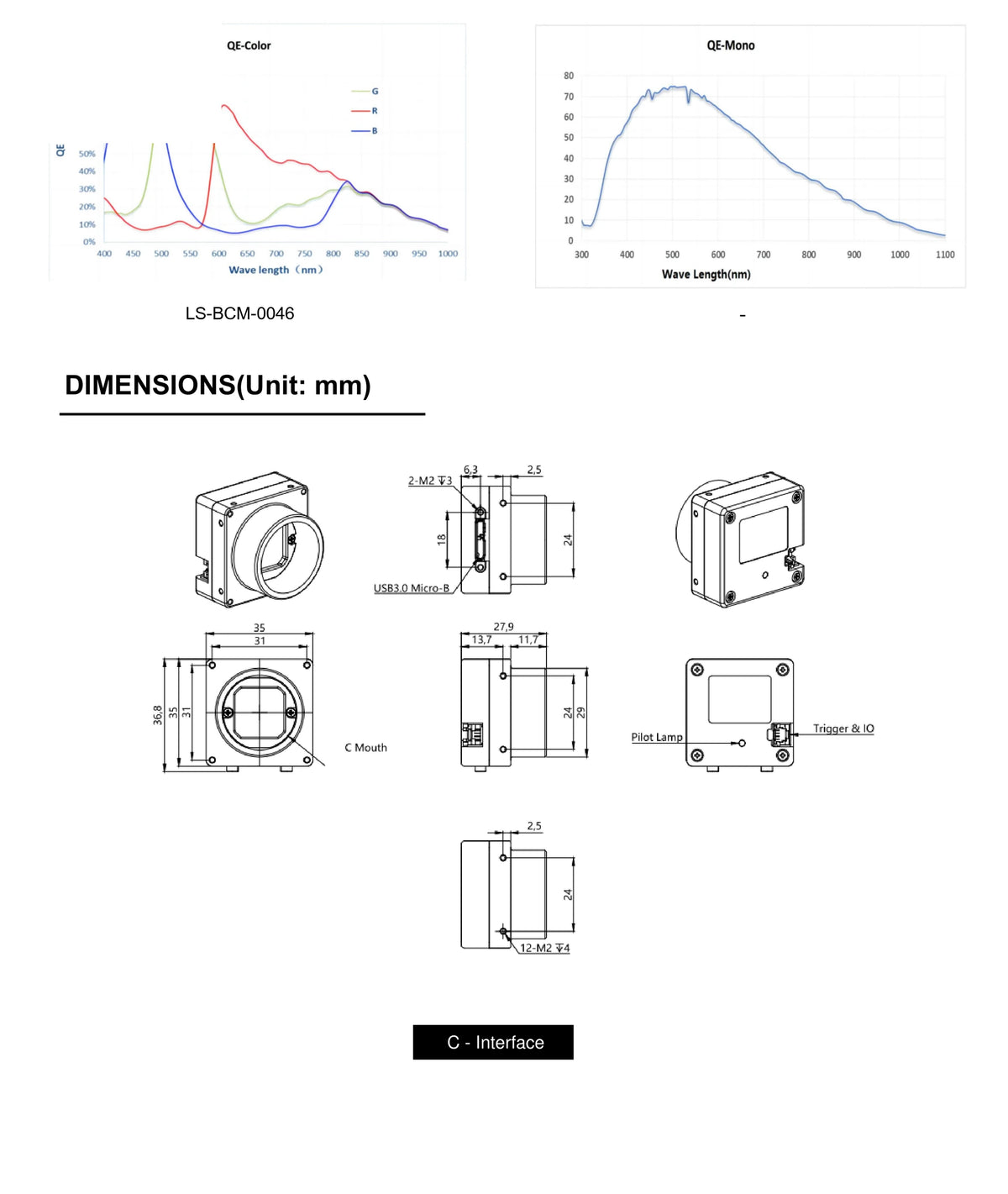

Overall dimension	C-Mount/M12-Mount: 35x35x8.6mm (without lens holder and external interface); Veneer: 32.5x32.5x1.6mm (without sensor and external interface)
Target size	1/2.7"
AD width	10bit
Lens mount	B
Dimensions	35x36.8x27.9mm (excluding lens base and rear shell interface)

Downloads

Datasheet (PDF)LS-BCM-0046 · 1.8 MB

Features

Single board design, small size, ultra-thin
Embedded system integration is more convenient and integrated
Supports 16bit gray and 48bit color lossless format output
Multiple options: single board / C interface / M12 interface
Programmable IO, supports external trigger and flash synchronous photography
Supports PC Linux and ARM Linux, can be integrated into embedded devices
Compatible with vision protocols; works with Halcon, VisionPro, LabVIEW and other vision software
Comes with programmable IO.
Supports 16bit mono and 48bit color lossless format output.
Multiple options are available:single board,C interface,M12 interface.
Supports PC Linux system and ARM Linux system.
Compatible with Vision protocol and other brand vision software.

Applications

Electronics
Semiconductor
Factory automation
Food and beverage
Medical packaging
Image measurement
