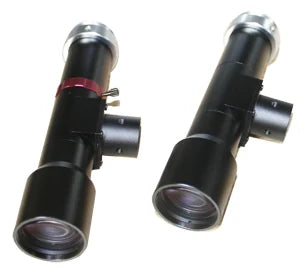

Megapixel telecentric lens, 0.5x, WD 510 mm, 1/2", C-Mount, 166.3 mm long (LS-TCL-2851)
  • Megapixel telecentric lens, 0.5x, WD 510 mm, 1/2", C-Mount, 166.3 mm long (LS-TCL-2851)

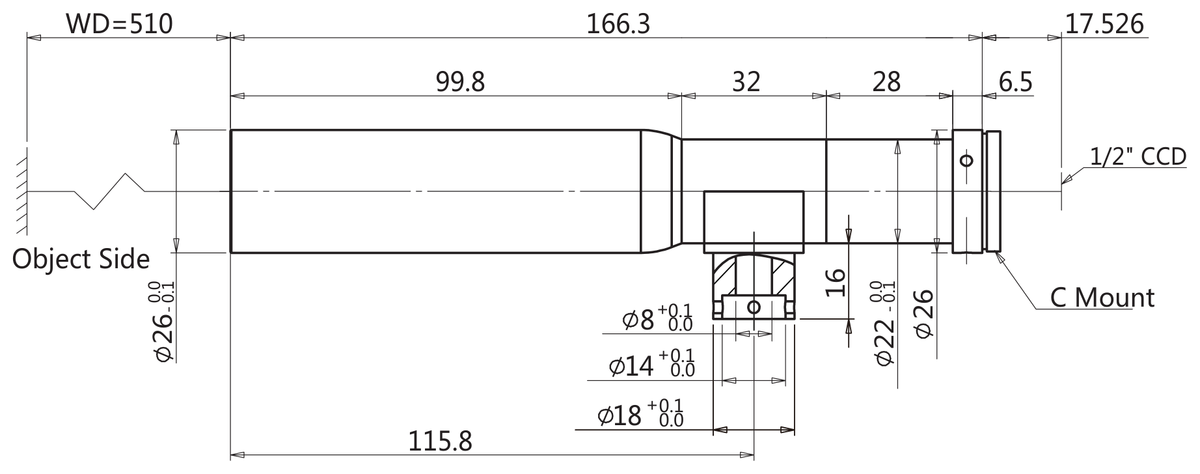

  • LS-TCL-2851 dimensions (mm)

Telecentric lenses

Megapixel telecentric lens, 0.5x, WD 510 mm, 1/2", C-Mount, 166.3 mm long (LS-TCL-2851)

Model LS-TCL-2851

  • Magnification0.5x
  • MountC-mount
  • Sensor1/2"
  • Working distance510±3
  • Aperture14.2
  • Resolution19.3
$1,109.00

In stock - ships the same business day (5 available, order by 2 PM ET)

0.62 kg shipping weight

Volume pricing, Net 30 terms or a formal quote for purchasing?

Request a quote

Megapixel telecentric lens, 0.5x, WD 510 mm, 1/2", C-Mount, 166.3 mm long (LS-TCL-2851)LS-TCL-2851

Price, lead time and volume pricing by email, usually within one business day.

Add phone, delivery date or notes (optional)

No account needed. We reply within one business day.

Megapixel 'object side' telecentric lens with a compact design and coaxial illumination options; high contrast, low distortion and high resolution, with optional adjustable iris and long working distance versions over 500 mm.

  • Same-day shipping on stock itemsTracked UPS or DHL
  • 3-year warranty, minimumCovers defects in materials and workmanship
  • Expert machine-vision support includedFrom our licensed P.E. engineers
  • Volume discounts and Net 30For approved business accounts; purchase orders welcome
  • 90-day returnsUnused items; free return label in the US
  • Secure checkout by ShopifyCard, PayPal, Shop Pay or Google Pay

Specifications

General

ModelLS-TCL-2851
NA0.0174

Optics

Working distance (mm)510±3
Aperture (F/#)14.2
Distortion typical (max) (%)0.3
MTF30 (lp/mm)60
Depth of field (mm)4.5
Coaxial lightYes
IrisNo
Magnification (x)0.5
Field of view with 9M001 (6.66x5.33 sensor) (mm x mm)13.3x10.7
Field of view with ICX267/205 (6.47x4.84 sensor) (mm x mm)12.9x9.7

Sensor and imaging

Max sensor size (dia. mm)8.0(1/2")
Resolution (μm)19.3
Sensor format1/2"

Mechanical

MountC
Length (mm)166.3
Shipping weight0.62 kg
